From Molecular Genetics to Phylodynamics: Evolutionary Relevance of Mutation Rates Across Viruses

Summary

Although evolution is a multifactorial process, theory posits that the speed of molecular evolution should be directly determined by the rate at which spontaneous mutations appear. To what extent these two biochemical and population-scale processes are related in nature, however, is largely unknown. Viruses are an ideal system for addressing this question because their evolution is fast enough to be observed in real time, and experimentally-determined mutation rates are abundant. This article provides statistically supported evidence that the mutation rate determines molecular evolution across all types of viruses. Properties of the viral genome such as its size and chemical composition are identified as major determinants of these rates. Furthermore, a quantitative analysis reveals that, as expected, evolution rates increase linearly with mutation rates for slowly mutating viruses. However, this relationship plateaus for fast mutating viruses. A model is proposed in which deleterious mutations impose an evolutionary speed limit and set an extinction threshold in nature. The model is consistent with data from replication kinetics, selection strength and chemical mutagenesis studies.

Introduction

Mutations result from biochemical processes such as replication errors, editing, or nucleic acid damage, but their spread and fixation is a population-genetics process that takes place over much broader scales. Remarkably, the neutral theory of molecular evolution posits that the mutation rate should be the sole determinant of molecular evolution rates [1], and adaptation theory also assigns a central role to mutation [2], [3]. However, it is unclear to what extent this direct association between mutation and evolution holds true in nature because a variety of complex selective, ecological and demographical factors can potentially affect the evolutionary process at the molecular level [2], [4], [5]. Viruses offer an excellent system for addressing this question because their evolution is fast enough to be measured directly from isolates collected within timescales of years [6] and their mutation rates vary by several orders of magnitude [7]. The viral mutation rate has been shown to determine pathogenesis [8], [9], the risk of drug resistance [10], vaccine efficacy [11], [12], the success of antiviral treatments [13]–[15], or the likelihood of emergence of new diseases [16], [17]. It is also known that most RNA viruses evolve extremely fast owing to their high mutation rates, which in turn are explained biochemically by the absence of proofreading or repair mechanisms [5], [15]. However, our current knowledge of the evolutionary consequences of viral mutation is mainly qualitative or restricted to a small subset of viruses.

By undertaking a systematic quantitative analysis, this work shows that the evolution rates of major viral groups in nature are consistent with mutation rate estimates obtained under controlled laboratory conditions. The size, polarity and number of genome strands are identified as major determinants of viral mutation and evolution. According to a purely neutral model, the evolution rate should increase linearly with the mutation rate, and this prediction is confirmed for viruses with relatively low mutation rates. However, evolution rates increase less than linearly as mutation rates become higher. A model in which the fitness load imposed by transient deleterious mutations retards molecular evolution is proposed, and the inferred parameters are tested using data from site-directed mutagenesis studies and other sources of evidence. This model predicts that further increases of the mutation rate would have a negative impact on viral evolution and suggests that RNA viruses replicate near an extinction threshold in nature.

Results/Discussion

Variation in mutation and evolution rates across viruses

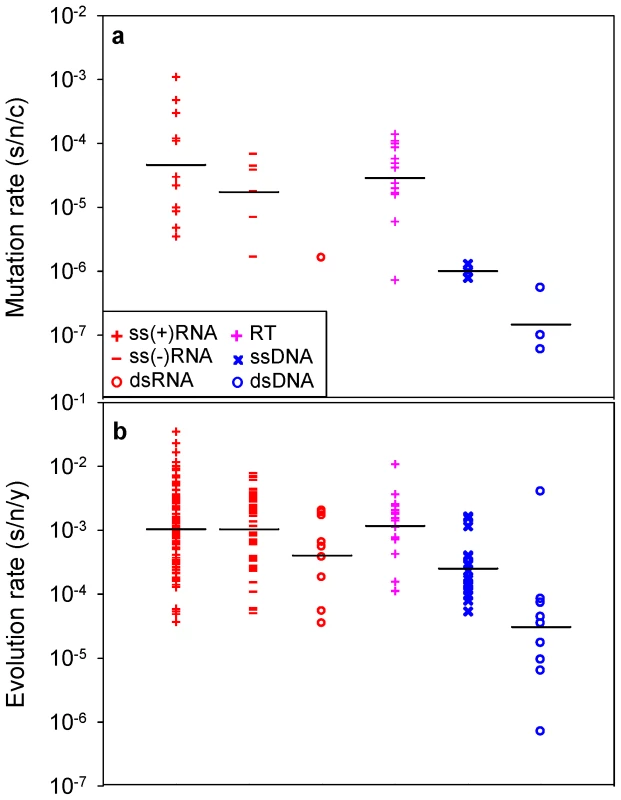

A recent compilation of experimentally-determined mutation rates yielded 37 standardized estimates for 23 viruses [7]. These rates range from 10⁻⁸ to 10⁻³ substitutions per nucleotide site per cell infection (s/n/c) and vary significantly among the major groups defined by the Baltimore classification of viruses (Figure 1a; nested ANOVA: P = 0.002). For evolution rates, 223 estimates corresponding to 84 different viruses were collected (Text S1), all of which were obtained using Bayesian analysis of dated sequences [18] and after validation of the molecular clock. This methodological consistency is critical to make reliable comparisons since evolution rates can vary strongly depending on the estimation procedure [19], [20]. The collected evolution rates range from 10⁻⁶ to 10⁻² substitutions per nucleotide site per year (s/n/y) and also vary significantly among Baltimore groups (Figure 1b; nested ANOVA: P<0.001). The fastest evolution corresponds to single-stranded (ss) RNA and reverse-transcribing (RT) viruses, followed by double stranded (ds) RNA and ssDNA viruses, whereas dsDNA viruses evolve more slowly on average (Tukey's post-hoc test: P<0.05). This confirms the well-known difference between RNA and DNA viruses [5], [15] and, further, demonstrates that single-stranded viruses tend to evolve faster than double-stranded viruses regardless of whether their genetic material is RNA or DNA (two-way nested ANOVA excluding RT viruses: P<0.001). Among the seven viruses for which both mutation and evolution rates have been determined, these correlate positively (Figure 2a; Pearson r = 0.813, P = 0.026). Furthermore, when averages are calculated for each Baltimore group using all available estimates, mutation and evolution rates show a strongly positive correlation (Figure 2b; r = 0.946, P = 0.004).

Evolutionary basis for the correlation between mutation and evolution rates

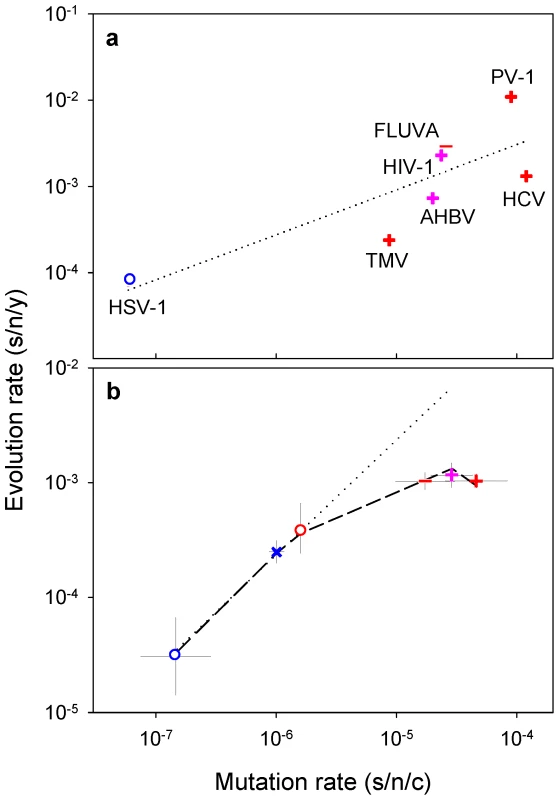

Consider first a purely neutral model in which the evolution rate K is proportional to the mutation rate μ [1]. Therefore, , or equivalently, , log-scales being here more appropriate for model fitting because the data range several orders of magnitude. Notice that the model specifically predicts that the linear relationship between log K and log μ has slope 1.0. The value of a depends on the number of cell infection cycles (generations) per year (g) and on the fraction of effectively neutral mutations (α) such that . For viruses with relatively low mutation rates (dsDNA, ssDNA and dsRNA viruses), this model fits the data accurately (r² = 0.995, Figure 2b), yielding log₁₀ a = 2.37±0.02 (SEM). This is in full agreement with the neutral theory, although adaptive evolution may produce a similar pattern in some cases [2]. However, K increases less than linearly with μ for the fastest mutating viruses (ssRNA an RT viruses) and the overall fit of the above model is poor (r² = 0.432). Because transient deleterious mutations are highly abundant in RNA virus populations [21], the spread and fixation of mutations should be slowed down by the presence of deleterious mutations elsewhere in the genome. Specifically, the expected fraction of individuals not carrying these mutations is , where G is genome size and s_H the harmonic mean of selection coefficients [3]. Taking this into account, the predicted evolution rate becomes , with and . This modification strongly improves the model (Figure 2b; r² = 0.995; partial F-test: P<0.001), yielding log₁₀ a = 2.387±0.027 and b = 3.744±0.172. Therefore, short-lived deleterious mutations appear to play a key role is setting the rate of molecular evolution in RNA viruses. Although this effect concerns mainly neutral evolution, it should also be relevant to models of adaptation [3].

The inferred values for parameters a and b are consistent with independent sources of evidence. Site-directed mutagenesis studies in which the fitness effects of point mutations were determined for tobacco etch virus [22], bacteriophage Qβ [23] and vesicular stomatitis virus [24] (three ssRNA viruses) gave α≈0.27 and s_H values ranging from 0.172 to 0.338 (Text S1). Using allows us to obtain an estimate of b which ranges from 1.475 to 5.177 and includes the value b = 3.744 inferred above. However, the interval is relatively wide and thus does not provide a very stringent test of the model. Additionally, although the three viruses belong to different families and infect widely different hosts, some caution is granted because the estimated s_H was based on three species only. Concerning parameter a, if we again assume α = 0.27 the estimated number of cell infection cycles per year averaged across viruses is . This is equivalent to one cell infection every 10 h, which is a realistic value for a variety of actively replicating eukaryotic viruses [25]–[28]. Therefore, the above model linking mutation and evolution rates is in broad agreement with empirical evidence from quantitative replication kinetics, selection strength and chemical mutagenesis studies.

An extinction threshold in nature

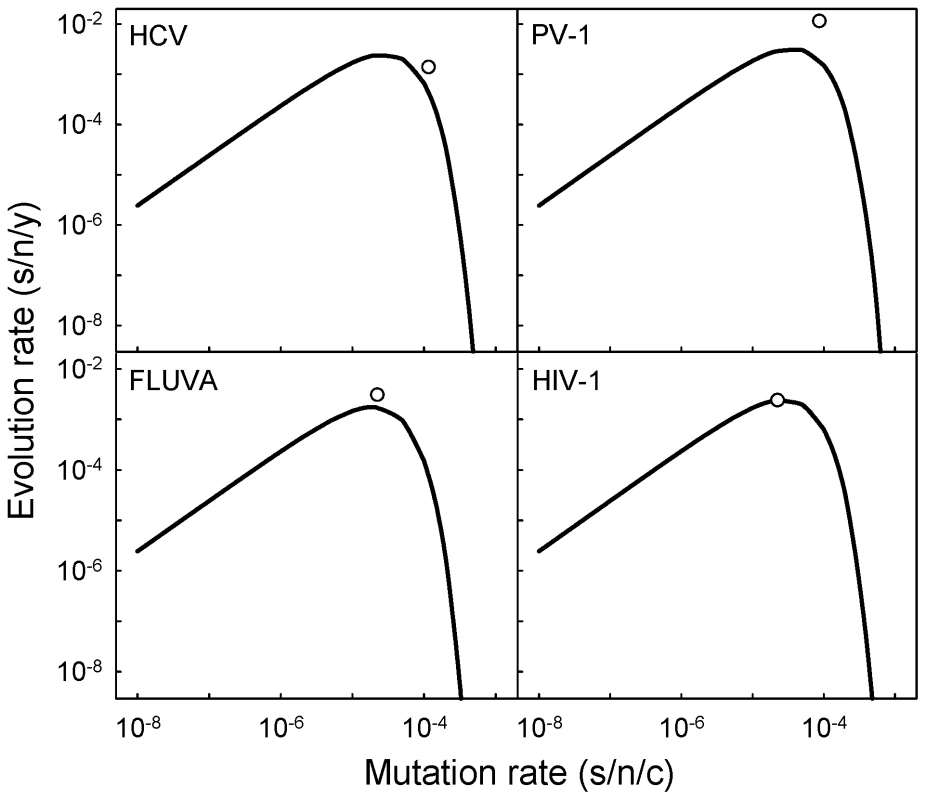

Previous experimental work has shown that slight elevations of the mutation rate (on the order of threefold) can lead to drastic fitness losses in a variety of ssRNA and RT viruses and often achieve mutagenesis-induced population extinction in the laboratory, suggesting a possible antiviral strategy [13]–[15]. However, evidence showing the relevance of these observations in natural populations has remained elusive. The above model predicts that the rate of evolution should be maximal when the genomic mutation rate is (i.e. when ), and then decays exponentially. The mean genomic mutation rates of ss(+)RNA viruses (0.663±0.417), ss(−)RNA viruses (0.372±0.124) and RT viruses (0.445±0.116) are slightly higher but not significantly different from this value (one-sample t-tests: P≥0.150), implying that these viruses replicate close to the optimal mutation rate. However, this also means that further increases of the mutation rate would actually reduce the evolution rates of these viruses in nature and potentially endanger their survival. For instance, on average, a threefold increase in the mutation rate of ss(+)RNA viruses would produce a 48-fold evolutionary slowdown. Figure 3 shows the predicted relationship between mutation and evolution rates for hepatitis C virus, poliovirus 1, influenza A virus, and human immunodeficiency virus 1, four well-studied human viruses.

Correlation between genome size, mutation rate, and evolution rate

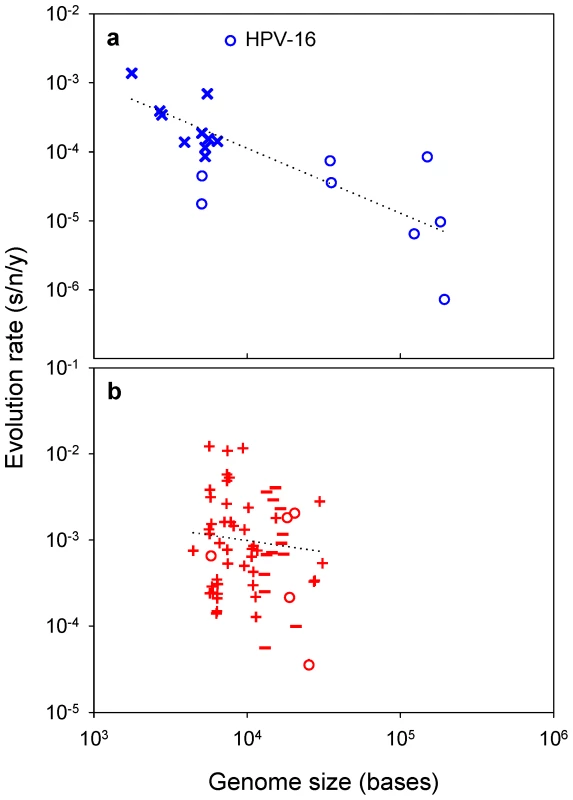

Drake's rule establishes that the genomic mutation rate is approximately constant across DNA microorganisms (including viruses) and equal to 0.003 substitutions per generation [29], [30]. Since μ≈0.003/G, it is possible to use G as an inverse correlate of μ to further test the association between mutation and evolution rates. If mutation rates determine evolution, DNA viruses with small genomes should tend to evolve faster than those with large genomes. Confirming this prediction, the evolution rates of 19 different DNA viruses correlate negatively with their genome sizes (Figure 4a; partial r = −0.707, P = 0.001) and, importantly, this correlation remains significant after accounting for the fact that ssDNA viruses usually have smaller genomes than dsDNA viruses (partial r = −0.551, P = 0.022). A linear regression of the form gives m = −0.906±0.216 and p = −0.349±0.890. The estimate of m does not deviate significantly from 1.0 (t-test: P = 0.667), further supporting the linear relationship between K and μ shown above for slowly-mutating viruses. An apparent outlier is the human papillomavirus (HPV) 16, which evolves faster than expected from its genome size. However, this rate was obtained from sequences sampled only three years apart, and there is a known tendency for evolution rate estimates to become inflated in the short-term [20]. Indeed, the HPV-16 estimate and those for varicella zoster and human adenovirus C are considered unreliable [31]. Small dsDNA viruses (HPV-16 and two polyomaviruses) are also problematic because their mutation rates have not been determined and there is little consensus about their evolution rates [31]. However, supporting the robustness of the results, the above correlations remain unaffected or even improve after removing these five viruses (r = −0.791, P = 0.001 and r = −0.629, P = 0.029, respectively).

Concerning RNA viruses, recent work suggests that there may also be an inverse relationship between mutation rates and genome sizes, although less evident than for DNA viruses [7] probably because their narrower genome size range makes it more difficult to demonstrate this association. Interestingly, genome sizes and evolution rates also correlate negatively among RNA viruses [32], yet this correlation is much weaker than for DNA viruses (Figure 4b; partial correlation excluding RT viruses: r = −0.267, P = 0.038).

Other factors determining viral evolution

Several factors can determine viral evolution in addition to the mutation rate. For instance, viruses undergoing fewer replication cycles per time unit should evolve more slowly, and this appears to be the case of water- or vector-borne viruses which spend longer periods of inactivity than directly transmitted viruses [32], [33]. In latently integrated retroviruses, viral replication is carried out by the host machinery, thus reducing dramatically the mutation rate compared to actively replicating viruses. This can explain why a very low rate of evolution was inferred for foamy virus based on a well-supported host-virus co-speciation pattern [34]. Similar results have been obtained for vertically transmitted human T-cell leukemia viruses [35] and for papilloma viruses coevolving with felids [36]. On the other hand, positive selection associated with recent host jumps or immune pressure can accelerate evolution, and a similar effect occurs in viruses experiencing strong transmission bottlenecks because this reduces the effective population size and relaxes selection against deleterious mutations [17]. Taking these factors into account and given that estimation errors are usually large, it is not surprising that mutation and evolution rates show considerable scatter, and that their relationship becomes evident only after averaging large and comparable datasets.

Another necessary caveat is that time-structured sequence data spanning years or decades often contain short-lived polymorphisms. Among other factors, this explains why evolution rates inferred in this manner are generally higher than those based on long-term calibration points such as co-speciation events [20], and warns against comparing rates obtained by such different methods. Although the dataset used here was based on dated samples only and was methodologically consistent, sampling timespans were inevitably variable, but this was accounted for in the statistical analysis. It was not possible to use studies based on co-speciation events for testing the model because estimates obtained in this way are not reliable for most viral types. Finally, a potential methodological pitfall is that some viral species and families have been more extensively studied than others, thus introducing sampling bias. A more robust analysis consists of giving the same weight to all species and families, independent of the number of estimates available for each. This alternative averaging method gave very similar results (see Methods for details).

Conclusion

The classical notion that RNA viruses are the fastest mutating and evolving entities in nature has been revised, after several recent reports showing that the evolution rates of ssDNA viruses are similarly high [5]. This is compatible with the finding that mutation and evolution rates are generally higher in single-stranded viruses than in double-stranded viruses (RNA or DNA), a possible explanation being the greater instability of single-stranded nucleic acids [37]. On the other hand, mutation and evolution rates appear to vary smoothly across viruses and, therefore, defining discrete categories may not be a helpful approach. From a broader perspective, despite the extreme diversity of viral types, the above model provides a simple and general framework for how mutation rates determine viral evolution. This generality is achieved after incorporating the impact of deleterious mutations on evolution, which should be particularly significant in ssRNA and RT viruses. The proposed model is consistent with several independent sources of evidence but, to further consolidate it, additional empirical studies will be needed. For instance, selection strength data have been obtained experimentally only for a handful of viruses. Also, the mutation rates in eukaryotic ssDNA and dsRNA viruses are largely unknown, and a similar uncertainty exists for evolution rates in bacteriophages and small dsDNA viruses. The present work provides well-defined predictions for addressing these issues in the future.

Methods

Mutation rates were taken directly from a recent meta-analysis [7]. Evolution rates were selected from the literature according to the inclusion criteria indicated in the text. For methodological consistency, estimates based on long-term virus-host co-speciation events were not used. Although co-speciation is well supported for some DNA viruses, it is not for most RNA viruses [38]. Since evolution rates are known to be time-dependent [20], inclusion of co-speciation data for DNA viruses would inflate differences between DNA and RNA viruses. Similarly, within and among host evolution rates differ systematically [39] and thus the former were not used. Estimates from the same study but corresponding to different datasets (genes or groups of sequences) were treated as independent observations, whereas those obtained from the same dataset using different methods were averaged before analysis or the best-fit value was used if available. Because raw rates ranged several orders of magnitude log-transformed data were used. Data normality was satisfied within each Baltimore category after this transformation for both mutation and evolution rates (Kolmogorov-Smirnov tests: P≥0.258).

In ANOVA and correlation tests, the sampling timespan was used as a covariate to account for evolution rate time-dependency. Mean rates for each Baltimore category were calculated directly from individual observations. Although the Baltimore classification distinguishes between RT-DNA and RT-RNA viruses, these two groups were pooled because there were data for few species, but similar results were obtained using the full set of Baltimore groups (not shown). For model fitting, log-scale means were also used except for the μG term appearing in equation for which arithmetic means were used. For the ss(+)RNA group this mean (1.185±0.478) was strongly affected by a few extremely high estimates and thus, a previously-defined subset of more reliable estimates [7] was used instead. However, using μG = 1.185, the model with deleterious mutations also provided a significant improvement over the purely neutral model (partial F-test: P = 0.017), yielding log₁₀ a = 2.287±0.105, b = 2.116±0.449, and r² = 0.914. To account for the fact that some viral species or families were more represented than others, the analysis was repeated after calculating unweighted averages hierarchically first for each species, then for each family, then for each Baltimore group. In addition to reducing bias, this method accounts for phylogenetic relatedness (on the other hand, it increases error because of the fewer estimates available for some groups). The correlation between mutation and evolution rates was maintained (r = 0.923, P = 0.009) and the model with deleterious mutations provided again the best fit (r² = 0.961; partial F-test: P<0.001). To further test the robustness of the results, the analysis was also redone using medians instead of means. The correlation between mutation and evolution rates was r = 0.956 (P = 0.003) and, again, the model with deleterious mutations explained the data better than the purely neutral one (r² = 0.926; partial F-test: P = 0.012). In these two alternative analyses, the average μG for ss(+)RNA viruses was also calculated using the subset of more reliable estimates.
