Benign Tumours and Pseudotumours Within the Porta Hepatis Masquerading as Perihilar Cholangiocarcinoma

Summary

Background: Hilar cholangiocarcinoma (HC), also referred to as Altemeier-Klatskin’s tumour, is a lethal primary extrahepatic carcinoma of biliary epithelial origin, arising within 2 cm of the hilar confluence. Radical surgical excision provides the best chance for a cure; however, the management of patients with HC is challenging not only because of the need for a high level of skill in biliary and hepatic resections, but also because of the difficulty in reaching an accurate diagnosis preoperatively. In fact, the differential diagnosis of HC is a diagnostic dilemma which is currently persisting, as modern, sophisticated diagnostic modalities are not always able to provide a definitive preoperative diagnosis. This difficulty is compounded by the fact that alternative entities that mimic HC may be present in up to 25% of patients with hilar obstruction. This makes precise preoperative characterisation of a hilar stricture extremely important by preventing unnecessary, high-risk, major surgical procedures. Therefore, alternative benign entities masquerading as Altemeier-Klatskin’s tumour deserve an important place in the differential diagnosis of hilar obstruction. Purpose: Considering the important clinical implications that a precise diagnosis of the aetiological cause of a biliary obstruction at the liver hilum would have, this paper will focus on the differentiation between HC and benign hilar obstructions and will review benign tumours and pseudotumours masquerading as HC along with their specific diagnostic features.

Keywords:

Altemeier-Klatskin’s tumour – hilar biliary stricture – misdiagnosis – benign Altemeier-Klatskin-like lesions – Klatskin-mimicking lesions

Introduction

Hilar cholangiocarcinoma (HC), also referred to as Altemeier-Klatskin’s [1,2] tumour, is a lethal primary extrahepatic carcinoma of biliary epithelial origin, arising within 2 cm of the hilar confluence. It is the second most common primary hepatic malignancy, comprising 10–25% of primary hepatic malignancies worldwide, and accounts for about 50–70% of all HCs [3,4]. Radical surgical excision of HC provides the best chance for a cure. However, the infiltrative nature and anatomic location of the tumour necessitates early diagnosis on one hand and on the other, major and challenging procedures that combine bile duct resection with hepatectomy, caudate lobectomy and/or portal vein resection, aiming at complete tumour clearance, which however entails significant morbidity [5]. Equally challenging in the management of patients with hilar biliary obstruction is the establishment of a definitive preoperative diagnosis. In fact, the differential diagnosis of HC remains a diagnostic dilemma, including a significant number of other primary malignancies, metastatic disease and benign lesions [6].

Painless jaundice with evidence of biliary obstruction is the usual clinical pattern of biliary tumours, which usually raises a strong clinical suspicion of biliary neoplasia [7]. Unfortunately, clinical and laboratory parameters related to the diag-nostic work-up of obstructive jaundice are non-specific in identifying the precise nature of its underlying cause. This diagnostic dilemma is currently persisting, as modern, sophisticated imaging modalities are not always able to provide a definitive diagnosis [8].

The difficulty in establishing a definitive diagnosis in patients with biliary obstruction at the liver hilum is further compounded by the fact that alternative entities that mimic HC may be present in up to 25% of patients with hilar obstruction [9,10]. Biopsies and/or cytology are often nondiagnostic [11], because while both intraductal biopsies and biliary brush cytology have a very high specificity of 99.2% and 99%, respectively, the sensitivity is low (48.1% and 45% respectively); however a combination of both techniques can enhance the sensitivity up to 59.4%, which is still far lower than the ideal [12]. Imaging features, although specific, cannot always definitively exclude the presence of a malignancy [9]. On the other hand, it is well documented that over 80% of hilar biliary strictures in patients with no history of previous surgery are secondary to malignancy [9]. Therefore, it is rather reasonable to consider a hilar stricture as malignant in nature until proven otherwise [13]. Despite this concept, it has to be accepted that a diagnosis based on indirect evidence would be incorrect on occasion. Notwithstanding this, a 25% rate of false diagnosis especially in complicated case of hilar obstruction is significantly high, higher than most would have expected and higher than most would have considered as occasional. In fact, according to the results of a recent large series of patients with hilar strictures, approximately 16% of patients with hilar strictures and a preoperative diagnosis of HC proved to have a benign disease [9,10,13–17]. This rate of false diagnosis cannot be overlooked, especially when misdiagnosis leads to unnecessary, high-risk surgical procedures. Therefore, alternative pathologic benign entities masquerading as Altemeier-Klatskin’s tumour in terms of clinical presentation and imaging features deserve an important place in the differential diagnosis of hilar obstruction. Whereas a malignancy requires major resections or preoperative chemoradiation followed by liver transplantation in highly selected patients [5], benign conditions usually do not require major interventions, and can usually be successfully treated with percutaneous balloon dilation [18] or endoscopic or percutaneous stent placement, in which case a biodegradable stent may be used [19].

Considering the important clinical implications that a precise diagnosis of the aetiological cause of biliary obstruction at the liver hilum would have, this paper will focus on the differentiation between HC and benign hilar obstructions and will review benign tumours and pseudotumours masquerading as HC along with their specific diag-nostic features.

Differentiation between HC and benign biliary obstruction within the porta hepatis

Hilar cholangiocarcinoma occurs most commonly during the 6^th decade of life [20] whereas a younger age favours benign causes of biliary hilar strictures. Patients with HC usually present with jaundice, abdominal discomfort and anorexia [21]. Weakness, nausea, weight loss and signs of obstructive jaundice such as pruritus, dark urine and clay-coloured stools are often present [22]. Primary sclerosing cholangitis (PSC), inflammatory bowel disease, intrahepatic stones and oriental cholangiohepatitis are among the commonly encountered comorbidities that constitute additional risk factors for the development of HC [23].

Unfortunately, both benign and malignant biliary strictures share, in general, the same clinical symptoms and signs, while bilirubin and serum tumour markers such as CA19-9, IL-6 and neutrophil gelatinase associated lipocalin do not have the power to reliably differentiate the malignant from the benign nature of a biliary stricture [10]. This notwithstanding, a detailed evaluation of the current symptoms and surgical history are of great importance in the diag-nostic work-up of patients with biliary obstruction at the liver hilum. In fact, the clinical symptoms and signs associated with serum liver enzymes and tumour markers initially contribute to the establishment of a working diagnosis. Furthermore, painless progressive jaundice combined with anorexia and weight loss favour malignancy, whereas previous biliary surgery is a significant factor that favours benignity [24]. In parallel, malignant hilar lesions often cause complete biliary obstruction, therefore patients tend to have higher levels of bilirubin and alkaline phosphatase [25].

Imaging investigations remain the cornerstone for the evaluation of the underlying cause of biliary obstruction at the liver hilum. Duplex ultrasonography (DUS) may directly depict a bile duct mass. In a series of 429 patients with obstructive jaundice, the sensitivity and specificity of DUS in localising the biliary obstruction were 94% and 96%, respectively [26]. Furthermore, in a study by Hann et al., DUS depicted the HC in 87% of patients. Of which as intra-ductal polypoid masses in 18%, as infiltrative lesions in 26% and as nodular mural thickening in 56% [27]. Recently, contrast-enhanced ultrasound based on the enhancement patterns of lesions has shown promising results in the diagnosis and differential diagnosis of HC [28]. Despite these facts, the true role of contrast-enhanced ultrasound in the differential diagnosis of hilar biliary strictures remains undefined. Additionally, the sensitivity, specificity and accuracy of DUS are operator-dependent and there are no data supporting its role in the differential diag-nosis of hilar biliary strictures. Consequently, other imaging investigations are usually needed to better clarify the exact nature of a hilar lesion.

Triple-phase, high-resolution multidetector-row computed tomography (CT) scanning plays a key role in the diagnosis of HC. According to its macroscopic type, HC appears on CT as a hyperattenuating intra-ductal mass, focal mural thickening or lumen obliteration at the hilar bile duct. Its sensitivity reaches up to 90–100% with an accuracy of 92.3–95% [29,30]. It can also help differentiate between benign and malignant strictures at the liver hilum. Vascular involvement, infiltration of second-order bile ducts, duct wall thickness > 4 mm and lobar atrophy are all indicators for cholangiocarcinoma [31]. In a study by Saluja et al., CT scanning had a sensitivity, specificity, positive predictive value, negative predictive value and diagnostic accuracy of 79.2, 79.4, 73.1, 84.4 and 79.3%, respectively, for predicting the nature of the biliary stricture at the liver hilum [15]. Rösch et al. [32] reported that the presence of a mass and lymph node enlargement > 1 cm are significant imaging features (p < 0.001 and 0.009, respectively) in determining the malignant nature of a hilar stricture. In addition, Choi et al. [33] in their retrospective analysis reported that biliary wall thickening > 1.5 mm suggestive of a mass, rim-like contrast enhancement in either the arterial or portal phase, long stricture, higher proximal dilatation and lymph node enlargement > 1 cm were significant multiphasic spiral CT findings favouring malignancy. CT scanning is also useful in detecting other malignant lesions and to evaluate alterations in the hepatic parenchyma, such as lobar atrophy, and to assess the possibility of lymph node involvement and distant metastases. CT is also useful in detecting liver and peritoneal metastases [30].

Attempting to preoperatively establish a definite tissue diagnosis and eliminate the potential to falsely conclude a benign disease, CT-guided percutaneous biopsy (fine-needle aspiration (FNA) or core needle biopsy) of a hilar lesion has been proposed as an alternative method, which may improve diagnostic sensitivity. However, this approach is technically demanding, is feasible only in patients with a depicted focal mass, and is associated with serious complications such as the risk of peritoneal seeding of cancerous cells [34]. Despite the controversy regarding the true incidence of needle-tract seeding [35], it is currently recommended to avoid biopsy of a presumed HC because of the risk of complications such as tumour seeding or bleeding [34].

Similar to CT scanning, magnetic resonance imaging (MRI) in combination with magnetic resonance cholangiopancreatography (MRCP) is an excellent diag-nostic tool for the diagnosis of HC. It provides valuable information regarding biliary ductal involvement, vascular invasion, hepatic lobar atrophy, lymph node involvement and distant metastases [36]. HC appears as a hypointense signal on T1 weighted images and high signal intensity of T2 imaging. The tumour generally appears to be hypovascular in relation to the adjacent hepatic parenchyma and may be characterised by irregular thickening of the bile duct wall with upstream dilation of intrahepatic bile ducts while MRCP enables reconstruction of the biliary network which can define the longitudinal, intraductal tumour extension with an accuracy reaching 71–96% [37]. The reported sensitivity and specificity of MRCP for the detection of bile duct malignancy are 81 and 100%, respectively [38]. Saluja et al. [15] reported that MRCP demonstrated with an accuracy of 100% the level of obstruction in patients with HC. In the same study, it was found that MRCP combined with MRI had a sensitivity of 87.5%, a specificity of 85.3%, a positive predictive value of 80.8%, a negative predictive value of 90.6% and a diagnostic accuracy of 82.7% in predicting the nature of the stricture. However, the sensitivity of MRI-MRCP in differentiating benign from malignant strictures varies widely, from 30 to 98% [39,40]. Park et al. [41] reported 81% sensitivity, 70% specificity and 76% accuracy of MRI-MRCP in differentiating malignant from benign strictures. The currently accepted MRI-MRCP criteria favouring malignant over benign hilar strictures are: irregular margin of the stricture combined with asymmetric dilatation of the biliary radicles, extended/long length stricture with abrupt tapering and the presence of a mass [15,42]. Unfortunately, CT scanning and MRI-MRCP do not allow for invasive procedures such as biopsy, biliary drainage or stent insertion; therefore, direct cholangiography is usually needed in the differential diag-nosis of biliary stricture at the hilum of the liver.

The role of positron emission tomography/computed tomography (PET/CT) in the differential diagnosis of hilar strictures remains unclear. It has a reported specificity of over 80% in detecting distant metastases, but it seemingly does not have much use in differentiating hilar strictures [43]. Studies utilising PET/CTs are limited and more studies are needed to further evaluate the benefit of this imaging modality in differentiating hilar biliary strictures.

Percutaneous transhepatic cholangiography (PTC) and endoscopic retrograde cholangiopancreatography (ERCP) are commonly used direct cholangiographic methods for the diagnosis of HC and the differential diagnosis of biliary strictures at the liver hilum. They provide a clear delineation of the biliary tree and depict precisely the location and extent of the 3 biliary obstruction. Abrupt, irregular and eccentric biliary stenosis with concomitant dilatation of the proximal biliary tree are the main features that imply malignancy. The sensitivity, specificity and accuracy of ERCP/PTC for the diagnosis of malignant biliary obstruction are 58–85%, 70–75% and 72–81%, respectively [32,41]. A significant limitation of these techniques is their invasiveness, which is associated with the risk of serious complications [29]. In particular, the PTC-related mortality ranges between 0.6 and 5.6% [42]. Another limitation of ERCP/PTC is their failure to depict the whole biliary tree in the event of complete biliary obstruction. In such cases, neither method can precisely estimate the characteristic features of a biliary stricture. On the other hand, these methods can be applied for biliary drainage as well as for material sampling for brush cytology and forceps biopsy or molecular analysis, which may accomplish a definitive diagnosis. However, both cytology and biopsy have a low sensitivity for HC ranging between 41 and 50% for brush cytology [16,44], and 53% for forceps biopsy [44], since cancerous tissue is mainly located in the fibrous stroma surrounding the bile ducts [45].

In patients with presumed HC, who have had a negative brush cytology or forceps biopsy, endoscopic ultrasonography-guided fine needle aspiration (endoscopic ultrasound (EUS) -guided FNA) and intraductal ultrasonography (IDUS) represent the currently available alternative modalities to provide a precise diagnosis. According to the results of two small series of patients endoscopic EUS-guided FNA was found to have a sensitivity of 77–89% and a specificity of 100% for the diagnosis of HC. Unfortunately, in the same studies EUS-guided FNA was found to have 29% negative predictive value, implying that a negative for malignancy EUS-guided FNA cytology does not definitely exclude HC [46,47]. One other limitation of EUS-guided FNA is the significant concern over seeding the FNA tract with malignant cells, especially in patients with proximal biliary strictures. Therefore, it is currently recommended to avoid EUS-guided FNA in a presumed surgically curable HC because of the risk of tumour seeding [34]. On the other hand, IDUS providing high-resolution images of the ductal wall and periductal tissues has shown promising results in differentiating malignant from benign biliary strictures by depicting the heterogeneity and irregularity of bile duct thickening and the invasion of neighbouring hilar structures [48]. Furthermore, the combination of IDUS with ERCP improved the diagnostic accuracy over that of either ERCP or MRCP alone (88 vs. 76% and 58%, respectively) [49]. Meister et al., after retrospectively reviewing 397 patients with undefined biliary strictures who had undergone ERCP with IDUS, found IDUS to have a sensitivity, specificity and accuracy of 97.6, 98 and 92%, respectively [50]. A bile duct wall thickness of < 7 mm and absence of external compression depicted at IDUS are the basic imaging characteristics of benign strictures that have a negative predictive value of 100% for excluding malignancy in patients with biliary obstruction seen on cross-sectional imaging without a mass [51].

Direct peroral cholangioscopy has recently attracted renewed interest because of the low sensitivity of the currently used laboratory, radiological, and endoscopic work-up in succeeding a definitive diagnosis of the underlying aetiology of biliary strictures, the opportunity to perform visual-guided biopsies of suspicious intraluminal biliary lesions and mainly because of the development of a single-operator cholangioscopy (SOC) system, SpyGlass TM Direct Visualization System or simply SpyGlass (Boston Scientific, Natick, MA, USA), which overcomes the technical difficulties related to the use of mother–baby endoscopes [52,53]. In a multicentre international study, SOC was performed with an overall success rate of 89% and a 30-day complication rate of 7.5%. Its overall sensitivity and specificity for differentiating malignant and benign ductal lesions were 78% and 82%, respectively, higher than the 51% and 54% of ERCP alone. The sensitivity of the pathology of samples obtained by SOC was only 49% for the definite diagnosis of malignant disease [52]. In a similar study, Fukuda et al., after combining peroral cholangioscopy with ERCP, reported a sensitivity of 100%, a specificity of 87.5% and an accuracy of 93.5% for differentiating malignant from benign ductal lesions [54]. Although the advantages of peroral cholangioscopy have been confirmed it is not widely used, mainly because of the high cost, time associated with the procedure, and the significant risk of cholangitis [55].

When attempting to establish a definitive tissue diagnosis of a hilar lesion it should be remembered that HCs are usually small, hard to access, sclerosing lesions containing a small number of carcinoid cells. These features of HC explain the high percentage of false negative results of brush cytology/biopsy studies. Therefore, several sophisticated cytological techniques have been introduced recently to improve the sensitivity of cytological studies in biliary cancer detection, including fluorescence in situ hybridisation and digitised image analysis. The first method detects cancer cells with the use of fluorescent probes which identify chromosomal polysomy, while the second uses special stains to detect cancer cells and to quantitate nuclear DNA and identify aneuploidy [29]. Kipp et al. [56] demonstrated that fluorescence in situ hybridisation markedly improved the sensitivity of brush cytology in patients with undefined biliary strictures; however, with no significant difference in specificity. In another study by Baron et al. [57] it was shown that digitised image analysis also significantly improved the sensitivity, but it simultaneously impaired the specificity when compared with routine brush cytology. Although promising, the usefulness of these methods for the definite diagnosis of HC still needs further evaluation. Finally, analysis of the DNA methylation status of some important genes in the exfoliated cells of the bile may also contribute in the near future in establishing the diagnosis of HC in patients with biliary strictures. In a recent study, Yin et al. [58] found that the methylation status of the P16 and adenomatous polyposis coli (APC) gene promoters in the bile aspirate was valuable in the diagnosis of malignant biliary obstruction. Differentiation between HC and alternative benign entities within the porta hepatis is also difficult to assess intraoperatively. This is because a frozen section analysis of a small amount of a suspicious tissue obtained intraoperatively from the liver hilum is often of limited value, due to the fact that well-differentiated cholangiocarcinomas are extremely difficult to differentiate from benign lesions.

Benign lesions within the porta hepatis masquerading as HC

Benign tumours

Benign tumours of the extrahepatic bile ducts are exceedingly rare, being less common than traumatic and non-traumatic inflammatory lesions [59]. They account for only 6% of all biliary tumours and 0.1% of all biliary tract operations [60]. Benign tumours usually develop from the epithelial or nonepithelial layers of the bile ducts, giving rise to a spectrum of clinical, pathologic and radiologic features [61]. The majority of these neoplasms fall into the category of polyps, papillomas and adenomas. The remainder comprise cystadenomas, adenomyomas, granular cell myoblastomas, fibromas, leiomyomas, neurinomas, hamaratomas, lipomas, melanomas and carcinoids [62]. Despite their rarity, these tumours should always be included in the differential diagnosis of biliary strictures.

Benign biliary tumours exhibit, in general, similar clinical symptoms and signs with malignant lesions with the exception of anorexia and weight loss, which are rarely present in patients with benign lesions [63]. This notwithstanding, no clinical symptom or sign is specific enough to accurately differentiate benign neoplasms from malignant or inflammatory pseudotumours. Benign neoplasms of the extrahepatic bile ducts are usually diagnosed on final pathologic examination of the surgical specimen.

Epithelial tumours

Extrahepatic biliary adenomas

Extrahepatic biliary adenomas arise from the glandular epithelium lining the bile ducts, representing the most common type of benign tumour of the extrahepatic biliary tree. According to the World Health Organization (WHO) classification of benign biliary tumours, three forms of biliary adenomas are recognised: tubular, papillary and tubulopapillary [61]. Their incidence is very low, and only a limited number of biopsy-proven cases have been reported to date in English-language literature [59,64,65].

In the majority of patients with symptomatic biliary adenomas, obstructive jaundice comprises the prevalent presenting clinical sign [66]. However, biliary obstruction is usually transitory and may be confused with biliary lithiasis. Biliary adenomas are usually localised in the distal part of the common bile duct and biliopancreatic ampulla, with lesions in the common hepatic duct and hepatic ducts accounting for only 15 and 8%, respectively [67]. Regardless of various hypotheses such as focal, reactive process to injury, hepatolithiasis and clonorchis infection, their exact pathogenetic mechanism remains undefined [68].

Their imaging features provided by US, CT or MRI-MRCP are not specific enough to differentiate them accurately from HC. Correct diagnosis of these lesions may be provided by ERCP combined with multiple tissue biopsies [69]. This is because brush cytology, having a low sensitivity, is an inadequate test making histology necessary to establish a firm diagnosis.

Given their rarity and the limited understanding of their natural progression, several authors argue that the use of a conservative approach would be more appropriate for biliary adenomas [69,70]. However, the difficulty in establishing a firm preoperative diag-nosis combined with the risk of recurrence in cases of partial tumour resection and their malignant potential rationalises the current strategy of most hepatopancretobiliary surgeons, who advocate radical resection of the adenoma-bearing duct [64]. Following this strategy, distal lesions would require pancreaticoduodenectomy, and proximal lesions, hepatic resection with biliary reconstruction.

Intraductal papillary neoplasms of the bile duct

Intraductal papillary neoplasms of the bile duct (IPNB) is a recently recognised rare type of epithelial bile duct tumour with an exophytic nature, exhibiting a papillary or villous growth within the bile duct lumen. It has been adopted as a distinct clinical and pathologic entity in the WHO classification of 2010 and is classified into IPN with low-or intermediate-grade intraepithelial neoplasia, IPN with high-grade intraepithelial neoplasia and IPN with an associated invasive carcinoma [71]. These tumours represent the biliary counterpart of intraductal papillary mucinous neoplasm of the pancreas (IPMN) and can develop anywhere along the biliary ducts, occasionally causing duct dilatation. Hypersecretion of mucin can also be encountered [72].

Microscopically, these tumours are composed of papillary fronds with fine vascular cores. Their neoplastic epithelial cells usually display atypia, which ranges from borderline to marked, and can be associated with invasive carcinoma. Based on these microscopic features, IPNBs are considered as premalignant lesions towards invasive cholangiocarcinoma.

According to their histomorphology and immunophenotypical profile, these neoplasms are further classified into four subtypes: pancreato-biliary, intestinal, gastric and oncocytic, with pancreato-biliary being the most common [73]. The intestinal and pancreatobiliary types are frequently malignant and therefore are regarded as counterparts of the main duct-type IPMN. Immunopathologically, IPNBs frequently express MUC2, MUC5AC and cytokeratin 20, which are the mucous phenotypes of the intestinal and gastric crypt epithelium [74].

Prior to IPNB inclusion into the WHO classification of tumours, various terminology has been used to describe the types of tumours currently included in the spectrum of IPNBs, such as biliary papilloma/papillomatosis, papillary carcinoma of the extrahepatic bile duct, and biliary cystadenoma and cystadenocarcinoma. According to the latest WHO classification of tumours of the digestive system, types of intrahepatic cholangiocarcinoma with intraductal growth and papillary carcinoma of the extrahepatic bile ducts are currently exclusively included in IPNBs in cases where their intraductal component is composed of papillary fronds with fine vascular cores. In addition, cystic biliary tumours previously included in the type of cystadenoma or cystadenocarcinoma are currently considered as a cystic variant of IPNB in case of bile duct communication and the absence of ovarian-like stroma [75].

The pathogenesis of IPNBs is not clear. Studies from the Far East suggest an association between IPNBs and hepatolithiasis or clonorchiasis infection. However, this association has not been confirmed in Western studies [76]. Genetic tests of patients with IPNBs suggest a stepwise progression from an initially low-grade intraductal papillary dysplasia to, finally, an invasive adenocarcinoma which is promoted mainly by KRAS mutation and loss of p16 [70]. However, the pathogenesis of these tumours remains practically undefined and more studies are needed to clarify and interpret the spectrum of molecular and genetic changes leading to the development of IPNBs.

As a newly defined entity, the clinical and pathologic features of IPNBs are still ill-defined, making their diagnosis challenging. In fact, the most common clinical signs in patients with IPNBs are nonspecific, including intermittent abdominal pain, jaundice and acute cholangitis, while up to 5% of patients can be asymptomatic [76].

The location of IPNBs varies. Some reports demonstrated that IPNBs are mainly located at the intrahepatic bile ducts [77,78] whereas others found that the hepatic hilum was the most common location [76].

The most common imaging finding of IPNBs are bile duct dilatation and intraductal masses, which can be depicted by US, CT and MRI-MRCP, having, however, varying sensitivity [79,80]. Duodenoscopy can show a patulous orifice of the duodenal papilla draining mucin while endoscopic retrograde cholangiography can detect diffuse dilatation of the bile ducts with amorphous filling defect (s) as a result of mucobilia that is present in nearly two-thirds of patients with IPNBs [81]. Retrograde cholangiography can also provide a definitive diag-nosis when combined with tissue biopsies. Similarly, cholangioscopy can histopathologically confirm the diagnosis, also providing the ability to assess the spreading of the tumour along the epithelium of the biliary ducts [72].

Despite the fact that IPNBs are considered as premalignant lesions, their management should be similar to that applied for cholangiocarcinomas, meaning that radical surgical intervention is required, including major hepatectomy, with or without extrahepatic bile duct resection or pancreaticoduodenectomy. This policy is justified by the fact that preoperative diagnosis usually underestimates the degree of tumour cell atypia [72]. Nevertheless, in cases of preoperative precise diagnosis of IPNB with low-to high-grade intraepithelial neoplasia and limited superficial tumour extension, limited surgical intervention may be justified [82].

Non-epithelial tumours

Granular cell tumour

Granular cell tumours are benign, extremely rare neoplasms usually occur-ring in the oral cavity and subcutaneous tissue. Fewer than 1% of these tumours arise in the extrahepatic biliary tree [83]. In 1952, Coggins et al. [84] reported the first case of a granular cell tumour of the biliary tract. To date, no case of a malignant bile duct granular cell tumour has been reported. Most authors accept the theory that these tumours originate from Schwann cells, on the basis of histological, electron microscopic and immunohistichemical features [85].

The majority of patients with bile duct granular cell tumours are black, young and female. In fact, the tumour’s prevalence is four times greater in women. Clinical symptoms and signs are nonspecific including jaundice, abdominal pain and pruritus. Their size at the time of diagnosis ranges from 0.5 cm [86] to 4.0 cm [87] while in 11.6% of cases the tumour is located near the confluence of the right and left hepatic ducts, masquerading as HC. A definitive preoperative diagnosis, although difficult, might be provided from several repeated biopsies. The histopathology of a granular cell tumour involves large, granular-like eosinophilic cells which are often immunoreactive for the S-100 protein [88]. However, even if it is precisely diagnosed preoperatively, a surgical operation may be considered, to decidedly rule out malignancy and definitively treat symptoms and signs caused by the obstructing lesion.

Neural tumours

Neurofibroma

Neurofibromas are rare benign tumours arising from Schwann cells that form the myelin sheath of the peripheral nerves. Occasionally, these tumours occur as solitary lesions, but usually they develop in the context of neurofibromatosis type I (von Recklinghausen’s disease), which is an autosomal dominant disease associated with multiple tumours of the nervous system, with or without skin lesions. Extrahepatic bile duct neurofibromas are extremely rare, with only a limited number of cases reported in medical literature [89–91]. These tumours grow on the connective tissue nerve sheath of the sympathetic and parasympathetic nerves that innervate the bile ducts. Long spindle cells characterise these tumours pathologically. The neurogenic features of long spindle cells are demonstrated by positive immunohistochemistry for S100, which is a marker for neuron intermediate filament protein.

In the absence of Recklinghausen’s phakomatosis, the majority of extrahepatic bile duct neurofibromas are secondary to inappropriate intraoperative bile duct injuries, where epineurium trauma triggers a reactive fibroinflammatory disorganised regeneration process [89]. Common bile duct primary solitary neurofibromas can also develop secondary to chronic inflammation, biliary lithiasis or infection, when disorganised regeneration of injured nerve axons is enclosed by the nerve’s intact epineurium.

Clinical symptoms and signs are non-specific and there have been no specific detective indexes or imaging features reported for this tumour in the literature [92,93]. Therefore, differentiation from other biliary lesions and establishing a definite preoperative diagnosis is extremely difficult. Despite their rarity, bile duct neurofibromas should be considered in patients with a history of previous biliary trauma. Exploratory laparotomy is usually indicated and intraoperative frozen section examination should guide the type and extent of the procedure.

Schwannoma

Schwannoma or neurilemoma is a benign tumour derived from Schwann cells, which form the inner portion of the peripheral nerve sheaths. It is usually located in the upper extremities, trunk, head and neck, retroperitoneum, mediastinum, pelvis and peritoneum [94]. Peripheral nerve schwannomas can be associated with neurofibromatosis type I and II [95]. Digestive tract schwannomas are relatively rare, commonly arising in the stomach, large bowel, rectum and oesophagus [96]. Very rarely, these tumours can develop along the sympathetic and parasympathetic network of nerve fibres overlying the biliary duct wall [97]. Extrahepatic biliary schwannomas tend to develop in adults in the fifth decade of life, with a female predominance. Obstructive jaundice is the most common clinical sign, followed by abdominal pain and weight loss; however, the clinical symptoms and signs are nonspecific and there are no specific parameters or imaging findings for these tumours [98].

Macroscopically, schwannomas are usually encapsulated solid globular or ovoid tumours while microscopically these tumours consist of two distinct components, a hypercellular and a myxoid [99].

Immunohistochemistry is necessary to distinguish schwannomas from neurofibromas and other digestive stromal neoplasms. Specifically, schwannomas are strongly positive for vimentin and S100 protein but they are negative for muscle cell markers and CD117, which in turn are positive in smooth muscle and gastrointestinal stromal tumours. Additionally, digestive tract schwannomas are in the majority of cases negative for CD34 [100].

Although there may be a preoperative suspicion, a definitive diagnosis of this exceedingly rare extrahepatic biliary neoplasm requires histopathological confirmation. Therefore, and despite the considerable chance of serious postoperative complications, most hepatopancreatobiliary surgeons agree that surgical resection is the treatment of choice [101]. Following surgical treatment digestive tract schwannomas have an excellent prognosis [101].

Neuroendocrine tumours – bile duct carcinoid

Neuroendocrine tumours (NETs) are a distinct, heterogeneous group of neoplasms that exhibit characteristic clinical, histological and biological properties. They arise from various neuroendocrine cells which are physiologically involved in the neuroendocrine interface. Commonly, NETs develop in the appendix, bronchus, ileum and rectum, possibly arising from embryonic neural crest cells (Kultschitsky cells) [102]. However, this type of cell is exceedingly scarce throughout the bile duct epithelium, accounting for the fact that extrahepatic bile duct NETs are very rare [103]. In fact, according to the study by Modlin et al., among digestive system NETs, the incidence of extrahepatic bile duct NETs was found to be 0.32% [104].

The term carcinoid was used until recently to describe these tumours; however, in 1996 the WHO proposed the broader term of neuroendocrine tumours to define these neoplasms [105]. According to the WHO the term NETs includes all endocrine tumours, ranging from well-differentiated carcinoid tumours to poorly differentiated cancers. The staging of NETs is based on size, number of mitoses per high power field (HPF), invasiveness and on the Ki-67 immunostaning (cellular marker for proliferation) to differentiate their grade and malignant potential. The latest WHO classification adds emphasis to the NETs grade (G), distinguishing these tumours into three categories, which were assigned as follows: NET G1 or carcinoid, with a mitotic count of < 2 per 10 HPF and/or a Ki-67 index ≤ 2%; NET G2, with a mitotic count of 2 to 20 per 10 HPF and/or a Ki-67 index of 3–20%; and G3 (neuroendocrine carcinoma), with a mitotic count of > 20 per 10 HPF and/or a Ki-67 index > 20% [106].

Carcinoid (NET G1) tumours of the extrahepatic biliary ducts account for only 0.1–0.2% of all carcinoids of the digestive system [13]. They occur more frequently in young female patients [107]. To date, only 14 patients with hilar NET G1 have been reported in international literature [108].

Various hypotheses have been proposed for the development of extrahepatic biliary NETs, however their actual pathogenesis remains largely unsettled. The most accepted theory regarding their pathogenesis is based on the assumption that these neoplasms originate from a multipotent stem cell which has the ability to differentiate into a NET [109]. The rationale of this theory is supported by the fact that NETs exhibit mixed phenotypes, ranging from actual NETs to true carcinomas with dispersed neuroendocrine cells [110]. Intestinal metaplasia consequently to chronic inflammation increasing the number of embryonic neural crest cells throughout the biliary tract epithelium is also implicated in the pathogenesis of biliary NETs. [111].

Biliary NETs usually occur during the 6^th decade of life and their most frequent anatomic location is the common bile duct (58%) followed by the hilar confluence (28%), the cystic duct (11%) and the hepatic duct (3%) [104]. In the majority of cases biliary NETs are non-functioning without evidence of systemic endocrine manifestations. Occasionally, they can be hormonally active with a detectable specific serum or urine marker indicative of the endocrine nature of the tumour [112,113]. The size of biliary NET G1 tumours at the time of diagnosis is rather small, ranging from 1.1 to 5.5 cm while their symptoms and signs such as abdominal discomfort, jaundice, weight loss and back pain are non-specific and develop as a result of either obstruction/invasion or metastases [114,115].

Imaging modalities such as US, CT or MRI-MRCP are not specific enough to firmly diagnose biliary NETs. Precise preoperative diagnosis of extrahepatic biliary NETs is difficult and is usually reached postoperatively by the histopathologic examination of the surgical specimen. Occasionally, a definitive preoperative diagnosis might be provided from repeated cytological samplings or from several repeated biopsies [116,117].

Appropriate management for biliary G1 NETs necessitates surgical resection with negative margins combined with hepatoduodenal, periportal and pericholedochal lymph node clearance [114,118]. These tumours are of low malignant potential and therefore, a favourable prognosis should be expected following appropriate surgical management [119].

Pseudotumours

Inflammatory pseudotumours

Inflammatory pseudotumours (IPTs) (plasma cell granulomas, inflammatory myofibroblastic tumours) are rare idiopathic benign lesions consisting of localised proliferation of a heterogeneous population of inflammatory cells (spindle cells, plasma cells, lymphocytes, eosinophils and neutrophils) together with myofibroblastic proliferation and areas of fibrosis and/or necrosis [120,121]. These tumours can arise in practically every site in the body, however the lungs, omentum and mesentery represent the most common locations [122]. Primary sclerosing cholangitis, Crohn’s disease and phlebitis have been associated with the development of IPTs [123,124].

Despite the fact that the exact incidence of extrahepatic biliary IPTs is practically unknown, it has been reported that approximately 4–20% of bile duct strictures correspond to IPTs [125,126]. The aetiology of IPTs remains uncertain. Among various proposed pathogenetic hypotheses, the most likely are antecedent bacterial, parasitic or viral infection. Actually, there is an established association between Epstein–Barr virus infection and IPT development, in view of the fact that the Epstein-Barr virus has often been found in histopathological IPTs samples [127]. With regard to the pathogenesis of extrahepatic biliary IPTs, it has been argued that they may develop as a result of recurrent episodes of acute cholangitis, secondary to portal venous infection and obliterating phlebitis [128,129]. Furthermore, associations between IPTs and recurrent pyogenic cholangitis (RPC) leading to the formation of biliary strictures have been described [120]. Another proposed IPT aetiology is autoimmunogenic processes, given that some cases have responded well to corticosteroid treatment [130]. The latter aetiology is supported by the fact that IgG4-related IPTs of the liver developed in patients with autoimmune pancreatitis [131].

Clinical findings in patients with biliary IPTs are non-specific, being indistinguishable from those of HC. On imaging, IPTs appear as focal masses that may show delayed and persistent enhancement owing to their fibrous content. On cholangiography IPTs are depicted as biliary strictures of intra-or extrahepatic biliary ducts. These imaging findings are remarkably similar to those of HC [132]. In addition, preoperative tumour sampling is technically challenging and it usually results in suboptimal diagnosis [133]. Notwithstanding this, distinction between IPTs and malignant lesions is crucial, because IPTs have a benign biological behaviour and are characterised by the property of spontaneous regression [134].

Surgical resection or bypass operations are indicated for the management of biliary IPTs ensuring a satisfactory prognosis, provided that the tumour has been proved clearly benign. The probability of IPTs in patients undergoing surgical exploration should always be considered and the extent of the resection should be determined by the intraoperative findings and fast frozen section analysis [135].

Dominant stricture in the context of PSC

Primary sclerosing cholangitis is a chronic cholestatic liver and biliary tract disorder of possible autoimmune pathogenesis, characterised by a highly variable natural history [136]. The disease is complicated by a fibrotic process that results in strictures involving intra-and extrahepatic bile ducts [136]. Its diagnosis is currently based on direct cholangiographic or MRCP findings, which include discontinuous focal stricturing and saccular dilatation of bile ducts, which progressively create a ‘beaded’ appearance [137,138]. PSC consists in a diagnosis of exclusion which is based on cholangiographic biliary alterations which cannot be ascribed to another cause. Accordingly, PSC diagnosis can be established only in the absence of various underlying pathogenic processes, which can lead to the typical PSC imaging pattern [139].

Differential diagnosis of PSC includes several disorders that can cause similar biliary alterations such as bacterial cholangitis, intra-arterial administration of floxuridine, prior biliary surgery and AIDS related cholangiopathy. Central to the diagnosis of PSC is the fact that the disease is associated with inflammatory bowel disease in up to 80% of patients [139].

PSC may run a long asymptomatic course but it may also have an aggressive progression, complicated with recurrent biliary tract obstruction/cholangitis leading to end-stage liver disease. In up to 20% of PSC patients, a localised high-grade bile duct stricture at the liver hilum may be the presenting feature mimicking HC [140]. This finding should be interpreted in light of the fact that PSC is the most common predisposing condition for HC in the Western world, inducing a lifetime risk for the development of HC of 25%. Moreover, approximately 75% of PSC patients who develop HC have a dominant biliary stricture, and compared to sporadic cases of HC, PSC patients tend to present the tumour earlier, in the 4^th or 5^th decade of life [140,141]. Furthermore, the incidence of HC peaks in the first 2 years following PSC diagnosis, while the risk of carcinogenesis is not associated with the duration of the underlying inflammatory process [142]. Of note is that the pool data of patients with benign lesions obstructing the common bile duct with an initially presumed diagnosis of HC demonstrated a 1.6% definitive diagnosis of PSC at the final histopathologic examination [10,13,14,17].

The development of HC is a lethal sequel of PSC, therefore evaluation of biliary strictures discovered in PSC patients is of the utmost importance. Nevertheless, early and accurate diagnosis of HC in the setting of PSC remains an unresolved diagnostic challenge. Among the various modern diagnostic tools available, per oral cholangioscopy, which allows direct endoluminal biliary visualisation and directed biopsies of suspicious strictures is probably the method of choice as it provides over 90% sensitivity and specificity for the diagnosis of HC [143]. Unfortunately, HC is still diagnosed at an advanced stage which is associated with a dismal survival. Except palliative treatment no other option is available [144].

The surgical management of PSC with presumed HC deserves special consideration, including resection versus liver transplantation. The choice of treatment should be guided on one hand by the clinical stage of HC and on the other by the severity of PSC. Patients with advanced HC stage or metastatic disease are poor candidates for surgical therapy. Conversely, patients with early stage HC and satisfactory liver function are good candidates for surgical resection [139]. In highly selected PSC patients with nonmetastatic and limited-early stage HC, liver transplantation following radiochemotherapy is a very promising treatment option in experienced centres [145].

Recurrent pyogenic cholangitis

Recurrent pyogenic cholangitis (oriental cholangiohepatitis) is a condition characterised by recurrent episodes of bacterial cholangitis associated with intrahepatic strictures and hepatolithiasis, commonly affecting individuals from Southeast Asia [146,147]. The disease peaks between the 3^rd and 5^th decades of life, with no gender preference, and is characterised by the presence of pigmented biliary stones, which are typically located in the left lateral and right posterior biliary ducts. Patients commonly present with the classical but non-specific features of pyogenic cholangitis [148].

The pathogenesis of hepatolithiasis is driven by a complex interplay between metabolic disorders, reduced bile flow rate, bile stasis, infection, and chronic infestation of the biliary tree, all interacting in a vicious circle. In fact, liver flukes and ascaris are believed to initially induce biliary injury promoted by stone formation and strictures followed by bacterial superinfection [149]. Another hypothesis regarding RPC pathogenesis holds that Escherichia Coli infection interacting with hypoproteinaemia promotes bilirubin deconjugation in the bile ducts inducing the formation of biliary sludge and stones [150]. Sepsis induced by recurrent bacterial cholangitis is the major cause of lethality in patients with RPC. Additionally, RPC is associated with the development of HC in approximately 10% of patients [150].

Apart from intrahepatic stones, the typical imaging features of RPC are biliary strictures, ductal wall thickening, central duct dilatation with abrupt tapering (arrowhead sign), poor delineation of bile duct branching and non-filling of segmental biliary ducts [151]. Bile duct wall thickening and enhancement at the liver hilum depicted at imaging in patients with RPC can be misinterpreted as HC. This is due to the fact that conventional imaging studies alone cannot accurately differentiate a RPC hilar stricture from HC [152].

Planning treatment of RPC complicated with HC requires careful judgement, taking into consideration both disease processes. The type of surgical operation should be guided on one hand by the HC clinical stage and on the other by the location of intrahepatic stones, the present of additional biliary strictures and coexistent parenchymal liver atrophy [153].

Portal biliopathy

Portal biliopathy (PB) is recently introduced terminology referring to the morphologic alterations of the entire extra and intrahepatic biliary tree in patients with portal hypertension (PH) [154]. PH, especially when it is caused by chronic thrombotic obstruction of the extrahepatic portal vein, is commonly followed by the development of an abnormal periportal and pericholedochal bridging variceal network forming the portal cavernoma, in an attempt to drain the extrahepatic portal system towards the systemic circulation [155–157]. Less common causes of PB include liver cirrhosis, portal vein fibrosis without cirrhosis and congenital hepatic fibrosis [155].

Portal cavernoma exerts extrinsic pressure on the adjacent biliary ducts so that the epicholedochal venous plexus of Saint and paracholedochal venous plexus of Petren may on one hand mechanically protrude into the bile duct lumen and on the other, induce secondary ischaemic vascular bile duct injury with or without cholangitis [156]. These latter secondary events are believed to lead to the development of irregular strictures of both extra and intrahepatic bile ducts (segmental dilated segments with a beaded appearance, ectasia and ‘pruning’ of the intrahepatic bile ducts) that can cause asymptomatic cholestasis in more than 50% of patients and rarely, symptomatic biliary obstruction [158]. Several studies suggest that the prevalence of PB secondary to portal cavernoma can range from 80 to 93% [158,159]. Notwithstanding this, PB is a very rare and usually asymptomatic entity [160].

Upper quadrant pain typically of biliary origin, recurrent fever with chills and jaundice alone or in combination suggest the possibility of symptomatic PB in patients with PH. Direct cholangiographic findings include segmental upstream dilation, calibre irregularity, filling defects that may be interpreted as common bile duct calculi, stricture and extrinsic impression on the bile duct due to collaterals [161]. Clinical symptoms and signs and cholangiographic alterations of PB may resemble HC, with the portal cavernoma appearing as a solid mass which is termed ‘pseudocholangiocarcinoma sign’ raising serious diagnostic and therapeutic issues [162].

Mirizzi syndrome

Mirizzi syndrome, first described by Pablo Luis Mirizzi in 1948 [163] and which since then has come to bear his name, refers to secondary common bile or hepatic duct obstruction caused by an extrinsic compression from an impacted stone in the Hartmann’s pouch of the gallbladder or the cystic duct. Its current definition includes four variations: a) the cystic duct runs parallel to the common hepatic at the gallbladder infundibulum; b) impacted biliary stone in the cystic duct or the infundibulum of the gallbladder; c) obstruction of the common hepatic duct either by a biliary stone or by secondary inflammation; and d) obstructive jaundice associated with recurrent cholangitis or secondary biliary cirrhosis [164–166]. Csendes et al. [164] in 1989 further defined four evolving stages of the syndrome, from extrinsic compression to fistulisation and/or complete erosion of the common hepatic duct.

The clinical presentation of the syndrome varies from no symptoms or signs to severe acute cholangitis. Despite recent advances in medical technology, preoperative diagnosis of Mirizzi syndrome is usually challenging. This is due to the fact that the clinical picture, laboratory values and imaging findings are not specific [167]. Furthermore, the syndrome is associated with portal inflammation, which often results in the development of biliary stricture mimicking the periductal infiltrating type of HC [31] and apart from masquerading as HC, it is associated with an increased risk of gallbladder cancer, as compared to patients with uncomplicated cholelithiasis [168]. MRCP is the method of choice as it commonly depicts the impacted gallstone and the concomitant extrinsic compression that exerts on the extrahepatic ducts in addition to the dilatation of the proximal biliary ducts, which are all typical imaging findings in favour of Mirizzi syndrome [31].

IgG4 related sclerosing cholangitis in the context of IgG4-related disease

Immunoglobulin G4-related sclerosing cholangitis (IgG4-SC) is the biliary manifestation of the recently recognised IgG4-related disease (IgG4-RD), which is a multisystemic disorder often associated with autoimmune pancreatitis (AIP) [169,170]. Usually, IgG4-RD involves multiple organs causing IgG4-related sclerosing pancreatitis, cholangitis, retroperitoneal fibrosis, sialadenitis, asymptomatic lymphadenopathy, thyroiditis, nephritis, pneumonia, prostatitis and some IPTs [171]. These disease entities belong in the IgG4-RD spectrum with commonly overlapping clinical and radiological features [172].

Immunoglobulin G4-RDs are distinguished by an elevated serum IgG4, extensive IgG4-positive plasma cells and T-lymphocyte infiltration in the affected organs and response to steroid therapy. They affect mainly middle-aged/older men (60 years of age) who commonly present with mass-forming lesions suspicious of malignancy [173,174]. Clinical presentation depends on the organ involved, while general symptoms and signs such as fever and weight loss are present in fewer than 10% of the patients [174].

The pathogenesis of IgG4-RD remains undetermined, but there is evidence supporting the role of autoimmunity and allergy. Inflammation and subsequent fibrosis in IgG4-RD is possibly driven by T helper 2 cells and regulatory T cells [175]. Allergy has been proposed as an additional pathogenetic mechanism because of the significant overlap of symptoms and concomitant atopic disorders [176]. The exact role of IgG4 in the pathogenesis of IgG4-RD remains unclear and the question as to whether the increased T-lymphocyte infiltration of the affected organs is a primary or a secondary event remains unanswered.

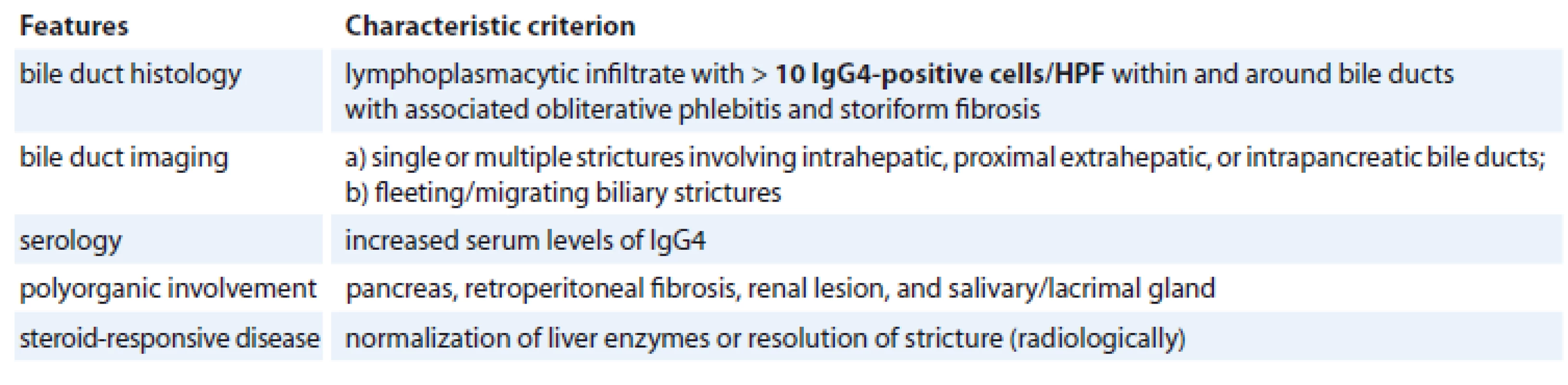

The diagnosis of IgG4-RD is currently based on the international consensus diagnostic criteria [177]. The Mayo Clinic HISORt, which is a mnemonic that stands for histology, imaging, serology, other organ involvement and response to therapy criteria, were initially proposed for the diagnosis of AIP [178]. The three histological cornerstones supporting the diagnosis of IgG4-RD are an IgG4-positive lymphoplasmacytic tissue infiltrate, storiform fibrosis and obliterative phlebitis. Tissue eosinophilia of the involved organs may also coexist. Another central unifying characteristic is the response to immunosuppression, particularly steroid therapy (Tab. 1) [179].

Immunoglobulin G4-SC is the most common extrapancreatic manifestation of AIP [180]. It has a male predominance presenting usually in the 5^th and 6^th decades of life. Its clinical picture is non-specific including obstructive jaundice, weight loss, abdominal pain, steatorrhoea and new onset diabetes [181]. It may be diagnosed incidentally in patients presenting clinically with AIP without clinical symptoms or suspicion of biliary involvement [182].

The diagnosis of IgG4-SC requires a high index of clinical suspicion and can be based on the HISORt criteria [183] and the Japanese IgG4-SC working group statement allowing for differentiation from HC [184]. CT is an invaluable diagnostic method as it demonstrates biliary strictures with associated wall thickening and inflammation. Additionally, it can identify the involvement of other organs and generalised lymphadenopathy [185]. Endoscopic retrograde or magnetic resonance cholangiography plays a central role in IgG4-SC diagnosis. Cholangiography depicts diffuse bile duct wall thickening in stenotic segments. These findings may be multiple, showing an intrahepatic distribution similar to that of PSC or they may be located in the hilar plate mimicking HC. The intrapancreatic part of the common bile duct is the most commonly involved site, especially when combined with AIP [186]. Notwithstanding this, these findings are non-specific so that the imaging studies presently employed are unable to differentiate IgG4-SC from HC [187]. Differential diagnoses also include PSC, pancreatic cancer and traumatic biliary strictures. Of note is that, despite the fact that the elevation of serum IgG4 (>140 g/L) is a hallmark of IgG4-SC, it is not regarded as pathognomonic, as nearly 30% of IgG4-SC patients have normal serum IgG4 levels, while additional, certain PSC cases, and other disease entities might demonstrate high serum IgG4 [188,189]. Hypergammaglobulinaemia, hyper IgG, antinuclear antibody, rheumatoid factor and peripheral eosinophilia are additional sensitive serological markers, however their diagnostic value is rather limited because of their low specificity [190]. Occasionally, IgG4-SC can develop as an isolated biliary disease presenting as either a diffuse SC or a hilar IPT [191]. Salivary and/or lacrimal gland swelling added by retroperitoneal fibrosis and renal lesions may coexist on presentation [192].

Accurate diagnosis of IgG4-SC requires histological analysis. Bile duct biopsy revealing more than 10 IgG4-positive plasma cells is considered as the diagnostic threshold [190]. Most IgG4-SC patients respond well initially to glucocorticoid therapy, but refractory or recurrent disease is not uncommon [193]. If such a situation occurs, agents with corticosteroid sparing properties and targeting therapy with the monoclonal antibody rituximab against the surface protein CD20 of B cells may be considered as alternative regimens [181]. However, it should be remembered that when managing a presumed steroid-responsive disease, the use of glucocorticoids must be justified, to avoid the lethal pitfall of missing the correct diagnosis and delaying the treatment of a malignant disease.

Hepatobiliary sarcoidosis

Sarcoidosis is a chronic multisystem granulomatous disorder of undefined aetiology, which is histologically characterised by non-necrotising granulomas composed of epitheliod cells [194]. The disease occurs mainly in the age group of 20-to 40-year-olds who most commonly develop pulmonary infiltrates and bilateral pulmonary hilar adenopathy [195]. Diagnosis can be established clinically by the involvement of at least two organs and by the presence of a compatible illness that presents with respiratory symptoms. A firm diagnosis can be made only by the demonstration of non-caseating epithelioid cell granulomas on pathological examination of the affected organs.

Hepatobiliary involvement is a rather frequent extrapulmonary site of the disease, affecting more than 50% of sarcoidosis patients, however it is usually asymptomatic. Only 5–15% of patients with biopsy-proven hepatobiliary involvement exhibit symptoms and signs of the disease. Rarely, the disorder is associated with severe liver diseases and/or PH [196]. Isolated liver involvement has been documented in about 13% of patients with systemic sarcoidosis [197].

Hepatobiliary sarcoidosis (HS) is characterised by the development of multifocal micronodular or macronodular granulomas, which can cause presinusoidal PH rapidly progressing to liver fibrosis and gradual destruction of the intralobular bile ducts leading to biliary strictures and ductopenia. These derangements can lead to granulomatous cholangitis, which is characterised by a slow onset and can progress in the long term to biliary cirrhosis [31,198]. Extra-hepatic biliary tract involvement is rare and is usually caused by extrinsic compression or direct invasion of the portal or peri-portal lymph nodes by the sarcoid granulomas [199]. In such cases, the imaging findings are usually indistinguishable from those of HC [200]. Differentiation from HC can become even more challenging in cases of isolated HS with no hepatic or pulmonary manifestations or systemic symptoms [201].

The treatment of HS is the same as for systemic sarcoidosis. Once a firm diagnosis of HS is established, decompression of the biliary system must be provided and a long-lasting remission will be required. Importantly, although steroid treatment improves liver function tests it has no effect on the natural course of granulomas [201].

Xanthogranulomatous cholecystitis and choledochitis

Xanthogranulomatous cholecystitis is an unusual variant of chronic cholecystitis characterised by severe inflammation associated with multiple intramural nodular formation, proliferative fibrosis and foamy histiocytes [202]. It occurs mainly in patients with gallstone disease and its incidence ranges from 1 to 13% with a slight female predominance [203].

Gallbladder lithiasis, bile retention and chronic inflammation are among the basic causative factors of the disease [204]. The destructive inflammatory process develops mainly in the gallbladder wall, however it is characterised by local invasiveness and fistulisation involving occasionally neighbouring structures exhibiting a ‘pseudomalignant’ behaviour. Xanthogranulomatous inflammatory involvement of the extrahepatic bile ducts can cause xanthogranulomatous choledochitis, which is characterised by biliary obstruction with inflammatory strictures and hilar lymphadenopathy, features that mimic HC. On extremely rare occasions, xanthogranulomatous choledochitis may develop regardless of the presence of xanthogranulomatous cholecystitis and/or direct fistulisation [126,205]. Xanthogranulomatous choledochitis should be included in the differential diagnosis of patients with a biliary stricture, especially in geographical areas with a high incidence of xanthogranulomatous cholecystitis. However, modern preoperative diagnostic tools are unreliable both in confirming the diagnosis and in ruling out malignancy in cases of xanthogranulomatous choledochitis, therefore surgical resection should be performed wherever feasible [205].

Conclusions

Acknowledging the lack of a diagnostic gold standard that would always allow a firm preoperative diagnosis of HC, it can be concluded that the stakes remain very high when trying to define the exact nature of the underlying aetiology of a hilar stricture/lesion, both because of the potential risk to falsely conclude a benign disease, missing the window of opportunity to radically resect a lethal but potentially curable cancer and because of the economic costs and significant morbidity associated with inappropriate major operations in patients with benign aetiologies. It appears that an individualised and multidisciplinary approach can play a major role in successfully overcoming this diagnostic and therapeutic challenge.

The authors declare they have no potential conflicts of interest concerning drugs, products, or services used in the study.

The Editorial Board declares that the manuscript met the ICMJE recommendation for biomedical papers.

Orestis Ioannidis, MD

4^th Surgical Department

Aristotle University of Thessaloniki

General Hospital George

Papanikolaou

Alexandrou Mihailidi 13

546 40 Thessaloniki, Greece

e-mail: telonakos@hotmail.com

Submitted 4. 2. 2019

Accepted: 4. 9. 2019
