Primary Branchiogenic Carcinoma

Summary

Background:

Primary branchiogenic carcinoma (BC) is an exceptional diagnostic entity. In most cases, suspicion of BC is confirmed to be a cystic lymph node metastasis of an occult primary tumor. Martin and Khafif therefore established diagnostic criteria, emphasizing above all the importance of a histologically assessed transformation of cystic lining epithelium into an invasive squamous cell carcinoma in one pathological lesion after the exclusion of a primary tumor.

Case report:

We present a case report of an 80-year-old patient who presented for a follow-up for an 8-year history of a benign lateral cervical cyst, which was not surgically treated due to the patient‘s high risk of complications from general anesthesia. In spite of the risk, the surgery was performed after a sudden clinical progression, and surprisingly, post-operative histology revealed BC.

Conslusion:

BC is a very rare entity, strictly defined by Martin’s and Khafif’s criteria. Recently, BCs have been presented in the literature only as unique case reports responding as in our patient to the above mentioned criteria, with particular emphasis on the histological aspect, imaging the cystic lining epithelium transforming into an invasive squamous cell carcinoma in one pathological lesion and a long history without evidence of primary tumor.

Key words:

branchiogenic carcinoma – lateral branchial neck cyst – occult carcinoma – metastasis of unknown primary origin

Introduction

Primary branchiogenic carcinoma (BC) is a malignant tumor arising in branchial cervical cysts. It was first described by Volmann in 1882, and criteria were defined by Martin in 1950, which were then modified by Khafif in 1989 [1,2]. Branchial cyst presents as a smooth, soft ovoid cystic structure of the lateral neck originating in the remnant of an incompletely closed branchial cleft at the anterior margin of the sternocleidomastoid muscle. The lining of the cyst consists of a layered squamous cell epithelium from which its malignancy (squamous cell carcinoma – SCC) develops. The BC diagnosis itself is accepted only when the strict criteria are met.

However, many authors still view the BC only as a cystic metastasis of an undiagnosed occult primary tumor.

Case Report

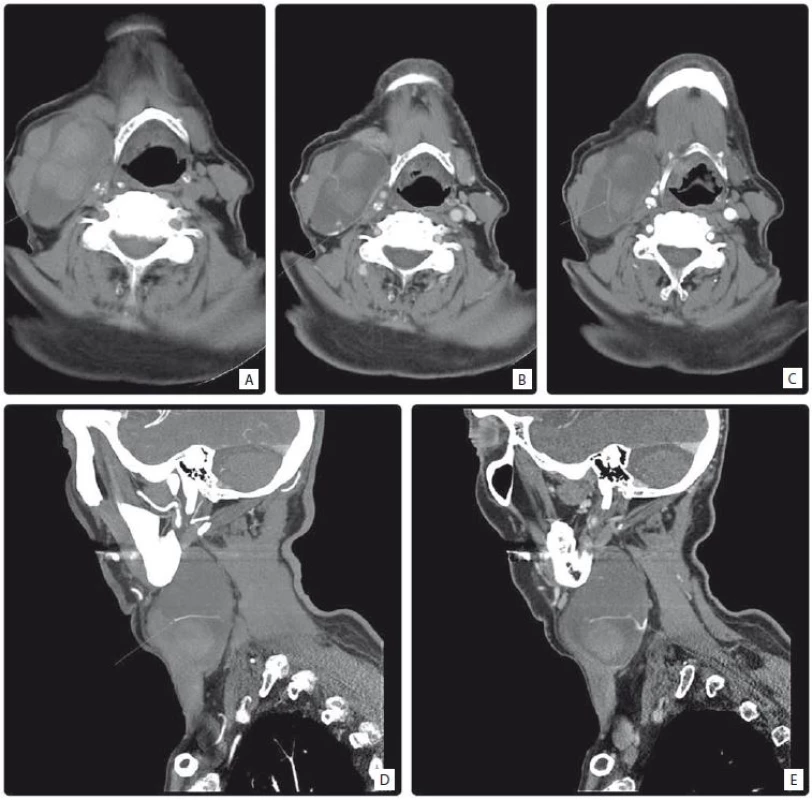

An 80-year-old patient had been monitored in an ear, nose and throat (ENT) outpatient department for several years. Eight years ago, he was first examined for a 6 × 6 cm, painless but slowly progressing lateral neck swelling of several months duration; otherwise he was symptom-free. A lateral cervical cyst was suspected (soft, elastic, fixed, painless, and located at the level of the middle third of the sternocleidomastoid muscle). The diagnosis was supported by ultrasound and CT scans – a thin-walled ovoid cystic formation with fluid content was displayed, without evidence of increased vascularization or pathological changes in the surrounding soft tissues, without neck lymphadenopathy; there was no other pathology under the regular (including endoscopic) ENT examination. As the patient was polymorbid, already suffering especially from cardiovascular diseases, the most conservative procedure was suggested. An aspiration biopsy was performed to reduce the volume and to exclude malignancy. The patient was regularly monitored. Regular aspiration of about 40–50 ml of a serous fluid was performed approximately 2–4 times a year. Cytology never indicated suspicious malignancy. After 8 years, however, there was a clinical reversal; the swelling progressed significantly faster, and a sudden bleeding complication emerged after the puncture. The CT showed an ovoid structure, 65 × 34 × 87 mm, but it was heterogenic, with a highly vascular wall of irregular width, pushing the neck vessel, deforming the hypopharynx (Fig. 1). Surgery was suggested despite the risk of general anesthesia.

A large cystic structure, located between the jugular vein and the sterno-cleidomastoid muscle, with inflammation in the surrounding tissues, was removed. The histology of the structure was surprisingly determined to be BC, fulfilling the criterion of the presence of a squamous cyst in the lining of the epithelium, the transition zone, and an invasive SCC comprised in the vestige.

Histology macroscopically identified a cystic structure 70 × 35 × 30 mm in size, the inner surface with cauliflower formations and blood coagulants and a smooth outer surface. Microscopically, the cyst consisted of a fibrohyalinic wall, lined with a squamous epithelium with areas of heavy metaplasia transforming to in situ carcinoma and finally to invasive G2/G3 differentiated SCC with focal keratinization (p53+, CK5+) (Fig. 2). Due to a complete removal, assuming non-aggressive biological behavior and taking into account the age of the patient, no other general anesthesia associated with tonsillectomy and panendoscopy with guided biopsies were performed. For the same reason, adjuvant irradiation was not recommended. The patient has now been tumor-free for more than one year after finishing the treatment; he is under the follow-up care of a general practitioner.

Discussion

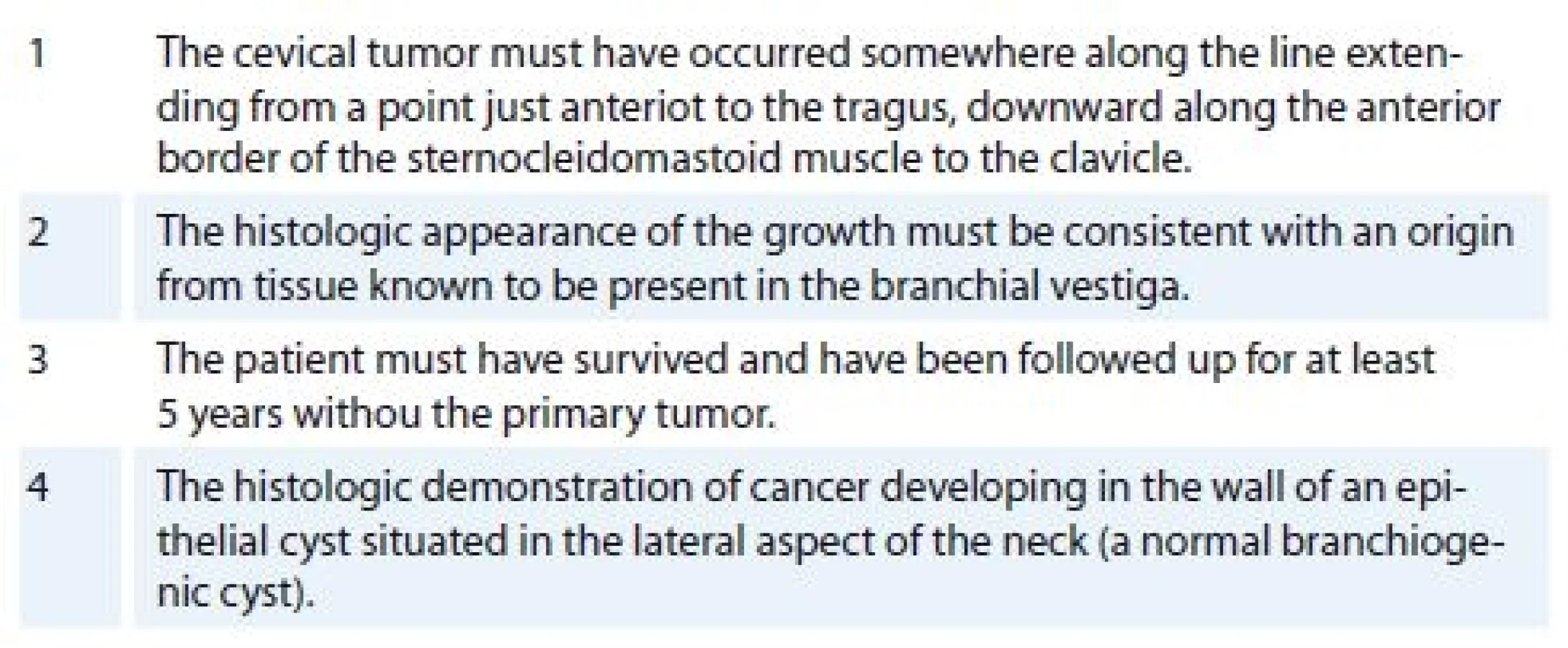

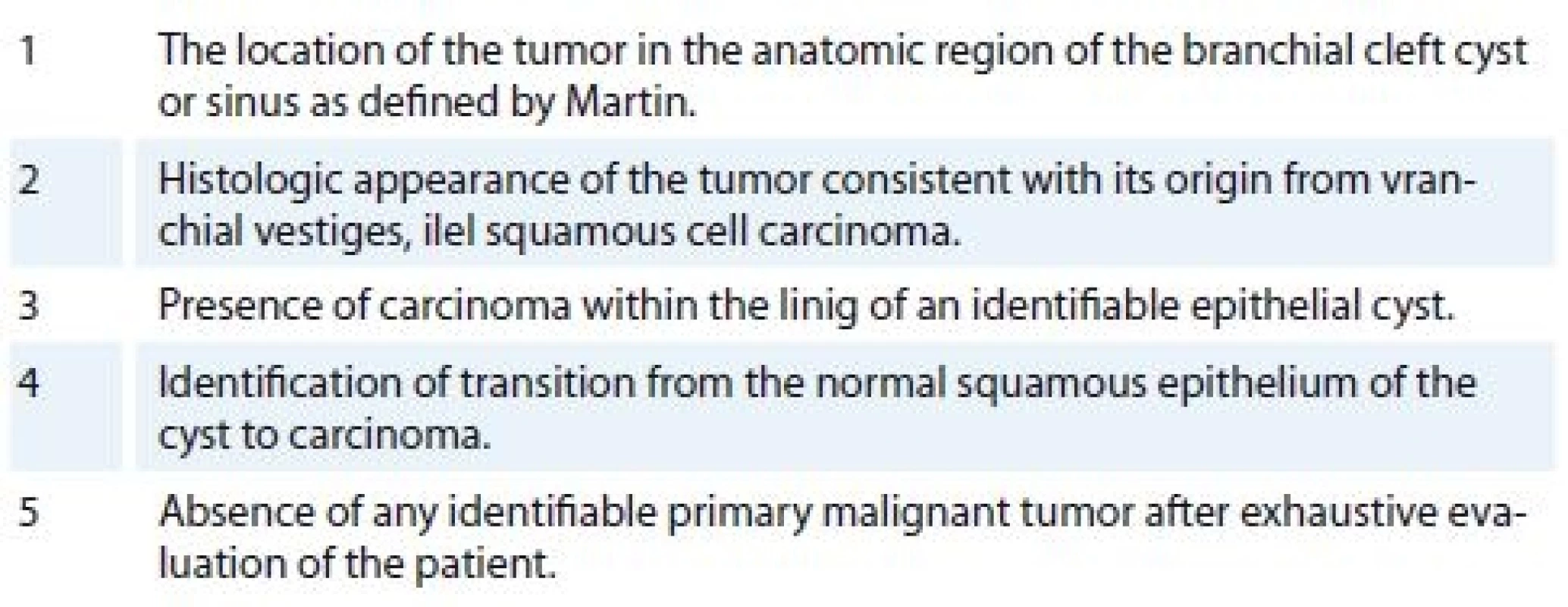

Martin first proposed criteria for the diagnosis of BC (Tab. 1) [1] and Khafif later modified these criteria (Tab. 2) [2]. As he disagreed with the third criterion (e. g. an independent duplex tumor can be detected over 5 years or, on the contrary, an administered adjuvant radiotherapy could eliminate an occult primary tumor), he replaced it with different two criteria – the absence of a primary tumor in a different location and a clear histological identification of a cystic structure where the normal squamous cell epithelium of the lining with transition zone of dysplasia, carcinoma in situ and an invasive SCC. These criteria are widely accepted. Both authors emphasize the histological aspect of BC.

BCs have been published in recent years as unique case reports that meet Martin’s and Khafif’s above-mentioned criteria. Zimmerman documented thein situ carcinoma stage without clear invasion, which confirms the above-mentioned etiopathogenetic theory [3]. The histological assessment was the strongest argument supporting the branchiogenic etiology in our case as well. Our patient met all of the criteria of localization, histological typeof an invasive SCC, absence of primary malignancy and, above all, a characteristic, histologically well-document-ed process of transition.

Diagnosis of BC is based on clinical, cytological and radiodiagnostic imaging. Ultrasound, CT and MRI reveal a characteristic image – a thin-walled cystic lesion with a back wall enhancement. However, an atypia may always arise (pseudosolid, anechogenous, heterogeneous, with debris and pseudocysts or an indistinguishable wall), which is associated with a change in cyst content in intracapsule bleeding or solidification, thickening of the wall caused by inflammation, or an increase in vascularization which may indicate a malignant transformation. We consider ultrasound to be an ideal follow-up method, as it is non-burdensome and applicable in regular intervals and allows for guided aspiration biopsy for cytological assessment [4].

CT corresponded with the diagnosis of a benign cyst in our patient for a long period until a rapidly progressing symptomatology recently arose. This, however, was more suspected to be inflammation induced by a repeated Fine needle aspiration biopsy (FNAB) (cytology was always benign.)

For BC diagnostics, the issue is first and foremost to exclude an occult primary head and neck tumor metastasis; in the past, this diagnosis was probably overestimated, whereas nowadays some authors completely deny the existence of BC as a pathologic unit itself.

On the other hand, the histology illustrating a transition of the epithelium to the carcinoma is the strongest argument supporting the existence of this clinical unit, which has never been explained in another way [5–7].

Cancer of unknown primary origin (CUP) presenting with cervical metastasisaccounts for approximately 5% of all head and neck malignancies, over 90% of which, as it was later assessed, originate from the lymphatic tissue (tonsil, nasopharynx, root of the tongue).

Though recent theories suggest that a small primary tumor may be eliminated by the patient’s immune system, examination, including panendoscopy, biopsy from Waldeyer’s ring and bilateral tonsillectomy are vastly recommended. Positron-emission tomography imaging is indicated for excluding a primary tumor during the diagnostic procedure and subsequent follow-up, when a metastasis of unknown primary should be confirmed [8–10].

In recent years, oropharyngeal location is regarded as particularly susceptive considering the dramatic increase in incidence of human papillomavirus (HPV) -associated oropharyngeal carcinomas (OPC), known for its early cystic metastases of small primary tumors. OPC is finally diagnosed in up to 70% of cases. From the HPV point of view, an interesting case of HPV-associated BC was reported by Maeda [11–15].

In our patient, the immunohistochemistry was negative for p16, which also supports the non-HPV etiology.

In our patient, histology was a great surprise considering the long-lasting history with a benign FNAB cytology. We do not believe the malignancy could persist for such a long time.

Another theory might arise – the malign transformation could be brought on by repeating FNAB; however, this was not supported by any report in the reviewed literature.

Therefore, endoscopy followed, but a tonsillectomy was not performed. The patient had a very high risk of general anesthesia and there was no clinical suspicion of tumor. The 8-year history of cystic lesion in the lateral neck, free of progression even without any treatment, is a very strong argument against the theory of occult tumor metastasis.

Complete surgical excision and adjuvant radiotherapy is considered to be an adequate therapy; even though data are rare in a rare diagnosis, a good prognosis is assumed. In our patient, a complete excision of a large cyst was performed. On account of the patient’s performance status, recommended panendoscopy and tonsillectomy were not performed. However, even though the suggested adjuvant radiotherapy could not be performed, he is, after a year of follow-up, recurrence-free under regular clinical examination.

Conclusion

BC is a very rare entity, strictly defined by Martin’s and Khafif’s criteria. The existence of BC itself is denied by some authors and pathologists and is considered to be the cystic metastasis of an unknown primary tumor.

In recent years, BCs have been presented in the literature only as unique case reports responding to the above mentioned criteria, with particular emphasis on the histological aspect, imaging the cystic lining epithelium transforming into an invasive SCC in one pathological lesion.

The authors declare they have no potential conflicts of interest concerning drugs, products, or services used in the study.

The Editorial Board declares that the manuscript met the ICMJE recommendation for biomedical papers.

MUDr. Zuzana Horakova

Department of otorhinolaryngology head and neck surgery

Faculty of Medicine of Masaryk university

St. Anne´s University Hospital

Pekařská 664/53 656 91 Brno

e-mail: zuhorakova@seznam.cz

Submitted: 22. 2. 2018

Accepted: 24. 4. 2018
