Hybrid thoracoscopic esophagectomy for cancer – retrospective analysis and comparison with transhiatal resection

Summary

Introduction:

Minimally invasive methods for esophagectomy have been introduced to reduce postoperative complications. This paper compares open transhiatal esophagectomy and minimally invasive hybrid esophagectomy. Both methods have different extents of lymphadenectomy, transhiatal esophagectomy being considered less radical.

Method:

A single-centre retrospective study comprised 39 patients subjected to transhiatal esophagectomy and 25 patients subjected to hybrid esophagectomy combining thoracoscopy with laparotomy and cervical anastomosis. All patients were operated for middle and distal third carcinoma of the esophagus, including cardia (Siewert II), in the period of 2006−2016 at the Surgery department of Nový Jičín hospital. The data of both groups, in particular the incidence of early postoperative complications and the number of dissected lymph nodes, were statistically compared. Complications are reported according to the International Consensus on Standardization of Data Collection for Complications Associated with Esophagectomy.

Results:

The duration of operation was significantly longer in the group that underwent hybrid resections (345 vs. 240 min, p<0.001). The number of dissected lymph nodes was comparable in both groups (15 vs. 16, p=0.072). Postoperative pulmonary complications were lower for hybrid operations (16% vs. 30.8%, p=0.243). The most common complication of transhiatal esophagectomy was pleural effusion requiring drainage, which occurred in 7 patients. The most common pulmonary complication of hybrid procedures was respiratory failure, which occurred in 3 patients. Anastomotic leak occurred in 5 patients after transhiatal esophagectomy and in one after thoracoscopic resection (12.8% vs. 4%, p=0.391). 30-day and 90-day mortality was nonsignificantly lower for hybrid resections (0% vs. 5.1%, p=0.516 and 4% vs. 10.3%, p=0.64). Following transhiatal esophagectomy, two patients died as a result of respiratory complications, one died from necrosis of the gastric tube and one from acute myocardial infarction. In the hybrid group, one patient died from respiratory failure. Hybrid resection exhibited lower morbidity (36% vs. 59%, p=0.123). The number of overall complications, irrespective of their severity according to the Clavien-Dindo classification, was statistically in favor of hybrid resection (11 vs. 30, p=0.015).

Conclusion:

In our study, we found that thoracoscopic hybrid resection was a feasible and well-executable method, with a statistically lower incidence of postoperative complications. Thoracoscopy allows lymphadenectomy to be performed to sufficient extent. The large number and various combinations of esophagectomy techniques make it difficult to evaluate and compare the outcomes of individual methods. Preference for a specific resection technique within a given surgical department remains an important factor as clear recommendations for esophageal resections do not yet exist. However, the use of minimally invasive techniques in esophageal resections is gradually becoming a standard.

Key words:

minimally invasive esophagectomy – thoracoscopy – postoperative complications – lymphadenectomy

INTRODUCTION

Esophageal cancer is a cancer, whose incidence in the Czech Republic has risen three times in the last three decades (3,38/100 000)[1]. Surgical treatment with neoadjuvant radiochemotherapy is now standard in advanced tumors of the middle and distal third of the esophagus [2]. The esophageal resection is performed by various surgical approaches. Mortality is 1−5% in specialized centers and morbidity is 30−60% [3,4]. Classical open resection can be performed with a thoracotomy (transthoracic “Ivor-Lewis” surgery with intrathoracic anastomosis or McKeown resection with cervical anastomosis) and no thoracotomy with neck anastomosis (trans­hiatal resection − THE). Localization of anastomosis and the possibility of minimally invasive implementation of some phases of the operation contribute to various variations of esophagectomy, making it difficult to compare. Traditionally, there is a lesser incidence of respiratory complications and a higher incidence of anastomotic leakage and subsequent benign strictures of cervical anastomosis in patients undergoing THE. The disadvantage of THE is also inadequate access to middle esophageal tumors with lesser radicality and higher incidence of recurrent nerve palsy [5,6]. The type of resection preference depends on the center experience and localization of the cancer itself. THE is prefered for less advanced tumors of distal esophagus and cardia in patients with limited node involvement and pulmonary comorbidities [7]. In 2009, the International Society for Diseases of the Esophagus (ISDE) and the European Society of Esophagology (ESE − GEEMO) questionnaire showed that with growing center experience a more radical transthoracic esophagectomy (TTE) is being preferred. TTE is nowadays the gold standard mainly in Asian countries [8].

With the development of minimally invasive approaches, these methods have also been used in esophageal surgery. In 1992, Cushieri performed a thoracoscopic mobilization of the esophagus which, with the same radicularity as TTE [9]. The thoracoscopic approach (VATS) can be combined with laparoscopy (complete minimally invasive esophagectomy – MIE) or open laparotomy (hybrid esophagectomy). Systemic review or meta-analyses confirm the safety of minimally invasive operations and comparable oncological results of thoracoscopic resection, possibly MIE with open techniques [10,11].

The aim of our study is to compare classical THE and hybrid minimally invasive esophagectomy using thoracoscopy (MIHE) as two techniques seeking to reduce the incidence of postoperative complications with a different extent of lymphadenectomy. The cervical phase of the operation and the construction of the esophagogastric anastomosis was performed by the same technique.

METHOD

In the period 2006−2016 a total of 110 esophageal resections were performed at the Surgery department of Nový Jičín hospital. Patients with a surgery for benign diseases, non-standard esophageal resections, thoracotomy or thoracoscopic procedures converted to open surgery, were excluded from the study. The two most common types of resections for middle and distal third esophageal carcinoma including cardia (Siewert II) were compared, focusing on early post-operative complications: transhiatal esophagectomy (THE) and minimally invasive hybrid esophagectomy (MIHE), which combines VATS with laparotomy and cervical anastomosis. Gastric conduit was used for GI tract reconstruction in all cases. The data was obtained retrospectively from the hospital database. In the THE group there were 36 men and 3 women, median age was 60 (range 39−76). In the MIHE group there were 20 men and 5 women, median age was 61 (range 43−78). Postoperative complications are classified according to the current International consensus for data collection after esophagectomy, focusing on pulmonary complications [12]. The severity of the complication was assessed by Clavien-Dindo’s classification. The stage of the malignancy was ranked according to the recommendations for pathological staging (including neoadjuvant therapy) for the 8^th edition of the TNM AJCC/UICC classification for Esophageal cancer [13,14]. The nutritional status of the patients was evaluated according to the Nutritional Risk Score (NRS 2002) [15]. Subsequent sub-analysis included patients with a score of ≥3, i.e. patients with a weight loss of 10−15% over the last 3 months.

The technique of hybrid thoracoscopic resection of esophagus (MIHE)

VATS resection was performed as a three − phase operation. All operations were performed by two surgeons with experience in upper gastrointestinal surgery and thoracic surgery. Selective pulmonary ventilation with double luminal endobronchial cannula was used. At first we operated in a position on the left side with three thoracic ports (1x5 mm, 1x10 mm, 1x12 mm camera) in the posterior axillary line and a 3 cm minithoracotomy in the anterior axillary line below the nipple level. Later we moved to a prone position with three thoracic ports. The patient is positioned with 100 degree abduction of the right upper limb on the abdomen. Only one assistant was needed in this positioning. The surgeon is on the right side of the patient and the assistant to the left of him. The esophagus is mobilized with periesophageal fat-lymphatic tissue along the pericardium, the aorta and the thoracic spine up to the upper thoracic aperture (Fig. 1).

In the abdominal phase, the patient is in a supine position with abducted lower limbs in a 30 degree antiTrendelenburg position with a slight head inclination to the back and to the right. The surgeon stands between the patient’s feet and the first assistant on his left. We chose the upper middle or more often Chevron laparotomy. We mobilize the esophagus and create a gastric tube with nutrition from right gastroepiploic artery. Part of the performance is also a dissection of the abdominal compartment node in the modified D2 range (stations 7, 8, 9 and 11) according to Japanese classification of lymphatic stations for gastric cancer. The tube is attached to a sterile packaging used for lapa­roscopy to cover the optical cable.

Approach in the cervical phase is selected by incision along the medial margin of the left sternocleidomastoideus muscle. The covered stomach tube is pulled up from the abdomen to the neck. The anastomosis is performed by the end-to-side circular stapler (21 mm or 25 mm circular stapler, Ethicon, USA).

Statistical analysis

Numerical data are expressed as averages with standard deviation or medians with range of values. Relation of dichotomous variables to groups were evalu­ated by Fisher’s exact test, while metric variables to groups by Welch’s t-test following Box-Cox transformation of original data to symmetric data distribution and homoscedasticity. Symmetry of distribution and homogeneity of transformed data was verified using quantile-quantile (Q-Q) plot for normal distribution and histograms. Statistical analysis of the data was performed in R Statistics 3.3.3 (2017-03-06) - “Another Canoe” from “R Foundation for Statistical Computing”, using the R-commander, fBasics and AID libraries. Tests were performed at a significance level of 0.05.

RESULTS

Comparison of patients

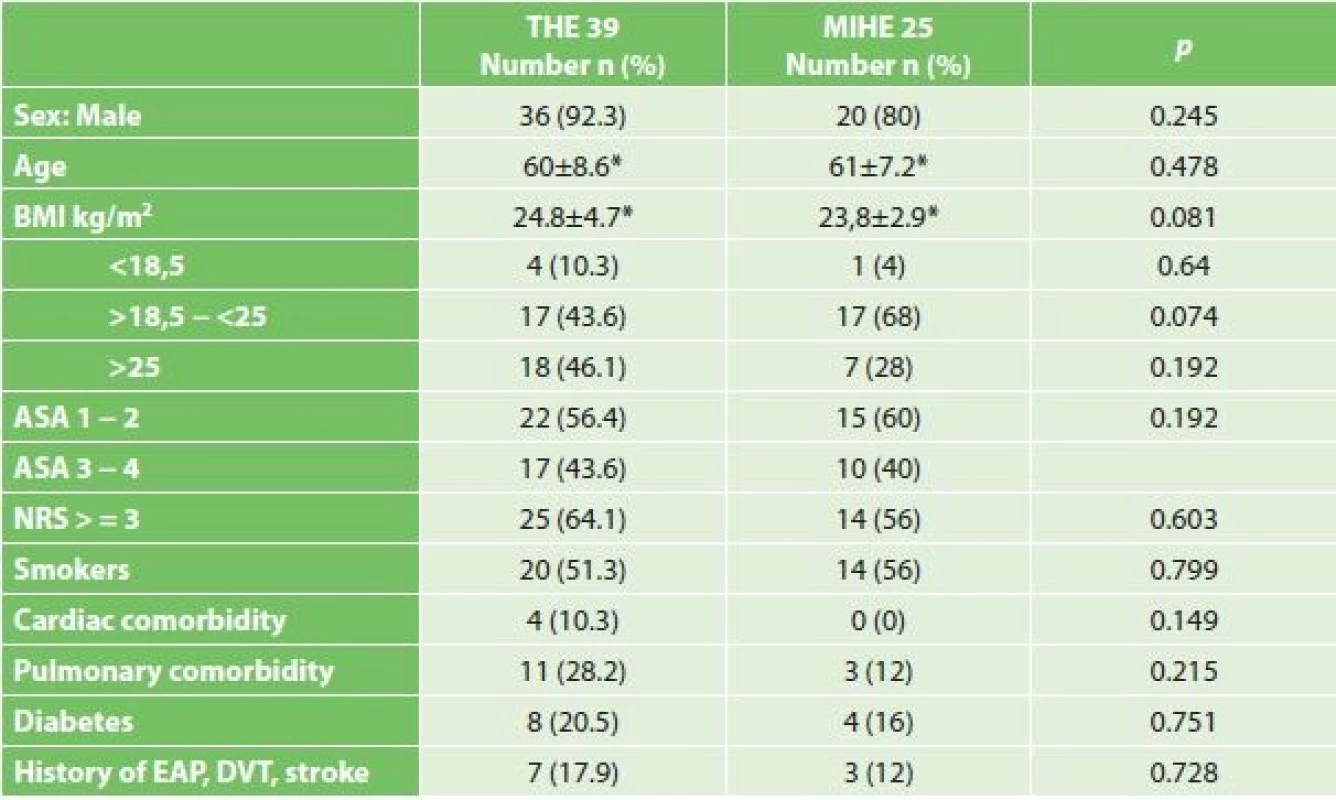

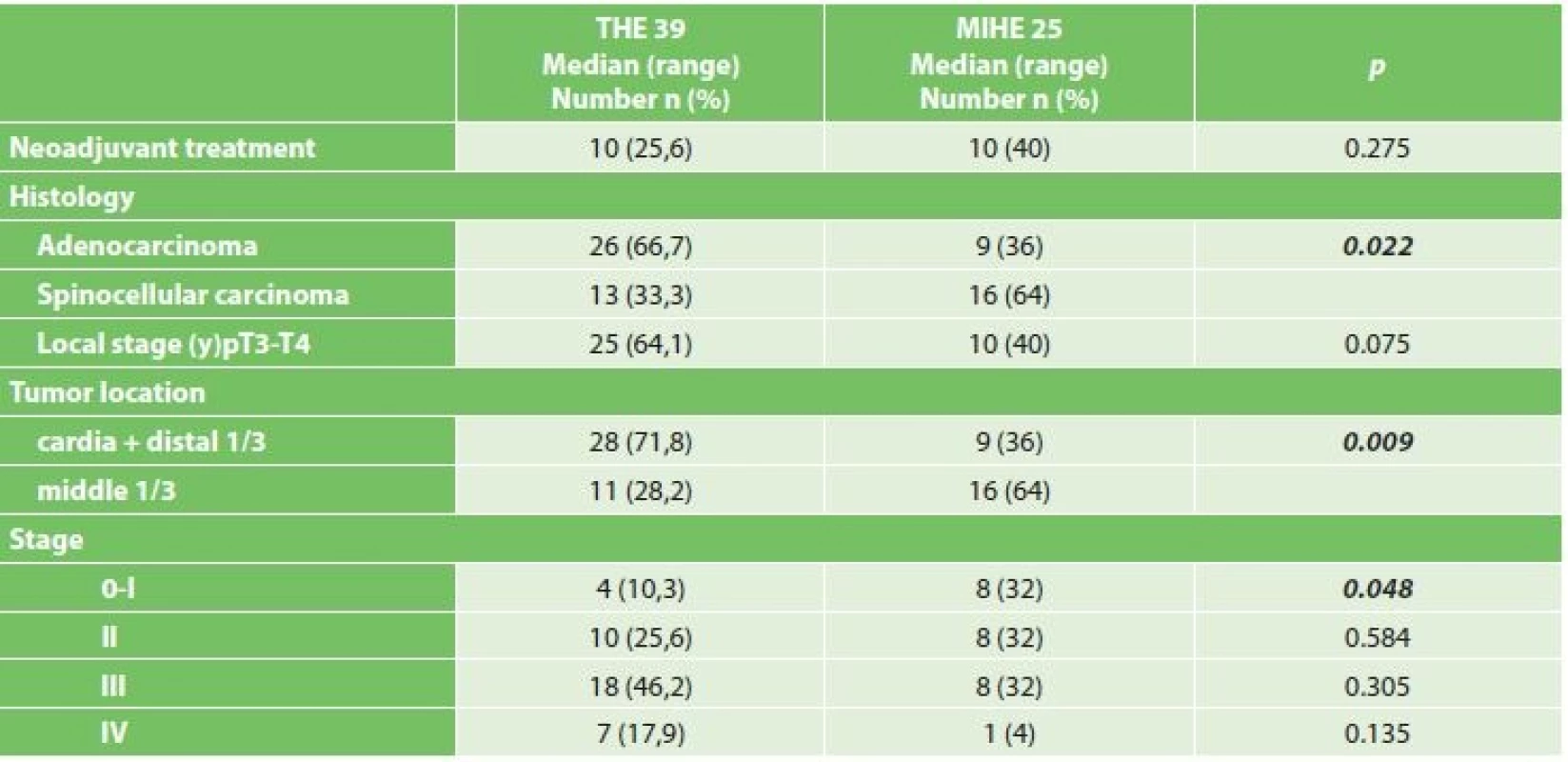

Comparing the comorbidities, ASA score and the nutritional status, we did not record a statistically signifi­cant difference (Table 1). Comparison of oncological data is shown in Tab. 2. In the THE group we statistically confirmed a higher incidence of adenocarcinoma (THE 66.7% vs. MIHE 36%, p=0.022). In the localization of tumors there was a statistically higher incidence of distal third tumors in the THE group (THE 71.8% vs. MIHE 36%, p=0.009). In the MIHE group lower stages of the disease were more common (stage 0 – 1 MIHE 32% vs. THE 10.3%, p=0.048, stage 2 MIHE 32.6% vs. THE 25.6%, p=0.584). No statistically significant difference was observed for neoadjuvant treatment, but more neoadjuvant patients were in the MIHE group (MIHE 40% vs. THE 25.6%, p=0.275).

Operational results

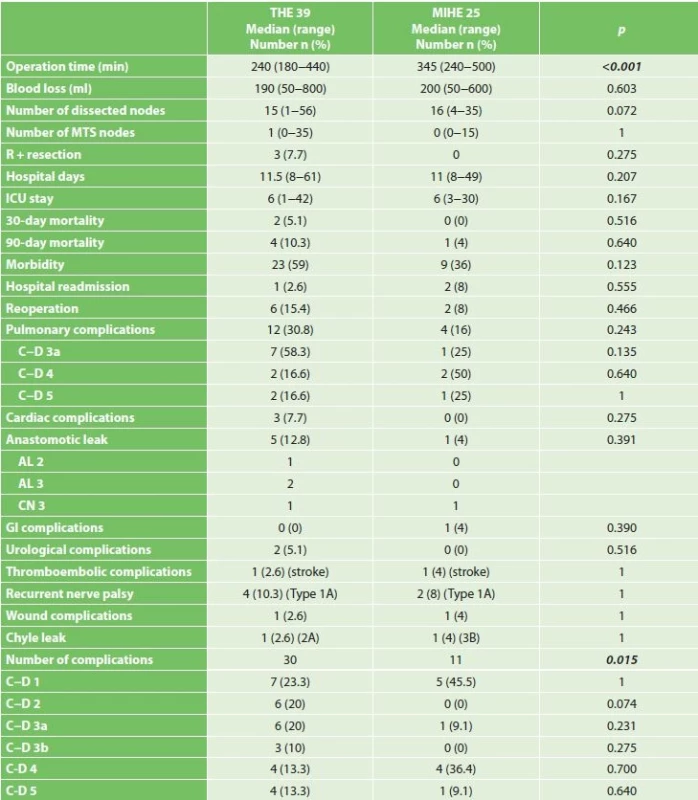

The duration of operation was significantly longer in the group that underwent hybrid resections (345 vs. 240 min, p<0.001). The number of dissected lymph nodes was comparable in both groups (15 vs. 16, p=0.072). A positive circumferential margin was found in three THE patients (7.7%) with tumors on the distal third of the esophagus. When comparing individual types of complications, we observed a trend of better results for MIHE, although this difference was statistically not significant (Tab. 3). The most common postoperative complications were pulmonary and anastomosis insufficiency. Pulmonary complications occurred in 16% of the MIHE and 30.8% in the THE group (MIHE 16% vs. THE 30.8%, p=0.243). The most frequent complication was pleural effusion requiring drainage in the THE group in 7 patients (C−D 3a). In the MIHE group respiratory failure in three patients (C−D 4a and C−D 5) was the most frequent complication. We observed anastomotic leak (AL) in 5 patients in the THE and one in the MIHE group (THE 12.8% vs. MIHE 4%, p=0.391). In the THE group there were two insufficiencies treated by the reoperation (AL grade 3). By the upper GI tract x-ray exam, routinely performed on the 7^th postoperative day, in another patient leakage from the area of the stapler line on the gastric tube was confirmed with the formation of a gastropleural fistula, which we have solved by introducing a stent (AL grade 2). At one patient in each group disconnection had to be performed due to gastric tube necrosis (CN 3). Recurent nerve palsy, with left larynx transit paresis (type 1A) occurred in both groups (THE 10.3% vs. MIHE 8%, n=1).

In both groups, we did not see a significant difference in the 30-day and 90-day mortality (30-day mortality, THE 5.1% vs. MIHE 0%, p=0.516, 90-day mortality 10.3% vs. MIHE 4%, p=0.64). In the MIHE group one death occurred in the 48th postoperative day, when a diabetic patient died due to respiratory failure and ARDS. Two patients died in the THE group as a result of respiratory complications due to ARDS and pneumonia. One patient died on the 32nd postoperative day due to gastric tube necrosis (CN) and one patient died of cardial arrest during the first day after esophagectomy. We recorded a lower morbidity in MIHE (36% vs. 59%, p=0.123). However, the total number of postoperative complications was significantly lower for MIHE (11 vs. 30, p=0.015).

DISCUSSION

Esophagectomy is an invasive procedure with significant postoperative mortality and morbidity. For opened performances, the mortality of THE and TTE was about 10% [16,17]. Over the last two decades it has declined significantly, especially in high-volume centers [3,4]. The decrease in mortality involves improvements in perioperative care, patient selection and the introduction of minimally invasive methods. Current studies suggest a significant impact of the center experience on reducing mortality [18]. In an analysis of the US national database with more than 23,000 esophagectomies the average 30-day mortality was 7%. This study demonstrated a significant effect of the number of esophagectomies performed on postoperative mortality and the influence of minimally invasive methods, particularly laparoscopy, on morbidity [19]. There is little information about the mortality of hybrid methods after thoracoscopic resection. Decker summarized data from 14 retrospective studies with 743 MIHE patients according to which the 30-day mortality was 2.4% and the overall morbidity was 51.6% [20]. Most studies report only a 30-day mortality that underestimates hospital, or 90-day mortality by up to 4 times. For this reason the 90-day mortality is more indicative [12]. In our group MIHE was associated with lower mortality and lower total postoperative complications (11 vs. 30, p=0.015). Our 30-day mortality is comparable to medium-volume centers [19,20]. However, the mortality doubled after 90-days, confirming the need for its reporting(4% for MIHE, 10.3% for THE).

The extent of lymphadenectomy, its significance and the way it is performed are still the subject of discussions between Western countries and Asia. To determine the pathological staging, at least 15 nodes should be removed [2]. THE is limited by its technical reach through the diaphragmatic hiatus and dissects the paraesophageal tissue by standard lymphadenectomy in the lower posterior mediastinum. Orringer initially reserved this method for patients without lympha­tic disorder and relied on adjuvant therapy [21]. The potential benefits of TTE as well as MIHE can be seen in the possibility of sufficient access to dissection of lymph nodes, including the upper mediastinum. Studi­es show that the number of nodes taken and the ratio of metastatic nodes to the total number of dissected nodes correlates with survival of patients in esophageal cancer. Other studies confirm that overall survival correlates with the total number of dissected nodes regardless of their positivity [22,23]. The meta-analysis comparing classical TTE and THE from 2011 showed significantly higher numbers of dissected nodes in TTE (an average of 8). In 5-year survival, it did not show the difference between THE and TTE. The authors of this meta-analysis point to a higher proportion of later stages of esophageal carcinoma in TTE [24]. The benefit of the thoracic lymphadenectomy in relation to 5-year survival was demonstrated in a randomized study of middle esophageal carcinoma and cardia Siewert type I. carcinoma [25]. Most of these analyzes were based on primary surgical treatment without neoadjuvant radiochemotherapy. Koen in a prospective study confirmed a lower number of dissected nodes in neoadjuvant patients and refuted a similar correlation of survival rate of dissected nodes [26]. What these effects will have on the recommendation of the extent of lymphadenectomy and the amount of dissected nodes in the era of neoadjuvant treatment, we do not yet know. Which approach to resection of the esophagus should be chosen is, however, still controversial [27]. In our set, the median of the MIHE was 16, no difference compared to THE. However, we must take into account a larger number of patients after neoadjuvant treatment in the MIHE group that may have affected this number. The number of dissected nodes in our set is comparable to most published papers [20, 24].

Pulmonary complications are the most common postoperative complications in esophageal resection with an incidence of 20−40%. Approximately 50% of deaths are associated with respiratory failure and pneumonia [28]. The high incidence of pulmonary complications is explained by the extent of surgery, the need for unilateral ventilation and the disruption of bronchial innervation. Some meta-analyzes and reviews show a reduction in MIE incidence compared to open procedures [29,30]. However, the relevance of VATS has not been demonstrated in the Mocan review with 1190 patients or in the national English esophageal resection database. Different definitions of pulmonary postoperative complications were considered as a reason for not making adequate comparisons [31,32]. Palanivelu in a group of 130 MIE patients in the prone position achieved excellent results with a low incidence of postoperative complications (pneumonia 1.5% and pulmonary effusions 0.77%) [33]. In a multicenter prospective randomized study of postoperative pulmonary complications in the first two postoperative weeks from 2012 Bier confirmed significant reductions at MIE (9% vs. 29%, p=0.005) [34]. In our set there were fewer pulmonary complications after MIHE. In this group, however, we operated less patients with pulmonary comorbidity, which could have affected these results.

The hospitalization after esophagectomy is affected by nutritional and performance status, comorbidity or the presence of a rehabilitation team with the ERAS protocol. In our report the length of hospitalization in both groups was almost the same. In MIHE, the median of hospitalization was 11 days and was shorter than in most published hybrid esophagectomies in Decker’s review (18 days). For THE hospitalization was the same (11 days) [20]. We recorded a significantly longer operating time for MIHE. Hybrid procedures required a perioperative change in patient position and mobilization of the esophagus was longer at the beginning of the “learning curve”. All hybrid performances were performed by one surgeon and the operating times were shortened.

Cushieri thoracoscopically mobilized the esophagus first in the left lateral decubitus position and later described the technique in the prone position and highlighted the advantages of a good operating field image, fall of the right lung caused by gravity allowing for both bilateral lung ventilation [9,35]. The disadvantage is the difficulty of performing an acute thoracotomy and a less clear view of the upper mediastinum. In the position on the left side we had to push the lung tissue through by a hook, which required another assistant. In the prone position one assistant was required and dissection towards the thoracic aorta seemed more profitable and safer. In all cases the thoracic duct was visualized and currently we preferred this position. The thoracoscopy can be operated as radically as in the thoracotomy. Contraindications to VATS can be extensive adhesions or locally advanced tumor near the tracheobronchial tree where palpability is beneficial.

The goal of minimally invasive methods is to reduce the incidence of complications and to speed up recovery without worsening oncological results. A large number of combinations of esophagectomy techniques make it difficult to evaluate and compare the results of individual methods. Meta-analyzes comparing MIE and open resections were often limited by non-randomized retrospective data, but they indicated lower blood loss, shorter postoperative hospitalization time and favored minimally invasive methods in terms of lower incidence of pulmonary complications [10,29,30]. Similar findings were subsequently confirmed in a multicenter prospective randomized trial [34]. Minimally invasive techniques are used in Japan and the UK for almost half of the esophagectomies. In high-volume centers MIE numbers exceeded the number of open procedures [36,37]. Several czech papers on the implementation of MIE have been published largely using a laparoscopic approach or a complete MIE [38,39,40]. However, the hybrid method combining VATS with laparotomy has not yet been described in the Czech Republic.

CONCLUSION

Based on our experience MIHE is a well feasible me­thod with a lower number of early complications compared to THE. Like thoracotomy it allows for sufficient lymphadenectomy. The effect of neoadjuvant treatment on the recommended extent of lymphadenectomy remains unclear. The large number and various combinations of esophagectomy techniques make it difficult to evaluate and compare the results of individual methods. The center experience to esophagectomy remains crucial and unambiguous recommendations for the esophageal resection technique do not yet exist. A definitive assessment of the role of the hybrid esophageal resection will only be possible once the long-term outcomes have been evaluated. Consistency of reporting postoperative complications to current standards may lead to clearer conclusions in the future. The use of minimally invasive techniques for esophageal resections is gradually increasing.

List of abbreviations:

AL − anastomotic leak

ARDS − acute respiratory distress syndrome

ASA − American Society of Anaesthesiologists

BMI − body mass Index

C−D − Clavien-Dindo classification

DVT − deep venous thrombosis

CN − conduit necrosis

EAP − pulmonary artery embolisation

ERAS − enhanced recovery after surgery

ESE-GEEMO − European Society of Esophagology − Group d‘Etude Europeen des Maladies de l‘Oesophage (GEEMO)

ICU – intensive care unit

ISDE − International Society for Diseases of the Esophagus

MIE − minimally invasive esophagectomy

MIHE − minimally invasive hybrid esophagectomy

MTS − metastases

NRS − nutritional risk score

THE − transhiatal esophagectomy

TTE − transthoracic esophagectomy

VATS − video-assisted thoracoscopic surgery

We thank to ing. Martin Hill, DrSc. for statistical data processing.

Conflict of interests

The authors declare that they have not conflict of interest in connection with the emergence of and that the article was not published in any other journal.
