A Novel Mouse Synaptonemal Complex Protein Is Essential for Loading of Central Element Proteins, Recombination, and Fertility

Summary

The synaptonemal complex (SC) is a proteinaceous, meiosis-specific structure that is highly conserved in evolution. During meiosis, the SC mediates synapsis of homologous chromosomes. It is essential for proper recombination and segregation of homologous chromosomes, and therefore for genome haploidization. Mutations in human SC genes can cause infertility. In order to gain a better understanding of the process of SC assembly in a model system that would be relevant for humans, we are investigating meiosis in mice. Here, we report on a newly identified component of the murine SC, which we named SYCE3. SYCE3 is strongly conserved among mammals and localizes to the central element (CE) of the SC. By generating a Syce3 knockout mouse, we found that SYCE3 is required for fertility in both sexes. Loss of SYCE3 blocks synapsis initiation and results in meiotic arrest. In the absence of SYCE3, initiation of meiotic recombination appears to be normal, but its progression is severely impaired resulting in complete absence of MLH1 foci, which are presumed markers of crossovers in wild-type meiocytes. In the process of SC assembly, SYCE3 is required downstream of transverse filament protein SYCP1, but upstream of the other previously described CE–specific proteins. We conclude that SYCE3 enables chromosome loading of the other CE–specific proteins, which in turn would promote synapsis between homologous chromosomes.

Introduction

Meiosis is a special type of cell division which gives rise to haploid, genetically diverse gametes. For organisms that reproduce sexually the correct haploidization of paternal and maternal genomes is of utmost importance. To ensure the correct separation of homologous chromosomes during anaphase I, homologs first have to find each other before coming into close physical proximity. This process takes place during prophase I of meiosis, which is highly regulated and can be subdivided into five stages: leptotene (chromosome condensation), zygotene (initiation of synapsis), pachytene (full synapsis), diplotene (desynapsis), and diakinesis (visible chiasmata) [1]. One key component that enables synapsis and crossover formation is the synaptonemal complex (SC), a largely proteinaceous, meiosis-specific nuclear structure. The SC consists of three components: two lateral elements (LEs), each of which are associated with a pair of sister chromatids, and a central region between the two LEs, that is composed of numerous transverse filaments and the central element (CE). The central region physically links homologous chromosomes in a zipper-like manner and thus mediates synapsis (reviewed in [2],[3]). The tripartite structure of the SC is strikingly conserved from budding yeast to humans emphasizing its prominent function during meiosis. Much of our current understanding in the field was obtained from organisms such as Saccharomyces cerevisiae, Caenorhabditis elegans, and Drosophila melanogaster [4]–[10]. However, the mouse also has advanced to a widespread model system for the analysis of SC composition and regulation [11], [12]. Investigations in the mouse are expected to provide a better insight into causes of infertility in humans [13]–[15]. Several mouse models have been generated over recent years in order to illuminate the process of mammalian SC assembly. With the aid of these a first molecular model of SC assembly, synapsis initiation and propagation was proposed [11].

SC assembly in mice is initiated during leptotene with the formation of the axial elements (AEs; i.e. the precursor structures of LEs) by the AE proteins SYCP2 and SYCP3 [2], [16]. The AEs colocalize with cohesin cores consisting of cohesin complex proteins [17]–[19]. Mice deficient for SYCP3 lack AEs and fail to form continuous cohesin cores [20]–[22]. Interestingly, knockout of the Sycp3 gene results in a sexually dimorphic phenotype: SYCP3-deficient males are sterile due to massive apoptotic cell death during zygotene [20], whereas females are fertile, but exhibit a sharp reduction in litter size caused by aneuploidy resulting in embryo death in utero [21].

AEs become linked by numerous transverse filaments (hence, AEs are referred to as LEs) when synapsis is initiated in zygotene of wild-type mice. Transverse filaments (TFs) are mainly composed of SYCP1, a fibrillar protein with a central coiled-coil domain flanked by two globular N- and C-terminal domains [23]. SYCP1 molecules most likely form homodimers with a parallel orientation with both C-termini anchored in an LE and the N-termini interacting head-to-head in the CE with a SYCP1 dimer of the opposite LE [24]–. Two facts indicate the prominent function of SYCP1 during SC assembly: (1) disruption of the mouse Sycp1 gene leads to sterility in both sexes, which is caused by massive apoptotic events during spermatogenesis and oogenesis. Detailed analysis of Sycp1 null mice revealed a complete breakdown of synapsis of homologous chromosomes, although the mice show normal AE formation and chromosome alignment. Furthermore, SYCP1 is required for crossover formation and the repair of DNA double-strand breaks (DSBs) [27]. (2) When expressed in a heterologous system SYCP1 molecules have the capability to self-assemble and form structures that closely resemble SCs (i.e. polycomplexes; [26]). Therefore, SYCP1 may function as a molecular framework to which other proteins attach to accomplish SC assembly and progression of recombination events ([26], [27]; and below).

Because of the prominent function of SYCP1 in meiosis and its relevance for fertility, the identification and characterization of its interaction partners has received intense interest over the past years. Of particular interest are three proteins, SYCE1, SYCE2 and Tex12, which exclusively localize to the CE and, interestingly, contain a coiled-coil domain, which constitutes a common protein interaction motif [28], [29]. These proteins, together with SYCP1, form a complex in the CE. SYCE1 and SYCE2 were found to bind to each other and to SYCP1, whereas Tex12 forms a complex with SYCE2 and, therefore, indirectly interacts with SYCP1. The hypothesis that SYCP1 serves as a molecular framework is supported by the fact that disruption of the central region by eliminating Sycp1 results in a mislocalization of all three CE-specific proteins [29]. In addition, knockout models of each of the three known CE proteins revealed that loss of either of these alters higher order polymerization properties and localization of SYCP1 [30]–[32]. This indicates that the in vivo relationship between SYCP1 and all currently known CE proteins is reciprocal.

Correct SC assembly is required for proper meiotic recombination and conversely, recombination is essential for correct SC assembly. This is particularly well documented in mice deficient for Spo11, which are characterized by the lack of Spo11-dependent DSBs. In these mice SC formation is much reduced or SCs form between non-homologous chromosomes [33], [34]. Thus SC assembly and meiotic recombination are mutually dependent on each other.

Here we report on the characterization of SYCE3, a novel protein specifically located in the CE of the mammalian SC. SYCE3 is exclusively expressed during male and female meiosis and colocalizes with SYCP1 and SYCE1. We show that SYCE3 is part of the previously described CE complex [28], [29] where it interacts with SYCE1 and SYCE2. To gain more insights into the function of SYCE3 we generated a Syce3 knockout mouse. These mice are characterized by infertility in both sexes as well as complete disruption of synapsis and mislocalization of previously described CE proteins, indicating that SYCE3 is required for synapsis initiation and chromosomal loading of the other CE proteins (i.e. SYCE1, SYCE2 and Tex12). Furthermore, we demonstrate that loss of SYCE3 has no influence on the initiation of meiotic recombination, but is required for its progression.

Results

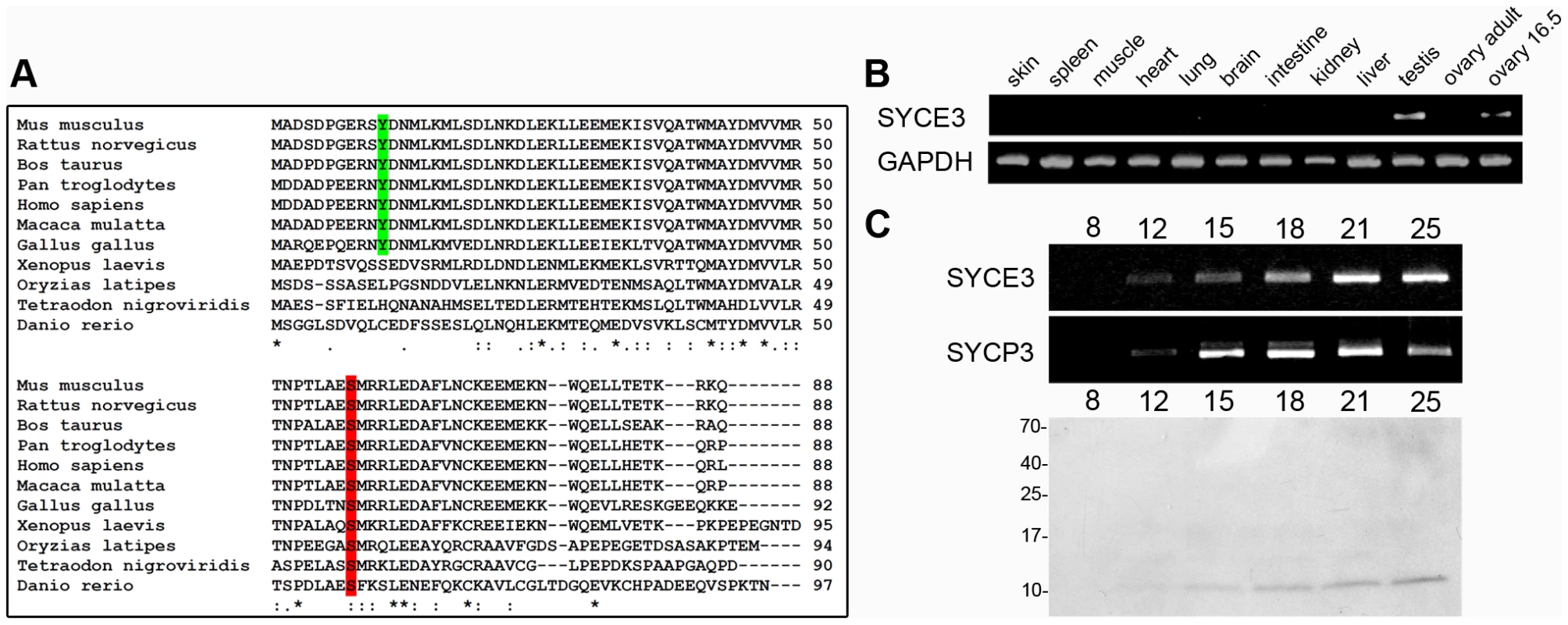

Identification and Characterization of SYCE3

We selected a set of genes identified by means of (1) predominant expression in testis and (2) a predicted nuclear localization, as well as a coiled-coil domain, within the encoded protein sequence from a gene expression profile initially used to elucidate the impact of Dazl knockout on gene expression in the developing gonads [35]. Using RT-PCR we demonstrated the selective expression of one of these genes -1700007E06Rik [35] - in adult testes and embryonic ovaries, and its absence in somatic tissues (Figure 1B). 1700007E06Rik encodes a protein (which we have named SYCE3) consisting of 88 amino acids. SYCE3 can be found in all vertebrate classes from fish to human (Figure 1A). It is highly conserved among mammals with an identity of 90% (96% similarity) at the amino acid level between mouse and human. PSORTII and SMART prediction of protein structural motifs revealed that SYCE3 contains a short coiled-coil motif (amino acids 6–39) which is conserved in all analyzed vertebrate sequences except for fish.

In order to determine the exact temporal expression pattern of SYCE3 mRNA during spermatogenesis, we performed additional RT-PCR experiments with whole mRNA fractions of pubertal mice testes of different ages. Analysis of the first wave of spermatogenesis revealed that SYCE3 mRNA is first detectable on day 12 (i.e. the onset of the prophase I of meiosis) and persists in older animals. Comparison of the temporal expression profile of SYCE3 mRNA with that of SYCP3 revealed a striking similarity, suggesting that SYCE3 also functions during the prophase I stage of meiosis (Figure 1C). To analyze SYCE3 expression at the protein level, we generated two antibodies against the full-length protein (see materials and methods). Western blot analysis of total protein fractions of pubertal mouse testes of different ages revealed a single band with the expected mass (12 kDa) from day 12 onwards, validating the fact that SYCE3 is first expressed with the onset of meiosis (Figure 1C). In addition, SYCE3 restriction to meiotic cells was confirmed by immunofluorescence analysis on frozen mouse testis sections: SYCE3 expression is confined to spermatocytes and completely absent in spermatogonia, spermatids and spermatozoa (Figure S1B).

SYCE3 Selectively Localizes to the Central Element of the Synaptonemal Complex

Using immunocytochemistry on spread mouse spermatocytes, we investigated the subcellular localization of SYCE3 in meiotic cells. For proper staging of meiotic cells we used SYCP3 as a marker for AEs/LEs (Figure 2A). Fluorescence staining of SYCE3 showed that it specifically localizes to the synapsed regions of homologous chromosomes, whereas SYCP3 was present in AEs and LEs. SYCE3 was first detectable during zygotene when synapsis is initiated and staining persisted on synapsed regions of homologous chromosomes until diplotene. The localization to synapsed regions was verified by double-labeling experiments performed with SYCE3 and TF-protein SYCP1 (a marker for synapsed regions) in which a virtually identical staining pattern was observed (Figure 2B). In pachytene oocytes SYCE3 also localized to synapsed chromosomes (Figure 2C). For a detailed analysis of SYCE3 localization within the SC we performed immuno-gold electron microscopy on testis sections using an affinity-purified SYCE3 antibody and an antibody against the coiled-coil region of SYCP1 as a control (Figure 3A). In preparations incubated with SYCE3 antibodies, gold particles exclusively localized to the CE of the SC. This is in strong contrast to the findings when using an antibody against the coiled-coil region of SYCP1, where - as expected - TFs between CE and LEs are labeled (see also [29]). For a quantitative analysis of immunogold data we sub-divided the distance between the SC center and the outer edge of LEs into 7 equal sections and counted the immuno-gold particles in each section (see [36]). In the case of SYCE3 the bulk of gold particles (n = 304) localized to the two sections adjacent to the SC center. In contrast, gold particles corresponding to the SYCP1 coiled-coil domain (n = 135) largely localized to the area between LEs and CE (see also [25]; Figure 3B).

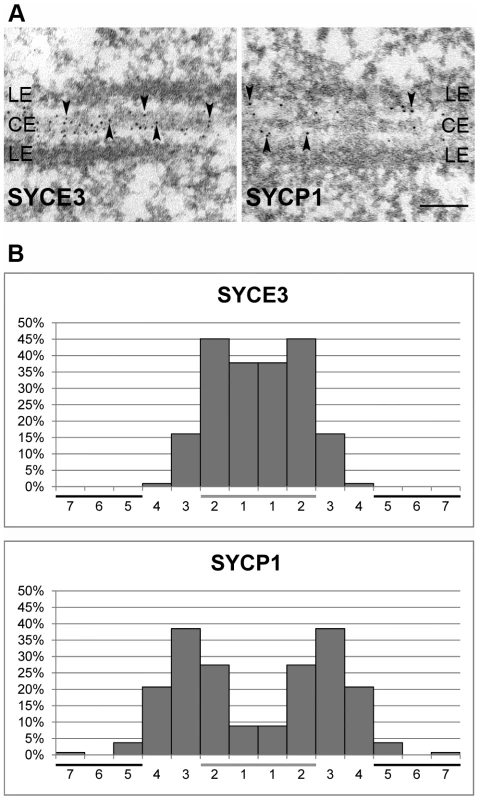

Since three CE-specific proteins had been discovered previously (SYCE1, SYCE2 and Tex12; [28], [29]), we became interested in the localization of SYCE3 in respect to the other CE-specific proteins. As previously described, SYCE1 is distributed rather continuously in pachytene along synapsed areas of homologous chromosomes, whereas SYCE2 and Tex12 localize in a more punctuated pattern. Co-localization of SYCE3 and SYCE1 on spread mouse spermatocytes revealed that in both zygotene and pachytene cells these two proteins co-localize in a rather continuous pattern along the synapsed chromosomes (Figure 4, see inset). In contrast, double-labeling experiments with SYCE3 and SYCE2 showed that in zygotene and pachytene cells SYCE3 does not necessarily co-localize with SYCE2 (Figure 4, see inset). Here, SYCE3 was distributed in a more continuous pattern whereas SYCE2 appeared more punctuated.

Lateral Element Assembly As Well As Central Element Components SYCE1, SYCE2, and Tex12 Are Not Required for SYCE3 Chromosome Loading

To investigate the possible dependence of SYCE3 localization on the presence of other SC-proteins, we performed immunocytochemistry on spread spermatocytes of mice deficient for SYCP1 [27], SYCP3 [20], SYCE1 [30], SYCE2 [31] and Tex12 [32]. In the absence of SYCP3, double-labeling for SYCE3 and SYCP1 showed that SYCE3 mimics SYCP1 localization, indicating that SYCE3 is loaded only to synaptic chromosome regions (Figure 5B). In Sycp1^−/− mice, SYCE3 is completely absent from the AEs (Figure 5A). In the absence of CE protein SYCE1, on the other hand, SYCE3 localizes to the AEs in a weak discontinuous pattern which is independent of whether AEs are in close apposition or not (Figure 5C, and insets therein). In mice lacking CE protein SYCE2, SYCE3 localized to small foci at closely aligned chromosome axes (Figure 5D, and insets therein). As expected, SYCE3 also localized to small foci in mice lacking Tex12 (data not shown).

Taken together, the results described in the first part of this study lead to the conclusion that SYCE3 is a novel, meiosis-specific component of the CE of mammalian SCs. Chromosome loading of SYCE3 appears to require SYCP1, but no other currently known, CE-specific proteins.

SYCE3 Is Required for Male and Female Fertility

To gain deeper insights into the function of SYCE3, we generated a mouse strain lacking the SYCE3 protein. To this end, we replaced the two exons coding for the full-length protein with a neomycin cassette by electroporating a modified pKSloxPNT vector for gene-replacement into R1/E ES cells (Figure S2A; [37]). Using PCR and Southern blot we identified one positive ES cell clone (Figure S2B, S2C), which was injected into blastocysts of a C57BL/6 mouse to generate chimeric animals. Mating of chimeras resulted in heterozygote animals, which produced offspring with the mutated locus in Mendelian ratio. Correct deletion of Syce3 in heterozygote and homozygote animals was confirmed by Southern blot analysis (Figure S2D). Syce3^−/− mice displayed no overt somatic phenotype, but repeated mating attempts of wild-type with both Syce3^−/− male and female mice did not produce offspring implying that both male and female Syce3^−/− mice were infertile. Consistent with this, Syce3^−/− testes of adult mice have a clearly reduced size compared to their wild-type littermates as previously reported for other infertile mice (Figure S2E; i.e. [27]). In addition, many TUNEL-positive meiotic cells (Figure S3A) and no postmeiotic cells were found in histological sections of Syce3^−/− testes, indicating a defect during meiosis resulting in programmed cell death at stage IV (Figure 6 and Figure S3B). Compared to wild type females, ovaries of Syce3^−/− littermates showed a sharp size reduction and lacked mature follicles suggesting a disruption of oogenesis (Figure 6).

Initiation of Synapsis Is Dependent on SYCE3

To address the question why Syce3 knockout leads to disruption of meiosis, we performed immunofluorescence analysis on spread mouse spermatocytes in which AEs were labeled with SYCP3 and TFs with SYCP1 as a marker for synapsis. As expected, in wild-type spermatocytes homologs were aligned in close juxtaposition during zygotene (data not shown) and full synapsis was achieved during pachytene (Figure 7A). In Syce3^−/− pachytene-like spermatocytes the vast majority of AEs of the homologs were paired and aligned along their entire lengths. Incorrect alignment of autosomes was very rare (Figure 7A) and was most probably due to harsh chromosome spreading. Sex chromosomes on the other hand were frequently unpaired and appeared as univalents mimicking the phenotypes previously described for other CE proteins [27], [30]–[32]. In clear contrast to the wild-type situation, AEs completely failed to synapse in pachytene-like Syce3^−/− spermatocytes (Figure 7A).

To further investigate the effects of SYCE3 depletion on synapsis, we compared SYCP1 localization in Syce3^−/−, Syce1^−/− and Syce2^−/− spermatocytes. As previously described, in Syce2^−/− cells SYCP1-staining is confined to regions where homologous chromosomes are in closer association (see Figure S4B and [31]). In contrast, in Syce1^−/− cells SYCP1 localizes to the chromosome axes in a weak discontinuous pattern regardless of whether they are closely aligned or not (see Figure S4A and [30]). A similar distribution of SYCP1 was observed in cells deficient for SYCE3: here, too, SYCP1 was distributed in a weak, discontinuous pattern along the AEs, irrespective of whether they were closely aligned or not (Figure 7A). This is in strong contrast to wild-type spermatocytes, where SYCP1 localizes only to the synapsed areas of homologous chromosomes, but not to aligned AEs (Figure 7A). This suggests that SYCP1 is able to bind to the AEs via its C-terminus, and that the N-terminal interactions are impaired in the absence of SYCE3. Furthermore, these data clearly show that immunofluorescence analysis obtained under our experimental conditions can reproduce previously obtained weak immunofluorescence signals (compare Figure S4 and [30], [31]) and thus allow precise comparison of the different CE-mutant phenotypes.

We also investigated the localization of other CE proteins in Syce3^−/− mice. To this end, we labeled spread Syce3^−/− spermatocytes with SYCP3 as an AE marker in combination with either SYCE1 or SYCE2. Interestingly, both SYCE1 and SYCE2 were completely absent from the axes in cells lacking SYCE3 (Figure 7A). These results provide clear evidence that SYCE3 is required for loading of the other CE proteins.

To obtain more detailed information about synapsis defects in the Syce3 knockout mice, we performed electron microscopic analysis on Syce3^−/− testis. In wild-type spermatocytes, normal SCs composed of LEs with attached chromatin and a CE were observed. In contrast, we found partially aligned AEs in Syce3^−/− spermatocytes, but no CE or CE-like structures at all (Figure 7B). This phenotype resembles the situation found in Sycp1^−/− and Syce1^−/− mice, but differs from that of Syce2^−/− and Tex12^−/− mice in which synapsis appears to initiate due to the assembly of short CE-like structures [30]–[32].

SYCE3 Is Essential for Normal Progression of Meiotic Recombination

During leptotene, meiotic recombination is initiated by the introduction of DNA DSBs. These sites become marked by histone γH2AX. During leptotene and zygotene, γH2AX is located in large domains around the DNA breaks, but as meiotic prophase I progresses, it becomes restricted to the sex chromosomes [38]. In Syce3^−/− spermatocytes, however, immunostaining of γH2AX revealed altered dynamics. While distribution of γH2AX in early (leptotene, zygotene) mutant spermatocytes resembles that of early wild-type cells (data not shown), γH2AX is not restricted to the sex chromosomes during the pachytene-like stage (Figure 8). Instead, γH2AX remains associated with most of the chromosomes in a cloud-like manner. The persistence of γH2AX-staining up to the advanced stages of prophase I suggests that DSBs are formed in Syce3-deficient spermatocytes, but that they are not efficiently repaired.

To gain additional insights into further processing of DSBs in mutant cells, we performed immunostaining for proteins that are specific for different recombination nodules. In wild-type mice, one distinguishes between early nodules (ENs) which appear prior to synapsis and assemble at sites of DSBs [39], [40], transitional nodules (TNs) during zygotene [41] and late recombination nodules (RNs) which mark sites of future crossover events [42]. ENs assemble at the leptotene stage and are made up of the two RecA homologs RAD51 and DMC1. They form numerous foci along chromosome cores and catalyze strand exchanges between homologous DNA molecules as a first step during processing of DSBs to crossover events [41],[43]. During zygotene of wild-type mice, RAD51 and DMC1 are gradually replaced by RPA. Thereby ENs are transformed into TNs which appear isochronously to synapsis. It is likely that TNs are involved in stabilization or resolution of early recombination intermediates [41], [43]. In Syce3^−/− spermatocytes, RAD51 and RPA form numerous foci, localized to chromosome cores during zygotene (data not shown). This pattern of distribution resembles that of wild-type spermatocytes in early stages of prophase I (data not shown). These observations are consistent with the notion that early DNA-DNA interactions can be mediated by RAD51 and RPA in the absence of SYCE3. However, the following processing steps are likely to be disturbed as RAD51 and RPA remain associated with chromosomes in pachytene-like spermatocytes (Figure 8). MLH1 marks presumed future crossover sites [43]–[45]. Correspondingly, in wild-type pachytene spermatocytes each bivalent displayed one or two MLH1 foci. In contrast, male littermates lacking SYCE3 have no MLH1 foci, pointing to a disruption of crossover formation (Figure 8).

To rule out the possibility that the persistence of RPA on chromosome axes and the lack of MLH1 foci in Syce3-deficient spermatocytes is due to their arrest in pachytene and their subsequent elimination by apoptosis rather than reflecting a direct function of SYCE3 in homologous recombination we additionally performed a close examination of recombination in Syce3^−/− oocytes at 19.5 dpc (days post coitum). In concordance with earlier reports [46], [47] the majority of 19.5 dpc oocytes were staged at late pachytene or diplotene. Consistent with this, SCYP3 labeled AEs were fully synapsed in wild-type pachytene oocytes. As already described above for Syce3^−/− spermatocytes synapsis was completely abolished in SYCE3-deficient pachytene-like oocytes. Compared to the situation in the male (see Figure 7A and Figure 8), however, pairing and alignment in 19.5 dpc Syce3^−/− oocytes seemed to be more strongly affected (Figure 9A). Whether this finding reflects a female–specific function of SYCE3 in homologous pairing and/or alignment or is rather a secondary effect caused by defective synapsis cannot be judged at present.

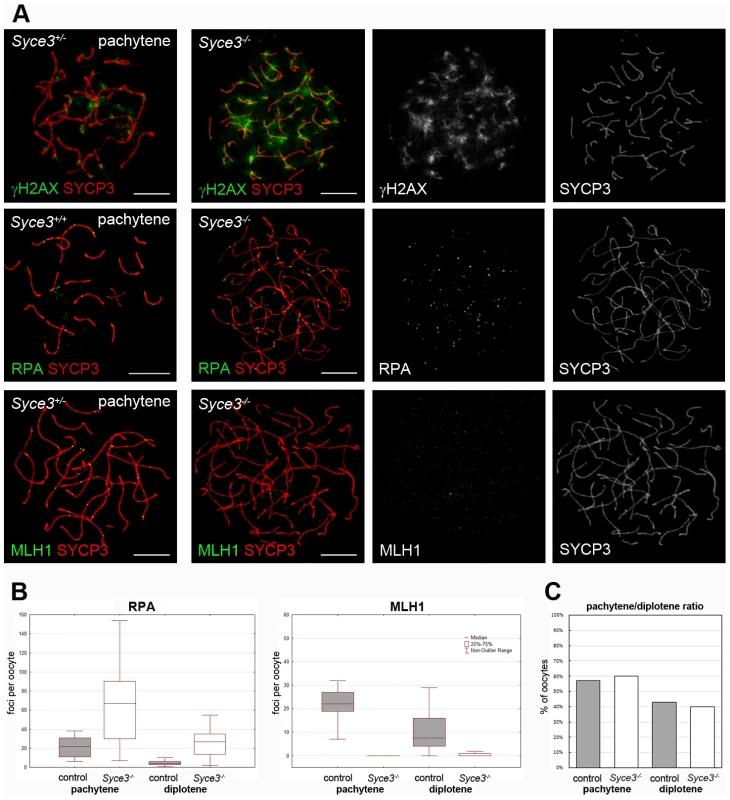

Careful analysis of recombination markers in 19.5 dpc oocytes strongly supported the notion that SYCE3 is essential for progression of meiotic recombination (Figure 9A). Consistent with our findings in pachytene-like Syce3^−/− spermatocytes, in 19.5 dpc oocytes of SYCE3-deficient animals γH2AX stayed associated with chromosome axes, unlike in oocytes of wild-type littermates (Figure 9A). This suggests the persistence of unrepaired DSBs. Moreover, as judged by quantitative analysis of RPA and MLH1 dynamics, processing of TNs to RNs appeared to be considerably affected by the absence of SYCE3: In wild-type oocytes the median of RPA foci per cell was 22 during pachytene and decreased to 4 at diplotene stage. At the same time, the median number of MLH1 foci per cell was 22 at pachytene and 7.5 at diplotene stage in the controls. Thus, both the dynamics of RPA and MLH1 foci as well as their relative abundance found in our wild-type controls were consistent with data reported previously [41]. In clear contrast, the median number of RPA foci in SYCE3-deficient pachytene-like oocytes was significantly higher compared to wild-type controls (67 vs. 22; p<0.001). Additionally, RPA foci persisted on chromosome axes of Syce3^−/− oocytes at diplotene-like stage (median, 27 vs. 4; p<0.001) indicating that processing of TNs to RNs was impaired in the absence of SYCE3 (Figure 9B). In line with this notion, MLH1 was virtually completely absent from chromosome axes of Syce3^−/− oocytes at both late pachytene- (median, 0) and dilpotene-like stage (median, 0) (Figure 9B). To rule out the possibility that the considerable alterations of RPA and MHL1 dynamics in SYCE3-deficient oocytes could be caused by a delay of meiotic progression per se, we quantified the ratio of pachytene (WT, n = 44; Syce3^−/−, n = 53) and diplotene (WT, n = 33; Syce3^−/−, n = 35) stages in 19.5 dpc oocytes of both Syce3^−/− and wild-type females. Here, no significant difference could be observed (p = 0,688; Figure 9C).

Together, our data strongly argues that while progression through meiotic stages per se remains unaffected by the loss of SYCE3 in females, progression of recombination (i.e. processing of recombination intermediates into MLH1-marked late RNs, which are presumed markers of future crossovers in the wild-type) is critically depending on its presence.

SYCE3 Is Part of a Central Element Protein Complex

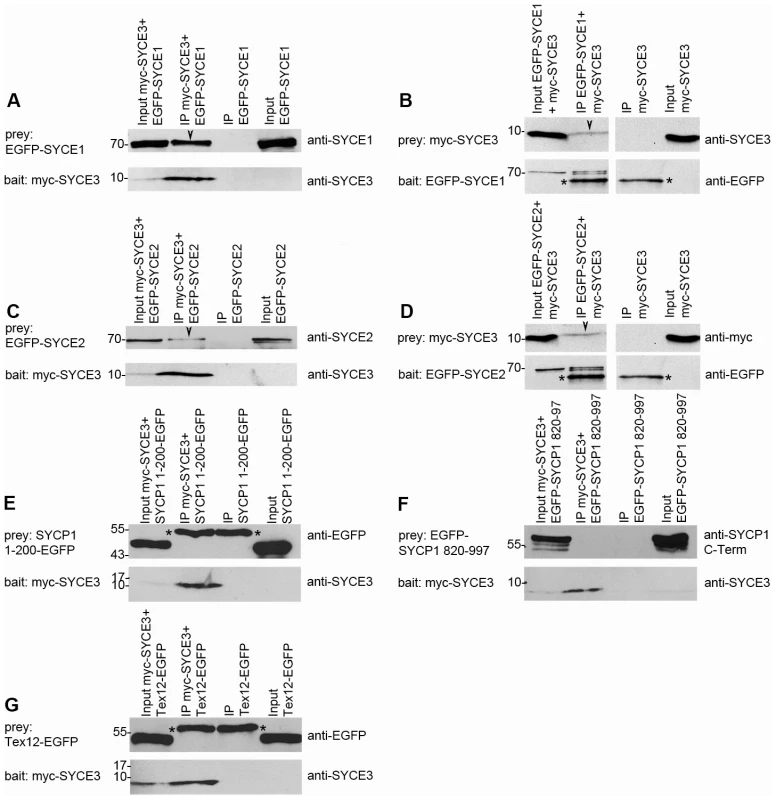

We demonstrated that SYCE3 is important for fertility, initiation of synapsis and for a correct progression of meiotic recombination. Hence, we were interested in identifying binding partners of SYCE3 that would provide mechanistic insights into SYCE3 function. As the localization of the other CE components, SYCE1, SYCE2 and Tex12, is severely altered in Syce3^−/− mice, they appear to be good candidates for being SYCE3 binding partners. Therefore, we performed co-transfection/immunoprecipitation experiments in somatic cells that do not express meiosis-specific proteins according to the approach described by Stewart-Hutchinson et al. [48]. COS-7 cells were transfected with EGFP- or myc-tagged fusion constructs of SYCE1, SYCE2, Tex12, SYCP1 N-terminus, SYCP1 C-terminus (as a control) and SYCE3. We used either a myc or an EGFP-specific antibody for precipitation. We found that SYCE3 interacts with SYCE1 (Figure 10A, 10B), which is consistent with the highly similar spatial-temporal expression of these two proteins. Interestingly, we show that SYCE3 also binds to SYCE2 although these two proteins do not exactly colocalize in pachytene spermatocytes (Figure 10C, 10D). However, under these experimental conditions, we could not detect an interaction between SYCE3 and Tex12 or the N- or C-terminus of SYCP1 (Figure 10E, 10F, 10G, see also below).

Discussion

Meiotic chromosome synapsis is essential for proper meiotic progression as well as for male and female fertility. A critical step during this process is the assembly of the CE of the SC. In mammals, four proteins have been described which are essential for CE assembly: SYCP1, SYCE1, SYCE2 and Tex12. While SYCP1 is a component of the CE and TFs, the latter three proteins only localize to the CE [23], [24], [28], [29]. Here, we have identified SYCE3, a novel meiosis-specific protein that selectively localizes to the CE of the SC.

SYCE3 Is Required for Initiation of Central Element Assembly and Chromosomal Loading of Central Element–Specific Proteins

Detailed analyses of Syce2 and Tex12 knockout mice showed that loss of each of these two genes causes infertility in both sexes. In both null mice, meiotic chromosomes align, and AEs form, but they do not synapse. Although synapsis between homologs is initiated at multiple positions along the axes, it fails to propagate along the entire chromosomes. SYCP1 and SYCE1 colocalize at these sites of synapsis initiation and, as revealed at the electron microscopical level, short CE-like structures become assembled. Furthermore, correct progression of meiotic recombination is altered in cells lacking SYCE2 or Tex12. Altogether, these data and the direct interaction of SYCE2 and Tex12 lead to the model that both SYCE2 and Tex12 are required for the longitudinal polymerization of SYCP1 filaments along the axial elements and thus for the propagation of synapsis along the homologs [31], [32].

Elimination of SYCE1 - the other currently known CE protein - displays a different phenotype. The absence of SYCE1 leads to the alignment of homologous chromosomes with a disrupted synapsis, but, in contrast to SYCE2 and Tex12 knockout mice, SYCE1-deficient mice display no sites of synapsis initiation and no CE-like structures at all. In these mice, SYCP1 is located in a weak discontinuous pattern along AEs, whether they are closely aligned or not. This indicates that under physiological conditions SYCP1 alone is insufficient for formation of stable head-to-head polymers for which CE proteins are required. Despite this striking difference to SYCE2 and Tex12 null mice, SYCE1-deficient mice also exhibit a disturbed progression of meiotic recombination [30].

Taken together, analysis of these central region knockout mice leads to three main conclusions: (1) The organization of the central region appears to be highly complex, (2) disruption of any currently known protein component causes defective synapsis leading to severe meiotic defects and infertility and (3) the correct assembly of the central region is also required for normal progression of meiotic recombination [27], [30]–[32].

Here, we have demonstrated that in wild-type cells SYCE3 distribution closely resembles SYCE1 localization (Figure 4; [28], [29]). Thus, we expected that SYCE3 is likely involved in a complex with SYCE1. Consistent with this assumption, no CE-like structures were detected in the EM analysis of Syce3^−/− mouse testis sections (Figure 7B). The complete absence of any CE-like structure strongly suggests that, in contrast to SYCE2 and Tex12, SYCE3 is required for initiating synapsis. Furthermore, we have shown that SYCE1 and the SYCE2/Tex12 complex do not localize to chromosomes in Syce3^−/− spermatocytes (Figure 7A). The lack of CE-like structures and CE-specific proteins indicates that SYCE3 is required upstream of SYCE1, SYCE2 and Tex12 and downstream of SYCP1 during the initiation of CE assembly. A possible function of SYCE3 could be to enable recruitment of SYCE1 and the SYCE2/Tex12 complex to SYCP1 N-termini. Loading of SYCE1 and SYCE2 to SYCP1 in turn would stabilize SYCP1 N-termini as proposed by Costa et al. [28]. This hypothesis is consistent with our results obtained from co-immunoprecipitation assays with transfected COS-7 cells, revealing that SYCE3 is capable of binding SYCE1 as well as SYCE2 (Figure 10). However, whether the role of SYCE3 in CE assembly is of a structural or regulatory character still needs to be clarified.

Taken together, we conclude that SYCE3 is essential for initiating synapsis and for chromosomal loading of SYCE1 and the SYCE2/Tex12 complex.

According to our present knowledge the behavior of SYCP1 and SYCE3 in meiotic cells lacking certain CE-specific proteins remains somewhat puzzling. In wild-type cells SYCP1 localization is restricted to synapsed chromosome axes. By contrast, in the absence of SYCE1, SYCP1 is observed in a weak, discontinuous pattern at the unsynapsed chromosome axes, no matter whether they were closely aligned or not. However, this is not the case in the absence of SYCE2 or Tex12, as under these conditions SYCP1 exclusively localizes to small foci at the sites of synapsis initiation [31]. These observations led to the hypothesis that SYCE1 is required to restrict SYCP1 to synapsed areas [30]. Our finding that SYCE3 also localizes to unsynapsed chromosome axes in SYCE1 null spermatocytes suggests that SYCE3 restriction to synapsed areas also depends on SYCE1 (Figure 5C). Nevertheless, we presently have no satisfactory explanation as to how this restricted localization can be accomplished. Another aspect that would require further investigation is the relationship between SYCP1 and SYCE3. As mentioned above, chromosomal loading of SYCE3 requires SYCP1. On the other hand, in our co-transfection/immunoprecipitation studies we obtained no evidence for an interaction between SYCP1 and SYCE3 (Figure 10). One possibility might be that interaction between these two proteins requires higher order structures of SYCP1 (for example dimerization or N-terminal association of dimers) that cannot occur under the conditions of the experimental assays. However, the existence of additional, yet undiscovered CE proteins that would mediate this binding cannot be ruled out a priori.

Homologous Recombination Fails to Complete in the Absence of SYCE3

In early spermatocytes of Syce3-deficient mice γH2AX is distributed as in wild-type animals suggesting that homologous recombination is initiated in a wild-type manner. However, in later stages of prophase I γH2AX shows altered dynamics in spermatocytes and oocytes. In these cells it remains associated with chromosomes (Figure 8 and Figure 9). Thus we suggest that induced DSBs are repaired inefficiently in Syce3 knockout meiocytes. This assumption is further supported by the analysis of components of the recombination machinery that assemble at the sites of DSBs as a further step during the process of meiotic recombination [41], [43]. In the absence of SYCE3, both Syce3^−/− spermatocytes and oocytes reveal differences to the wild-type: RAD51 - as well as RPA foci - stay associated with chromosomal cores and virtually no MLH1 signal is detectable (Figure 8 and Figure 9).

The observed defects indicate that the exchange of homologous DNA strands (catalyzed by RAD51) and the formation of early recombination intermediates can take place in the absence of SYCE3, but further processing of the recombination sites fails to occur. As a consequence, no crossovers are formed in Syce3^−/− meiocytes (see also [41], [43]). Interestingly, disruption of the CE by eliminating either Syce1, Syce2 or Tex12 results in a similar recombination phenotype. Our observations confirm and extend the notion that CE assembly and CE-specific protein components are not necessary for recombination initiation but essential for recombination progression [27], [30]–[32].

What is the physical link between the recombination machinery and the SC? In mammals, early recombination events and formation of ENs take place before SC central region assembly [27]. Early recombination events also appear to be independent of AE assembly during leptotene/zygotene as shown in mice lacking SYCP3. In these mice, AE assembly is impaired. However, they show normal levels of DMC1 foci formation and synapsis occurs between homologous chromosome regions [21], [22]. Recombination progression and crossover formation can also take place in the absence of AE assembly. As shown in female Sycp3^−/− mice, oocytes reveal the presence of chiasmata but at a lower level than in the wild-type, which results in a reduction but not a complete loss of fertility [21]. In contrast, assembly of the SC central region is required for recombination progression and crossover formation as shown in mice lacking TF protein SYCP1 or any of the CE-specific proteins ([27], [30]–[32]; this study).

Previous electron microscopical studies revealed a close contact between RNs and SC components (e.g. [49], [50]). RNs seem to coalesce with the CE and fibers were shown to connect RNs and LEs [50]. These and other observations lead to the proposal that components of RNs might play a role in SC assembly. On the other hand, the SC central region can be seen as a platform for attachment and organization of RN components required for proper recombination progression (see [50], [30] and references therein). Our knowledge about the protein-protein interactions between components of the recombination machinery and the SC of mammals is rather fragmentary. Interactions have been reported between RAD51 and TF protein SYCP1 as well as CE protein SYCE2 [30], [51], and between TN component Tex11 (ZIP4H) and LE protein SYCP2 [52]. Although still preliminary, the emerging picture leads to the proposal that SCs and RNs are held together through a network of protein-protein interactions. Therefore, the recombination phenotype described here might be caused by the inability of RN components to bind SYCP1 and SYCE2 due to the defective localization and assembly of these proteins. However, a direct involvement in these interactions of additional CE element proteins (including SYCE3) cannot be excluded at present. Despite the progress in recent years, elucidation of the mutual dependence between SC assembly and meiotic recombination events would require additional experiments.

Materials and Methods

Ethics Statement

All animal care and experiments were conducted in accordance with the guidelines provided by the German Animal Welfare Act (German Ministry of Agriculture, Health and Economic Cooperation). For the generation of Syce3 knockout mice we obtained approval from the Landesdirektion Dresden (24-9168.11-9/2005-1). Animal housing and breeding was approved by the regulatory agency of the city of Würzburg (Reference ABD/OA/Tr; according to §11/1 No. 1 of the German Animal Welfare Act). All aspects of the mouse work were carried out following strict guidelines to insure careful, consistent and ethical handling of mice.

Primary Structure Analysis, Posttranslational Modifications, and Sequence Alignment

Taking the mouse SYCE3 protein sequence (GenBank accession number: NP_001156354) as query we analyzed predicted coiled-coil domains using PSORTII (http://psort.hgc.jp/) [53] and predicted phosphorylation sites (http://www.cbs.dtu.dk/services/NetPhos/) [54]. The mouse Syce3 cDNA sequence also served as query for searching all GenBank sequences with the BlastN and TBlastN algorithm (http://blast.ncbi.nlm.nih.gov/Blast.cgi). Multiple sequence alignments were performed online with CLUSTALW (http://www.ebi.ac.uk/Tools/clustalw2/index.html) [55].

RNA Extraction, Reverse Transcription, PCR, and cloning of SYCE3 cDNA

Whole RNA from mice testes from different ages and from various tissues of adult mice was extracted using peqGOLD TriFast™ (Peqlab, Erlangen, Germany) according to the manufacturer's protocol. cDNA was synthesized from 1 µg of RNA by reverse transcription with Oligo(dT) primers and M-MLV reverse transcriptase (Promega, Mannheim, Germany). Reverse transcribed cDNA samples were stored at −20°C before they were used in a polymerase chain reaction. Specific primers used for RT-PCRs and respective PCR conditions are listed in Table S1. In order to clone SYCE3 cDNA (GenBank accession number: HQ130280), we amplified full-length SYCE3 from cDNA derived from a reverse transcription of total testis RNA, as described above and using the same oligonucleotides and PCR conditions described for SYCE3 RT-PCR (Table S1).

Antibody Generation

To raise SYCE3 specific antibodies, we generated and purified a GST-SYCE3 fusion protein using the vector pGEX-5X-1 (Amersham Pharmacia Biotech, Braunschweig, Germany) and the Bulk GST Purification Module (Amersham) according to the manufacturer's protocol. Anti-SYCE3 antisera were raised by immunizing a rabbit and a guinea pig with the purified GST-SYCE3 fusion protein (Seqlab, Göttingen, Germany). Specificity of both affinity-purified antibodies was validated by testing them on separate Western blots with protein lysates from wild-type, Syce3^+/− and Syce3^−/− littermates (generation of Syce3^−/− mice is described below). The presence of the expected band of 12 kDa in wild-type and Syce3^+/− testis lysates and moreover the absence of the aforementioned band in Syce3^−/− testis lysates confirmed the specificity of both antibodies (see Figure S1A).

SDS-PAGE, Tricine-SDS-PAGE, and Immunoblot Analysis

Protein samples derived from co-immunoprecipitation analysis were separated on 10%–15% polyacrylamide gels [56]. Separation of protein samples from testicular cells of adult mice was carried out by using tricine-SDS-PAGE (16% separating gel/6 M urea; [57]). Proteins were transferred to nitrocellulose membranes using the semi-dry Western blotting system described by Matsudaira [58]. The membranes were blocked overnight at 4°C in TBST buffer (10 mM Tris/HCl, pH 7.4, 150 mM NaCl, 0.1% Tween 20) containing 5% milk powder. Incubation with the respective primary antibody was carried out in blocking solution for 1 h at room temperature: guinea pig anti-SYCE3 (1∶1000), rabbit anti-SYCE3 (1∶1000), mouse anti-myc (1∶2000; R950-25, Invitrogen, Darmstadt, Germany), mouse anti-GFP (1∶200; sc-9996, Santa Cruz Biotechnology, Heidelberg, Germany), guinea pig anti-SYCE1 (1∶1000) [29], guinea pig anti-SYCE2 (1∶400) [29], mouse anti-actin (1∶10000, A4700, Sigma-Aldrich, Munich, Germany). Peroxidase-conjugated secondary antibodies were applied as specified by the manufacturer (Dianova, Hamburg, Germany). Bound antibodies were detected with the enhanced chemiluminescence system (Amersham). Western blots were stripped by incubating the membranes for 30 min in 0.1 M glycine buffer (pH 2.5) followed by a 30 min incubation in 0.1 M Tris buffer containing 2% SDS and subsequently washing three times in TBST.

Immunocytochemistry and Histology

Spread-preparations of meiocytes were produced as described by de Boer et al. [59] and in each experiment spread-preparations were immunostained at the same time with the same mixture of the appropiate affinity-purified primary antibodies: rabbit anti-SYCE3 (1∶50), guinea pig anti-SYCE3 (1∶100), guinea pig anti-SYCE1 (1∶1000) [29], guinea pig anti-SYCE2 (1∶200) [29], guinea pig anti-SYCP1 (1∶150) [60], rabbit anti-SYCP1 (1∶200) [26], guinea pig anti-SYCP3 (1∶150) [61], rabbit anti-SYCP3 (1∶200; NB300-232, Acris, Herford, Germany) mouse anti-γH2AX (1∶500; 05-636, Millipore, Schwalbach/Ts., Germany), mouse anti-RPA (1∶40; NA19L, Calbiochem, Darmstadt, Germany), rabbit anti-RAD51 (1∶30; PC130, Calbiochem), mouse anti-MLH1 (1∶30; 551091, BD Pharmingen, Heidelberg, Germany). Secondary antibodies were applied as specified by the manufacturer (Dianova). Histology was performed on 5 µm sections of paraffin-embedded testis or ovary tissue fixed overnight in 4% formaldehyde according to standard protocols. Staging of mouse seminiferous tubule cross-sections was done according to Ahmed and de Rooij [62]. A TUNEL assay was carried out on 10 µm sections of paraffin embedded testis or ovary tissue fixed overnight in 4% formaldehyde using the ApopTag Peroxidase In Situ Apoptosis Kit (Millipore) according to the manufacturer's protocol.

Statistical Analysis

Statistically significant differences in the medians of RPA and MLH1 foci comparing Syce3^−/− and control cells were verified by Mann-Whitney U test. Numbers of pachytene and diplotene stages from control and Syce3^−/− 19.5 dpc oocytes were statistically compared using a chi-square test.

Microscopy and Imaging

Fluorescence microscopy was carried out by using a Zeiss Axiophot fluorescence microscope (Zeiss, Munich, Germany) equipped with a Plan-NEOFLUAR 40×/0.75 or a Plan-NEOFLUAR 20×/0.5 objective and the AxioCam MRm (Zeiss) camera. Digital images were pseudocoloured using the AxioVs40 V4.7.1.0 software release and processed using Adobe Photoshop (Adobe Systems, San Jose, CA). Light microscopy was carried out using the stereo microscope MZ FLIII (Leica). Confocal laser scanning microscopy was performed with a Leica TCS-SP2 confocal laser scanning microscope (Leica, Bensheim, Germany) equipped with a 63×/1.40 HCX PL APO lbd.BL oil-immersion objective. All confocal images are pseudocoloured using the Leica TCS-SP2 software and are two-dimensional projections calculated from a series of sequenced optical sections using the maximum projection algorithm (Leica). Imaging of wild-type and mutant SYCE1, SYCE2, SYCP1, SYCP3 and SYCE3 cells was performed using the same microscope settings. Digital images were processed with the same settings in Adobe Photoshop (Adobe Systems).

Electron Microscopy

Electron microscopy was performed using ultra thin sections of testis tissue fixed in 2.5% glutaraldehyde and 1% osmium tetroxide as described previously [22]. For immunoelectron microscopy 10 µm cryosections of rat testis were fixed with acetone for 10 min at −20°C and air-dried. Incubation with primary antibodies (guinea pig anti-SYCE3 (1∶500–1∶1500); mouse anti-SYCP1 (1∶50) [26] was carried out in a humidified box for 4 h at room temperature. After rinsing twice in PBS, sections were fixed for 10 min in 2% formaldehyde and blocked with 50 mM NH₄Cl. 6 nm gold conjugated secondary antibodies were incubated overnight at 4°C and samples were washed subsequently in PBS. Samples were fixed for 30 min in 2.5% glutaraldehyde and postfixed in 2% osmium tetroxide. After rinsing three times with H₂O, samples were dehydrated in an ethanol series and embedded in Epon. Ultrathin sections were stained with uranyl acetate and lead citrate according to standard procedures [22].

Generation of Syce3^−/− Mice

We deleted the Syce3 gene by replacing the entire coding sequence of SYCE3 (exons 2 and 3) with a neomycin cassette in reverse orientation using a modified pKSloxPNT vector. The vector for homologous recombination was designed as follows (see also Figure S2A): a 1.1 kbp genomic fragment (F1) containing part of intron 1 was cloned into the SalI restriction site downstream of the neomycin cassette and a 4.1 kbp fragment (F2) containing part of intron 3 was ligated into the EcoRI restriction site located in between the thymidine kinase and neomycin cassette. Electroporation of the modified replacement vector into the R1/E embryonic stem cells, laser assisted microinjection into 8-cell C57BL/6 morula and transfer of morula into CD1 (outbred) foster mice was performed at the transgenic core facility of the Max Planck Institute of Molecular Cell Biology and Genetics, Dresden. After electroporation and selection, we identified one positive ES cell clone by PCR with external primers (oligonucleotide sequence for genotyping: see Table S2) and confirmed correct targeting by Southern blot. For Southern blot analysis 10 µg BstEII digested DNA derived from ES cells (or tail tips of Syce3^+/+, Syce3^+/− and Syce3^−/− mice) was loaded on a 0.8% agarose gel, subsequently transferred to a nylon membrane and correct insertion was tested with both external and neomycin probes. Blastocyst injection of the ES cell clone produced germline transmitting chimeras. Mating of chimeras with C57BL/6 mice gave rise to wild-type and Syce3^+/− mice. Intercrossing of Syce3^+/− mice produced offspring with all genotypes in Mendelian ratio. To confirm the absence of SYCE3 we performed PCR, Southern blot, immunofluorescence analysis on spread Syce3^−/− spermatocytes and Western Blot analysis on Syce3^−/∼ testis tissue with polyclonal antibodies raised against the full-length SYCE3 protein (data not shown and Figure S1A).

Transfection and Co-Immunoprecipitation

In order to express full-length SYCE3, SYCE1, SYCE2, Tex12 as well as SYCP1 N-terminal (aa 1–120) and SYCP1 C-terminal (aa 820–997) fusion constructs in the culture cell line COS-7 (green monkey kidney) for co-immunoprecipitation analysis, the respective cDNAs were inserted into pEGFP (Clontech, Heidelberg, Germany) or pCMV-Myc (BD Bioscience) vectors [60]. The fusion-constructs used (including the oligonucleotides used for cloning) are summarized in Table S3. Cells were transfected with the respective constructs using the effectene system according to the manufacturer's instructions (Qiagen, Hilden, Germany). Co-immunoprecipitation experiments were performed as described by Stewart-Hutchinson et al. [48] with the following modifications: (1) myc and EGFP constructs were immunoprecipitated with 0.5 µg of mouse anti-myc (R950-25, Invitrogen) or 0.5 µg of mouse anti-GFP (sc-9996, Santa Cruz Biotechnology) antibody per 60-mm dish. (2) Immune complexes were pulled down by protein G dynabeads (100-03D, Invitrogen).
