The Mating Competence of Geographically Diverse Strains in Their Natural and Unnatural Sand Fly Vectors

Summary

Invertebrate stages of Leishmania are capable of genetic exchange during their extracellular growth and development in the sand fly vector. Here we explore two variables: the ability of diverse L. major strains from across its natural range to undergo mating in pairwise tests; and the timing of the appearance of hybrids and their developmental stage associations within both natural (Phlebotomus duboscqi) and unnatural (Lutzomyia longipalpis) sand fly vectors. Following co-infection of flies with parental lines bearing independent drug markers, doubly-drug resistant hybrid progeny were selected, from which 96 clonal lines were analyzed for DNA content and genotyped for parent alleles at 4–6 unlinked nuclear loci as well as the maxicircle DNA. As seen previously, the majority of hybrids showed ‘2n’ DNA contents, but with a significant number of ‘3n’ and one ‘4n’ offspring. In the natural vector, 97% of the nuclear loci showed both parental alleles; however, 3% (4/150) showed only one parental allele. In the unnatural vector, the frequency of uniparental inheritance rose to 10% (27/275). We attribute this to loss of heterozygosity after mating, most likely arising from aneuploidy which is both common and temporally variable in Leishmania. As seen previously, only uniparental inheritance of maxicircle kDNA was observed. Hybrids were recovered at similar efficiencies in all pairwise crosses tested, suggesting that L. major lacks detectable ‘mating types’ that limit free genetic exchange. In the natural vector, comparisons of the timing of hybrid formation with the presence of developmental stages suggest nectomonads as the most likely sexually competent stage, with hybrids emerging well before the first appearance of metacyclic promastigotes. These studies provide an important perspective on the prevalence of genetic exchange in natural populations of L. major and a guide for experimental studies to understand the biology of mating.

Introduction

Protozoan parasites of the genus Leishmania present a remarkable epidemiologic and clinical diversity, producing a spectrum of human diseases that pose serious health concerns throughout tropical and sub-tropical regions. Leishmania have a dimorphic asexual life cycle consisting of extracellular promastigotes that multiply and develop within the alimentary tract of the sand fly vector, and intracellular amastigotes that multiply within the phagolysosomes of their host macrophages. No sexual dimorphism has been described, and based on the strong linkage disequilibrium revealed in population genetic studies applied to several Leishmania species, these parasites have been argued to be essentially clonal [1], [2]. This conclusion, however, must contend with a series of observations regarding the analysis of multilocus microsatellite, isoenzyme, or karyotype markers consistent with occasional sexual recombination and possible endogamy [3]–[8]. Many of these studies incorporated models that assumed Leishmania were ‘normal diploids’, which is now known to be untrue. Most and probably all Leishmania strains show varying degrees of aneuploidy (reviewed in [9], [10]). Moreover, chromosome number variation appears to be highly variable in culture, with individual cells/chromosomes showing monosomic, disomic and trisomic chromosome numbers [11]. The rapidity and transient nature of variable segregation, loss and expansion of chromosomes numbers are expected to have a profound effect on levels of heterozygosity, and to date the impact of rapidity and frequency of these factors on Leishmania has not been adequately accounted for by the population genetic models in the studies cited earlier. Nonetheless, it is clear from the literature that in natural populations hybrid parasites have been observed, and in some cases are widespread [12].

Two recent reports involving experimental crosses in sand flies have provided the first direct demonstration that genetic exchange in Leishmania can occur. The first series of successful crosses involved co-infection of Phlebotomus duboscqi sand flies using two strains of L. major engineered to express heterologous drug selectable markers [13]. The doubly drug-resistant clones obtained were clear genomic hybrids, based on the presence of both parental alleles at seven unlinked loci. Importantly, the same parental lines that successfully mated in the sand fly midgut failed to generate hybrid genotypes following their co-inoculation and high density growth in axenic culture or in the mouse ear dermis. From these data it was concluded that L. major, like Trypanosoma brucei [14], is capable of a sexual cycle consistent with a meiotic process, and that sex is confined to the extracellular stages of the parasite developing within the insect vector. A subsequent study by Sadlova et al. [15] used a fluorescent protein detection system to observe yellow promastigotes in P. perniciosus and Lutzomyia longipalpis midguts co-infected with RFP and GFP transgenic lines of L. donovani. The putative hybrids were observed in only two of the hundreds of co-infected flies examined, and the parasites could not be recovered and propagated to confirm their hybrid genotypes.

A number of essential features of genetic exchange in Leishmania remain to be further substantiated or explored, including the sexual competency of diverse Leishmania species and strains, the timing and frequency of hybrid formation in the midgut, their developmental stage associations, and the ability of other phlebotomine vectors to support genetic exchange. In the current studies, we have expanded the analysis of the mating competency of L. major strains to include pairwise matings of multiple isolates distributed over the full geographic range of this species. Our genotype analysis of a large number of progeny clones substantiates their chromosomal inheritance of both parental alleles at multiple unlinked loci, consistent with a meiotic process, and their uniparental inheritance of kinetoplast DNA. A low but unexpected frequency of nuclear loci were also inherited from only one parent, suggesting loss of heterozygosity. The timing of hybrid recovery in a natural vector suggests that nectomonad promastigotes are the most likely mating competent forms. Finally, we have demonstrated the capacity of a new world vector, L. longipalpis, to efficiently support the Leishmania sexual cycle.

Results

L. major crosses in P. duboscqi

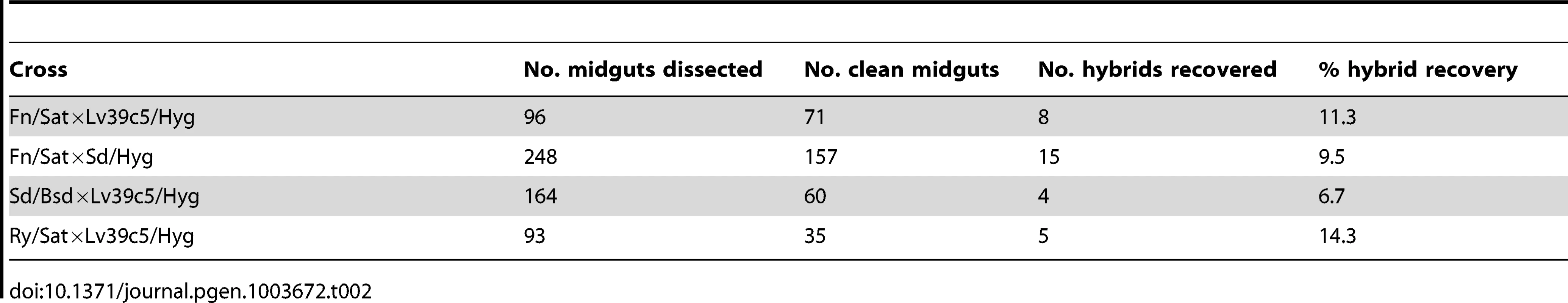

Four different L. major strains derived from primary isolates originating in Senegal, Israel, Iraq, and southern Russia, and stably transfected with various antibiotic resistance markers, were tested for their ability to generate hybrid genotypes following co-infection of P. duboscqi sand flies, a natural vector of L. major transmission in Africa. In these experiments a HYG marker was integrated into the LPG5A locus, a SAT marker was integrated into one cistron within the rRNA locus, and the BSD marker was integrated into the LPG5B locus, as described previously [13], [16]. These loci were chosen as prior studies revealed no effects on parasite growth in vitro or in sand flies ([13] and data not shown). For all parental lines, a number of clonal lines were obtained and screened for their ability to show survival and complete development in P. duboscqi. Mating tests were performed by mixing equal numbers of parental lines, and feeding in vivo as described previously [13]. At varying times following the infective feed, midguts were dissected, parasites recovered, and cultured in media selective for the doubly-drug resistant hybrids. Flies cannot be maintained aseptically, and a variable proportion of the cultures established from the dissected midgut homogenates was lost to either fungal or bacterial contamination. The frequency of hybrid recovery was calculated as the percentage of the number of ‘clean’ midguts yielding doubly-drug resistant promastigotes. For each infected midgut yielding a doubly-drug resistant population, only a single clone was selected for further analysis. All lines studied are therefore a product of an independent mating event. In all selected clones, the presence of both parental drug markers was confirmed by PCR using primers specific for the respective antibiotic resistance markers (Table S1) (Fig S1). SNP typing of loci present on chromosomes unlinked to the integrated markers on the parental lines was performed subsequently.

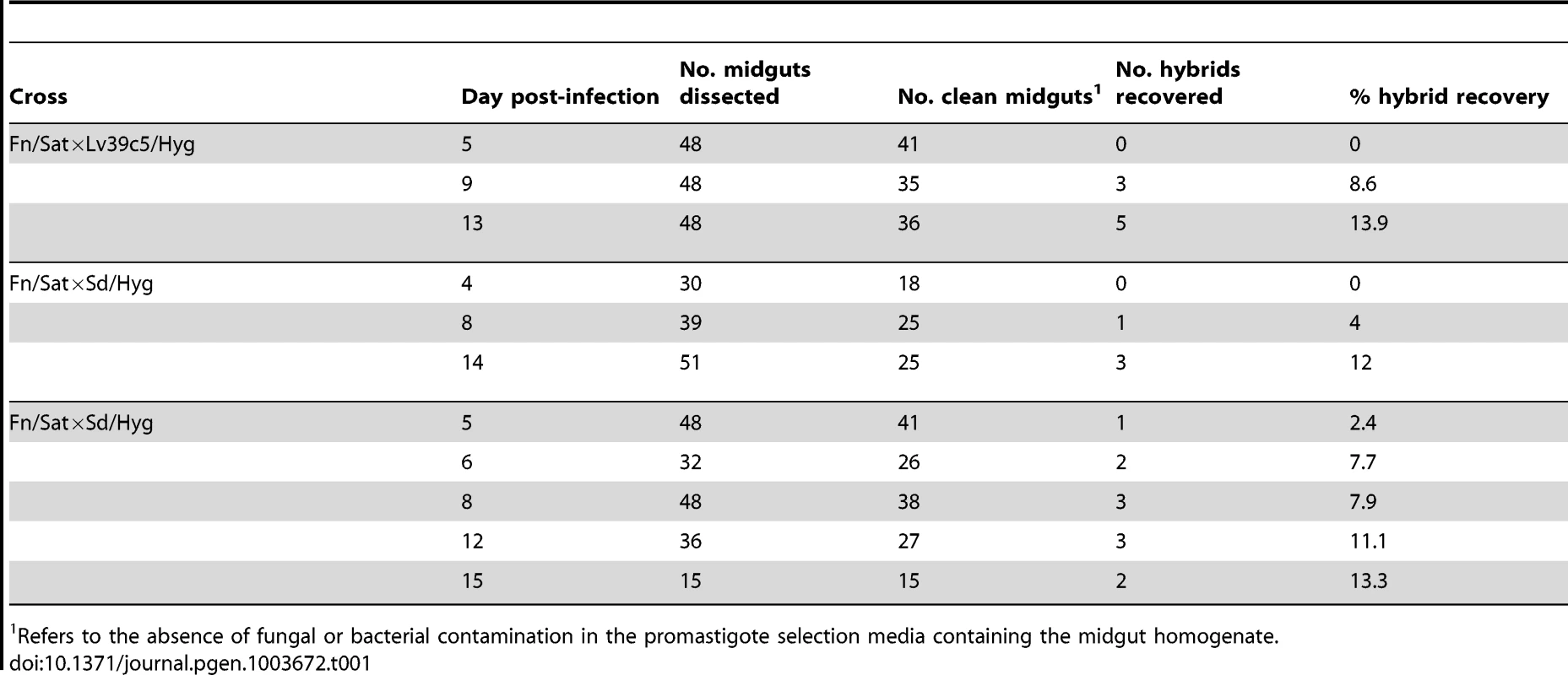

Our initial crossing experiments employed the same L. major parental lines, Fn/Sat and Lv39c5/Hyg, used to generate the set of hybrids originally reported [13], in order to explore the timing of hybrid formation during L. major growth and development in P. duboscqi. Eight hybrids were recovered from the total of 112 clean midguts dissected on days 5, 9 and 13 post-infection (p.i.) (Table 1). Importantly, no hybrids were recovered from day 5 midguts, while 3 hybrids were recovered from day 9 (8.6%), and 5 from day 13 midguts (13.9%). Two additional timing studies were carried out using Fn/Sat paired with a new parental line, Sd/Hyg. In total, 15 hybrids were recovered amongst the 215 clean midguts dissected on days 4–15. Again, hybrids were recovered only at later time points, with no hybrids recovered on day 4 and only a single hybrid recovered on day 5 (2.4%). Flies dissected on days 6–8 yielded 7 hybrids (7.0%), while flies dissected on days 9–15 yielded 11 hybrids (10.3%). Thus, at least for mating pairs involving the Fn/Sat parental line for which the kinetics of hybrid formation in P. duboscqi was investigated, there was a significant correlation between the probability of hybrid recovery and the number of days of co-infection (Fn/Sat×Lv39/Hyg cross, p = 0.024; Fn/Sat×Sd/Hyg cross, p = 0.034; Fig S2).

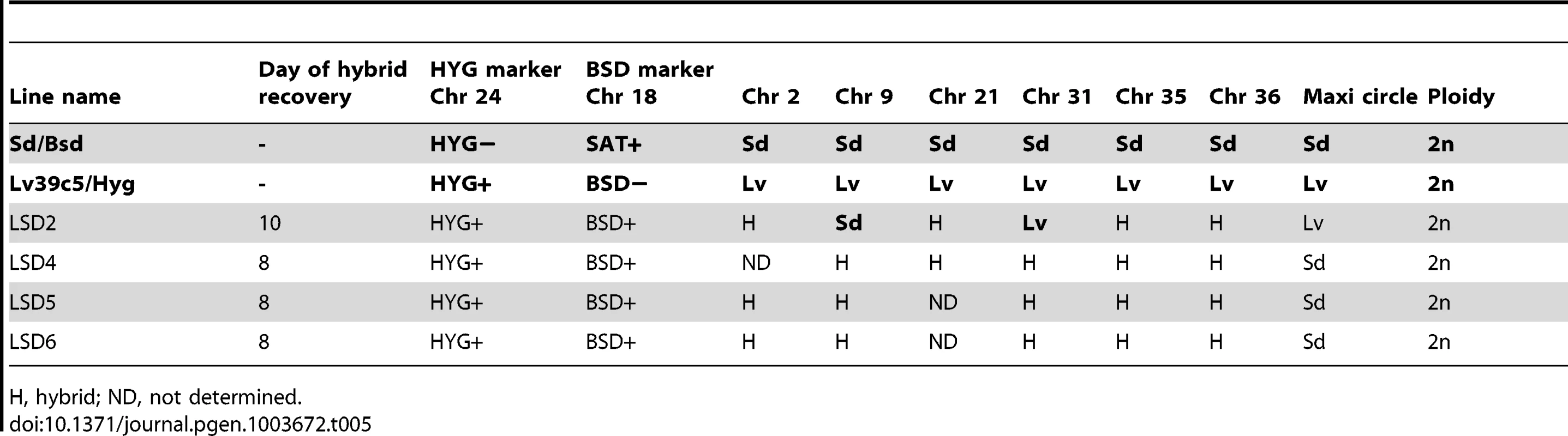

As all of the successful mating attempts up to this point employed the Fn/Sat line as one of the parents, additional crosses were undertaken in P. duboscqi that did not involve the Fn strain. From two independent crosses involving LV39c5/Hyg and Sd/Bsd, we were able to recover 4 hybrids (6.7%) in flies dissected on days 8–10 p.i. A single experiment in flies co-infected with Lv39/Hyg and Ry/Sat yielded 5 hybrids (14.3%) from flies dissected day 10 p.i. A summary of all of the new crosses that we have undertaken in P. duboscqi involving the various pairwise combinations of the 4 L. major strains is presented in Table 2. For the sake of comparison, the summary table includes only flies that were co-infected for at least 8 days prior to dissection. Notably, the fraction of flies from which hybrids were recovered, ranging from 6.7–14.3%, did not vary significantly between crosses involving the different strains, including Fn vs both LV39c5 and Sd, or LV39c5 vs Sd, Ry and Fn. The findings suggest that L. major lacks detectable ‘mating types’ that might limit free genetic exchange.

Infection levels and development stage associations of hybrid formation

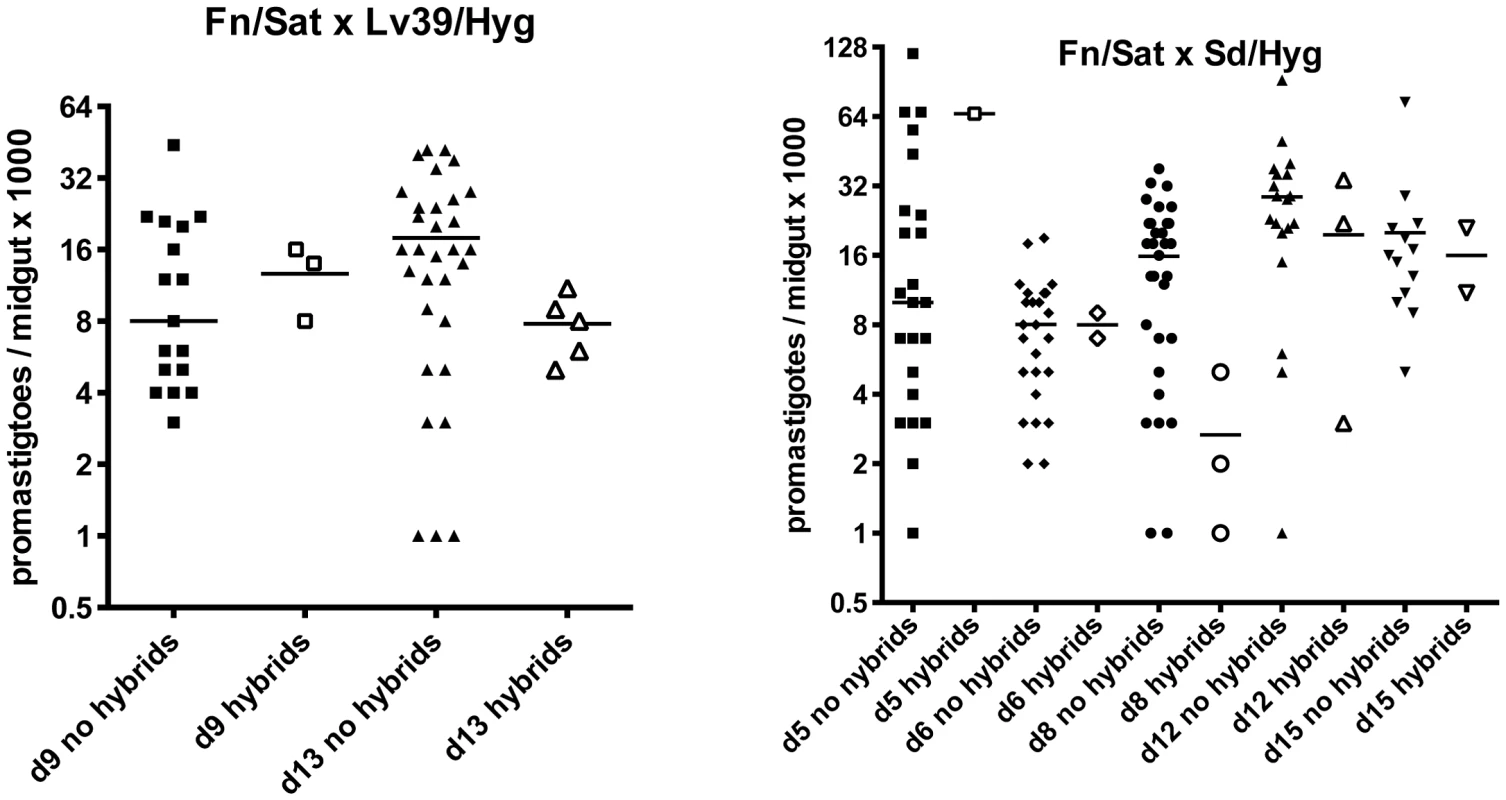

We addressed the question of whether there is a correlation between the intensity of infection in the midgut and the probability of hybrid recovery, by comparing the total number of promastigotes per gut at the time of dissection in flies yielding hybrids or not (Fig. 1). There was no significant difference between these groups. We were struck by the low infection levels even at late time points in many of the flies yielding hybrids (<10,000 promastigotes/gut).

In addition to infection levels, the association between hybrid formation and promastigote developmental stages was explored. During cyclical transmission in a competent vector, Leishmania promastigotes undergo a sequence of morphologic changes (reviewed in [17]). For L. major, these distinct forms typically include procyclics, which appear as short, ovoid, slightly motile and rapidly dividing cells that develop in the abdominal midgut during the first 72 hr. prior to their transformation to long, slender promastigotes, termed nectomonads, 3–6 days post-feeding. These forms fill the abdominal midgut, with many becoming attached by their flagellum to the microvillar lining. By 4–5 days, most of the digested bloodmeal is excreted and nectomonads can begin to be found in the thoracic midgut. This forward migration is accompanied by their gradual transformation over the following week to shorter, broader haptomonads attached to the intima of the stomodeal valve, as well as short, slender, highly active, free swimming and non-dividing metacyclic promastigotes that are the infective stage egested by the fly.

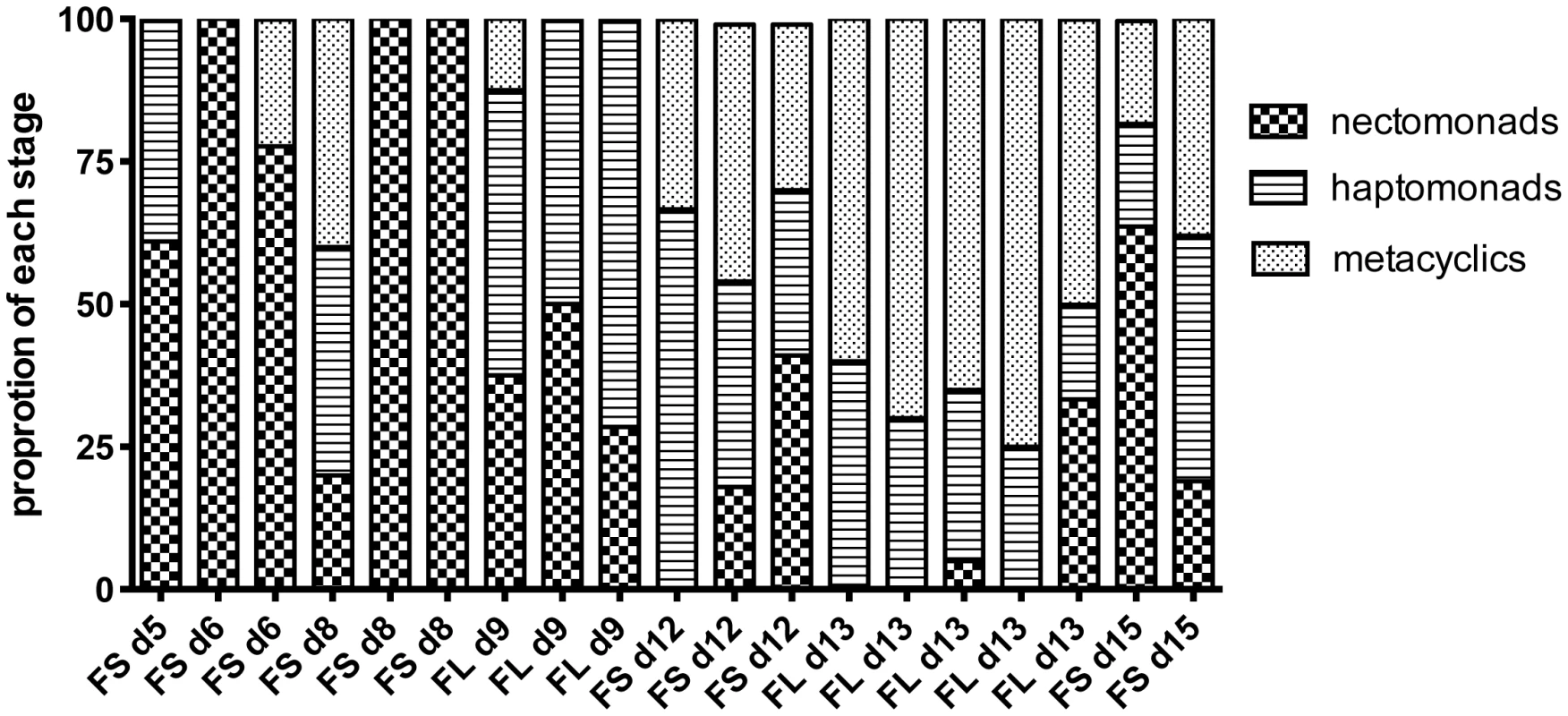

The proportion of these developmental forms at the time of dissection in each of the midguts from which hybrids were recovered from crosses involving Fn/Sat×Sd/Hyg or Fn/Sat×Lv39/Hyg is shown in Fig. 2. Even at the earliest time of hybrid recovery in a single fly on day 5, procyclics were no longer present and thus are not shown in the figure. This midgut, as well as 4 of the 5 midguts from which hybrids were recovered on days 6–8, was dominated by nectomonads, and 3 had exclusively these forms. The transition to infections dominated by haptomonad and metacylic promastigotes was observed in one midgut by day 8, but was otherwise delayed until day 9. By day 13, metacyclics were the predominant form in the midgut. Importantly, in 6 of the hybrid positive midguts dissected on days 5–9, no metacyclics were observed, indicating that metacyclogenesis is not a prerequisite for mating to occur. The increased frequency of hybrid recovery in flies with mature infections might reflect the greater opportunity that nectomonad-related forms have to mate, particularly as they continue to replicate and become more densely packed in the microenvironment of the anterior midgut. However, the contribution of late developmental stages, including metacyclics, to hybrid formation, cannot be discounted.

Genotype analyses of hybrids generated in P. duboscqi

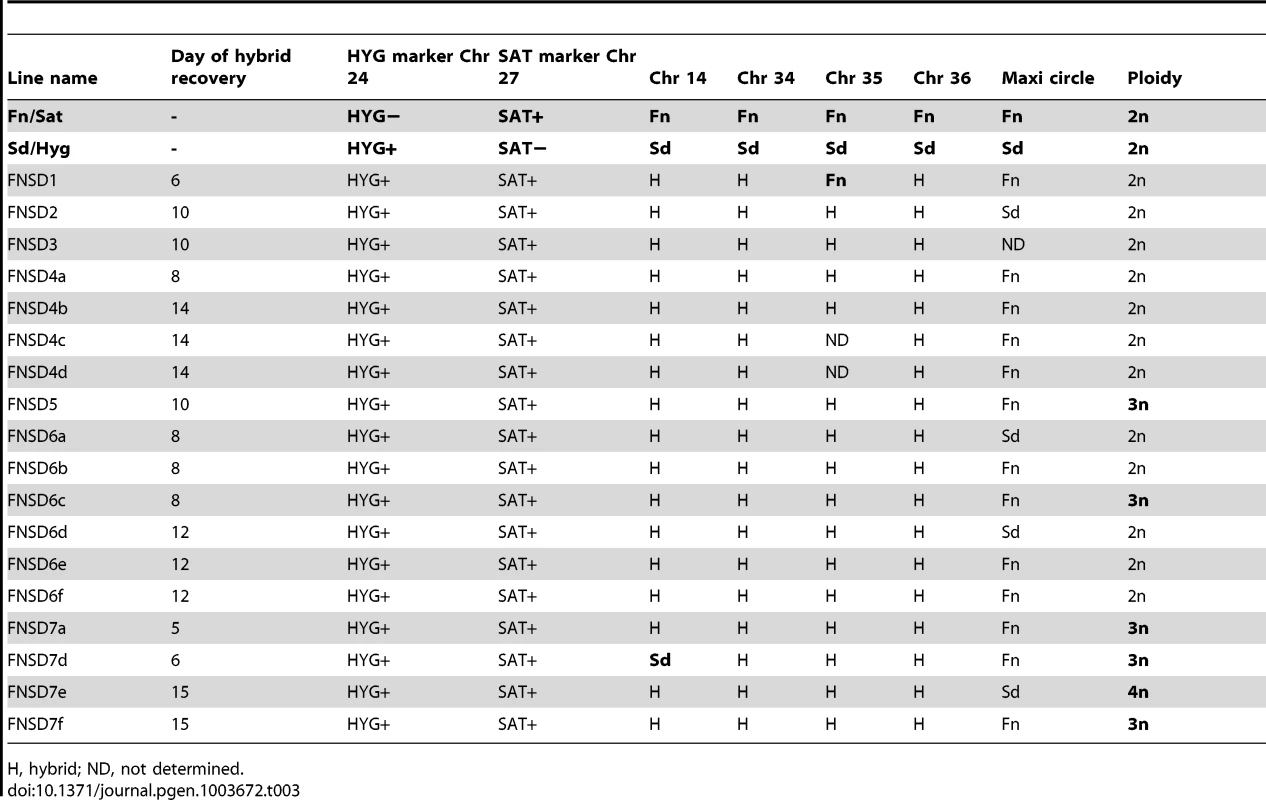

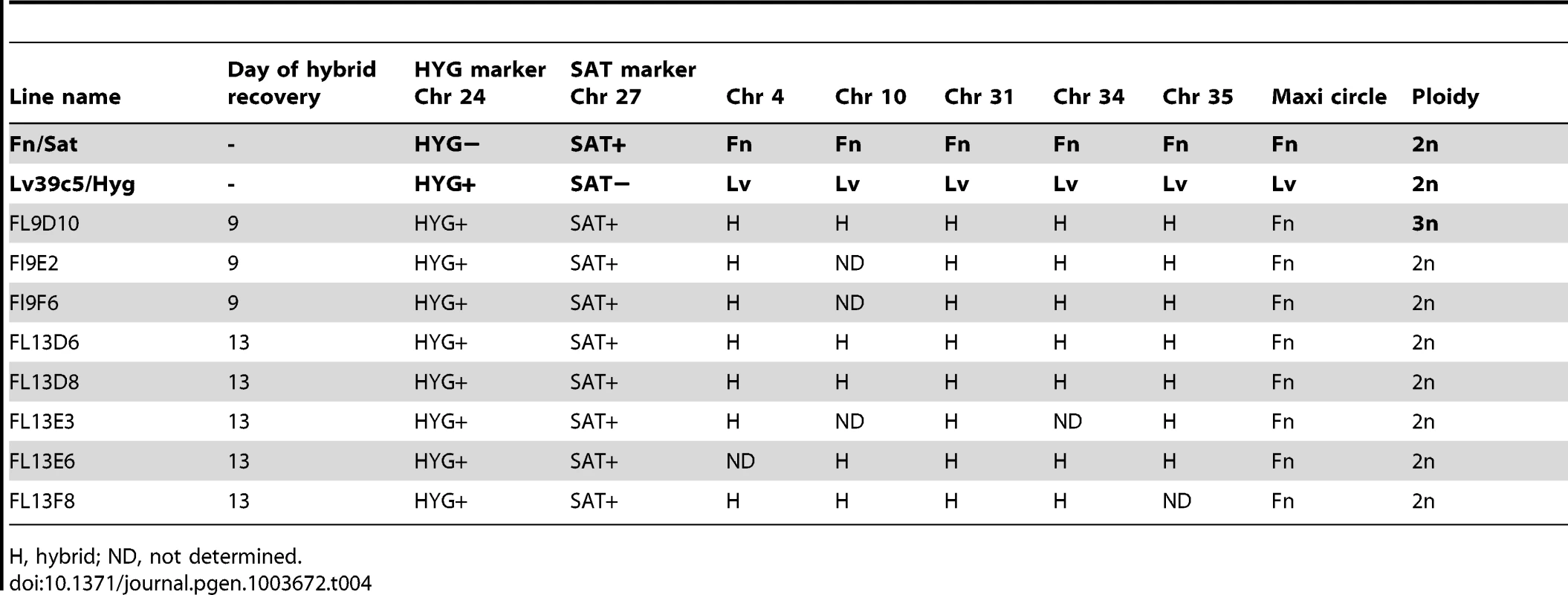

As referred to above, PCR tests confirmed that in each case the progeny clones were true genetic hybrids bearing the parental selectable markers (Fig. S1). We also examined the segregation of loci not linked to the chromosomes bearing the drug resistance markers using SNPs identified previously [13] from comparisons of the SCG genes located on chromosomes 2, 7, 21, 25, 31, 35, and 36. Other nuclear markers were chosen based on SNPs previously identified by comparing different L. donovani isolates [18] and that we found to also identify allelic differences between some of the L. major sub-strains on chromosomes 14, 34. The remaining SNPs on chromosomes 4, 9, and 31 were identified by comparing gene alignments determined from the genome data bases of other Leishmania species, including L. major, L. infantum, L. braziliensis, and L. mexicana. The position and description of each SNP, and the primers and conditions used for their amplification, are summarized in Tables S1 and S2. The SNPs present in the different parents and their hybrid progeny were analyzed by direct sequencing (Fig S3), and are summarized for each of the crosses in Tables 3–6. Both parents were homozygous for every marker applied to the analysis of the hybrids generated by those particular parents. Of the 18 Fn/Sat×Sd/Hyg hybrids recovered, 15 were heterozygous at all 4 loci analyzed, while 2 were heterozygous at 3 loci, with the 4^th marker sequence not determined (Table 3). Interestingly, homozygosity was found for the FnSd1 hybrid for the marker on chromosome 35, and for the FnSd7d hybrid for the marker on chromosome 14. For the 8 hybrids generated from the Fn/Sat×Lv39c5/Hyg cross, heterozygosity was observed at all loci for which sequences were available, with at least 3 and in some cases all 5 of the loci showing both parental alleles (Table 4). For the 4 LV39c5/Hyg×Sd/Bsd hybrids, 3 were heterozygous at 5 of the loci analyzed, while the LSD2 hybrid was heterozygous at 4 loci, but was homozygous at the markers on chromosomes 9 and 31 (Table 5). Interestingly, the inheritance patterns at these two loci were from different parents. Finally, in the cross of Ry/Sat×LV39c5/Hyg, all 5 hybrids were heterozygous at all 5 loci analyzed (Table 6). In summary, taking into account both the drug-selectable and additional unlinked markers, all 35 progeny clones inherited both parental alleles present in at least 5 loci located on 5 different chromosomes, and 97% of the nuclear markers analyzed were heterozygous for these alleles. The progeny thus appear to be full genomic hybrids, with the caveat that the plasticity in chromosome number (or other process) might in some instances have resulted in loss of heterozygosity (LOH), reflected in the apparent uniparental inheritance at a few (<3%) of the marker loci analyzed. In our previous study LOH was not observed, most likely arising from the fact that fewer hybrids were studied. These conclusions are supported in preliminary genome-wide analysis of SNP inheritance, as deduced by whole genome deep sequencing (J. Shaik, N. Akopyants, D. Dobson, P. Lawyer, D. Elnaiem, D. Sacks, and S. Beverley, in preparation). Figure 3 and Figure S4 show an analysis of the inheritance of homogozygous parental SNP for L. major chromosome 17, showing biparental inheritance of 1314 SNPs for 5 representative hybrids.

The inheritance of the kinetoplast organelle in the hybrids was examined by analyzing the segregation of polymorphic regions within the maxicircle kDNA [9], [10] (Fig S5). In contrast to the inheritance of nuclear DNA, and consistent with our previous findings, maxicircle kDNA was inherited from a single parent (Tables 3–6). For the Fn/Sat×Sd/Hyg hybrids, 13 inherited both of the maxicircle kDNA markers analyzed from Fn, while 5 inherited the kDNA markers from Sd. The departure of this ratio from a random 50∶50 segregation is of borderline statistical significance (p = 0.096; exact two-sided binomial test). For the 8 hybrids generated in the Fn/Sat×Lv39c5/Hyg cross, all inherited both Fn kDNA markers. For the 5 Ry/Sat×Lv39c5/Hyg hybrids, all inherited both kDNA allelic markers from the Ry parent. Finally, only one kDNA marker was analyzed for the Lv39c5/Hyg×Sd/Bsd hybrids, with 3 inheriting the Sd marker and one the Lv39 marker.

DNA content analysis of the progeny clones revealed that while the majority resembled the ‘2n’ parents (recalling that while Leishmania chromosomes are predominantly diploid, aneuploidy is quite common), a number of polyploid progeny were observed, including a total of 6 ‘triploid’, and one ‘tetraploid’ hybrid (Fig. S6). DNA contents of intermediate amounts were not observed, although small differences cannot be ruled out. The ‘triploid’ clones remained ‘triploid’ following extensive serial in vitro passage and following recovery from mouse dermal lesions, whereas the single ‘tetraploid’ progeny clone remained ‘tetraploid’ in vitro, but only diploid cells that had lost their double drug resistance were recovered from infected mouse tissue.

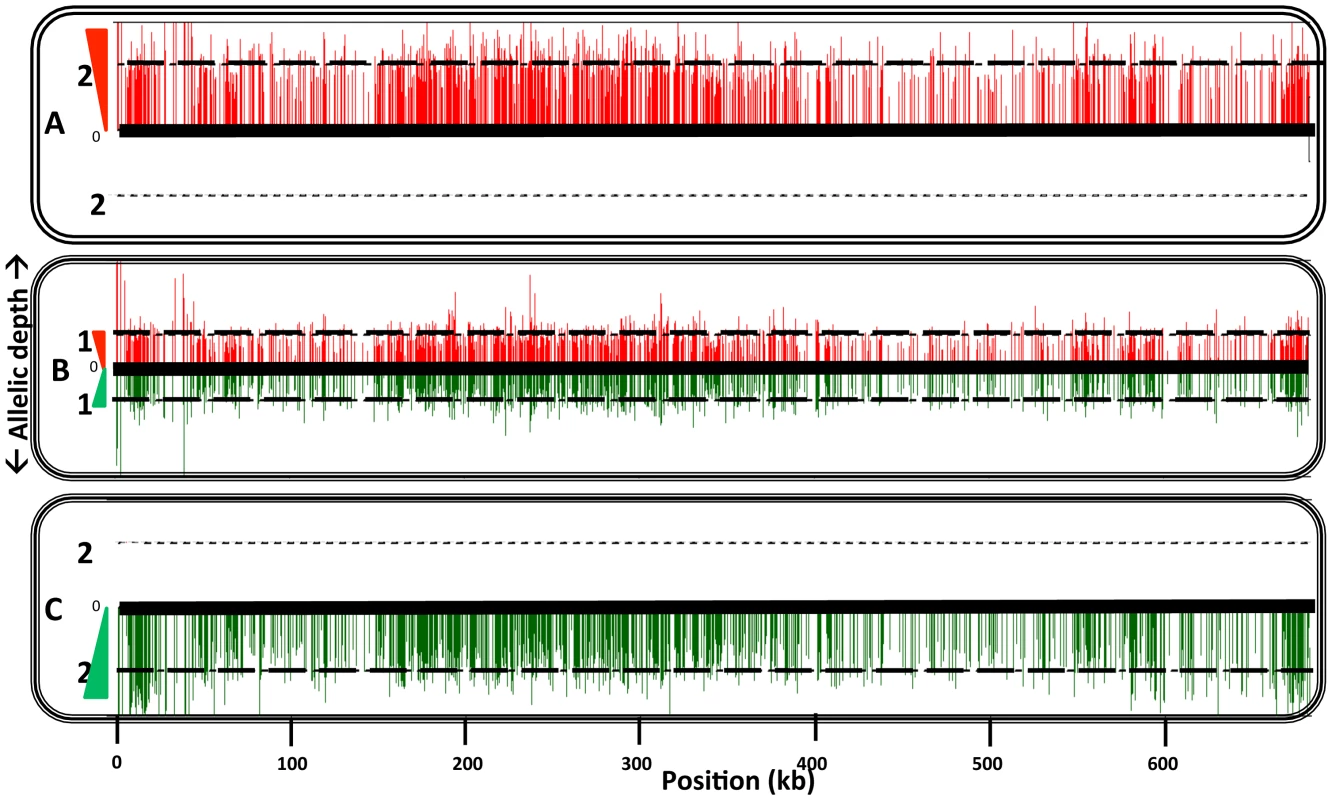

We used SNP genotyping combined with cleaved amplified polymorphic site (SNP-CAPS) analysis performed as previously described [13], to determine the relative contribution of each parental genome in the triploid progeny. The analysis is based on a SNP in Glucose 6 phosphate dehydrogenase (G6PD-LmjF34.0080) in position 975 (Table S2) that results in a SACII restriction site in both Lv39/Hyg and Sd/Hyg and not in Fn/Sat. The bar graph in Fig S7 shows the ratio between the intensity of the uncut upper band from Fn/Sat and the middle band from either Lv39/Hyg or Sd/Hyg, and compares the various hybrids with controls generated by mixing the respective parental DNA at 1∶1, 2∶1 or 1∶2 ratios. The SNP-CAPS analysis confirms the direct sequencing results indicating that all of the progeny clones examined are allelic hybrids for this marker, and suggests that for the triploid progeny, the extra genome complement is inherited from Lv39/Hyg (Fig S7A) or from Sd/Hyg (Fig S7B), and in no instance from Fn/Sat, similar to the triploid hybrids previously described [13].

L. major crosses in Lu. longipalpis

To confirm that mating in Leishmania can occur in another vector species, we pursued co-infections experiments in Lu. longipalpis, belonging to the genus Lutozomyia, and the chief vector of L. infantum transmission in the new world. The experiments were done using the two L. major strains Fn/Sat and Lv39c5/Hyg, which we know to be mating competent in P. duboscqi ([13]and this work). Although Lu. longipalpis is not a natural vector of L. major, it is permissive for the complete development of L. major [19], including the Fn/Sat and Lv39/Hyg lines (data not shown). An initial series of co-infection experiments were analyzed only at late time points (days 11–18) to optimize the chances of hybrid recovery (Table 7). In three experiments, a total of 10 doubly drug-resistant hybrids were recovered from 8–15% of the clean Lu. longipalpis midguts, similar to the percentage of hybrid recovery in P. duboscqi (Table 2). A kinetic experiment was undertaken to determine if the timing of hybrid formation might also be similar. Surprisingly, flies yielding hybrids were recovered in this experiment at a remarkably high frequency at all time points examined (40–65%), including already at day 3. A total of 51 doubly drug-resistant lines were established in this single kinetic study. Another striking feature of this experiment was the virtual absence of fungal or bacterial contaminants in the cultures established from the dissected midguts.

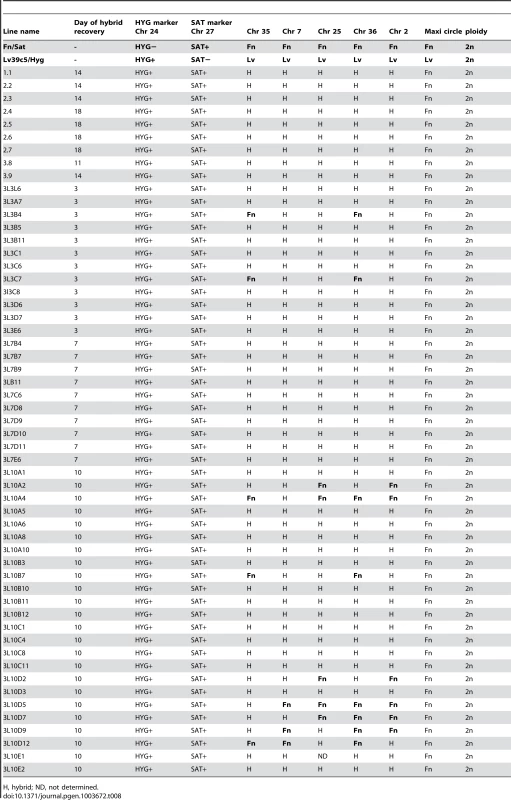

The 61 hybrids generated by the Fn/Sat×Lv39c5/Hyg crosses in Lu. longipalpis were cloned and genotyped using the markers previously described [13]. In addition to the drug resistance markers that were amplified by PCR, five different SNP markers on chromosomes 2, 7, 25, 35 and 36 and two SNP markers on maxicircle kDNA were analyzed, in this instance by SNP-CAPS analysis (Table 8). All of the hybrids carried both drug resistance markers, and the majority inherited both parental alleles at all 5 chromosomal markers, with heterozygous alleles present at 90% of the nuclear markers analyzed. Ten of the hybrids, however, were homozygous at 2, 3 or 4 of the 5 chromosomal marker loci analyzed. While for the kDNA markers uniparental inheritance was expected, it was surprising to find that all 61 of the hybrids had inherited their maxicircle kDNA from only the Fn parent. Finally, they all appeared to be ‘2n’, which again distinguishes the hybrids generated in these crosses from those arising in the natural vector P. duboscqi in this and especially the previous study [13].

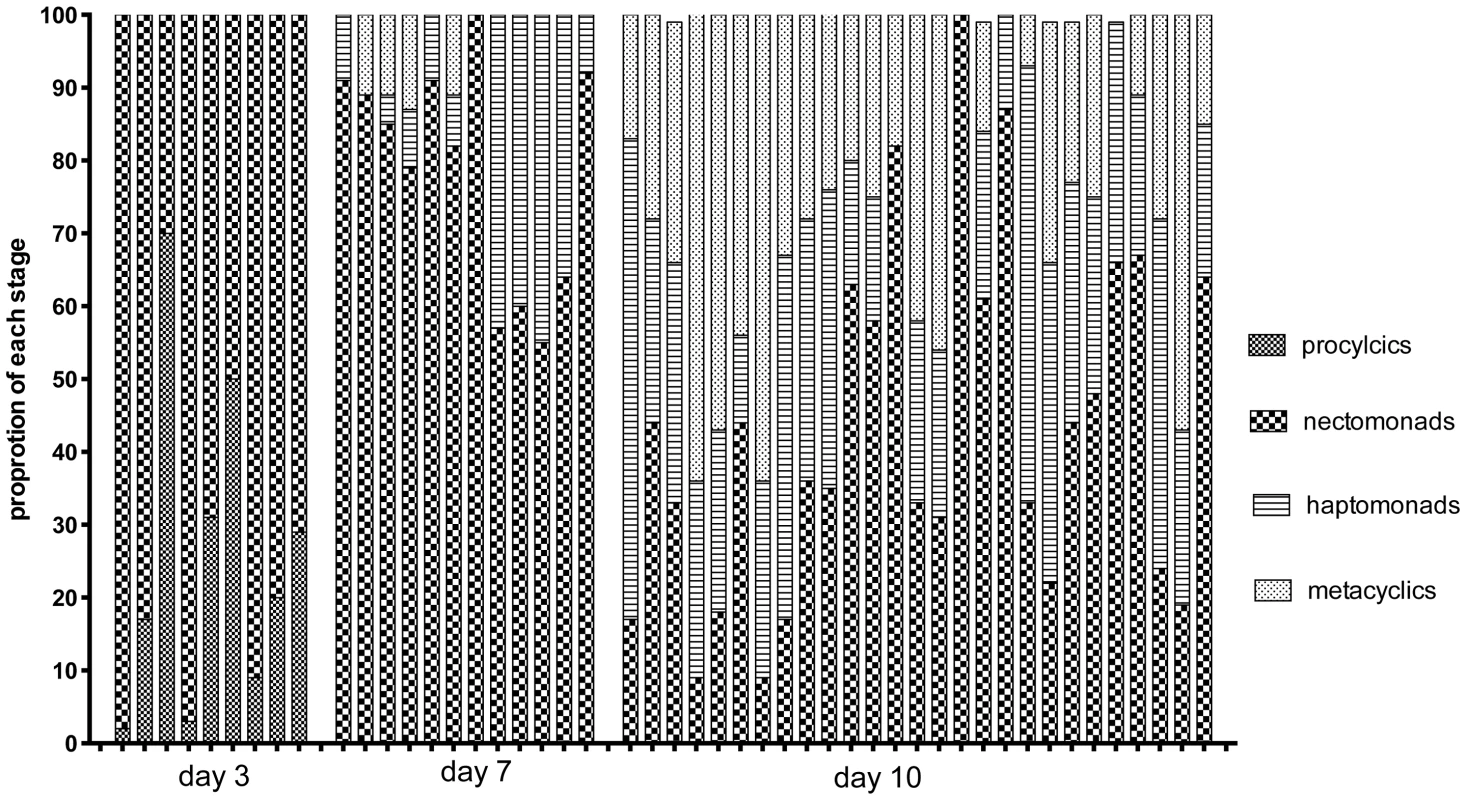

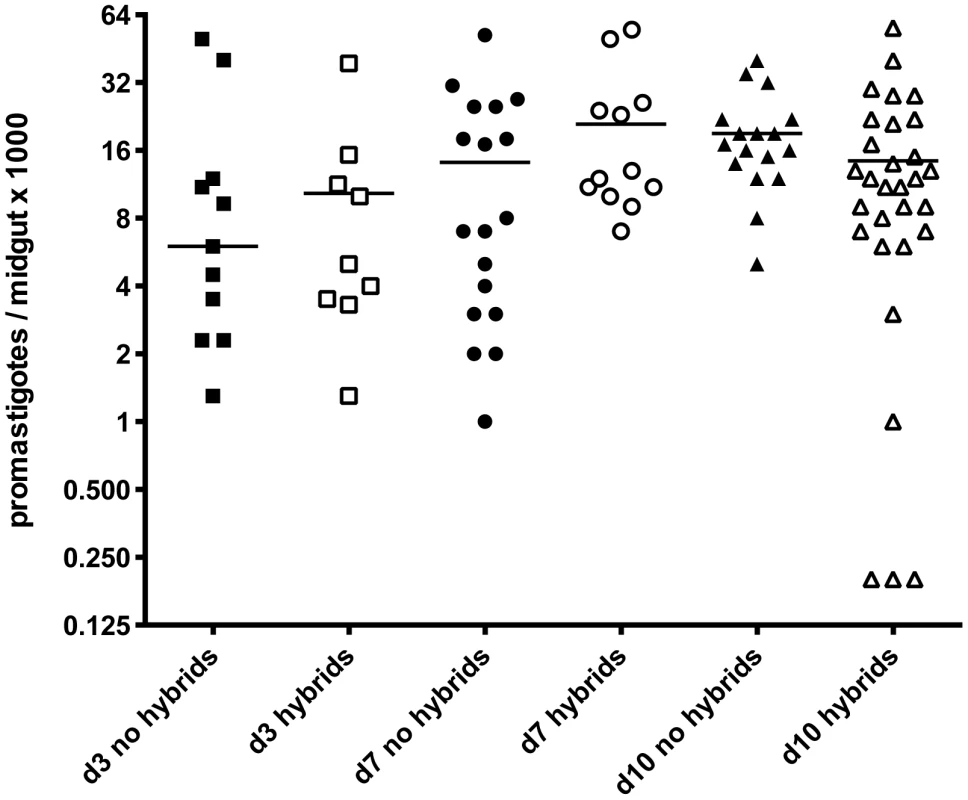

The midguts analyzed in the kinetic study of hybrid formation in Lu. longipalpis were also used to determine the infection intensity and developmental stage associations in flies yielding hybrids or not. No significant difference in the number of promastigotes per midgut was observed between these groups, and hybrids were again recovered from many flies that had very low numbers of parasites, even at late time points (Fig. 4). There was also no difference at any time point between the hybrid positive and negative flies in the average number of each developmental stage (data not shown). Fig. 5 shows the relative proportion of each developmental stage at the time of dissection in the individual midguts yielding a hybrid. Because hybrids were recovered as early as day 3, procyclic forms were still present and may have been involved in hybrid formation. Multiple attempts in subsequent experiments to investigate hybrid recovery at days 1–2 when procyclics would have been the predominant if not exclusive stage in the gut, were negative. These experiments remain inconclusive, however, as the frequency of hybrid recovery even at late time points was very low (<5%), while the frequency of bacterial overgrowth in the midgut homogenate cultures was especially high (>80%) (data not shown). In the experiment shown in fig. 4, nectomonads were already the predominant stage in the majority of flies by day 3, consistent with prior observations regarding the accelerated progression of promastigote stage differentiation in Lu. longipalpis as compared to a natural vector [19], [20]. At day 7, nectomonads were still the prevailing form, and were found in all hybrid positive midguts at day 10, though in proportionately less numbers than haptomonads and metacyclics in most flies. Since the majority of the flies yielding hybrids at days 3 and 7 contained no metacyclics, the data again argue that metacyclogenesis is not required for mating competent forms to arise.

Discussion

In this study we have extended and confirmed our original report regarding the capacity of Leishmania to undergo genetic exchange in the sand fly vector, analyzing in detail 96 independent hybrids. Using a system in which P. duboscqi sand flies, a natural vector of L. major transmission in West Africa, were co-infected with L. major strains expressing distinct drug selectable markers, we could confirm the mating capacity of strains originating throughout the geographic range of this species, from Senegal, West Africa to Israel, Iraq, and southern Russia. Hybrids were generated between all pairwise combinations tested, suggesting that barriers to mating between strains do not exist (or at least are not widespread). The proportion of flies yielding at least one hybrid was roughly comparable amongst the 4 mating pairs tested, and consistent with the estimates of a relatively low frequency of hybrid formation (<10⁴) described previously [13]. Mating must be considered as a non-obligatory part of the infectious cycle, since the majority of co-infected flies failed to yield a hybrid, yet were still permissive to the development of mature metacyclic forms. The results involving these geographically diverse L. major stocks, selected without bias, confirm that even if sexual reproduction is not obligatory and relatively rare, the machinery for genetic exchange has been maintained across the species. Additionally, we demonstrated the capacity of a new world phlebotomine vector, Lu. longipalpis, to support genetic exchange in Leishmania. Since genetic exchange has not been observed for promastigotes growing in vitro, the findings reinforce the conclusion that the phlebotomine midgut provides a unique environment for sex involving the insect stages of the parasite to occur.

For all of the hybrid progeny selected for double antibiotic resistance, the inheritance of both parental selectable markers was confirmed by PCR tests. Analysis of SNPs present on 4–6 additional chromosomes not linked to the selectable markers revealed that at 97% of the loci tested, progeny arising from crosses in the natural vector P. duboscqi inherited both parental alleles. However, 3% (4/150) loci showed loss of heterozygosity (LOH), inheriting only one allele from either parent (Tables 3–6). Curiously, taking into account both our current and prior studies involving the pairing of parental lines Fn/Sat and Lv39c5/Hyg in P. duboscqi, we found no examples of LOH (0/160 loci tested), whereas crosses of these same parents in the unnatural vector Lu longipalpis reported here, the frequency of LOH was 10% (27/275). These data suggest that the frequency of LOH may vary in individual crosses depending on both the parental lines and sand fly host. There are a number of mechanisms that could account for LOH – for example, meiotic or mitotic crossing over, or chromosomal segregation following mating associated with the rapidity by which Leishmania shows alterations in aneuploidy in culture [11], [21]. However, the overwhelming fraction of loci/hybrids show biparental inheritance. Correspondingly, , preliminary next gen sequencing data of the hybrids (J. Shaik, N. Akopyants, D. Dobson, P. Lawyer, D. Elnaiem, D. Sacks, and S. Beverley, in preparation), suggest that all hybrids recovered thus far arise biparentally across the entire genome (Fig. 3, S4). .

By contrast, maxicircle kDNA was again inherited in a uniparental manner, with a clear bias towards inheritance of kDNA from the Fn parent in crosses involving that parent. We have so far not been able to explore the possibility, documented for T. brucei [22], that recovery of hybrids during the earliest stage of their generation in the midgut might reveal biparental inheritance of kDNA, with subsequent loss during mitotic division.

Analysis of total DNA again revealed that while the majority of hybrids were ‘2n’, a number of ‘3n’ progeny were observed. We also recovered for the first time a single ‘4n’ hybrid (arising from a Fn/Sat×Sd/Hyg cross). Interestingly, while maintained stably as ‘4n’ in culture, this line reverted to ‘2n’ following recovery from an infected mouse. Tetraploid progeny had previously been seen in Leishmania, arising from attempts to inactivate essential genes [21]. In that study only one of 5 tetraploids tested remained infective to mice, however, following recovery this line remained tetraploid. Given the limited number of tetraploids obtained and examined thus far, further work will be required to systematically assess the stability and virulence of tetraploids in Leishmania.

In the studies here and previously reported [13], DNA contents of intermediate contents were not observed, although changes involving aneuploidy of a small number of chromosomes would not have been revealed by the methods used. These data could imply that meiosis occurs prior to or after a fusion event involving ‘1n’ cells or nuclei, with ’3n’ progeny resulting from the absence or incomplete meiotic division of one of the diploid parents. The ‘4n’ hybrid is most readily explained by fusion of diploid cells, and may represent an intermediate sexual stage that undergoes reduction to the diploid state, similar to the process described for Candida albicans [23]. Polyploid hybrids have been recovered in African trypanosomes, and inferred for American trypanosomes assuming T. cruzi undergoes reduction to an aneuploid state via a parasexual process [24]. For T. brucei, Mendelian inheritance patterns are well-established [25] and an epimastigote life-cycle stage residing in the tsetse fly salivary glands has recently been identified expressing meiotic genes [26]. Importantly, the expression of meiosis-specific proteins in most cases occurred prior to cell fusion, establishing a precedent in excavate protists for conventional meiotic division, although it should be noted that haploid trypanosomes have still not been formally demonstrated in T. brucei. The meiosis specific orthologs that were used to detect meiotic forms in T. brucei are also present in the L. major genome [27], and we are currently investigating their expression during development of midgut forms in vivo.

The second major finding arising from our studies pertains to the timing and developmental stage associations of hybrid formation in P. duboscqi sand flies. In 3 independent mating experiments investigating the timing of hybrid generation, only 1 hybrid was recovered amongst the 100 co-infected midguts dissected prior to day 6 (1%). Ten hybrids were recovered amongst the 134 guts dissected on days 6–9 (7.5%), and 15 of 112 (13.4%) on days 10–15. The delay in hybrid recovery strongly suggests that the rapidly dividing procyclic forms predominating in the midgut during days 1–2 post-infection are unlikely to be mating competent, especially as these forms have completely transitioned into nectomonads by days 4–5. The increased frequency of hybrid recovery on days 6–9 coincides with the colonization of the posterior midgut by primarily nectomonad forms and their initial migration to the thoracic midgut. The highest rate of hybrid recovery observed at later time points (days 10–15) might implicate more mature stages, e.g. haptomonads or metacyclics, as mating competent forms, or simply reflect the greater opportunity that nectomonads that are maintained in variable numbers even at late time points might have to mate, especially as they become more densely packed in the anterior gut. Since the flies from which hybrids were recovered days 5–9 post-infection harbored few and in most cases no metacyclics, it can be concluded that metacyclogenesis is not a pre-requisite for mating to occur. The intensity of infections at the time of dissection was also not a good predictor of mating success, as the total number of promastigotes per midgut was no higher in flies yielding hybrids compared to those that did not, and in some cases hybrids were recovered from flies that had very light infections (<2000 promastigotes/midgut). In summary, neither the earliest dividing procyclic forms, nor the late developing, resting metacyclic forms, appear to be associated, or uniquely so, with hybrid formation, consistent with the evidence against mating involving these analogous life cycle stages in T. brucei [26], [28], [29]. We favor a role for nectomonad-related forms in mating based not only on the timing of hybrid recovery, but also the fact that these forms are unique to L. major stage differentiation in vivo and are not observed amongst the pleopmorphic promastigotes that appear during growth in culture, which have so far remained mating incompetent. Nectomonads also share with T. brucei epimastigotes the ability of their flagellum to mediate attachment to the substratum, which involves adhesion to the midgut epithelium for Leishmania, and to the salivary gland epithelium for African trypanosomes. By analogy with the process of gamete activation and fusion in other flagellates, e.g. Chlamydomonas [30], such junctional complexes may inititate the signaling events that are required for hybrid formation in Leishmania and African trypanosomes to occur [29].

Despite the fact that Lu. longipalpis, which is a natural vector of L. infantum in the new world, does not naturally transmit L. major, it is permissive to the full development of this species in the laboratory [19]. The current studies confirm that it also supports genetic exchange in L. major. Genotype analysis of 61 hybrids revealed that in each case they were full genomic hybrids, since they possessed both parental alleles at unlinked loci on 7 different chromosomes, but again with the caveat that heterozygosity appears to have been lost at a number of loci. The inheritance bias of Fn maxicircle kDNA observed in hybrids generated in P. duboscqi was for the L. longipalpis hybrids complete, with all 61 progeny clones inheriting maxicircle kDNA exclusively from the Fn parent. The mechanisms that might account for the elimination of one of the kinetoplast organelles pre- or post-fusion, and how this process can be so selective, are currently unknown.

In an initial series of experiments involving flies dissected only at late time points, the efficiency of hybrid recovery was roughly comparable to that observed in P. duboscqi, with an average of 15% of flies with mature infections yielding at least one hybrid progeny. When a time course study was carried out in Lu. longipalpis in order to determine when hybrid formation might begin to occur in these flies, we were surprised to recover hybrids from a high proportion of flies (45%) already by day 3. This remarkable rate of hybrid recovery was maintained or increased at the later time points. In subsequent experiments involving different populations of released adults from the same colony, we failed to observe such a high rate of hybrid recovery (data not shown). While we cannot explain what remains so far a unique experience involving these flies, we note that the released adults used in the successful time course experiment were unusual in the virtual absence of any midguts harboring commensal bacteria that overgrew the promastigote growth medium containing penicillin and streptomycin. The possible influence of the midgut microbiota on promoting or inhibiting hybrid formation is currently being investigated.

Regarding the early appearance of hybrids by day 3, we and others [19], [20] have observed that the sequence of promastigote stage differentiation proceeds more rapidly in Lu. longipalpis compared with P. duboscqi or P. papatasi, with nectomonads the dominant stage already by day 3, and fully mature metacyclics the predominant stage already by day 8. Nonetheless, we cannot rule out the contribution of the earliest procylic promastigote stage to hybrid formation in Lu. longipalpis, which would be consistent with the timing and morphology of the putative L. donovani hybrid observed in the single Lu. longipalpis fly reported by Sadlova et al. [15].

In summary, our analysis of a large number of hybrid progeny generated between multiple strains of L. major substantiates that sex is a normal aspect of their reproductive strategy. The timing of hybrid recovery in a natural vector implicates the involvement of nectomonad forms in hybrid formation. Our finding that Leishmania crosses can be achieved experimentally in a proven vector of the genus Luztomyia, is highly relevant to a number of population studies showing the widespread occurrence of hybrid genotypes in New World Leishmania [3]–[8].

Materials and Methods

Ethics statement

This study was carried out in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. The protocol was approved by the Animal Care and Use Committee of the NIAID, NIH (protocol number LPD 68E). Invertebrates are not covered under NIH guidelines.

Parasites

L. major Fn/Sat was derived from a strain (MHOM/IL/80/Friedlin) originally isolated from a patient with cutaneous Leishmaniasis acquired in the Jordan Valley, and contains a heterozygous nourseothricin–resistance (SAT) marker, integrated along with a linked firefly luciferase reporter gene into one allele of the ∼20 rRNA cistrons located on chromosome 27 [31] using constructs and methods described previously [13]; L. major LV39c5/Hyg was derived from a strain originally isolated from a reservoir rodent host in southern Russia (MHOM/Sv/59/P) [32] and is heterozygous for an allelic replacement of the LPG5A on chromosome 24 by a hygromycin B–resistance cassette [16]; L. major Sd/Hyg was derived from a strain isolated from a patient with cutaneous lesions acquired in Senegal (MHOM/SN/74/SD) [33], and is also heterozygous for an allelic replacement of the LPG5A on chromosome 24 by a hygromycin B–resistance cassette [16]; L. major Sd/Bsd is derived from the same Sd strain from Senegal and is heterozygous for allelic replacement of the LPG5B on chromosome 18 by a blastocidin-resistance cassette [16]; L. major Ry/Sat was derived from a strain originally isolated from a lesion biopsy of a laboratory worker accidentally exposed to sand flies that were experimentally infected with a strain of L. major (WR2885) originating in Iraq [34], and also contains a heterozygous SAT–resistance marker, integrated into one allele of the rRNA cistrons located on chromosome 27 using constructs and methods described previously [13]. All parasites were grown at 26°C in complete medium 199 (CM199) supplemented with 20% heat-inactivated FCS, 100 U/ml penicillin, 100 µg/ml streptomycin, 2 mM L-glutamine, 40 mM Hepes, 0.1 mM adenine (in 50 mM Hepes), 5 mg/ml hemin (in 50% triethanolamine), and 1 mg/ml 6-biotin, and containing either 25 ug/ml blasticidin S (Invitrogen, Carlsbad, CA), 25 ug/ml hygromycin B (EMD Biosciences, San Diego, CA) or 100 ug/ml SAT (Jena Bioscience, Germany), or combinations of these antibiotics as necessary.

Sand fly infections and hybrid recovery

Three to five day old female P. duboscqi or L. longipalpis sand flies, obtained from colonies initiated from field specimens collected in Mali and Brazil, respectively, were fed through a chick skin membrane on heparinized mouse blood containing 1–4×10⁶/ml logarithmic phase promastigotes of each parental line of L. major. At various days after the infective feed (3–18 days), the sand flies were anesthetized with CO₂, their midguts dissected and homogenized in 100 µl CM199, and the number of viable promastigotes and the percentage of each promastigote developmental stage were determined by counting under a hemacytometer. Promastigote stages were identified based on the morphologic criteria previously described [35]. For isolation of hybrids, individual midgut homogenates from co-infected flies were transferred to a single well of a 96 well flat bottom plate, and incubated at 26°C over night. An equal volume of CM199 containing 2× of the appropriate antibiotics was added on the following day for the selection of hybrids. Doubly drug-resistant promastigotes were cloned by distribution in 96 well blood agar plates in 0.1 ml CM199 containing both antibiotics. Poisson analysis was used to determine the percentage probability of clonality, and was in each case >95%.

DNA extraction, PCR and genotyping of hybrids

Parasite DNA was extracted as follows: cell extracts were suspended in TELT (0.05 M Tris, 005 M EDTA, 0.25 M LiCl and Triton X-4) and supplemented with an equal Volume of Phenol Chloroform isoamyl alcohol (25∶24∶1). Cell suspensions were centrifuged (15′ 16,000 g 4°C) and the aqueous phase was transferred to a new tube. DNA was precipitated in 96% ethanol and washed with 70% ethanol. DNA was then eluted with 100 ul of nuclease free water. For hybrids genotyping, a set of marker genes (Table S1) was amplified by polymerase chain reaction (PCR) using Applied Biosystems 2× geneAmpPCR mix, 25 pmol of each primer and 10 ng of the DNA. PCR products were cleaned with ExoSAP-IT kit (USB), and sequences confirmed with forward and/or reverse reads by Rocky Mountain Laboratory Genomics Unit DNA Sequencing Center, Division of Intramural Research, Hamilton, Montana. The sequences were analyzed using “Lasergene” software. SNP-CAPS analysis was performed as previously described [9] and was based on SNPs identified in the sequence analysis. Glucose phosphate dehydrogenase (G6PD-LmjF34.0080) was PCR-amplified and cleaned using gel and PCR clean up system (Promega). The clean PCR product (500 ng) was digested with 15 units of SACII (Thermo scientific) for 16 hours. Cleaved DNA was then loaded on ethidium bromide gel. Band intensity quantification was done using image J software (http://rsbweb.nih.gov/ij, National Institutes of Health, Bethesda, MD, USA).

DNA content

DNA content was determined using flow cytometry as previously described [21]. Briefly, 2.5×10⁶ log-phase promastigotes were permeabilized with 4% paraformaldehide solution for 1 minute. Cells were centrifuged, re-suspended in PBS and fixed with absolute methanol for 15 minutes on ice. Cells were washed and resuspended in PBS at room temperature for 10 minutes followed by RNAseA treatment (200 µg/ml RNase A) and propidium iodide (20 µg/ml) staining for 30 minutes at room temperature. Data were acquired on a FacsCANTO 2 flow cytometer (BD Bioscience), counting at least 10,000 cells per sample, and analyzed using FlowJo 9.5.2 software.

SNP analysis

The full methods and analysis of the parental and hybrid L. major lines studied here will be presented elsewhere (J. Shaik, N. Akopyants, D. Dobson, P. Lawyer, D. Elnaiem, D. Sacks, and S. Beverley, in preparation). Briefly, Leishmania nuclear DNA was isolated and subjected to deep-sequencing using Illumina Hi-seq 2000 machine, yielding approximately 60× coverage. Reads were aligned to the L. major reference genome (REF) using novoalign MPI version 2.07.07 (Novocraft, 2012); “NovoAlign (http://www.novocraft.com).”) and SNPs were identified using the Samtools pileup function using SOAP SNP consensus model [36]. Custom scripts were developed for subsequent analysis and display. SNPs were filtered to remove those falling within regions of low coverage (read depth less than 10) and to remove SNPs heterozygous within either parent. For the remaining homozygous SNPs, an ‘allelic’ density at each homozygous SNP position was estimated, assuming an average ploidy of 2n across the L. major genome. While not strictly true for any given parent or hybrid line (all of which vary from each other), the error introduced by this assumption is small. The results of these analyses are displayed as ‘bottlebrush’ plots (Fig. 3, Fig. S4) where at each SNP position the inferred allelic density is displayed on the Y-axis.

Statistics

To test if there is a change over time in the proportion of hybrids recovered within each cross, we used an exact two-sided Cochran-Armitage test for trend using the day as the score combining across experiments and assuming no experiment effects. To compare the number of promastigotes per gut between flies yielding hybrids versus those not yielding hybrids, we used a stratified (by day) Wilcoxon-Mann-Whitney test. Tests were performed using SAS Version 9.3 (Cochran-Armitage) or the coin package in Hothorn et al. [37]. URL http://www.jstatsoft.org/v28/i08/.].
