Ultra-Sensitive Detection of by Amplification of Multi-Copy Subtelomeric Targets
Ingrid Felger and colleagues developed an assay that targets multi-copy genomic sequences and can detect low-density infections with falciparum malaria parasites.
Published in the journal:
Ultra-Sensitive Detection of by Amplification of Multi-Copy Subtelomeric Targets. PLoS Med 12(3): e32767. doi:10.1371/journal.pmed.1001788
Category:
Research Article
doi:
https://doi.org/10.1371/journal.pmed.1001788
Summary
Ingrid Felger and colleagues developed an assay that targets multi-copy genomic sequences and can detect low-density infections with falciparum malaria parasites.
Introduction
Accurate and sensitive detection of malaria parasites is a key factor in planning, targeting, and evaluating malaria control efforts, and requires different strategies at different elimination stages [1–3]. One major challenge is the identification of remaining reservoirs of human-to-mosquito transmission in asymptomatic individuals carrying low-density infections. The true extent of this predominantly submicroscopic reservoir became better defined with the wider application of molecular detection techniques in epidemiological studies [4,5], and its relevance to sustained malaria control has been brought into focus [1–3]. It was recently estimated that submicroscopic but PCR-detectable infections make up 20% of all malaria infections in high-transmission areas and as much as 70% in low-endemic areas, where they contribute 40% of all transmission to mosquitoes [5]. Mass drug administration (MDA) interventions include treatment of these undetected carriers and can thereby reduce parasite prevalence for several months in low- to moderate-prevalence settings, with even longer effects predicted at low transmission levels [6,7]. According to modeling predictions, mass screening and treatment (MSAT) strategies have a lower impact than MDA-based interventions [7], as MSAT is limited by the sensitivity of the diagnostic tool used. A recent study in Burkina Faso found no sustained effect of anti-malarial treatment on incidence of clinical episodes 9 mo after MSAT using conventional diagnosis based on rapid diagnostic test (RDT) [8]. This finding is likely attributable to the large proportion of undetected low-density infections. The true parasite burden could be better defined using nucleic-acid-based diagnostics, but even then, very-low-density infections might be missed. Such low-density infections might be particularly prevalent in areas with a recent and drastic decline in the force of infection of Plasmodium falciparum, where high parasite densities and disease are controlled by residual immunity. As more countries successfully reduce malaria prevalence [9], the proportion of low-density infections can be expected to rise, and more sensitive diagnostics that surpass even conventional PCR are urgently needed to detect potential hidden reservoirs.

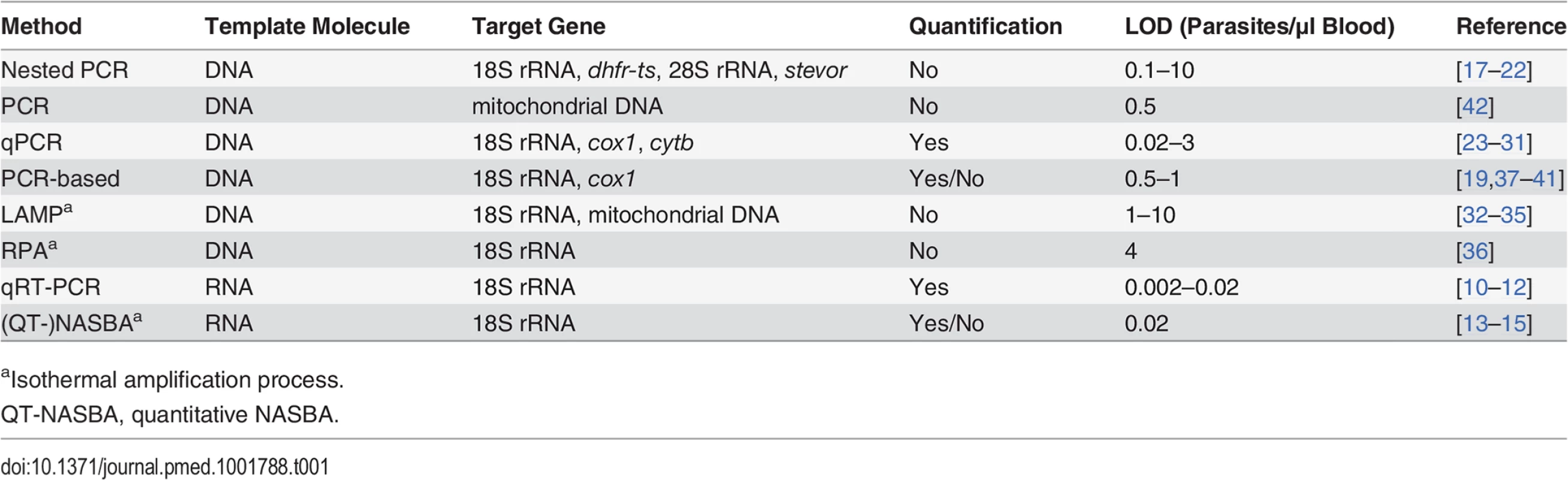

Of the current molecular detection methods available for malaria diagnosis (summarized in Table 1), RNA-based techniques such as quantitative reverse transcription PCR (qRT-PCR) [10–12], nucleic acid sequence-based amplification (NASBA) [13–15], and ELISA-like hybridization assays [16] reach the highest sensitivities by targeting the highly abundant 18S small subunit ribosomal RNA (18S rRNA). However, because of the unstable nature of RNA, these assays require dedicated and controlled sample collection and storage, and thus have only a limited application in field settings. DNA-based techniques are generally more field-adaptable and include nested PCR [17–22], quantitative PCR (qPCR) [23–31], loop-mediated isothermal amplification (LAMP) [32–35], isothermal recombinase polymerase amplification (RPA) [36], and alternative PCR-based detection methods [19,37–41]. Of the DNA-based assays, only qPCR allows one to robustly quantify copy numbers of the template DNA in the reaction as a measure of parasite load in the sample.
Due to the lower number of target molecules in the sample, DNA-based techniques have a reduced sensitivity compared to their RNA-based counterparts, but sampling for DNA-based diagnosis is more robust. The most prominent molecular marker is the 18S rRNA gene, present at 5–8 copies per genome, depending on the parasite strain [43]. In recent years, several attempts have been made to increase DNA-based PCR sensitivity by sampling larger blood volumes and concentrating the DNA [44], or choosing mitochondrial [19,27,32,42] or nuclear multi-copy PCR targets [40,45]. Already in 1997, Cheng et al. designed a nested PCR that detected the conserved region of the subtelomeric stevor gene group, with many copies per genome [46], which had improved sensitivity over single-copy PCRs [47].
We have taken this approach further and have chosen high-copy subtelomeric sequences with the widest possible chromosomal distribution to develop novel qPCR assays for highly sensitive detection and quantification of P. falciparum in low-density infections. The telomere-associated repetitive element 2 (TARE-2) is a 1.6-kb-long block consisting of ten to twelve 135-bp repeat units with slightly degenerate sequences, interspersed by two 21-bp sequences [48,49]. The TARE-2 repeat is present at 24 of 28 subtelomeres in the 3D7 culture strain [49], which amounts to approximately 250–280 copies per genome, and is specific to P. falciparum strains [48].
The var gene family is located primarily in the subtelomere and was chosen to develop a second qPCR with a multi-copy target. The genome of the 3D7 culture strain harbors 59 var genes [49], and an estimated 50–150 copies are present in other parasite lines [50,51]. var genes encode the P. falciparum erythrocyte membrane protein 1 (PfEMP1) and possess a transmembrane domain and one intron, with exons 1 and 2 encoding the extra- and intracellular parts of PfEMP1. In contrast to the highly variable extracellular domain, the intracellular var gene acidic terminal sequence (varATS) comprises some well-conserved stretches and can thus be targeted by qPCR [50,51].
With the aim of increasing test sensitivity at least 10-fold and improving the robustness of parasite detection at low densities, we developed two novel qPCR assays using the multi-copy TARE-2 and varATS sequences as targets. We then investigated the potential of both assays to detect ultra-low-density infections that are beyond the detection limit even of 18S rRNA qPCR. We further hypothesized that the abundance of the PCR target in the parasite genome would counterbalance the diluting effect of sample pooling, and thus tested the suitability of our assays for application to sample pools.
Methods
Ethical Approval
Field samples used for these analyses were derived from a cohort study conducted in Maprik District, Papua New Guinea (PNG), from 17 August 2009 to 20 May 2010 [11] and a cross-sectional survey conducted in Rufiji, Tanzania (TZ), in 2013. Scientific approval and ethical clearance for the PNG cohort study was obtained from the Medical Research and Advisory Committee of the Ministry of Health in PNG (MRAC no. 09.24) and the Ethics Commission of Basel Land and Basel Stadt (no. 237/11). Approval for the TZ cross-sectional study was obtained from the Institutional Review Board of the Ifakara Health Institute, Dar es Salaam, TZ (no. 13-2013). Informed consent was obtained from all study participants in PNG and TZ, for children from parents or legal guardians prior to sampling.

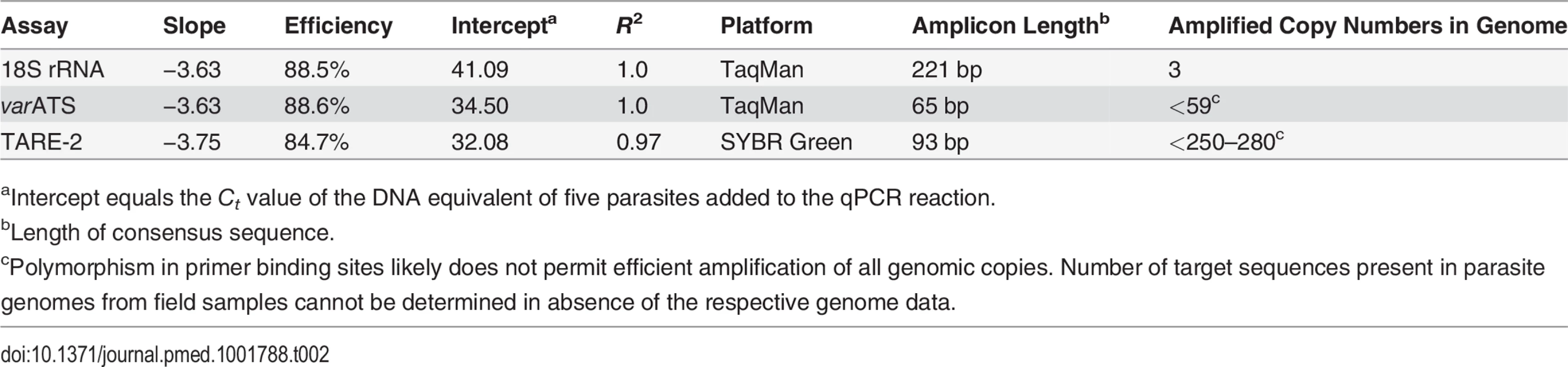

Primer Design and qPCR Conditions
For varATS primer design, all 59 varATS sequences per P. falciparum genome (strain 3D7; PlasmoDB) were aligned using ClustalW2 (http://www.ebi.ac.uk/Tools/msa/clustalw2/). Within the size-polymorphic varATS domain (size range 1–1.5 kb), the most conserved domain was selected for primer and MGB (minor groove binder) probe design. One wobble each was inserted into the forward primer and probe to improve annealing, whereas the reverse varATS primer matched very well with all 3D7 varATS sequences. We expect that only about 40% of 3D7 sequences match sufficiently well with the selected oligonucleotides to yield an amplification product. Attempts to further increase assay sensitivity by using additional wobbles and combinations of primers were not successful. Primer and probe sequences, as well as qPCR mixes and cycling conditions, are listed in S1 Table.
The TARE-2 repeat region was identified in the genome of P. falciparum strains 3D7 (National Center for Biotechnology Information) and IT (PlasmoDB) using the Tandem Repeats Finder tool (http://tandem.bu.edu/trf/trf.html). TARE-2 sequences of other P. falciparum strains were retrieved by BLAST (http://blast.ncbi.nlm.nih.gov) search using 3D7 and IT repeat units. All repeat units were aligned using Clustal Omega (http://www.ebi.ac.uk/Tools/msa/clustalo/), and primers were designed on the most conserved stretches so that eight nucleotides prior to the 3′ end matched with the majority of repeat sequences. One wobble was inserted into each primer for better annealing. Owing to repeat degeneration and therefore difficult probe design, probe-free SYBR Green–based real-time quantification of amplicons was chosen. Primer sequences and qPCR reaction and cycling conditions are specified in S1 Table. The melt curves of amplicons were inspected in each experiment to detect false positivity. True positive samples differed clearly from primer dimer and unspecific PCR products based on the amplicon’s melting temperature (Tm; S1 Fig).
Samples were quantified using a standard curve of plasmid (varATS) or parasite genomic DNA (gDNA; TARE-2). As varATS standard, the varATS amplicon was amplified from 3D7 gDNA and inserted into the TOPO TA vector (Invitrogen). The purified plasmid was diluted to 106, 104, and 102 plasmids/μl in TE buffer. As TARE-2 standard, gDNA of a 10-fold dilution of ring-stage 3D7 parasite culture was used (6.8 × 103 to 6.8 × 10−2 parasites/μl; described in S1 Text).
The reference 18S rRNA qPCR was performed as described previously [11,23], using a MGB probe (6FAM-5′-ACGGGTAGTCATGATTGAGTT-3′-NFQ-MGB) in a total volume of 12 μl. DNA volume matched that of varATS and TARE-2 qPCRs. The amount of target DNA in each sample was calculated from the Ct value using a plasmid standard curve as described above (18S rRNA amplicon inserted in TOPO TA vector [Invitrogen]). pfs25 qRT-PCR for gametocyte detection was performed as described previously [11].
Analytical Specificity and Sensitivity
The analytical specificity of the TARE-2 and varATS qPCRs was assessed both in silico using BLAST search and experimentally using human gDNA from a healthy, malaria-free volunteer and P. malariae and P. ovale gDNA (three archived anonymized clinical patient samples each). No amplification from non-falciparum Plasmodium or human DNA was observed using the varATS and TARE-2 qPCRs.
For assessment of P. vivax cross-reactivity, 14 samples with a low to medium number of genomic P. vivax 18S rRNA copies (22–393 Pv18S rRNA copies/μl; light microscopy [LM]: 0–219 parasites/μl) were selected from a previously analyzed sample pool [11]. All 14 selected P. vivax DNA samples had been diagnosed P. falciparum–negative by A18S qRT-PCR. All 14 samples were varATS- and TARE-2-negative.
Analytical sensitivity and qPCR efficiency were validated on dilution rows of (i) in vitro cultured ring stages (3D7 strain) and (ii) the WHO international standard for P. falciparum DNA nucleic acid amplification techniques (National Institute for Biological Standards and Control, UK) [27,52]. Details on generation of the dilution rows are presented in S1 Text. TARE-2 and varATS qPCR efficiencies, determined on the 3D7 culture dilution row, were comparable to that of 18S rRNA qPCR; however, all qPCR efficiencies were slightly outside the desirable efficiency range of 90%–105% (Table 2). Efforts to optimize qPCR efficiency by varying primer concentration, annealing temperature, and qPCR volume were not successful.
Field Samples and Nucleic Acid Extraction
In a pilot study, 60 DNA samples from PNG were used for assay validation. They were selected from a larger pool of previously analyzed samples based on their positivity in 18S rRNA qPCR (33 positives, 27 negatives), and we used 18S rRNA copy numbers in these samples to select a wide range of parasite densities [11]. DNA of PNG samples was extracted using the FavorPrep 96-well Genomic DNA Extraction Kit (Favorgen) from blood cell fractions of 50–150 μl, eluted in 200 μl of elution buffer, and stored at −20°C.
The 498 TZ samples were age-stratified randomly selected from the larger cross-sectional sample set, so that each age category contained at least 40 samples. We intended to estimate the overall proportion of P. falciparum–positive individuals by each test with a precision given by a CI of ±5%. Samples were collected as 50 μl of whole blood in 250 μl of RNAprotect Cell Reagent (Qiagen) to stabilize RNA. RNA extraction was performed as previously described [11]. DNA was co-extracted during RNA extraction using the RNeasy Plus 96 Kit (Qiagen). DNA was recovered from the gDNA eliminator column after two washing steps according to the QIAamp 96 DNA Blood Kit protocol (500 μl of AW1 buffer, 500 μl of AW2 buffer) and eluted in 100 μl of AE elution buffer.
TARE-2, varATS, and 18S rRNA qPCR were performed once on each TZ DNA sample. If sample positivity did not agree between the three qPCR assays, each qPCR was repeated in duplicate for the discrepant sample, yielding a total of three qPCR replicates for all assays in the discrepant samples. Samples were defined as positive for varATS, TARE-2, or 18S rRNA qPCR if two out of three replicates were positive. For gametocyte detection, pfs25 qRT-PCR was performed as previously described using 4 μl of RNA [11].
Generation of Pooled Samples
Low-density P. falciparum–positive samples (<2 parasites/μl by TARE-2 qPCR, LM negative) were selected from the TZ collection and mixed with four or nine P. falciparum–negative blood samples to create pools of five or ten samples. Negative samples were prepared by mixing 50 μl of blood from a malaria-negative blood donor with 250 μl of RNAprotect Cell Reagent (Qiagen) to permit simultaneous DNA and RNA isolation. Per sample, 100 μl of whole blood in RNAprotect Cell Reagent was added to the pool, resulting in a total sample volume of 500 μl or 1 ml (for five- and ten-sample pools, respectively). DNA was extracted from the entire volume of these pools using the RNeasy Plus 96 Kit (Qiagen) as described above, and DNA was eluted in 100 μl (five-sample pools) or 200 μl (ten-sample pools). In total we generated 20 pools of five samples, five of which contained a P. falciparum–positive sample, and ten pools of ten samples, two of which contained a positive sample.
Statistical Analyses
Data analysis was performed using R v3.0.2 statistical software. The Mann-Whitney-Wilcoxon test was used to compare for each parasite population (TZ and PNG) the mean Tm of the specific amplicon versus primer dimer. The LOD of qPCR assays, i.e., the concentration at which a sample is detected with 95% confidence, was calculated at using probit analysis of the dilution row results. Proportions of samples positive for the TARE-2, varATS, and 18S rRNA qPCRs in the TZ and PNG datasets were compared using McNemar’s Chi2 test. Correlations of parasite quantity per microliter or template copy number per microliter between assays were calculated using Pearson’s product-moment correlation.
Results

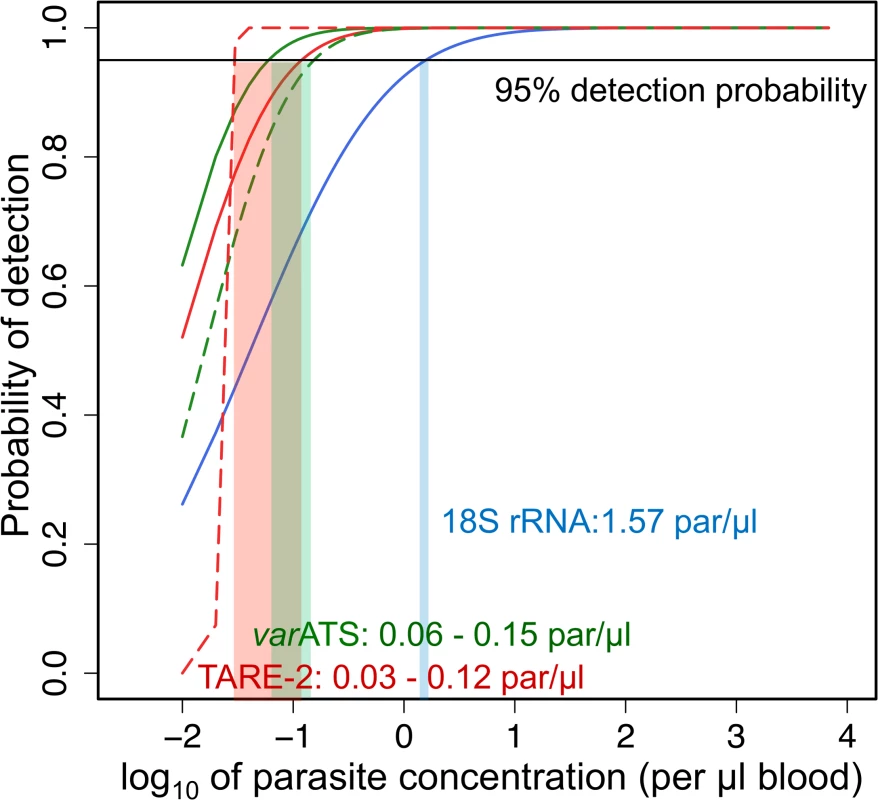

Limit of Detection of varATS and TARE-2 qPCRs
Probit analysis was used to determine the LOD, i.e., the concentration at which a sample would be detected with 95% confidence (Fig 1), based on qPCR results from dilution rows of parasite culture and WHO standard material (S3 Table). The varATS and TARE-2 qPCRs were at least 10× more sensitive than standard 18S rRNA qPCR and reached LODs, calculated on the two different dilution rows, of 0.06 and 0.15 parasites/μl (varATS; CI95 [0.02–1.07] and [0.05–4.37]) and 0.03 and 0.12 parasites/μl (TARE-2; CI95 [not defined] and [0.04–2.06]). Probit analysis of the TARE-2 results using the WHO standard dilution row did not yield a 95% CI because of the steep slope of the regression line. The LOD of 18S rRNA qPCR was calculated at 1.57 parasites/μl (CI95 [0.28–626.73]). The TARE-2 and varATS assays can therefore robustly detect as few as 6–24 and 12–30 parasites in 200 μl whole blood, respectively, which is the typical volume normally processed for DNA extraction from fingerprick blood samples without sample concentration.
Detection of Ultra-Low-Density Infections in Maprik District, Papua New Guinea
As pilot study, we compared the ability of the three qPCRs to detect low-density P. falciparum infections in 60 DNA samples from PNG. All 33 samples that were positive in 18S rRNA qPCR were also positive using both ultra-sensitive assays. Out of the 27 samples negative by 18S rRNA qPCR, four were positive in varATS qPCR (McNemar’s Chi2, p = 0.181). The same four samples plus five additional samples were positive by TARE-2 qPCR, resulting in a significant gain in sample positivity (McNemar’s Chi2, p = 0.036). Since samples were not randomly selected but chosen deliberately to include a wide parasite density range, this result does not reflect the true P. falciparum prevalence in Maprik District, PNG. Nevertheless the number of additional samples positive for P. falciparum demonstrates that a considerable proportion of infections may persist at ultra-low densities and remain undetected by standard qPCR.

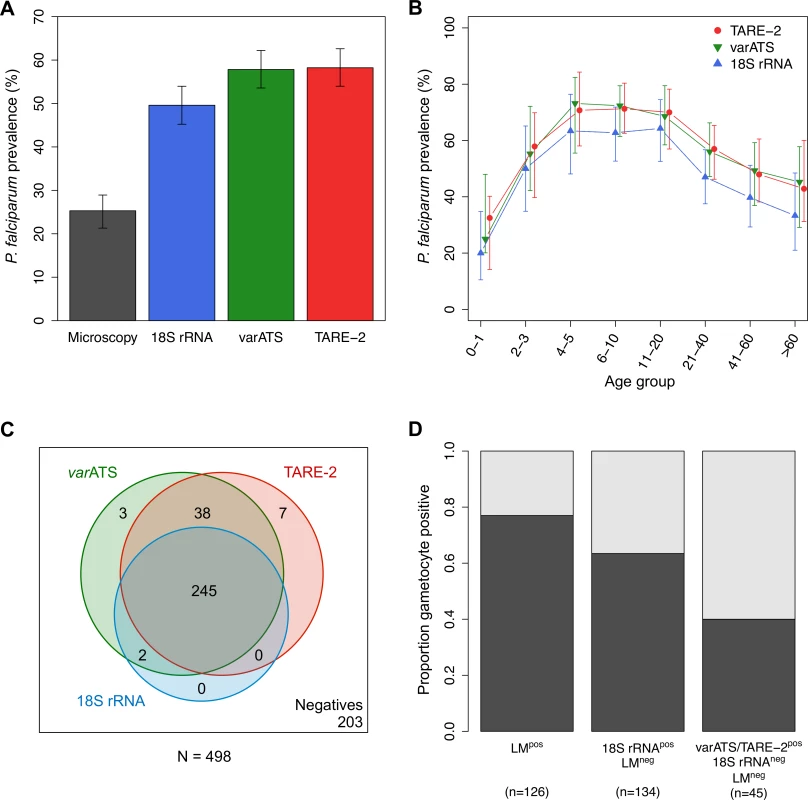

Prevalence of Ultra-Low-Density Infections and Gametocyte Carriage in Rufiji, Tanzania
P. falciparum prevalence in Rufiji, TZ, was assessed in 498 samples randomly selected from a larger cross-sectional study conducted in 2013. P. falciparum prevalence was higher using ultra-sensitive detection methods as compared to 18S rRNA qPCR, with borderline significance (McNemar’s Chi2, pTARE-2 = 0.068, pvarATS = 0.083). Prevalence values were 25% (CI95 [21%–29%]) by LM, 50% (CI95 [45%–54%]) by 18S rRNA qPCR, and 58% (CI95 [53%–63%]) by varATS qPCR or TARE-2 qPCR (Fig 2A). Applying ultra-sensitive techniques thus revealed a larger submicroscopic infection pool than detected by the routinely used molecular method. Despite a gain in prevalence of 25% over LM, 18S rRNA qPCR still underestimated the true parasite prevalence by 8% without major differences across age groups (Fig 2B). In a total of 295 P. falciparum infections, 16% (48 samples) were not detected by 18S rRNA qPCR but only by varATS or TARE-2 qPCR (Fig 2C). Agreement between assays was very good in the subset positive in 18S rRNA qPCR, with all samples positive in 18S rRNA qPCR detected also by varATS qPCR and all but two by TARE-2 qPCR. The level of agreement between TARE-2 and varATS qPCRs in this sample subgroup was also high, with 79% (38/48) of samples detected by both ultra-sensitive assays.

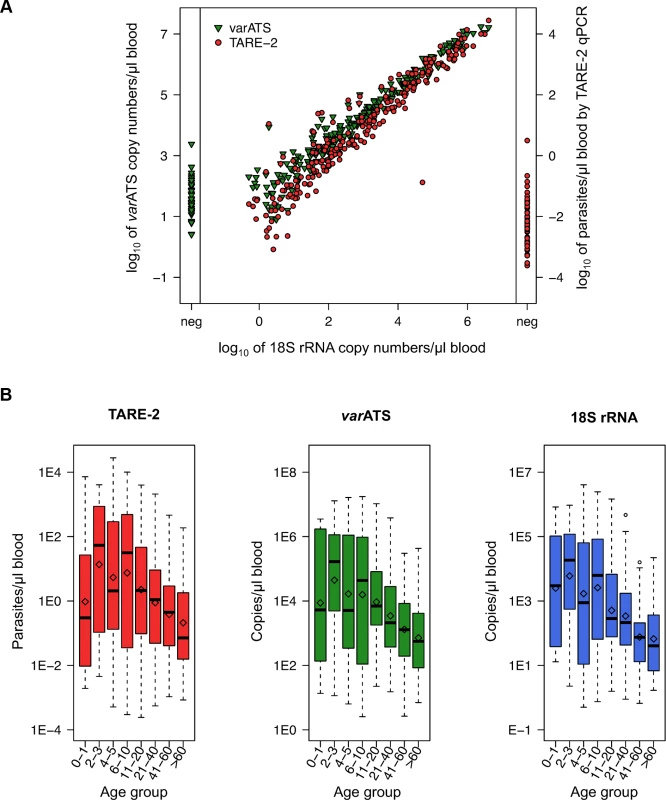

Quantification of parasite load by varATS and TARE-2 correlated very well with 18S rRNA qPCR quantification in field samples from Rufiji (Pearson’s correlation coefficient, R2 = 0.98, CI95 [0.97–0.98], and R2 = 0.95, CI95 [0.94–0.96], respectively; Fig 3A), as well as with each other (R2 = 0.97, CI95 [0.96–0.98]). Correlation of parasite load determined by qPCR and by microscopy was similar for the three assays and ranged from 0.74 (18S rRNA, CI95 [0.64–0.81]) to 0.66 (TARE-2, CI95 [0.54–0.75]; varATS: 0.68, CI95 [0.57–0.80]; Fig 4). Despite the high number of target sequences and slight sequence degeneration, quantification of parasite load is thus feasible using varATS and TARE-2 qPCRs. Parasite loads by TARE-2 qPCR in samples negative by 18S rRNA qPCR were, except for few outliers, within the lowest quartile of all parasite loads by TARE-2 quantification. The same was observed for varATS copy numbers of samples negative by 18S rRNA. When stratified by age, parasite densities or target copy numbers were low in infants up to 1 y, peaked in 2- to 3-y-old children, and decreased thereafter, with the lowest parasite loads observed in the oldest age group (Fig 3B).
The prevalence of gametocytes by pfs25 qRT-PCR was 40% in all study participants (CI95 [36%–45%]). The proportion of pfs25-positive samples was highest in samples that were positive by LM, of which 77% (CI95 [69%–84%], 97/126) carried gametocytes (Fig 2D). Among submicroscopic infections identified by 18S rRNA qPCR, gametocytes were detected in 63% (CI95 [55%–72%], 85/134) of samples. In samples positive only by TARE-2 and/or varATS qPCR, 40% (CI95 [26%–56%], 18/45) carried gametocytes. These observations prove that molecularly determined gametocyte carriers are not predominantly found among LM-positive individuals, but rather that an equal number of gametocyte carriers are present in study participants with submicroscopic infections. By use of a routinely used 18S rRNA assay, 16% of asexual infections and 9% of gametocyte carriers would have been missed.
Performance on Sample Pools
To investigate the potential of our assays for a wider application in malaria surveillance or epidemiological field studies, we tested the power of all three qPCR assays to identify P. falciparum–positive samples in pools of five or ten samples, each containing one low-density P. falciparum infection. 18S rRNA qPCR failed to identify the two positive ten-sample pools and identified only one of five positive five-sample pools. In contrast, varATS and TARE-2 qPCR correctly detected all positive five- and ten-sample pools. No amplification was observed from negative control pools. Our ultra-sensitive assays thus proved suitable for detection of low-grade infections after dilution in nine negative samples. These infections would be missed by 18S rRNA qPCR after pooling. In a setting with 2% P. falciparum prevalence, as simulated here, the cost of sample processing and detection can therefore be reduced by at least 70% without loss in sensitivity if ultra-sensitive assays are applied to pools of ten samples.
Discussion
Detecting Low-Density Infections Using Ultra-Sensitive Methods Is Relevant for Malaria Control Efforts
Accurate data on parasite prevalence in the community are imperative for targeting antimalarial interventions and for monitoring their outcome. In this study, we provide first evidence of very-low-grade infections in individuals who had previously been considered parasite-free, even after molecular diagnosis, and show that a large proportion of these samples carry gametocytes. In Rufiji, a high-endemic area in TZ, microscopic and submicroscopic infections (by standard 18S rRNA qPCR) each amount to roughly 40% of all P. falciparum infections; 16% are of ultra-low density and detected only by TARE-2 and varATS assays. These ultra-low-density infections potentially contribute to transmission, as they represent 9% of the molecularly detected gametocyte carriers. In Maprik District, PNG, 18S rRNA qPCR failed to identify similar quantities of ultra-low-density infections.
A meta-analysis of infection prevalence across the endemicity spectrum has indicated that submicroscopic infections are generally more prevalent in low-transmission settings than in high-transmission areas [5], probably as a result of a recently reduced force of infection and the long duration of asymptomatic untreated infections [53–55]. In such areas, detection of infection, rather than assessment of malaria-associated illness, could serve as a better measure of the malaria burden and a better parameter for surveillance and evaluation [1,2]. Low-density infections can be missed in cross-sectional studies even when using standard 18S rRNA qPCR because parasitemia fluctuates and may occasionally fall below the detection threshold of the assay. Waves of asexual parasitemia and gametocytemia were described in malaria therapy data [56,57]. Accordingly, scanty infections may rise in density at a later time point and increase gametocyte production to detectable levels, leading to higher transmission potential. Improved measures of prevalence using tools for reliable detection of low-density infections can contribute significant information and are important for accurate monitoring and evaluation of malaria control activities, as well as for assessing the potential for onward transmission from human hosts to mosquitoes.
Gametocyte Carriage in Low-Density Infections Emphasizes Their Potential Contribution to Malaria Transmission
Few studies have investigated the transmission potential of submicroscopic infections. Microscopically detectable infections with gametocyte densities below the microscopical threshold can infect mosquitoes, albeit at lower rates than microscopically gametocyte-positive samples (2.3% versus 13.2% infected mosquitoes) [58]. A meta-analysis of mosquito feeding assays conducted in several African countries showed that 27.6% of individuals who lacked microscopically detectable gametocytes were capable of infecting mosquitoes [59]. Similarly, data from the mid-20th century and from two recent studies showed that even blood from infections without any microscopically detectable parasites resulted in 0.2%–3.2% infected mosquitoes [5,60–62]. In a study performed in the Gambia, multiple parasite genotypes were detected in oocysts after feeding mosquitoes on blood seemingly carrying a clonal infection [63]. In that study, multiple gametocyte genotypes were detected in the same blood sample, suggesting that parasite clones undetectable on DNA level produced gametocytes in quantities sufficient to transmit to mosquitoes. Clustering of gametocytes, especially in infections with low gametocyte densities, has been given as a possible explanation for why such infections are able to transmit to mosquitoes [64–66]. A modeling analysis using data from Cameroon found that asexual densities did not predict the proportion of infected mosquitoes, contrary to gametocyte densities, which exhibited a complex and non-linear correlation with transmission success [58,67,68]. Taken together, the available data suggest that all infections should be viewed as potentially relevant for transmission. The relative contribution of low-density infections to forward transmission to mosquitoes hence may gain substantial importance in areas where these account for a large proportion of infections [5,58]. In our TZ setting, the majority of infections were submicroscopic and harbored 50% of gametocyte-positive samples. TARE-2 and varATS assays identified a so far ignored extent of submicroscopic infective burden, with 40% of these low-key infections carrying gametocytes. We thus argue for including ultra-low-grade infections into the evaluation of malaria interventions and for acknowledging their potential relevance for maintaining transmission, a role that urgently needs experimental clarification.
Sensitivity as a Major Determinant of Prevalence Estimates: Advantages and Limitations of the TARE-2 and varATS qPCRs
Our results highlight the fact that prevalence data are strongly dependent on the sensitivity of the diagnostic technique applied. Even if parasite prevalence is measured using standard qPCR protocols, many low-key infections remain undetected. Standard PCR is widely considered a molecular gold standard of malaria diagnosis complementing LM, the traditional gold standard, yet our results suggest that this notion requires revision. It becomes increasingly clear that the volume of blood analyzed [44] and the use of multi-copy markers to increase the representation of a PCR template in the amplification reaction ([19] and this study) have great influence on the prevalence outcome. Our findings shed new light on MSAT strategies for interruption of transmission in elimination settings, particularly those that rely on RDT-based diagnosis only, as it becomes clear that the ignored proportion of submicroscopic infections is even larger than anticipated. Following a recent MSAT campaign in TZ, RDT-undetected infections were given as a plausible explanation for the short-lived effect on malaria episode incidence [69]. In that study, it was estimated that more than 45% of PCR-detectable infections were missed by RDT, which, given our results, is very likely a substantial underestimation. A major task now consists in adapting molecular methods with enhanced sensitivity to meet the requirements of a robust, field-compatible diagnostic assay. Such tools are becoming increasingly important to determine the infection burden irrespective of endemicity level.
We have presented here two ultra-sensitive qPCR assays for improved detection of low-grade P. falciparum infections and their application to sample pools. The varATS qPCR is very robust and highly specific, and allows fast and easy data analysis through the use of a sequence-specific probe. The TARE-2 assay is more susceptible to changes in the chemical composition of the DNA solution and requires melt curve analysis of amplicons, which is a potential drawback, particularly when performed by less-trained personnel. Both assays exhibited slightly suboptimal amplification efficiency despite all optimization efforts, possibly because of a wobble base introduced into primer and probe sequences to improve annealing to the target copies in the genome. Regardless of this inherent low efficiency, sensitivity was superior to that of 18S rRNA qPCR in field samples and on parasite dilution rows. Surprisingly, the TARE-2 qPCR did not outperform the varATS assay despite substantially higher target numbers in the genome. This might be explained by the degenerate sequence of the TARE-2 repeat units or by the clustered distribution of the repeats at chromosome ends. In the 3D7 genome, about ten TARE-2 tandem repeats are present at 24 chromosome ends, and in this arrangement, they may not be separated during DNA extraction. The 59 varATS targets of strain 3D7 also localize to chromosome ends and a few intracellular loci. We assume an equal probability for both targets to be represented in a PCR reaction, but certainly both assays surpass 18S rRNA qPCR, with three copies on different chromosomes targeted by our assay. Because of the need for advanced laboratory infrastructure and staff training, use of our TARE-2 and varATS qPCRs in their current setup is not feasible in remote field settings. However, the assays are ideally suited for use in reference laboratories, for example for quality assurance or for centralized processing of large sample numbers in sample pools. Several strategies for pooling samples for malaria surveys have been described, comprising one or several pooling steps before [70–72] or after [73,74] DNA extraction. Pooling is severely limited by its inherent diluting effect and is therefore not recommended in the Malaria Eradication Research Agenda (malERA) strategy [1]. In low-endemic settings, in particular, where pooling would be most cost- and labor-effective, submicroscopic infections are highly prevalent [5] but are most likely missed in pools because of their low densities. Our varATS and TARE-2 assays proved to be useful for testing pooled samples as they counterbalance the diluting effect through multiple marker copies per parasite. In our hands, even the lowest-density infections diluted with nine negative samples were still detectable. This high sensitivity may be further enhanced by increasing the volume of blood samples and concentrating material before qPCR [44]. The availability of ultra-sensitive assays such as our TARE-2 and varATS qPCRs makes sample pooling without loss in sensitivity feasible and allows achieving higher throughput in the context of limited resources in large-scale field studies. Once similar assays have been developed also for detecting the other human-infecting Plasmodia, blood pooling followed by multiplex PCR will further reduce the per-sample cost in studies requiring detection of all four Plasmodium species.
Conclusion
In conclusion, we encourage employing assays with enhanced sensitivity, such as the TARE-2 or varATS qPCRs, in any malaria survey aiming to obtain accurate prevalence data and for monitoring intervention success, and recommend them particularly for screening of community samples in areas of low endemicity. The fact that parasites are more prevalent than currently thought has consequences for malaria control efforts, some of which are based on identifying all infected individuals, and this fact must be acknowledged by all users of prevalence data such as health officials, strategy planners, and mathematical modelers. Infections of ultra-low densities in our TZ samples carried gametocytes in 40% of cases, and thus it is highly probable that they can be transmitted to mosquitoes at the time point of the survey or later. Until the infectiousness to mosquitoes of low-density infections has been clarified, applying the most sensitive tools is essential for better defining the true infection burden and informing elimination strategies.
Supporting Information
Zdroje
1. The malERA Consultative Group on Diagnoses and Diagnostics (2011) A research agenda for malaria eradication: diagnoses and diagnostics. PLoS Med 8: e1000396. doi: 10.1371/journal.pmed.1000396 21311583
2. Tietje K, Hawkins K, Clerk C, Ebels K, McGray S, et al. (2014) The essential role of infection-detection technologies for malaria elimination and eradication. Trends Parasitol 30: 259–266. doi: 10.1016/j.pt.2014.03.003 24726857
3. Sturrock HJW, Hsiang MS, Cohen JM, Smith DL, Greenhouse B, et al. (2013) Targeting asymptomatic malaria infections: active surveillance in control and elimination. PLoS Med 10: e1001467. doi: 10.1371/journal.pmed.1001467 23853551
4. Okell LC, Ghani AC, Lyons E, Drakeley CJ (2009) Submicroscopic infection in Plasmodium falciparum-endemic populations: a systematic review and meta-analysis. J Infect Dis 200: 1509–1517. doi: 10.1086/644781 19848588
5. Okell LC, Bousema T, Griffin JT, Ouédraogo AL, Ghani AC, et al. (2012) Factors determining the occurrence of submicroscopic malaria infections and their relevance for control. Nat Commun 3: 1237. doi: 10.1038/ncomms2241 23212366
6. Poirot E, Skarbinski J, Sinclair D, Kachur SP, Slutsker L, et al. (2013) Mass drug administration for malaria. Cochrane Database Syst Rev 12: CD008846. doi: 10.1002/14651858.CD008846.pub2 24318836
7. Okell LC, Griffin JT, Kleinschmidt I, Hollingsworth TD, Churcher TS, et al. (2011) The potential contribution of mass treatment to the control of Plasmodium falciparum malaria. PLoS ONE 6: e20179. doi: 10.1371/journal.pone.0020179 21629651
8. Tiono AB, Ouédraogo A, Ogutu B, Diarra A, Coulibaly S, et al. (2013) A controlled, parallel, cluster-randomized trial of community-wide screening and treatment of asymptomatic carriers of Plasmodium falciparum in Burkina Faso. Malar J 12: 79. doi: 10.1186/1475-2875-12-79 23442748
9. World Health Organization (2013) World malaria report 2013. Geneva: World Health Organization. http://www.who.int/malaria/publications/world_malaria_report_2013/en/. Accessed 15 January 2015. doi: 10.1007/s12070-013-0687-x 25621273
10. Kamau E, Tolbert LS, Kortepeter L, Pratt M, Nyakoe N, et al. (2011) Development of a highly sensitive genus-specific quantitative reverse transcriptase real-time PCR assay for detection and quantitation of plasmodium by amplifying RNA and DNA of the 18S rRNA genes. J Clin Microbiol 49: 2946–2953. doi: 10.1128/JCM.00276-11 21653767
11. Wampfler R, Mwingira F, Javati S, Robinson L, Betuela I, et al. (2013) Strategies for detection of Plasmodium species gametocytes. PLoS ONE 8: e76316. doi: 10.1371/journal.pone.0076316 24312682
12. Murphy SC, Prentice JL, Williamson K, Wallis CK, Fang FC, et al. (2012) Real-time quantitative reverse transcription PCR for monitoring of blood-stage Plasmodium falciparum infections in malaria human challenge trials. Am J Trop Med Hyg 86: 383–394. doi: 10.4269/ajtmh.2012.10-0658 22403305
13. Schoone GJ, Oskam L, Kroon NC, Schallig HD, Omar SA (2000) Detection and quantification of Plasmodium falciparum in blood samples using quantitative nucleic acid sequence-based amplification. J Clin Microbiol 38: 4072–4075. 11060070
14. Schneider P, Wolters L, Schoone G, Schallig H, Sillekens P, et al. (2005) Real-time nucleic acid sequence-based amplification is more convenient than real-time PCR for quantification of Plasmodium falciparum. J Clin Microbiol 43: 402–405. doi: 10.1128/JCM.43.1.402-405.2005 15635001
15. Mens PF, Schoone GJ, Kager PA, Schallig HD (2006) Detection and identification of human Plasmodium species with real-time quantitative nucleic acid sequence-based amplification. Malar J 5: 80. doi: 10.1186/1475-2875-5-80 17018138
16. Cheng Z, Sun X, Yang Y, Wang H, Zheng Z (2013) A novel, sensitive assay for high-throughput molecular detection of plasmodia for active screening of malaria for elimination. J Clin Microbiol 51: 125–130. doi: 10.1128/JCM.02010-12 23100347
17. Singh B, Bobogare A, Cox-Singh J, Snounou G, Abdullah MS, et al. (1999) A genus- and species-specific nested polymerase chain reaction malaria detection assay for epidemiologic studies. Am J Trop Med Hyg 60: 687–692. 10348249
18. Chew CH, Lim YAL, Lee PC, Mahmud R, Chua KH (2012) Hexaplex PCR detection system for identification of five human Plasmodium species with an internal control. J Clin Microbiol 50: 4012–4019. doi: 10.1128/JCM.06454-11 23035191
19. Steenkeste N, Incardona S, Chy S, Duval L, Ekala M-T, et al. (2009) Towards high-throughput molecular detection of Plasmodium: new approaches and molecular markers. Malar J 8: 86. doi: 10.1186/1475-2875-8-86 19402894
20. Pakalapati D, Garg S, Middha S, Acharya J, Subudhi AK, et al. (2013) Development and evaluation of a 28S rRNA gene-based nested PCR assay for P. falciparum and P. vivax. Pathog Glob Heal 107: 180–188. doi: 10.1179/2047773213Y.0000000090 23816509
21. Tanomsing N, Imwong M, Theppabutr S, Pukrittayakamee S, Day NPJ, et al. (2010) Accurate and sensitive detection of Plasmodium species in humans by use of the dihydrofolate reductase-thymidylate synthase linker region. J Clin Microbiol 48: 3735–3737. doi: 10.1128/JCM.00898-10 20702666
22. Fuehrer H-P, Fally MA, Habler VE, Starzengruber P, Swoboda P, et al. (2011) Novel nested direct PCR technique for malaria diagnosis using filter paper samples. J Clin Microbiol 49: 1628–1630. doi: 10.1128/JCM.01792-10 21270224
23. Rosanas-Urgell A, Mueller D, Betuela I, Barnadas C, Iga J, et al. (2010) Comparison of diagnostic methods for the detection and quantification of the four sympatric Plasmodium species in field samples from Papua New Guinea. Malar J 9: 361. doi: 10.1186/1475-2875-9-361 21156052
24. Rougemont M, Van Saanen M, Sahli R, Hinrikson HP, Bille J, et al. (2004) Detection of four Plasmodium species in blood from humans by 18S rRNA gene subunit-based and species-specific real-time PCR assays. J Clin Microbiol 42: 5636–5643. doi: 10.1128/JCM.42.12.5636-5643.2004 15583293
25. Kamau E, Alemayehu S, Feghali KC, Saunders D, Ockenhouse CF (2013) Multiplex qPCR for detection and absolute quantification of malaria. PLoS ONE 8: e71539. doi: 10.1371/journal.pone.0071539 24009663
26. Veron V, Simon S, Carme B (2009) Multiplex real-time PCR detection of P. falciparum, P. vivax and P. malariae in human blood samples. Exp Parasitol 121: 346–351. doi: 10.1016/j.exppara.2008.12.012 19124021
27. Farrugia C, Cabaret O, Botterel F, Bories C, Foulet F, et al. (2011) Cytochrome b gene quantitative PCR for diagnosing Plasmodium falciparum infection in travelers. J Clin Microbiol 49: 2191–2195. doi: 10.1128/JCM.02156-10 21508150
28. Hwang S-Y, Kim S-H, Lee G-Y, Hang VTT, Moon C-S, et al. (2011) A novel real-time PCR assay for the detection of Plasmodium falciparum and Plasmodium vivax malaria in low parasitized individuals. Acta Trop 120: 40–45. doi: 10.1016/j.actatropica.2011.05.006 21664340
29. Rockett RJ, Tozer SJ, Peatey C, Bialasiewicz S, Whiley DM, et al. (2011) A real-time, quantitative PCR method using hydrolysis probes for the monitoring of Plasmodium falciparum load in experimentally infected human volunteers. Malar J 10: 48. doi: 10.1186/1475-2875-10-48 21352599
30. Perandin F, Manca N, Calderaro A, Piccolo G, Galati L, et al. (2004) Development of a real-time PCR assay for detection of Plasmodium falciparum, Plasmodium vivax, and Plasmodium ovale for routine clinical diagnosis. J Clin Microbiol 42: 1214–1219. 15004078
31. Cnops L, Jacobs J, Van Esbroeck M (2011) Validation of a four-primer real-time PCR as a diagnostic tool for single and mixed Plasmodium infections. Clin Microbiol Infect 17: 1101–1107. doi: 10.1111/j.1469-0691.2010.03344.x 20718798
32. Polley SD, Mori Y, Watson J, Perkins MD, González IJ, et al. (2010) Mitochondrial DNA targets increase sensitivity of malaria detection using loop-mediated isothermal amplification. J Clin Microbiol 48: 2866–2871. doi: 10.1128/JCM.00355-10 20554824
33. Lucchi NW, Demas A, Narayanan J, Sumari D, Kabanywanyi A, et al. (2010) Real-time fluorescence loop mediated isothermal amplification for the diagnosis of malaria. PLoS ONE 5: e13733. doi: 10.1371/journal.pone.0013733 21060829
34. Hopkins H, González IJ, Polley SD, Angutoko P, Ategeka J, et al. (2013) Highly sensitive detection of malaria parasitemia in a malaria-endemic setting: performance of a new loop-mediated isothermal amplification kit in a remote clinic in Uganda. J Infect Dis 208: 645–652. doi: 10.1093/infdis/jit184 23633405
35. Mohon AN, Elahi R, Khan WA, Haque R, Sullivan DJ Jr, et al. (2014) A new visually improved and sensitive loop mediated isothermal amplification (LAMP) for diagnosis of symptomatic falciparum malaria. Acta Trop 134C: 52–57. doi: 10.1016/j.actatropica.2014.02.016
36. Kersting S, Rausch V, Bier FF, von Nickisch-Rosenegk M (2014) Rapid detection of Plasmodium falciparum with isothermal recombinase polymerase amplification and lateral flow analysis. Malar J 13: 99. doi: 10.1186/1475-2875-13-99 24629133
37. Safeukui I, Millet P, Boucher S, Melinard L, Fregeville F, et al. (2008) Evaluation of FRET real-time PCR assay for rapid detection and differentiation of Plasmodium species in returning travellers and migrants. Malar J 7: 70. doi: 10.1186/1475-2875-7-70 18442362
38. Mens PF, Moers APHA, de Bes LM, Flint J, Sak JRS, et al. (2012) Development, validation and evaluation of a rapid PCR-nucleic acid lateral flow immuno-assay for the detection of Plasmodium and the differentiation between Plasmodium falciparum and Plasmodium vivax. Malar J 11: 279. doi: 10.1186/1475-2875-11-279 22900750
39. Mens PF, de Bes HM, Sondo P, Laochan N, Keereecharoen L, et al. (2012) Direct blood PCR in combination with nucleic acid lateral flow immunoassay for detection of Plasmodium species in settings where malaria is endemic. J Clin Microbiol 50: 3520–3525. doi: 10.1128/JCM.01426-12 22915610
40. Lucchi NW, Narayanan J, Karell MA, Xayavong M, Kariuki S, et al. (2013) Molecular diagnosis of malaria by photo-induced electron transfer fluorogenic primers: PET-PCR. PLoS ONE 8: e56677. doi: 10.1371/journal.pone.0056677 23437209
41. Talundzic E, Maganga M, Masanja IM, Peterson DS, Udhayakumar V, et al. (2014) Field evaluation of the photo-induced electron transfer fluorogenic primers (PET) real-time PCR for the detection of Plasmodium falciparum in Tanzania. Malar J 13: 31. doi: 10.1186/1475-2875-13-31 24467985
42. Haanshuus CG, Mohn SC, Mørch K, Langeland N, Blomberg B, et al. (2013) A novel, single-amplification PCR targeting mitochondrial genome highly sensitive and specific in diagnosing malaria among returned travellers in Bergen, Norway. Malar J 12: 26. doi: 10.1186/1475-2875-12-26 23336125
43. Mercereau-Puijalon O, Barale J-C, Bischoff E (2002) Three multigene families in Plasmodium parasites: facts and questions. Int J Parasitol 32: 1323–1344. doi: 10.1016/S0020-7519(02)00111-X 12350369
44. Imwong M, Hanchana S, Malleret B, Rénia L, Day NPJ, et al. (2014) High throughput ultra-sensitive molecular techniques to quantify low density malaria parasitaemias. J Clin Microbiol 52: 3303–3309. doi: 10.1128/JCM.01057-14 24989601
45. Demas A, Oberstaller J, DeBarry J, Lucchi NW, Srinivasamoorthy G, et al. (2011) Applied genomics: data mining reveals species-specific malaria diagnostic targets more sensitive than 18S rRNA. J Clin Microbiol 49: 2411–2418. doi: 10.1128/JCM.02603-10 21525225
46. Cheng Q, Lawrence G, Reed C, Stowers A, Ranford-Cartwright L, et al. (1997) Measurement of Plasmodium falciparum growth rates in vivo: a test of malaria vaccines. Am J Trop Med Hyg 57: 495–500. 9347970
47. Oyedeji SI, Awobode HO, Monday GC, Kendjo E, Kremsner PG, et al. (2007) Comparison of PCR-based detection of Plasmodium falciparum infections based on single and multicopy genes. Malar J 6: 112. doi: 10.1186/1475-2875-6-112 17705826
48. Figueiredo LM, Pirrit LA, Scherf A, Pirritt LA (2000) Genomic organisation and chromatin structure of Plasmodium falciparum chromosome ends. Mol Biochem Parasitol 106: 169–174. 10743621
49. Gardner MJ, Hall N, Fung E, White O, Berriman M, et al. (2002) Genome sequence of the human malaria parasite Plasmodium falciparum. Nature 419: 498–511. doi: 10.1038/nature01097 12368864
50. Su XZ, Heatwole VM, Wertheimer SP, Guinet F, Herrfeldt JA, et al. (1995) The large diverse gene family var encodes proteins involved in cytoadherence and antigenic variation of Plasmodium falciparum-infected erythrocytes. Cell 82: 89–100. 7606788
51. Thompson JK, Rubio JP, Caruana S, Brockman A, Wickham ME, et al. (1997) The chromosomal organization of the Plasmodium falciparum var gene family is conserved. Mol Biochem Parasitol 87: 49–60. 9233672
52. Padley DJ, Heath AB, Sutherland C, Chiodini PL, Baylis SA, et al. (2008) Establishment of the 1st World Health Organization international standard for Plasmodium falciparum DNA for nucleic acid amplification technique (NAT)-based assays. Malar J 7: 139. doi: 10.1186/1475-2875-7-139 18652656
53. Jeffery GM, Eyles DE (1954) The duration in the human host of infections with a Panama strain of Plasmodium falciparum. Am J Trop Med Hyg 3: 219–224. 13138823
54. Sama W, Dietz K, Smith T (2006) Distribution of survival times of deliberate Plasmodium falciparum infections in tertiary syphilis patients. Trans R Soc Trop Med Hyg 100: 811–816. doi: 10.1016/j.trstmh.2005.11.001 16451806
55. Felger I, Maire M, Bretscher MT, Falk N, Tiaden A, et al. (2012) The dynamics of natural Plasmodium falciparum infections. PLoS ONE 7: e45542. doi: 10.1371/journal.pone.0045542 23029082
56. Diebner HH, Eichner M, Molineaux L, Collins WE, Jeffery GM, et al. (2000) Modelling the transition of asexual blood stages of Plasmodium falciparum to gametocytes. J Theor Biol 202: 113–127. doi: 10.1006/jtbi.1999.1041 10640432
57. Eichner M, Diebner HH, Molineaux L, Collins WE, Jeffery GM, et al. (2001) Genesis, sequestration and survival of Plasmodium falciparum gametocytes: parameter estimates from fitting a model to malaria therapy data. Trans R Soc Trop Med Hyg 95: 497–501. 11706658
58. Ouédraogo AL, Bousema T, Schneider P, de Vlas SJ, Ilboudo-Sanogo E, et al. (2009) Substantial contribution of submicroscopical Plasmodium falciparum gametocyte carriage to the infectious reservoir in an area of seasonal transmission. PLoS ONE 4: e8410. doi: 10.1371/journal.pone.0008410 20027314
59. Bousema T, Dinglasan RR, Morlais I, Gouagna LC, van Warmerdam T, et al. (2012) Mosquito feeding assays to determine the infectiousness of naturally infected Plasmodium falciparum gametocyte carriers. PLoS ONE 7: e42821. doi: 10.1371/journal.pone.0042821 22936993
60. Young MD, Hardman NF (1948) The infectivity of native malarias in South Carolina to Anopheles quadrimaculatus. Am J Trop Med Hyg 28: 303–311. 18858032
61. Jeffery GM, Eyles DE (1955) Infectivity to mosquitoes of Plasmodium falciparum as related to gametocyte density and duration of infection. Am J Trop Med Hyg 4: 781–789. 13259002
62. Coleman RE, Kumpitak C, Ponlawat A, Maneechai N, Phunkitchar V, et al. (2004) Infectivity of asymptomatic Plasmodium-infected human populations to Anopheles dirus mosquitoes in western Thailand. J Med Entomol 41: 201–208. 15061279
63. Nwakanma D, Kheir A, Sowa M, Dunyo S, Jawara M, et al. (2008) High gametocyte complexity and mosquito infectivity of Plasmodium falciparum in the Gambia. Int J Parasitol 38: 219–227. doi: 10.1016/j.ijpara.2007.07.003 17709108
64. Pichon G, Awono-Ambene HP, Robert V (2000) High heterogeneity in the number of Plasmodium falciparum gametocytes in the bloodmeal of mosquitoes fed on the same host. Parasitology 121 (Pt 2): 115–120.
65. Gaillard FO, Boudin C, Chau NP, Robert V, Pichon G (2003) Togetherness among Plasmodium falciparum gametocytes: interpretation through simulation and consequences for malaria transmission. Parasitology 127: 427–435. 14653532
66. Nacher M (2004) Does the shape of Plasmodium falciparum gametocytes have a function? Med Hypotheses 62: 618–619. doi: 10.1016/j.mehy.2003.11.011 15050117
67. Paul REL, Bonnet S, Boudin C, Tchuinkam T, Robert V (2007) Aggregation in malaria parasites places limits on mosquito infection rates. Infect Genet Evol 7: 577–586. doi: 10.1016/j.meegid.2007.04.004 17521970
68. Schneider P, Bousema JT, Gouagna LC, Otieno S, van de Vegte-Bolmer M, et al. (2007) Submicroscopic Plasmodium falciparum gametocyte densities frequently result in mosquito infection. Am J Trop Med Hyg 76: 470–474. 17360869
69. Mosha JF, Sturrock HJW, Greenhouse B, Greenwood B, Sutherland CJ, et al. (2013) Epidemiology of subpatent Plasmodium falciparum infection: implications for detection of hotspots with imperfect diagnostics. Malar J 12: 221. doi: 10.1186/1475-2875-12-221 23815811
70. Bharti AR, Letendre SL, Patra KP, Vinetz JM, Smith DM (2009) Malaria diagnosis by a polymerase chain reaction-based assay using a pooling strategy. Am J Trop Med Hyg 81: 754–757. doi: 10.4269/ajtmh.2009.09-0274 19861605
71. Hsiang MS, Lin M, Dokomajilar C, Kemere J, Pilcher CD, et al. (2010) PCR-based pooling of dried blood spots for detection of malaria parasites: optimization and application to a cohort of Ugandan children. J Clin Microbiol 48: 3539–3543. doi: 10.1128/JCM.00522-10 20686079
72. Hsiang MS, Hwang J, Kunene S, Drakeley C, Kandula D, et al. (2012) Surveillance for malaria elimination in Swaziland: a national cross-sectional study using pooled PCR and serology. PLoS ONE 7: e29550. doi: 10.1371/journal.pone.0029550 22238621
73. Taylor SM, Juliano JJ, Trottman PA, Griffin JB, Landis SH, et al. (2010) High-throughput pooling and real-time PCR-based strategy for malaria detection. J Clin Microbiol 48: 512–519. doi: 10.1128/JCM.01800-09 19940051
74. Congpuong K, Saejeng A, Sug-Aram R, Aruncharus S, Darakapong A, et al. (2012) Mass blood survey for malaria: pooling and real-time PCR combined with expert microscopy in north-west Thailand. Malar J 11: 288. doi: 10.1186/1475-2875-11-288 22909399
