Large-Scale Phenomics Identifies Primary and Fine-Tuning Roles for CRKs in Responses Related to Oxidative Stress

Summary

Receptor-like kinases (RLKs) are important regulators in signal transduction in plants. However, the large number of RLKs and their high sequence similarity has hampered the analysis of RLKs. One of the largest subgroups of RLKs, the cysteine-rich receptor-like kinases (CRKs), has been suggested to be involved in mediating the effects of reactive oxygen species (ROS). While ROS are recognized as important signalling elements with a large variety of roles in plants, their ligands and achievement of signalling specificity remain unknown. Using insertion mutants we analysed the roles of CRKs in plant development and stress responses and show that CRKs have important roles as mediators of signalling specificity during regulation of stomatal aperture. Our study shows that, despite their large number and high sequence conservation, individual CRKs have intriguingly distinct functions in different aspects of plant life. This makes the CRKs promising candidates for future studies of their biochemical function.

Introduction

Receptor protein kinases play key roles in mediating perception of extracellular signals. These signals trigger intracellular signalling cascades allowing cells to respond and adapt to internal and external stimuli. Receptor kinases contain an extracellular signal-sensing domain connected by a single transmembrane domain to an intracellular protein kinase domain [1]. During evolution, different systems for the same function have emerged in animals and plants: animals deploy receptor-tyrosine kinases whereas plants utilize receptor-like kinases (RLKs), which are dual specificity serine/threonine and tyrosine kinases [2–4]. In contrast to mammals, all sequenced plant genomes contain a large number of RLKs, as illustrated by Arabidopsis and rice which encode more than 600 and 1100 RLKs in their genomes [1], respectively. The highly diverse extracellular regions of RLKs typically contain one or more protein domains or combinations of different domains. These domains have been used to divide RLKs into different sub-groups [1]. To date only a few RLKs have been functionally characterised but expression analyses have linked a large number of RLKs to many different physiological processes and signalling networks in plant development, pathogen defence, and abiotic stress response [5–8].

The cysteine-rich receptor-like kinases (CRKs, originally referred to as domain of unknown function 26 [DUF26] RLKs [9]) represent one of the largest groups of RLKs with 44 members in Arabidopsis thaliana [7]. Most CRKs have a typical RLK domain architecture, but three CRKs (CRK43, CRK44 and CRK45) consist only of the cytoplasmic domain reminiscent of receptor-like cytoplasmic kinases (RLCKs) [1]. The extracellular domain of CRKs encompasses two copies of the DUF26 domain (PF01657; http://pfam.sanger.ac.uk/family/PF01657; stress-antifung domain), which contains three cysteine residues in a conserved configuration (C-X₈-C-X₂-C) and is a predicted target for redox modifications. The DUF26 domain is also present in eight Arabidopsis PLASMODESMATA-LOCATED PROTEINs (PDLPs) [10]. The domain structure of these PDLPs is similar to CRKs but lacks the intracellular protein kinase, analogous to the leucine-rich repeat (LRR) receptor-like proteins (RLPs). Experimental evidence suggests that PDLPs are involved in the regulation of cell-to-cell communication and are important for pathogen defence [11,12]. Furthermore, more than 50 secreted proteins in Arabidopsis contain DUF26 domains but their roles have so far not been elucidated.

Several CRKs show elevated transcript levels in response to salicylic acid (SA) and pathogens [13–17] as well as ozone (O₃) and drought [7,18]. Altered transcript abundance due to conditions affecting cellular redox and reactive oxygen species (ROS) balance [7,19], and the presence and spacing of the conserved cysteines in the DUF26 domain suggest that CRKs might be connected to ROS and redox signalling [7,14,20]. However, the functional role of the DUF26 domain is still unclear.

Previous studies have suggested the involvement of some CRK family members in pathogen defence and osmotic stress. Overexpression of CRK4, CRK5, CRK19, and CRK20 induced hypersensitive response-like (HR-like) cell death [13,14] and overexpression of CRK4, CRK6, CRK13, and CRK36 resulted in enhanced tolerance to the bacterial pathogen Pseudomonas syringae pv. tomato DC3000 (Pto DC3000) [21,22]. Also a loss-of-function mutant crk20 showed a slight reduction in Pto DC3000 growth [23]. A Medicago truncatula CRK, SymCRK, was found to be involved in preventing early senescence and defence responses during symbiotic interactions [24]. Knock-down of CRK36 resulted in increased sensitivity to abscisic acid (ABA) and osmotic stress [25], and altered seed germination 6 (asg6; crk2), a mutant deficient in CRK2 function, has been associated with changes in seed germination in response to ABA [26]. A mutation in crk7 led to slightly increased sensitivity to extracellular ROS [27], and a mutation in crk5 resulted in impaired stomatal conductance, accelerated senescence as well as enhanced cell death in response to ultraviolet radiation [28]. Given the large number of CRKs and several transcript profiling experiments which suggest that CRKs are involved in a variety of environmental responses [6–8,18,19], it is surprising how little is known about the physiological and biochemical functions of this RLK family. However, based on transcriptional analysis CRKs might have far more complex functions, for example also in signalling in response to N-acetylglucosamine (GlcNAc) oligomers in the plant cell wall [29].

In this study we describe a comprehensive phenotypic analysis of a T-DNA insertion collection for the entire CRK gene family. This phenomics approach revealed novel roles for CRKs in control of plant development and biotic and abiotic stress adaptation. In spite of high amino acid sequence similarity, we observed that many CRKs mediate specific functions, with CRK2 and CRK5 playing predominant roles in growth regulation and stress adaptation, respectively. Our results imply a model for CRK function, placing CRKs as putative elements between ROS production and downstream signalling leading to pathogen- and abiotic stress-induced stomatal closure. This provides a framework for future detailed analysis of the molecular mechanisms underlying CRK signalling.

Results

Compilation and curation of a T-DNA insertion collection for the CRK group of RLKs

Transcriptional analyses have shown that CRK genes are responsive to several external stimuli. However, only limited information is available on their physiological roles. Based on the amino acid sequences of the coding region, the 44 Arabidopsis thaliana CRKs (plus the putative pseudogene CRK35 At4g11500 and the truncated CRK9 At4g23170) form five distinct groups (Fig 1A). Similar groups can be identified in phylogenetic trees based on the intracellular kinase domain (S1A Fig) as well as on the extracellular region (S1B Fig). This suggests co-evolution of the extra- and intracellular domains of Arabidopsis CRKs. A group of six CRKs, group I, constitutes a basal clade which forms a sister group distinct from groups II-V. The position of CRK45, At4g11890, which lacks the extracellular and transmembrane region, is ambiguous as it clusters with low bootstrap support with the basal group in the phylogenetic tree based on the entire coding region (Fig 1A) but as a sister to groups II and III in the tree based on the kinase domain (S1A Fig). Thus, CRK45 is not assigned to any CRK subgroup. Group I CRKs are distributed across chromosomes 1, 4 and 5 and only CRK2 and CRK3 are located next to each other, whereas genes encoding CRKs in groups II-V are, with the exception of CRK4 on chromosome 3, located on chromosome 4 and organized in repeats forming clusters of CRK genes (S2 Fig).

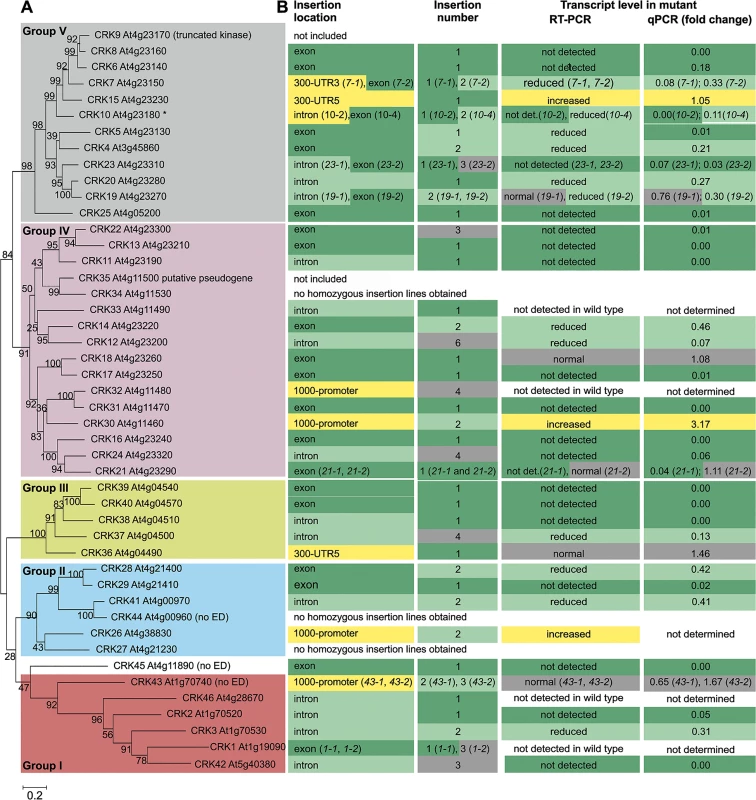

In order to investigate the function of individual CRK family members, a collection of 82 T-DNA insertion mutants was compiled from the Nottingham Arabidopsis Stock Centre (NASC; Figs 1B and S3 and S4 and S1 Table). CRK35 (putative pseudogene) and CRK9 (truncated) were excluded and, under our conditions, no homozygous T-DNA insertion lines could be obtained for crk27, crk34, and crk44 in the Col-0 background (Figs 1B and S3 and S1 Table). A total of 50 homozygous T-DNA insertion lines representing 41 crk mutants were isolated. In 21 crk lines the corresponding wild-type CRK transcript was not detected while levels were reduced in thirteen lines (Figs 1B and S4 and S1 Table). Of those thirteen lines seven have an insertion in an exon suggesting that they would produce a truncated protein while five lines carried insertions in introns. Only one line, crk7-1, with reduced transcript level of a CRK carried an insertion in the 5’ untranslated region (UTR). The status of the crk1-1, crk1-2, crk32, crk33, and crk46 mutants is unclear (Figs 1B and S3 and S1 Table) since transcripts for those four CRKs (CRK1, CRK32, CRK33, CRK46) were not detectable in the Col-0 wild type. In three crk lines where insertions were located in the 5’ UTR or the upstream promoter region, the corresponding CRK transcript abundance was increased compared to wild type. In eight lines no differences in corresponding CRK transcript levels were detected between the T-DNA insertion line and wild type (Figs 1B and S4 and S1 Table). Of those lines, two carried the insertions in the exonic region, thus possibly resulting in a truncated protein; one line carried the insertion in an intron, while the remaining five lines carried insertions in the regions upstream of the start codon (S3 Fig). The eleven lines in which corresponding CRK transcript levels were increased or not altered compared to Col-0 wild type were excluded from subsequent analyses (Fig 2). Thus a total of 39 lines were used (Fig 2). Based on quantitative PCR (qPCR) analysis 27 of the T-DNA insertion lines contained a single insertion, twelve contained two insertions while the rest contained more than two insertions in their genomes (Fig 1B and S1 Table). An age-matched seed collection was generated and used for all subsequent phenotypic analyses where we investigated the role of CRKs in aspects of growth/development, abiotic stress responses, biotic stress responses, photosynthesis and stomatal regulation (Fig 2 and S2 Table).

Development is altered in crk mutants

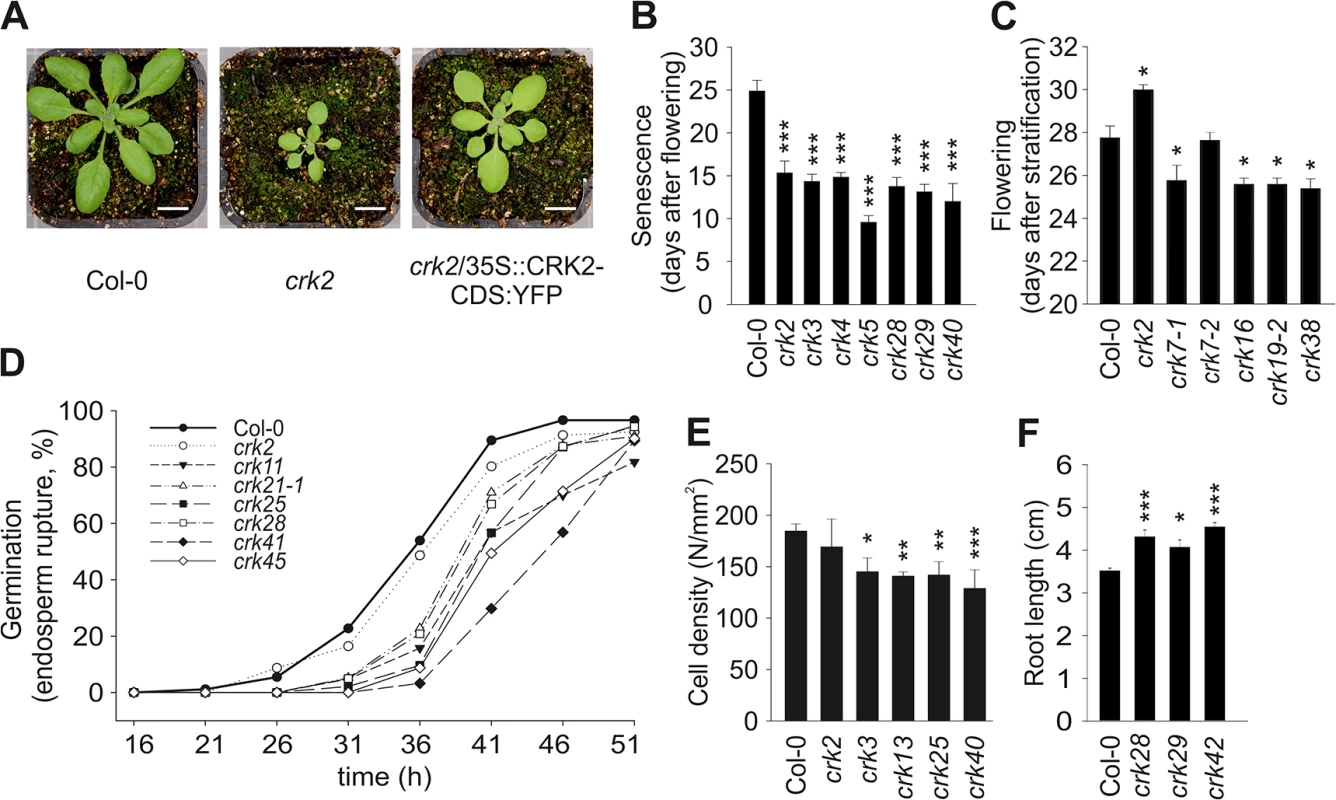

Most crk mutants displayed normal morphology similar to the Col-0 wild type (S5 Fig). By contrast, crk2 displayed a clear dwarf phenotype (Fig 3A). Complementation of the crk2 mutation restored morphology similar to the Col-0 wild type (Fig 3A). The crk5 mutant was slightly smaller compared to Col-0 wild type, in particular after five weeks of growth [28], and overexpression of CRK5 in the mutant background led to slightly larger rosettes. Under long day conditions (16h light/8h darkness) 34 crk mutants displayed early senescence (Figs 3B and S6A). Under the same conditions, four crk mutants flowered earlier than Col-0 wild type (Figs 3C and S6B). The only mutant that flowered later compared to Col-0 wild type was the dwarf crk2 (Fig 3C). Germination was delayed in 32 crk mutants as shown by analysis of endosperm rupture (Fig 3D and S3 Table). Pavement cell density was reduced in eleven crks compared to Col-0 wild type (Figs 3E and S6C). Germination and pavement cell density were not altered in the dwarf crk2 compared to Col-0 wild type (Fig 3D and 3E). In addition, crk28, crk29, and crk42 showed slightly longer roots compared to Col-0 wild type seedlings (Fig 3F).

In summary, our results suggest that the CRKs are not exclusively involved in stress and pathogen responses, as previously suggested, but in addition contribute to the regulation of specific developmental processes. The only mutant displaying a clear dwarf phenotype was crk2 which supports the earlier predictions that CRK2 might be involved in growth regulation in response to ABA [26].

Responses of crk mutants to abiotic stresses

Elevated production of ROS is part of the response to many abiotic stresses [20]. CRK transcript levels were strongly regulated in response to abiotic stresses (S7 Fig) [7,19] including ozone (O₃) and ultraviolet radiation (UV). O₃-induced ROS formation in the extracellular space rapidly induced transcript accumulation for several CRKs, while high light-induced ROS formation in the chloroplasts showed no effect [7]. In line with this, high light stress did not induce extensive damage in the crk mutants (S8 Fig). Only crk2 and crk45 showed significant light stress-induced electrolyte leakage that differed from the response in wild type plants after nine or 24 hours, respectively.

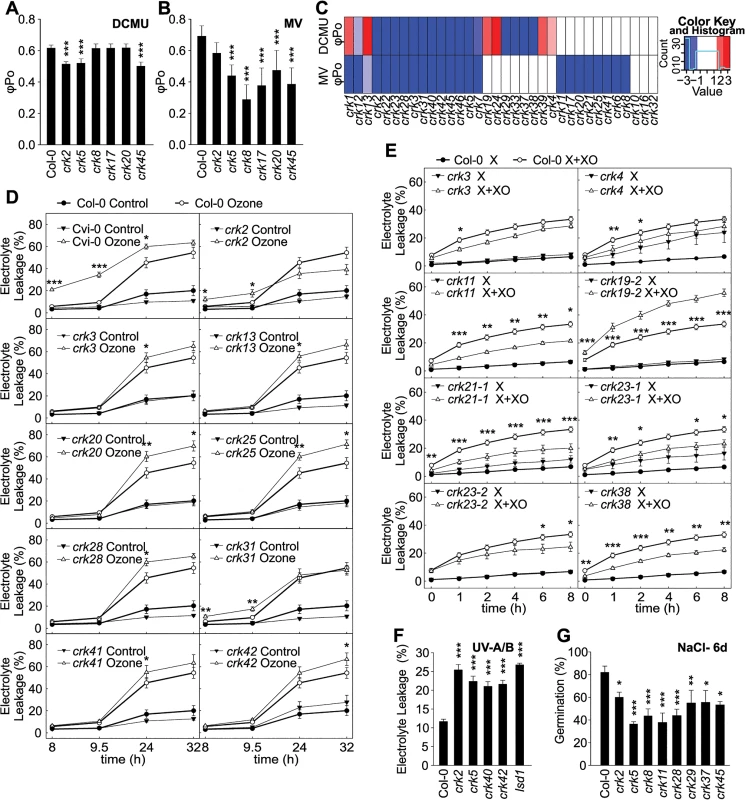

Elevated ROS production in chloroplasts can also be induced by methyl viologen (MV, also known as Paraquat), which leads to increased superoxide production in the reducing end of the PSII. Moreover, chloroplastic ROS formation can also be induced by 3-(3,4-dichlorophenyl)-1,1-dimethylurea (DCMU), which causes increased production of singlet oxygen by affecting the redox status of the plastoquinone pool. The use of MV or DCMU allowed the assessment of the crk responses to increased chloroplastic ROS production by measurement of photosynthetic energy transfer, which is a more sensitive measurement compared to electrolyte leakage. Treatment of plants with MV or DCMU resulted in stronger photoinhibition in several lines (e.g. crk2, crk5, crk8, crk17, crk20, crk40, crk45) compared to wild type, depending on the ROS inducer that was used (Figs 4A–4C and S9). Photosynthetic impairment of the crk5 mutant was rescued by overexpression of CRK5 [28].

In summary, these results suggest that some CRKs are involved in sensing or adaptation to changes in ROS or redox balance in the chloroplast and could be involved in signal transduction processes that culminate in regulation of photosynthetic electron transport. Like most RLKs, CRKs are predicted to localize to the plasma membrane and no CRKs have been identified in studies exploring the chloroplast proteome [30,31]. Thus, at the moment it is not clear how the CRKs communicate with the chloroplast but they might participate in communication between apoplast and chloroplast similarly to what has been described during PAMP-triggered immunity [32].

Even though chloroplasts and peroxisomes are the main sources of intracellular ROS in plants, extracellular ROS production is also important in the response abiotic stimuli [20]. Extracellular ROS production can be specifically induced by exposure to the air pollutant O₃ or infiltration with the enzymatic system Xanthine-Xanthine Oxidase (X+XO) [33]. Several crk mutants displayed differential responses to extracellular ROS in comparison to Col-0 wild type plants. Responses to O₃ were generally subtle (Figs 4D and S10). At 9.5 hours after the onset of O₃ treatment crk2 and crk31 showed increased electrolyte leakage while at later timepoints crk3, crk13, crk20, crk25, crk28, crk41, and crk42, showed elevated electrolyte leakage (Fig 4D). Enhanced O₃-induced cell death, visible as lesion formation, was observed for crk2, crk3, crk5, crk7-1, crk7-2, crk11, crk13, crk19-2, crk20, crk22, crk23-2, crk24, crk28, crk31, crk37, crk38, and crk46 (S11 Fig). In response to treatment with X+XO, crk19-2 showed increased electrolyte leakage while crk4, crk11, crk21-1, crk23-1, crk23-2, crk29, crk37, crk38 and crk46 showed reduced electrolyte leakage compared to Col-0 wild type (Figs 4E and S12).

In response to UV-A and-B, crk2, crk5, crk40, and crk42 displayed significantly elevated electrolyte leakage compared to Col-0 wild type indicating more damage similar to lesion simulating disease 1 (lsd1), which was used as positive control (Figs 4F and S13A). Complementation of crk5 rescued the hypersensitivity to UV-A and–B radiation [26]. Exposure to salt (NaCl) is another environmentally relevant abiotic stress. Overall, twenty one crk mutants, including crk2, crk5, crk8, crk11, crk28 crk29 crk37, and crk45, showed delayed germination compared to the Col-0 wild type on medium containing 120 mM NaCl (Figs 4G and S13B and S1C). After six days of growth on medium supplemented with 120 mM NaCl 13 crk mutants still maintained the delayed germination (S13C Fig).

While previous studies have emphasized the roles of CRKs in the response to pathogens and cell death regulation [13,14,21–23], our observations suggest that CRKs are also important regulators of the response to abiotic stresses, such as UV-A and–B, salt, and O₃, possibly through extracellular ROS. In addition, our results suggest that the CRKs could be involved in controlling processes that indirectly regulate photosynthetic electron transport in the chloroplast.

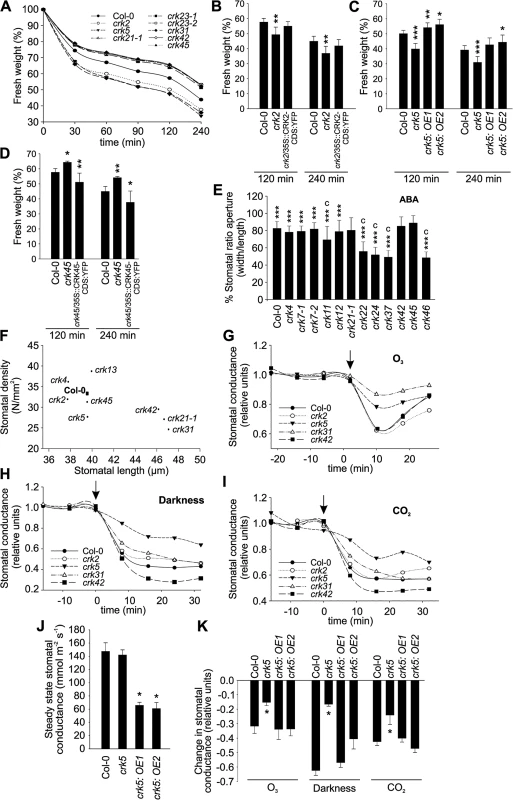

Stomatal development and regulation is altered in the crk mutants

Stomata are key structures in the control of plant responses to drought stress, pathogen infection, and other stimuli. Control of the stomatal aperture is a complex process involving plant hormones, most prominently ABA, ROS, and calcium (Ca²⁺) signalling to mediate and integrate plant-derived and environmental signals [34]. Transcriptional analysis suggested that several CRKs are involved in the control of drought responses (S7 Fig) [18]. Most CRKs displayed lower transcript abundance in guard cells compared to total leaf based on microarray meta-analysis (S14A Fig) while according to qPCR several CRKs displayed higher transcript levels in guard cells (S14B Fig). The difference between different methods to analyze gene expression could be due to the different preparation methods for guard cells. For the qPCR experiments enzymatic digestion was used for the isolation of guard cell protoplasts which might cause an additional pathogen treatment. As several CRKs have been described to show elevated transcript levels in response to pathogen or elicitor treatments, this could likely be the source of this difference. Water loss from detached leaves or rosettes can be used as a measure of initial stomatal aperture and the rate of stomatal closure. Water loss was enhanced in crk2, crk5, and crk31, as indicated by rapid decrease of rosette weight due to impaired stomatal regulation (Fig 5A and S4 Table). Complementation of the crk2 and crk5 mutations rescued water loss phenotypes of these mutants (Fig 5B and 5C). Several other crks, notably crk45, lost less water after detachment compared to Col-0 wild type (Fig 5A). Complementation of the crk45 mutation using an overexpression construct (see materials and methods) rescued the phenotype and led to increased water loss compared to the mutant and Col-0 wild type (Fig 5D).

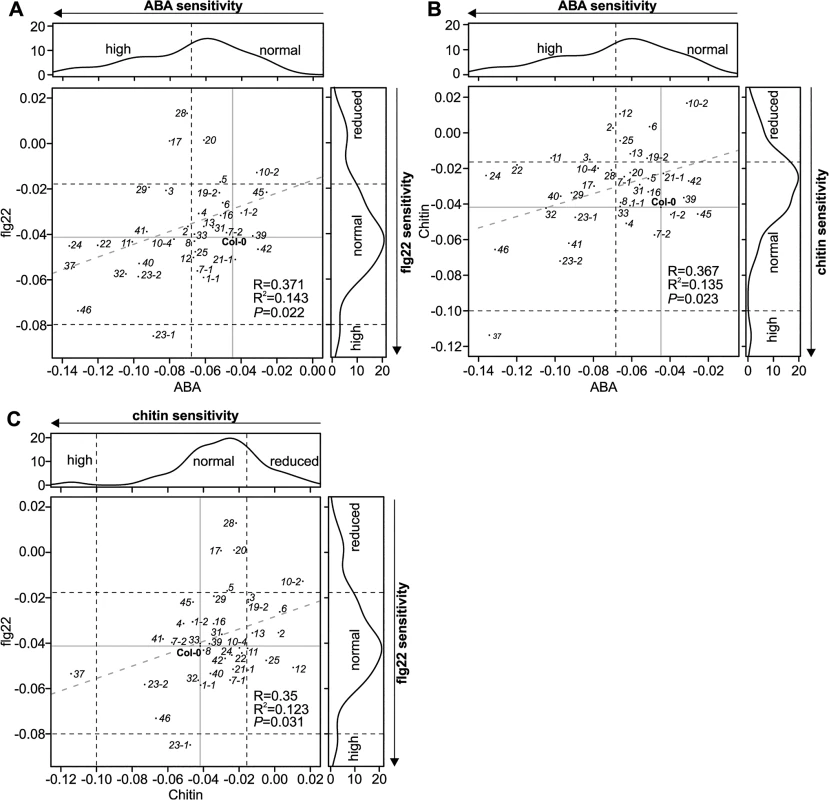

Stomatal openness (measured as the ratio of width to length) in response to the plant hormone ABA was altered in several crk mutants (Figs 5E and S15A), suggesting that CRKs may also participate in ABA-dependent control of the stomatal aperture. The crk22, crk24, crk37, and crk46 mutants showed stronger ABA-induced stomatal closure compared to Col-0 wild type (Figs 5E and S15A). Similar to other mutants [35], we found a negative correlation between stomatal length and density for crks (Figs 5F and S15B). Furthermore, the analysis showed a cluster of crks that had reduced stomatal density and increased stomatal length as compared to Col-0 (S15B Fig).

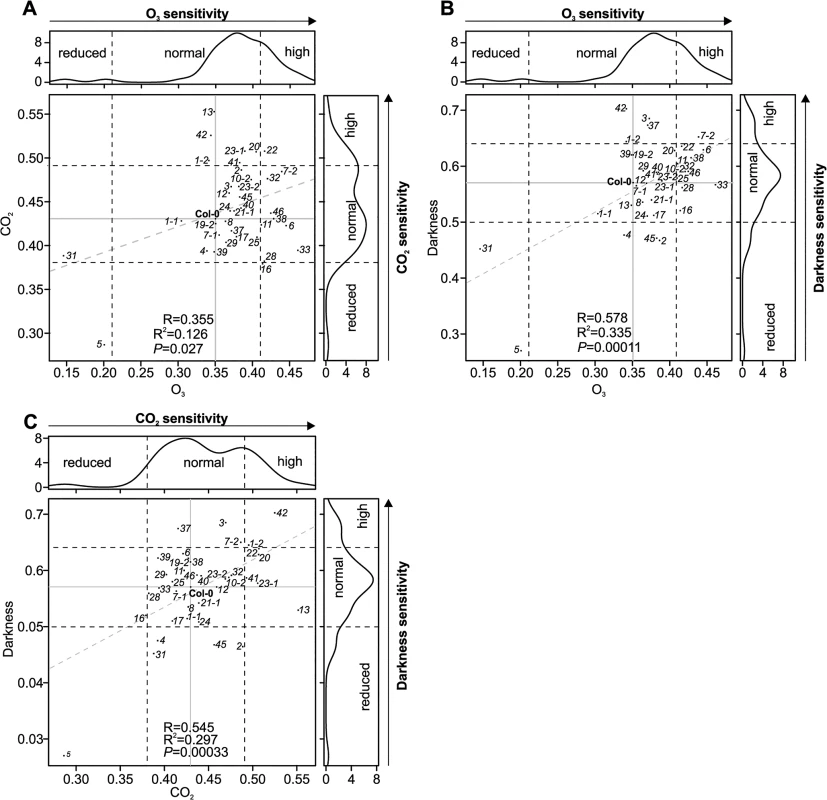

To compare microscopic measurements of the stomatal aperture with stomatal function we measured stomatal conductance in gas exchange experiments using intact, soil-grown rosettes [36]. Thirteen crks displayed slightly increased basal steady-state stomatal conductance under control conditions (S16A Fig). Under conditions that induce rapid stomatal closure [36] (elevated CO₂, darkness, pulse of O₃) the rapid decrease in stomatal conductance was less pronounced in crk5 and crk31 compared to wild type plants (Figs 5G–5I, S16B–S16D, S17, S18, S19 and S20). These two mutants also exhibited increased water loss (Fig 5A). Complementation of the crk5 mutant restored wild type-like stomatal responses in the mutant in response to O₃, darkness and CO₂ (Fig 5J and 5K). Some crk mutants showed slightly increased stomatal closure compared to Col-0 wild type in response to the stimuli tested (S16, S17, S18, S19 and S20 Figs). In response to CO₂, stomatal closure of crk31 was also somewhat (but not statistically significantly) reduced (Figs 5I and S19). In addition to the major regulators, many additional CRKs may be involved in stomatal closure but are compensated by the redundancy within the gene family. This is suggested by the fact that the overall responses to O₃, CO₂, and darkness correlate significantly even when including the non-significant responses (Fig 6A–6C). This could result from compensation that is not perfect, as would be expected with genes which have slightly different structures (Fig 6A–6C).

CRKs have not been implicated in the regulation of stomatal openness and closure previously. Our findings suggest that specific CRKs are involved in controlling basal stomatal aperture and stomatal responses to environmental stimuli, which are critical to plant survival. In addition, CRKs also participate in the regulation of stomatal numbers.

CRKs are integral components of plant defence

Apoplastic ROS production also plays an important role in pathogen defence [37]. It can be triggered by treatments with pathogen-, microbe-, or damage-associated molecular patterns (PAMPs; MAMPs; DAMPs, respectively), for example flg22, a peptide derived from flagellin, an integral component of the bacterial flagellum [38,39]. Basal ROS production was slightly reduced in thirteen and elevated in two crk lines (S21 Fig). In response to elicitation with flg22 eleven crk lines displayed significantly increased ROS production while ROS production was decreased in crk2, crk3, crk13, and crk31 (Figs 7A and S22A). This suggests that CRKs might be involved in control of ROS production, though the mechanism is not clear.

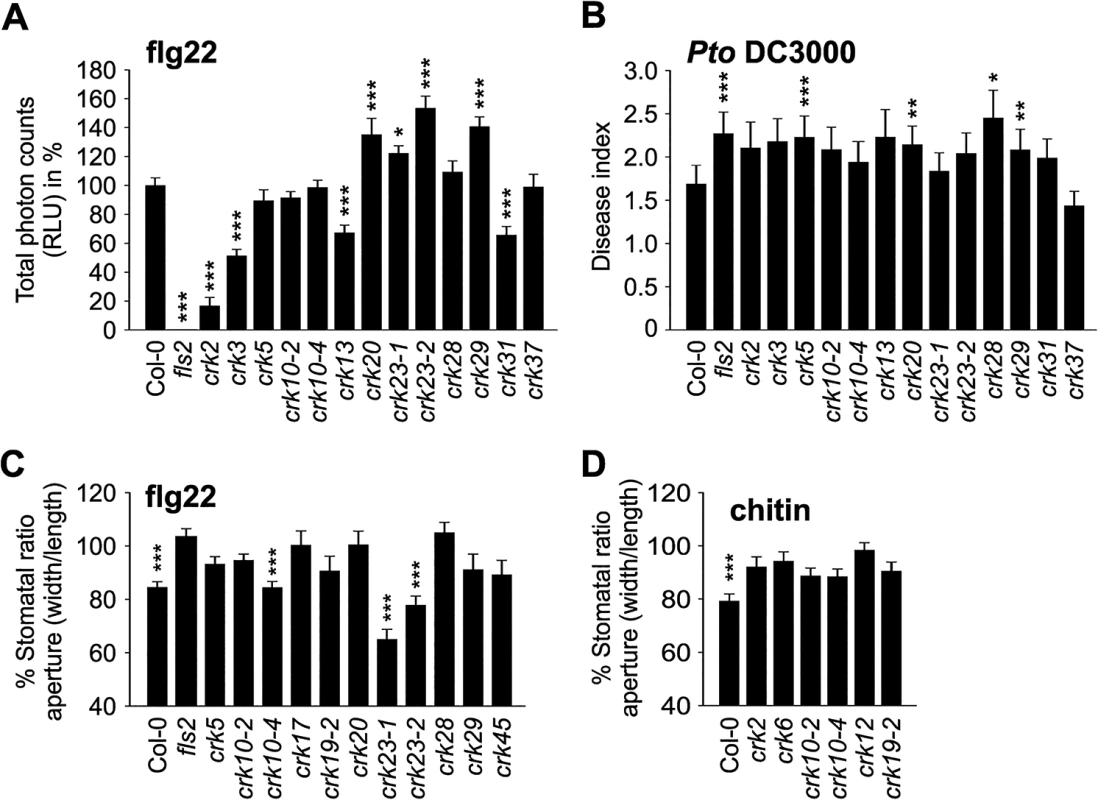

Several crk lines were more susceptible than the wild type to surface infection with the hemi-biotrophic bacterial pathogen Pseudomonas syringae pv. tomato DC3000 (Pto DC3000; Figs 7B and S22B). Notably, elevated flg22-induced ROS production did not fully match the responses to Pto DC3000 infection (Figs 7A and 7B and S22). The crk5 and crk28 mutants exhibited normal ROS production (Fig 7A) but showed increased disease symptoms (Fig 7B), while crk23 showed elevated flg22-induced ROS production but did not differ from Col-0 wild type in its susceptibility to Pto DC3000. The crk20 and crk29 mutants were also more susceptible to infection by Pto DC3000 in spite of the elevated ROS production.

The different level of ROS production in the crk mutants compared to Col-0 wild type after elicitation with flg22 suggests that at least some CRKs might act through ROS signalling pathways rather than direct pathogen perception. To test this hypothesis, we measured PAMP-induced stomatal closure in Col-0 wild type and crk plants. PAMP perception through RLKs leads to NADPH oxidase activation and extracellular ROS production and induces stomatal closure [40–42]. While ROS production was normal or even elevated in most crks, stomatal closure triggered by flg22 was impaired in several mutants including crk5, crk17, crk20, and crk28 (Figs 7C and S23A) and corresponds to their increased susceptibility to Pto DC3000 (Figs 7B and S22B). In response to the PAMP chitin, a fungal cell wall component, stomatal closure was reduced in several crk mutants including crk2, crk6, crk10-2, crk10-4, crk12, and crk19-2 (Figs 7D and S23B). Significant ABA-, flg22-, and chitin-induced stomatal responses were mostly mediated by different CRKs (Fig 8A and 8B); only a few CRKs participated in more than one process. Responses to the PAMPs flg22 and chitin might be mediated mostly by different CRKs (Fig 8C). Again, in addition to the major regulators, the responses overall show a significant correlation even when including also the non-significant crk mutants (Fig 8A–8C). This may be due to the redundancy within the gene family, similar to the result observed in stomatal conductance (Fig 6A–6C). Most crk mutants that were affected in stomatal immunity displayed higher transcript abundance in guard cell protoplasts compared to whole, untreated leaves (S14B Fig).

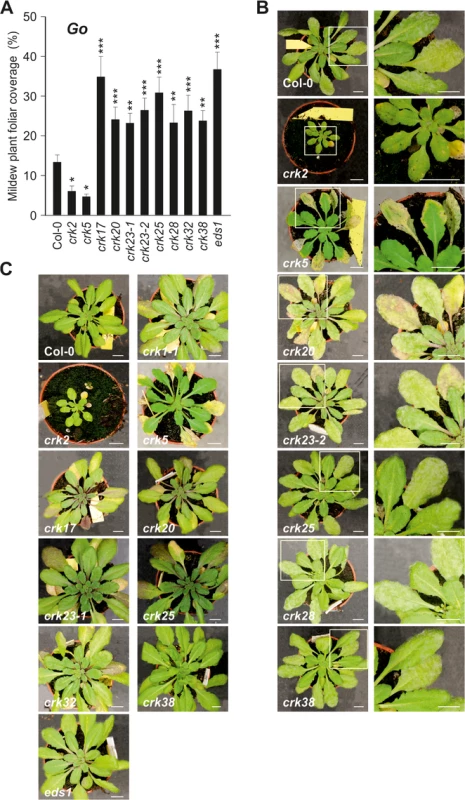

While Pto DC3000 can infect plant leaves through stomata [43–45], powdery mildews follow a different strategy by penetrating and colonizing epidermal cells [46–48]. Infection of wild type Col-0 with the biotrophic virulent powdery mildew fungus, Golovinomyces orontii (Go), or the non-host powdery mildew fungus Blumeria graminis f. sp. hordei (Bgh) resulted in altered expression of several CRK genes (S24A Fig) and susceptibility towards the pathogens was also affected in crks. Several crks showed increased susceptibility to Go, whereas responses to Bgh were more subtle. Specifically, crk2 and crk5 displayed less visible mildew symptoms in response to Go infection (Fig 9A and 9B), whereas crk17, crk20, crk23-1, crk23-2, crk25, crk28, crk32, and crk38 were more susceptible (Figs 9A and 9B and S24B and S24C). Furthermore, crk20 and both alleles of crk23 (crk23-1 and crk23-2) showed consistently enhanced pigmentation of the leaves following Go infection (Fig 9B). Additionally, crk1-1, crk17, crk25, and crk32 showed this response also to the non-pathogenic Bgh (Fig 9C).

While previous reports have already suggested that CRKs participate in defence against bacterial pathogens, our results show that CRKs are also involved in the defence against fungal pathogens. CRKs participate in the control of pathogen-induced ROS signalling, stomatal responses and pre-invasive immunity.

Discussion

This study addresses the physiological and cellular roles of the CRK protein family—with 44 members, one of the largest subgroups of RLKs in Arabidopsis (Fig 2). As a result of the large-scale phenotyping of a crk T-DNA insertion mutant collection we were able to identify clear and specific phenotypes for several crk mutants. Clustering of all phenotypic differences of crk mutants compared to Col-0 wild type allowed the generation of a genetic and phenotypic framework (Figs 10 and S25). Previous reports have linked ectopic overexpression of individual CRKs with pathogen defence and regulation of cell death [12,13,20] and CRK45, one of the few CRKs lacking ecto- and transmembrane domains, was found to interact with pathogen effectors in a large-scale screen [49]. However, it is unclear whether other CRKs could be direct targets for pathogen effectors. Meta-analysis of microarray data (S7 Fig) suggested the involvement of CRKs in response to a variety of additional stimuli beyond pathogen defence, including O₃, UV, light, salt, and drought stress. Several crks displayed phenotypes in response to those stimuli (Figs 10 and S25). In addition, growth and development were altered in several crks (Figs 10 and S25).

Roles for ROS/redox signalling in biotic or abiotic stress response have been shown repeatedly over the last decade [20,50]. Similarly, plant development [51], root growth [52,53], senescence [54], germination [55], cell expansion [56], flowering [57–59], and cell cycle control [60] are tightly integrated with ROS and redox-dependent processes. This might suggest that CRKs could be connected to ROS/redox signalling in both stress and developmental processes. Three CRKs (CRK27, CRK34, and CRK44) might fulfil critical roles for plant survival. Their expression in different plant tissues and organs did not reveal any striking patterns (S5 Table) and no assumption towards their function. In the Col-0 genetic background no T-DNA insertion lines were obtained for CRK27, CRK34, and CRK44. Their roles will however need to be verified in the future.

Overall, some of the most striking phenotypes were found for crk2 and crk5, members of the basal group I and group V, respectively (Fig 10). Some phenotypes of crk2 might be caused by its dwarf morphology. However, this, together with the underlying cause of the dwarfism in crk2, will require more detailed analysis in the future.

Earlier studies have suggested that the high degree of amino acid sequence similarity between CRK family members would be the main reason for redundancy and lack of loss-of-function mutant phenotypes [13,14,21,22]. Our findings suggest that CRKs do not function in an exclusively redundant fashion. Specific CRKs, for example CRK2 of the basal phylogenetic group I, could function as primary regulators while others might provide calibration for more fine-tuned responses. This would offer an explanation for the intriguingly large number of CRKs in Arabidopsis thaliana, and also in other species.

Tissue and cell specificity of various CRKs might also be a reason for the large number of different genes, as they would be under different transcriptional regulation. However, according to eFP browser (http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi) [61] most CRKs seem to be present in low levels in most tissues (S5 Table). Only CRK2 and CRK3 show strikingly higher transcript abundance in guard cells, hypocotyl and in vascular tissues (S5 Table). Expression of CRKs might however also be regulated in response to external stimuli. This is the case for CRK7 [27] and CRK5 [28].

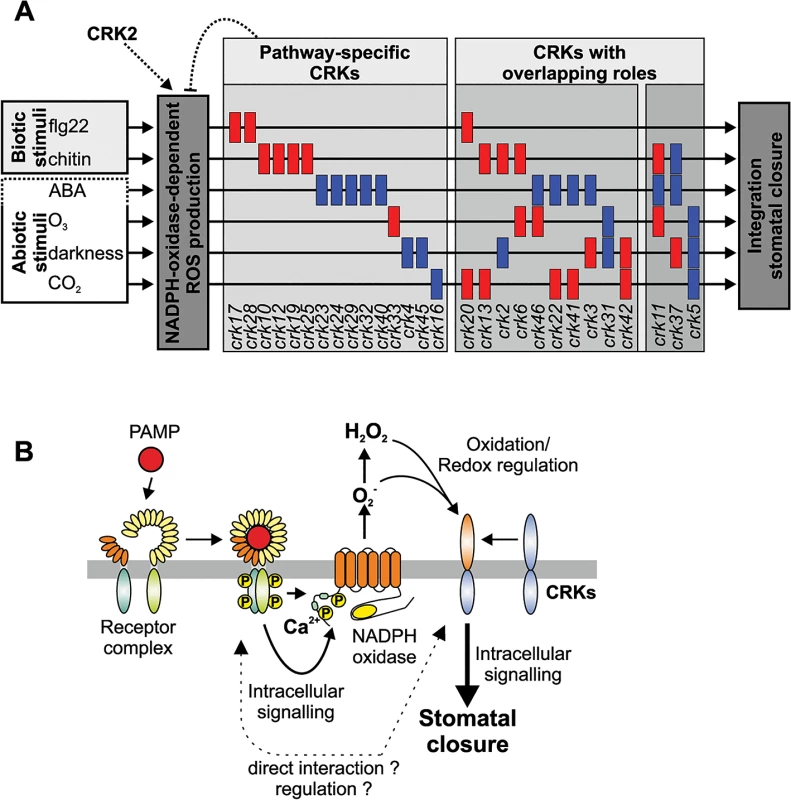

Regulation of the stomatal aperture is an important factor in the response to a wide range of stimuli [45,62,63] and has been shown to involve ROS signalling [64]. Several crks showed differences in ABA- or stress-induced stomatal closure (Fig 11A). Thus, it is tempting to link the crk phenotypes defective in ABA signalling with altered ROS signalling. Two crks (crk5 and crk31) showed defective responses to stomatal closure induced by abiotic factors. Expression of CRK5 is not restricted to guard cells (S14B Fig), underlining the importance of whole-leaf processes mediated by CRK5 in stomatal movements. CRKs might also be involved in determining basal openness of stomata. Interestingly, different CRKs control basal steady-state stomatal openness and stomatal responsiveness to stimuli.

Stomatal closure can also be triggered by application of PAMPs, e.g. flg22 or chitin. Signal transduction from receptor-mediated PAMP perception by intracellular signalling and ROS production down to stomatal closure is becoming increasingly better understood [45,65]. There are convergence points in the signalling pathways of ABA- and PAMP-induced stomatal closure, for example ROS production by the NADPH oxidase RBOHD [34,41,66]. Consistent with enhanced disease symptoms upon Pto DC3000 infection of several crks, mutations in several CRKs impaired flg22-triggered stomatal immunity (Fig 11A). The results suggest that PAMP perception and the earliest signalling events upstream of ROS production are likely not affected in crk mutants. Chitin-induced stomatal closure was also compromised in crks, but different crks were affected in chitin-induced stomatal closure compared to flg22 (Fig 11A) suggesting that CRKs could provide signalling specificity.

Even though powdery mildew fungi do not use stomata as an infection route but directly penetrate epidermal cells, several crks impaired in chitin-induced stomatal immunity also displayed enhanced susceptibility to Go. This indicates that CRKs are also signalling components in guard cell function-independent plant defence responses. Interestingly, crk mutants that were impaired in stomatal immunity were not altered in ABA-induced stomatal closure (Fig 11A). Together, this indicates that many CRKs might fulfil independent functions in PAMP- or ABA-triggered processes in guard cells (Fig 11A), while a few CRKs might control common, and presumably basal, aspects of guard cell function (Fig 11B). While CRKs in Arabidopsis thaliana are involved in immune signalling evidence from legumes suggests that CRKs might also participate in the control of symbiosis or even in distinguishing between pathogenic or beneficial microbes [22]. This suggests that there might be additional functions for CRKs which cannot be addressed in Arabidopsis.

The most prominent feature of the CRK protein family is the presence of two cysteine-rich DUF26 domains (with C-X₈-C-X₂-C-motifs) in the extracellular region. Structural analysis of the DUF26 domain of ginkbilobin-2 (Gnk2), a Ginkgo biloba protein containing a single DUF26 domain with a proposed function as an antimicrobial protein, suggests that the cysteines form disulphide bonds [67,68]. The role of the CRK ectodomain is still unknown. It could either bind a ligand (peptide or other) or be crucial for the formation of complexes with other receptors. Recently, it has been suggested that the DUF26 domain in Gnk2 might be involved in mannose binding [69]. The residues required for mannose binding in Gnk2 are, however, not conserved in the DUF26 domains of the CRKs. It has also been suggested that the cysteines in the DUF26 domain could be a target for redox modification which might lead to a conformational change, for example through opening of disulphide bridges. However, redox regulation of CRK ectodomain structure and ligand binding might not be mutually exclusive.

A connection between CRK function and redox or ROS-related processes is also suggested by the strict and specific regulation of genes encoding CRKs under ROS-producing conditions [7,19]. Through this CRKs might participate in feedback regulation of ROS production where they might sense extracellular ROS and be part of a “ROS amplification loop”. This would place the CRKs in the “ROS wave” [70] by perceiving ROS from neighbouring cells and transducing the signal into the cytosol, subsequently regulating NADPH oxidase activity and signal propagation (Fig 11B). This is particularly interesting since the precise control and adjustment of ROS production in response to different stimuli is still unresolved even though activation and regulation of NADPH oxidases and other ROS-producing enzymes through protein phosphorylation and RLKs is becoming better understood. Proteins with DUF26 domains are restricted to plants but other cysteine-rich domains could fulfil analogous functions to CRKs with respect to sensing of extracellular ROS in other organisms. The data shown here suggests that one of the main functions of CRKs could be to provide signalling specificity downstream of extracellular ROS production. However, it is unclear how this regulation might work exactly. Recent evidence suggests that CRKs might be able to interact with pattern recognition receptors [22] but the specificity and the precise role of this interaction will require further investigation. It suggests however, that CRKs might act in concert with other receptors and RLKs, possibly also during the regulation of plant development and during abiotic stress responses.

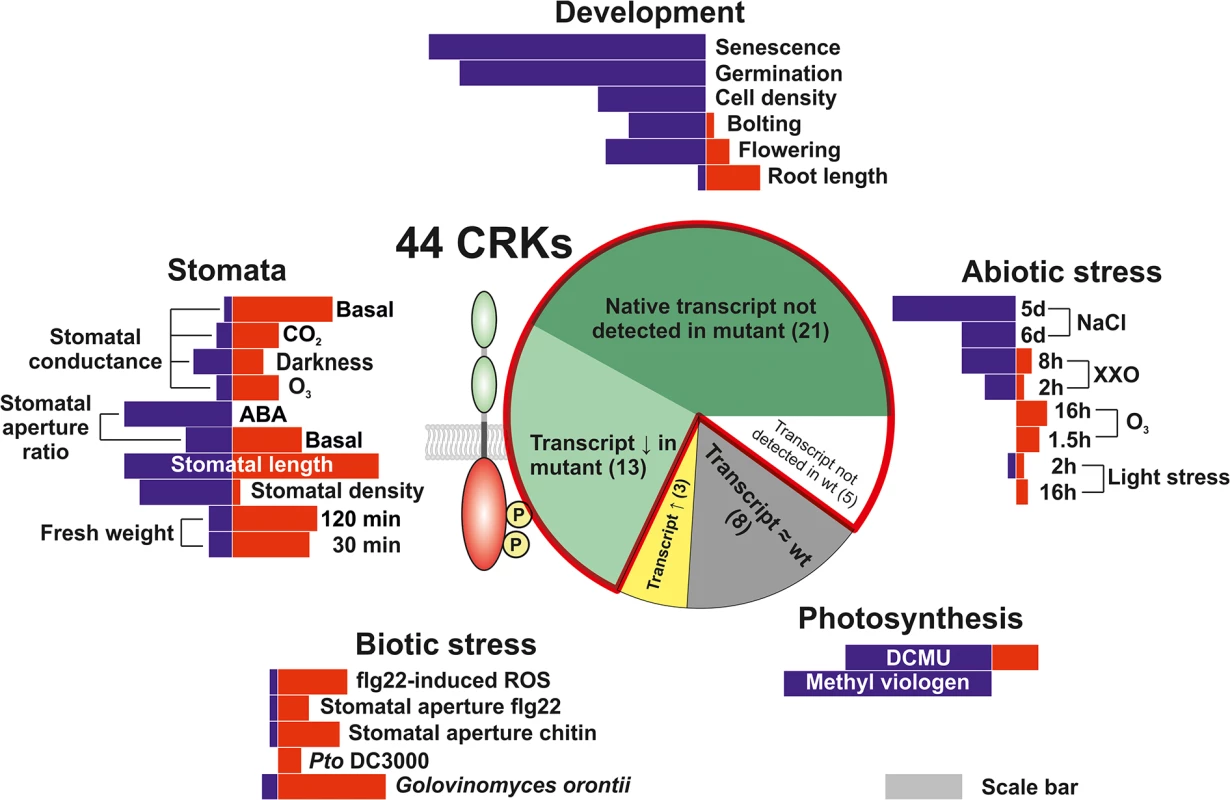

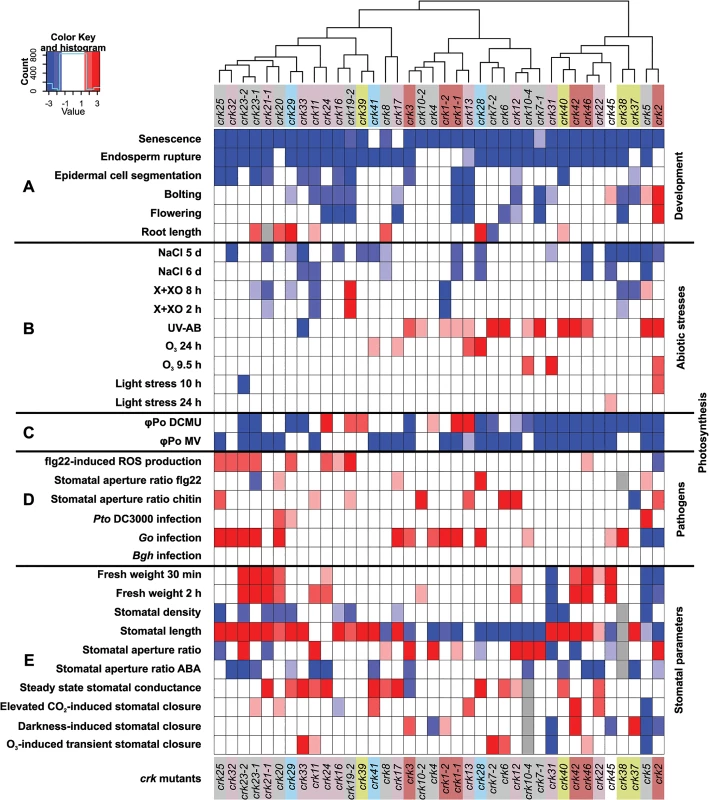

From the phenotypic framework (Figs 2 and 10) it will now be possible to dissect the molecular mechanisms through which the CRKs function. Conceptually, perception of cell-to-cell or environmental signals through CRKs could follow different modes of action as positive or negative regulators. However, it is likely that CRKs have multiple rather than single downstream targets. How CRK signalling is integrated in synergistic or antagonistic fashion might be highly process specific. The genetic and phenotypic framework and the proposed models for modes of CRK action will allow targeted and detailed mechanistic analysis of CRK function in the future. Ultimately, this will allow improvement of plant growth and tolerance to complex environmental challenges. Our results demonstrate that discovery of subtle phenotypic responses and aspects, which might otherwise be missed, can be facilitated with thorough phenotypic analysis of comprehensive mutant collections for large gene families, instead of studying individual family members.

Materials and Methods

Plant materials

All T-DNA insertion crk lines were obtained from the Nottingham Arabidopsis Stock Centre (NASC, http://nasc.life.nott.ac.uk/) and were confirmed by PCR (primers are listed in S1 Table). An age-matched seed collection was generated and used for all experiments. The seed collection has been donated to the European Arabidopsis Stock Centre in Nottingham (http://www.arabidopsis.info) and can be obtained from there.

Growth conditions

Siliques were harvested at maturity and dried at room temperature for 10 days prior to the collection of seeds. Freshly harvested seeds were after-ripened for 3 months at 20°C (approximately 30% relative humidity) in darkness and further used in germination tests.

After stratification for 3 days at 4°C, seeds were grown in a mixture of soil and perlite (3:1) or on Jiffy Peat Pellets in the growing room under the following conditions: 8/16 h photoperiod, temperature 22/18°C (day/night, respectively), relative humidity of 70 ± 5%, and PAR (100–150 μmol m^-2 s^-1). Experiments were performed on 4 week-old plants, unless otherwise stated. For pathogen assays and stomatal analysis Arabidopsis thaliana plants were grown on general soil (Arabidopsis mix, John Innes Centre, Norwich), or for infection assays on Jiffy pellets (Jiffy Products, Norway) under 10 h or 16 h of light at 20–22°C and 65% humidity. Mutant fls2 lines have been described previously [71].

O₃ and light stress experiments

O₃ exposure and high-light treatments started at 9 am and were continued for 6 h. 18-day-old plants were used for O₃ experiments. Leaf rosettes were harvested 7 h after the start of the treatment then washed with ultra-pure water and transferred into 15 ml ultra-pure water for electrolyte leakage measurements (n = 4). Experiments were repeated twice.

Ozone (350 ppb) and high-light (1430 μmol m^-2s^-1 photosynthetically available radiation [PAR; 400–700 nm], 11 mW m^-2 UV-B radiation [280–315 nm], 25.4 W m^-2 UV-A radiation [315–400 nm]) treatments were performed at the Research Unit Environmental Simulation of the Helmholtz Zentrum München (Germany) in the walk-in-size chambers and in a small sun simulator respectively. Spectral measurements were performed using a double monochromator system TDM300 (Bentham, Reading, England). Arabidopsis plants were cultivated on multiplication substrate (Floradur) mixed with quartz sand (Dorfner) in the respective ratio 5:1. After a 2-day pretreatment at 4°C, pots were cultivated under the following conditions: 250 μmol m^-2 s^-1 PAR under the exclusion of UV radiation (<400 nm), under 12h-day length (day: 23°C, 70% relative humidity; night: 18°C, 90% relative humidity).

Xanthine-xanthine oxidase experiments

Extracellular superoxide was generated by vacuum infiltration of 1 mM xanthine (X) and 0.1 U ml^-1 xanthine oxidase (XO, Sigma-Aldrich) into the leaf discs from 4-week-old plants as previously described [33,72]. Cell death was monitored by electrolyte leakage measurements with a conductivity meter (Mettler Toledo) at the indicated times after the end of the treatment.

Confocal microscopy and image analysis

High-throughput confocal imaging was performed using the Opera microscope (PerkinElmer, Germany) as published [73]. For quantification of cell numbers, cotyledons were stained with propidium iodide according to Lucas et al. [74] and measured using PDQUANT as described previously [73].

Pathogen inoculation

Bacterial inoculation assays were performed as described previously [75]. Briefly, Pto DC3000 was sprayed onto leaf surface at 10⁸ CFU ml^-1 and disease symptoms were scored 3 days post inoculation.

For mildew infection, plants were grown under 8/16 h photoperiod (200 μmol m^-2 s^-1) at 22°C ± 1°C. Three to four week old plants were inoculated in a settling tower with about 1 spore per mm² of a virulent Golovinomyces orontii (Go) powdery mildew isolate or 10 spores per mm² of a non-host Blumeria graminis f. sp. hordei (Bgh) powdery mildew isolate. Symptoms and mildew coverage was assessed after 6 days. Mildew coverage in percent per plant was scored from digital images using the image processing software ImageJ (http://imagej.nih.gov/ij/). The experiment was conducted three times with 5 replicate plants.

Quantitative real-time reverse transcription polymerase chain reaction (qPCR) analysis

Plants for qPCR were grown as above, samples were taken at 6, 16, and 24 h after inoculation with Go or Bgh. Five plants were pooled into one sample and the experiment was conducted three times. RNA extraction and cDNA synthesis was as described earlier [46] (primer sequences for CRK transcripts [7]). Relative CRK gene expression was analyzed by the comparative CT method. CT values were normalized to 18S rRNA and expression between uninfected control and Go/Bgh powdery mildew infected plants were compared using the 2-ΔΔCt method. Significant differences were determined according to student’s t test.

Guard cells were isolated as described [76] and cDNA was generated from RNA isolated from guard cell protoplasts. Expression of CRKs was compared with cDNA from total RNA isolated from untreated Arabidopsis leaves. Actin-2 (At3g18780), YLS8 (At5g08290), PP2A (At1g13320), TIP41 (At4g34270), and At4g35510 were used as normalization genes for the analysis using the 2-ΔΔCt method.

Bioassays for PAMP-induced responses

ROS assays were performed as described previously [41]. Briefly, 16 leaf discs were excised per genotype of four weeks-old plants and treated with 1 μM flg22. ROS was measured with a Varioskan multiplate reader (Thermo Fisher Scientific, USA) for 35 min.

Electrolyte leakage measurement after UV-A and-B treatment

For ultraviolet light source, UVC 500 Crosslinker (Hoefer Pharmacia Biotech, San Francisco, CA, USA) equipped with three UV-B lamps (type G8T5E, Sankyo Denki, peak wavelength 306 nm) and two UV-A lamps (type TL8WBLB, Philips, peak wavelength 365 nm) were used. Plants were exposed to single radiation episode until a cumulative dose of 1500 mJ cm^-2 was reached (roughly 10 minutes). After 4 days leaves were excised, fresh weight measured (g) and transferred into 50 ml falcon tubes containing 35 ml MilliQ water. The relative electrolyte leakage was measured with a conductance meter (WTW, INOLAB Cond Level 1) and calculated as a ratio between the value obtained after 1 h incubation and the total electrolyte leakage evaluated after autoclaving the samples.

Analysis of the fluorescence transients (O-J-I-P test) upon MV and DCMU treatment

The O-J-I-P test was performed as described [77] using FluorCam and the associated software (Photon System Instruments, Czech Republic). Plants were dark-adapted for 30 min prior to measurement. The maximum quantum yield of primary photochemistry (φ_Po), the size of the plastoquinone pool (qPQ) and the total dissipation of untrapped excitation energy from photosystem II (PSII) reaction center (DLo/RC) were calculated. φ_Po represents the probability that an absorbed photon is trapped by the reaction center and used for primary photochemistry, reducing Q_A to Q_A^-. Analysis of the fluorescence transients was made on whole rosettes and included two sets of plants: one set sprayed with 32 μM MV and kept in 8/16 photoperiod for two days and a second set sprayed with 20 μM DCMU (dissolved in 75% ethanol) and kept in darkness for two hours.

Endosperm rupture assays

To assess germination of crk mutants, endosperm rupture assays were performed by placing after-ripened seeds in 9 cm Petri dishes (30 seeds per dish, three independent biological replicates) on 1% agar with addition of 0.01% PPM (Plant Preservative Mixture, Plant Cell Technology, USA). All assays were performed at 20°C under PAR of 200 μmol m^-2 s^-1. Testa and endosperm rupture were assessed every 5 hours up to 51 hours of imbibition. A seed was considered as germinated when the radicle protruded through both envelopes.

Root length, bolting, flowering and senescence assays

Seeds were sterilized, germinated and grown as described [78]. Root length measurements were performed 8 days after stratification in two independent assays with 6 plants each. Interesting lines were additionally screened twice.

To measure bolting, flowering and senescence germinated seeds were transferred to soil and grown with 16 h-light/8 h-dark photoperiods at 22°C. Plants were considered bolting at the first appearance of the inflorescence, flowering at the opening of the flower petals and senescing at the first yellowing of the rosette leaves.

Salt stress

Salt treatment assays were performed by placing seeds in Petri dishes (15 seeds per lines, three independent biological replicates) on MS medium containing 1% sucrose, 1% agar, buffered to pH 5.7 with 2.8 mM MES, with or without 120 mM NaCl; under 12h-day length (100–150 μmol m^-2 s^-1, day: 22°C—night: 19°C, 70% relative humidity). A seed was considered as germinated when the 2 cotyledons were visible. For each line, germination rate was expressed as the ratio (germination percentage on NaCl plates /germination percentage on control plates), at 5 and 6 days after stratification.

Fresh weight (for water loss analysis)

Plants were grown as described in the plant materials section. Weight of detached whole rosettes was followed until 4 h at room temperature (five 3-week old plants per lines, for three independent biological replicates).

Whole plant gas exchange experiments

To analyse steady-state stomatal conductance and stomatal responses to darkness, elevated CO₂ and O_3, 21–26 days old plants and a custom made gas exchange device were used. As crk2 had reduced growth rate, older plants (26 to 32 days old) were analysed. The device and plant growth conditions have been described previously [36,79]. First, plants were inserted into the device and kept at 150 μmol m^-2 s^-1 light, 65% air humidity and ambient CO₂ concentration (400 ppm) until stomatal conductance had stabilized. To address stomatal response to darkness, light was switched off, to address elevated CO₂-induced stomatal closure, CO₂ concentration was increased to 800 ppm and in order to address stomatal closure induced by O_3, a three min pulse of 500–600 ppb of O₃ was applied. In all experiments, stomatal conductance was followed for 32 min from application of closure-inducing stimuli.

Complementation lines

CRK2 and CRK45 coding regions were cloned into pDONRzeo (Invitrogen) via Gateway site-specific recombination. Coding regions were then assembled together with CaMV 35S-promoter and Venus YFP [80] C-terminal tag into the pBm43GW [81] expression vector, using MultiSite Gateway technology (Invitrogen), creating a translational fusion protein. Primers are listed in S1 Table. Constructs were transformed into the corresponding T-DNA insertion plants by GV3101 Agrobacterium-mediated floral dipping [82]. For selection of successful transformants, seeds were plated on ½ MS media supplemented with 1% sucrose and 20 μg/mL Basta. Plants were grown for one week in vitro before being transferred to soil. T1 plants were used for experiments with each plant constituting an individual insertion event.

CRK5 complementation/over-expression lines have been described in Burdiak et al. [28]. Two individual homozygous T3 lines with a single insert were used.

Data analysis

All data analysis was carried out using R, version 2.15.1.

Estimation of Z scores

All experiments were made commeasurable by computing the Z score statistic of the comparison of each of the alleles versus the Col-0 wild type reference using appropriate statistical test for the given data set. Sample sizes across different experiments were normalised by bootstrap sampling such that in each bootstrap data set the number of samples for a given condition was set to n = 15. The Z score for each experiment was computed as the mean of the Z score estimates from bootstrap data sets. In cases where the null distribution of the statistical test did not follow Z distribution (e.g. with Mann-Whitney test), it was approximated with the Z-distribution. To reduce the number of false positives produced by the analysis, the Z-scores in each experiment were transformed to P-values and corrected using Benjamini-Hochberg false discovery rate adjustment. The adjusted P-values were then transformed back to obtain adjusted Z-scores. Adjusted Z-score values >2 or < -2 (corresponding to a false discovery rate < 5%) were considered to be statistically significant. In experiments involving a time course and many measurements, each time point was analysed separately to have statistical power comparable to non-time course experiments.

The list of specific statistical models and comparisons that were used to get Z scores and subsequently used for construction of heat maps are displayed in S6 Table. Unless stated otherwise, the Z score statistic from the statistical model was obtained comparing each crk genotype to Col-0 wild type.

Comparisons applying linear models were carried out with multcomp R package (http://cran.r-project.org/web/packages/multcomp/index.html). Heatmap of adjusted Z scores was constructed using hierarchical clustering with Ward’s method and applying Euclidean distance metric.

Estimation of phylogenetic trees

Phylogenetic trees were estimated using MEGA6 [83]. Alignments were carried out using Muscle [84,85]. Trees for the entire coding region were estimated using all positions while trees for the kinase domains and extracellular regions were estimated using complete deletion for gaps. The initial guide tree was estimated using maximum parsimony. 1000 bootstrap replicates were used for all trees.

Estimation of statistical significances

Statistical significances were estimated by constructing separate linear mixed model for each of the crk genotypes including Col-0 wild type as the reference data, modelling different time points as fixed effects. Comparisons were carried out using multcomp package for R (http://cran.r-project.org/web/packages/multcomp/index.html) and applying single step p-value adjustment for multiple comparisons. In light stress and fresh weight experiments, the model consisted of genotype, time and their interaction as fixed effects, and experiment replicate as random effect. Each crk genotype was compared to Col-0 in all time points. In O₃, X+XO, salt experiments, the linear mixed model consisted of genotype, time and their interaction as fixed effects, and experiment replicate as random effect. Each crk genotype was compared to Col-0 under treatment in all time points.

In Go scoring, the leaf coverage percentage was modelled with genotype as fixed effect and experiment replicate as random effect. In germination assay analysis, the linear mixed model consisted of genotype, time and their interaction as fixed effects. In both experiments, each crk genotype was compared to Col-0.

Gene expression data

Pre-processing of the gene expression data and the accession numbers in databases has been previously described [86]. In brief, the data was downloaded from NASCArrays (http://affymetrix.arabidopsis.info/narrays/experimentbrowse.pl), ArrayExpress (http://www.ebi.ac.uk/microarrayas/ae/), Gene Expression Omnibus (http://www.ncbi.nlm.nih.gov/geo/), and The Integrated Microarray Database System (http://ausubellab.mgh.harvard.edu/imds). Arrays were normalised with Robust Multi-array Average (RMA) [87], and log2 ratio of the mean of treatment and control expressions across biological replicates was computed, resulting in 141 differential expression profiles. Bayesian Hierarchical Clustering of CRKs present on the arrays was carried out using R package BHC [88] using log2 fold change ±1 as discretization threshold.
