Sp6 and Sp8 Transcription Factors Control AER Formation and Dorsal-Ventral Patterning in Limb Development

Summary

In this report we examined the functional roles of Sp6 and Sp8 during limb development using compound loss-of-function mutants. Sp6 and Sp8, two members of the Sp gene family, are expressed in the limb bud ectoderm and function downstream of WNT/βcatenin signaling for Fgf8 induction. The analysis of the allelic series shows that the progressive reduction in the dose of Sp6 and Sp8 gene products leads to predictable morphology, from syndactyly, to split hand/foot malformation, oligodactyly, truncation and finally amelia, indicating that these two factors act in a complementary manner. The molecular characterization of the mutant limbs reveal that Sp6/Sp8 are required in a dose-dependent manner for Fgf8 and En1 induction, thereby placing them as an important link between the induction of the AER and the establishment of dorsal-ventral patterning during limb development.

Introduction

The apical ectodermal ridge (AER), a specialized thickened epithelium at the distal edge of the developing limb bud, is a major signaling center for limb development (for a review, see [1]). The AER, through the production of several members of the Fibroblast growth factor (Fgf) family, controls survival, proliferation and appropriate gene expression in the subjacent mesoderm [2]–[5].

The AER is formed through a complex and not completely understood process that starts with the induction of the AER precursor cells that are marked by their expression of Fgf8. In the mouse, these precursors are specified in the ventral ectoderm of the early limb bud to progressively compact at the tip of the bud to form the mature AER [6], [7]. The mature AER is a linear and regular band of polystratified (in mouse) and pseudostratified (in chick) epithelium rimming the distal dorsal-ventral boundary of the limb bud. Once the digit primordia have formed, the AER flattens and expression of Fgfs ceases, first over the interdigital spaces and later over the digit tips [8]. Cell lineage analysis has demonstrated that the AER is a transitory structure formed by a self-sustaining cell population that is exhausted before birth [9].

Initially, the expression of Fgf10 in the presumptive limb mesoderm activates the expression of Fgf8 in the overlying ectoderm through the induction of Wnt3a [10]–[13]. An ectodermally active Wnt/βcatenin pathway is required throughout limb development, first for AER induction and then for AER maintenance [14], [15]. The genetic removal of βcatenin from the limb ectoderm, before the initiation of Fgf8 expression, completely prevents limb development while its removal after Fgf8 expression leads to variable truncations [14], [15]. Another essential pathway involved in AER induction and maintenance is the Bone morphogenetic protein (Bmp) signaling pathway. Similar to Wnt/βcatenin signaling, Bmp signaling is required for AER induction, but paradoxically and in stark contrast to Wnt/βcatenin signaling, it exerts a negative influence on AER maintenance. Thus, when Bmp signaling is abolished from the limb ectoderm prior to AER induction, Fgf8 is never activated and the AER does not form resulting in amelic phenotypes [16], [17]. However, when Bmp signaling is removed from the limb ectoderm after Fgf8 and AER induction, the expression of Fgf8 is prolonged in the AER leading to syndactyly [16]. Bmp signaling has been proposed to act both upstream and downstream of Wnt/βcatenin signaling and, despite intensive study, the interactions between these pathways in the induction and maintenance of the AER remains only partially understood [14], [15].

Very interesting is the connection between the AER and the establishment of dorsal-ventral (DV) patterning [18]. During normal development the position of the mature AER always coincides with the DV boundary. However, it is well known that a normal functional AER can form in the absence of normal DV patterning. For instance, in the eudiplopodia chick mutant an extra AER appears within the dorsal ectoderm leading to extra double dorsal limb outgrowth [19]. Also, in the double Wnt7a;En1 (Engrailed1) mutant a virtually normal AER forms despite disturbed DV patterning [20], [21]. It has been suggested that the coordination between the position of the AER and the DV boundary depends on BMP signaling because, besides its above mentioned role on AER induction and maintenance, it also regulates DV patterning through the induction of En1, which in turn restricts Wnt7a to the dorsal ectoderm [17], [21]–[23].

Sp6 and Sp8, also known as epiprofin and buttonhead, respectively, are two members of the Sp transcription factor family that have been implicated in AER induction and maintenance [24]–[27]. Both share similar patterns of expression in the limb bud ectoderm and AER and function downstream of Wnt/βcatenin signaling and upstream of Fgf8. Based on their overlapping patterns of expression and on their individual loss-of function phenotypes, we suspected that these two factors act in a complementary manner in the induction and maintenance of the AER downstream of Wnt/βcatenin [26]. Therefore, in order to further elucidate the functions and potential redundancy of these two genes, we generated double Sp6;Sp8 null mutants. We also generated Sp6-null;Sp8-conditional mutants using an Sp8 floxed allele with both the AP2αCre and the Msx2Cre deleter lines. Interestingly, mutant embryos that lacked the four Sp6;Sp8 alleles or that retained a single Sp6 allele were tetra-amelic. Initial budding occurred, but Fgf8 was not activated in the limb ectoderm preventing further development. Mutants bearing a single functional copy of Sp8 displayed a split-hand/foot malformation phenotype (SHFM) with dorsalization of the digital tips. The phenotypic data together with the molecular defects identified in mutant limb buds indicate that Sp6 and Sp8 are together absolutely necessary for AER development and DV patterning.

Results

Both Sp6 and Sp8 are expressed in the entire prospective limb ectoderm and progressively become confined to the AER as the limb bud emerges. Loss of function of Sp6 [26], [28] results in soft tissue syndactyly in the forelimb and osseous syndactyly to complete phalangeal synostosis in the hindlimb, whereas the inactivation of Sp8 [24], [25] results in variable limb truncations most frequently at the level of the elbow/knee. Both mutations show a deficit in the maturation of the AER. Also, dorsalization of the ventral digit tips is a characteristic feature of Sp6 mutants and the molecular analysis of Sp8 mutants indicates that early limb buds become progressively dorsalized [24]–[26]. Although the individual inactivation of either Sp6 or Sp8 does not interfere with the initial activation of Fgf8 in the AER, several studies have demonstrated that both factors function downstream of Wnt/βcatenin signaling and that Sp8 is able to bind and activate the Fgf8 promoter [26], [27], [29], [30]. This, together with their similar expression patterns in the limb ectoderm, led us to propose that Sp6 and Sp8 transcription factors have a redundant function in the Wnt/βcatenin dependent induction of Fgf8 in the AER [26].

We have previously shown that Sp8 expression is maintained in the absence of Sp6 [26] and here we found that Sp6 is expressed in the absence of Sp8 although at a lower level than normal, and is progressively downregulated in concert with the downregulation of Fgf8 expression (Figure S1 and [24], [25]). Thus, Sp6 may directly or indirectly require Sp8 to maintain a normal level of expression. Nevertheless, the expression of Sp6 even at a reduced level in the Sp8 mutant could account for the induction and partial maintenance of Fgf8 supporting our hypothesis that both factors function in a redundant manner during limb development.

Limb phenotype of double Sp6;Sp8 mutants

To test our hypothesis we analyzed limb development in double Sp6;Sp8 mutants (Figure 1). For this genetic approach, we used the Sp6 (Sp6⁻; [28]) and the Sp8 (Sp8^CreERT2, hereafter referred to as Sp8⁻; [24]) null alleles and we analyzed the progeny from crosses between Sp6^+/−;Sp8^+/− double heterozygous mice (Figure 1). Sp6^+/−;Sp8^+/− double heterozygous mice showed no obvious defect in either limb patterning or skeletogenesis, yet displayed subnormal fertility. Skeletal preparations of the neonates recovered from these crosses were used to characterize the limb phenotype; other phenotypic traits will be considered elsewhere.

Animals singly mutant for Sp6 or for Sp8 exhibited their previously described phenotypes including exencephaly and spina bifida in Sp8 mutants [24]–[26]. In our crosses, the majority of Sp8 mutant limbs were truncated at the level of the elbow/knee with the olecranon also present in half of the specimens. Remarkably, in 100% of newborn double mutants both forelimbs and hindlimbs were absent (Figure 1A–C; 3 out of 102). In these mutants, no skeletal elements formed distal to the scapula (Figure 1B). Caudal lumbar vertebrae were highly disorganized and the body appeared truncated caudal to the sacrum with only rudimentary cartilage contributing to the pelvis (Figure 1C and Figure S2). Also, animals in which both copies of the Sp8 gene and one copy of the Sp6 gene had been removed (Sp6^+/−;Sp8^−/−) were always tetra-amelic (Figure 1D–F; 10 out of 102). However, in contrast to double mutants, the pelvic girdles showed undeveloped iliac and ischial anlagen (Figure 1F and Figure S2). The effect of a single functional copy of Sp6 in the morphogenesis of the pelvic girdle is shown in detail in Figure 2.

Mutant mice in which both copies of the Sp6 gene and one copy of the Sp8 gene had been inactivated (Sp6^−/−;Sp8^+/−) had proximal-distal (PD) complete, but extremely malformed, limbs (Figure 1G–I, 11 out of 102). Consistently, the forelimb paw had the “claw-like” appearance typical of split-hand/foot malformation (SHFM) in which anterior digits were hypoplastic or missing and posterior digits were frequently fused (Figure 1G–H–H′). The radius was occasionally absent (Figure 1H′). Hindlimbs showed a more severe phenotype with the zeugopod constantly abnormal (Figure 1I). Although there was some variability, the majority of specimens displayed a misshaped and frequently truncated tibia and a thin fibula surmounted by one or two rows of small skeletal rods that we interpreted as digits (Figure 1I). The phenotype was variable among different animals and within individuals each paw showing specific deficiencies. No left or right severity preference was identified. This phenotype is comparable to the human SHFM, a highly variable malformation that has also been termed ectrodactyly, split hand, cleft hand and lobster claw hand [31]–[34]. Of most interest, the digits in both fore and hindlimbs of Sp6^−/−;Sp8^+/− mutants were bidorsal exhibiting circumferential nails and lacking ventral pads (Figure 1J–K).

In summary, our genetic analysis shows that Sp6/Sp8 transcription factors are together absolutely required for limb development. Furthermore, the data support our hypothesis that Sp6 and Sp8 perform complementary functions in the limb ectoderm. Interestingly, one single functional allele of Sp6 is insufficient, in the absence of an Sp8 allele, to support limb development. In contrast, one single functional allele of Sp8, in the absence of an Sp6 allele, permits development of all three PD segments, although displaying a SHFM phenotype.

Sp8 is expressed at higher level than Sp6 in the limb ectoderm

Since Sp6 and Sp8 display similar temporal and spatial patterns of expression in the limb ectoderm [24]–[26], one possible explanation for the difference in their functional capacity as described above is that Sp8 has specific functions that Sp6 cannot accomplish. However, it is also possible that these functional differences are due to differences in their levels of expression. Thus, to quantify the Sp8 and Sp6 levels of expression in the limb ectoderm we performed a quantitative RT-PCR assay in E10.5 control embryos. Our results showed that Sp8 was expressed more robustly than Sp6 during limb development (Figure 2). Expression of Sp8 was 3 fold higher than expression of Sp6 in the forelimb and 5 fold higher in the hindlimb. Our quantitative analysis also showed that the expression of both Sp6 and Sp8 was higher in the forelimb than in the hindlimb, although it should be noted that the development of the hindlimb is delayed compared to that of the forelimb at this stage, which could account for the forelimb/hindlimb disparity.

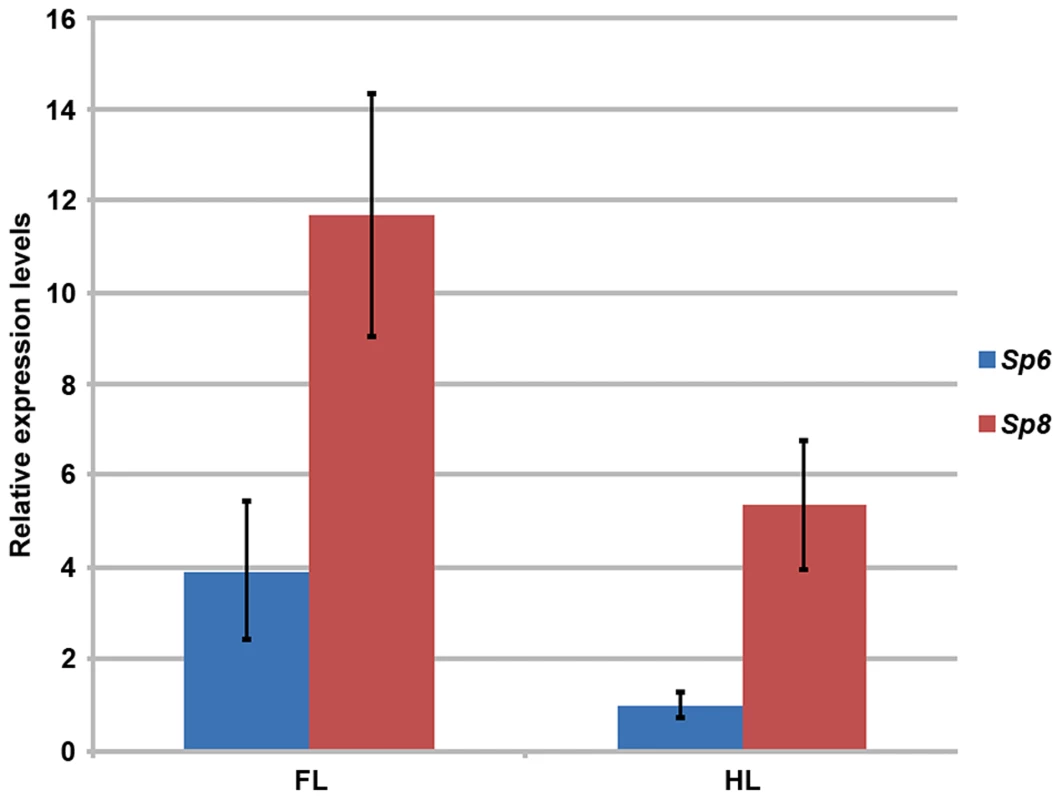

To investigate the basis for the differential level of expression of Sp6 and Sp8 in the limb, we performed an in silico analysis of their putative promoter regions (Figure S3). To enhance the identification of functionally relevant regulatory sequences, we limited our evaluation to regions 5′ of the coding sequences that were conserved across divergent species as determined by the mVista browser [35]. We further screened the conserved regions for potential transcription factor binding sites using Alibaba 2.1 and Sequencher 4.8 and then confirmed conservation between mouse and human. Our analysis identified 12 potential βcatenin/Lef1 binding sites 5′ to the Sp8 coding sequence, whereas Sp6 had only five. This finding provides a potential mechanism for the increased level of Sp8 transcription during limb development. In addition, the presence of 29 potential Sp binding sites in the region containing the putative Sp6 promoter and the 12 present in Sp8 supports a possible cross-regulation between Sp transcription factors as suggested by the lower Sp6 expression in absence of Sp8 (Figure S1). Based on our quantitative and in silico analysis we speculate that Sp8 makes a more substantial contribution to limb development than Sp6 because of a higher level of transcription, a speculation that requires further investigation.

Ap2αCre inactivation of Sp8 on an Sp6 deficient background

When performing the crosses between double heterozygous we found a reduced frequency of pregnancies in double heterozygous females and also that the fraction of double mutant offspring was significantly below the expected 1/16 Mendelian frequency. To circumvent these issues and avoid the neural phenotype from Sp8 null mutants, we used an Sp8 floxed conditional allele (Sp8^f; [36]) to remove it specifically from the limb ectoderm. Among the available lines with Cre activity in the limb ectoderm (Msx2Cre [37]; Brn4Cre [17]; RARCre [38]; AP2αCre [39]; Mox2Cre [40]), we selected the AP2αCre line because it has been reported to drive very early Cre function in both fore and hindlimbs, at least before activation of Fgf8 [41]. Because Sp8 is already expressed at E7.5 in the embryonic ectoderm ([24], [25] and authors' personal observations), we decided to determine in more detail the activity of the AP2α;Cre transgenic line using the ROSA26 reporter strain (R26R; [42]). Our analysis showed AP2α;Cre activity in the early embryonic ectoderm at E8.5 indicating that the removal of the Sp8 floxed allele would occur before limb initiation (Figure S4).

Thus, we used the AP2α;Cre line, the conditional allele of Sp8 and the Sp6 null allele to generate the combined loss of function of Sp6 and Sp8 in the limb ectoderm (Figure S5). As to be expected, the double mutants (Sp6^−/−;Sp8^f/−;AP2αCre) and the mutants that retained a single allele of Sp6 (Sp6^+/−;Sp8^f/−;AP2αCre) were 100% tetra-amelic and showed similar phenotypes to those described above for the double ubiquitous deletions (Figure S5A–F). Also as expected, the Sp6^−/−;Sp8^f/+;AP2αCre genotype exhibited the SHFM phenotype with its typical variability (compare Figure 1H–I with Figure S5H–I). In sum, the limb phenotypes obtained using the Sp8 floxed allele and the AP2αCre line replicated exactly the phenotypes obtained with the constitutive deletions. Finally, it should be noted that the neural phenotype was not rescued in conditional mutants (Figure S5A, 5D) indicating an unanticipated wide overlap between the expression of AP2α and Sp8 in the neural tube (Figure S4).

Msx2Cre inactivation of Sp8 on an Sp6 deficient background

We also inactivated Sp8 from the limb ectoderm using the Msx2;Cre line simultaneously with the inactivation of Sp6. This Msx2;Cre transgenic line has been extensively monitored using the ROSA26 reporter strain [15], [37] and it is known that it drives Cre activity before Fgf8 activation of expression in the hindlimb but after Fgf8 expression and initiation of limb development in the forelimb. We reasoned that the use of this conditional mutant would provide information on the requirement of Sp8 once the early stages of limb initiation have occurred.

First of all we compared the phenotype of the limb conditional Sp8 mutant (Sp8^f/−;Msx2Cre) with that of the Sp8 null mutant (Sp8^−/−) in both forelimbs and hindlimbs (Figure 3A–F). Notwithstanding the variability, the phenotypes using the conditional allele were on average milder than those using the constitutive null allele [24], [25], [30] (Figure 3A–F). In the conditional Sp8^f/−;Msx2Cre mutant, an initial burst of Sp8 expression permitted normal forelimb development up to the wrist and furthermore one or two incomplete posterior digits were formed (Figure 3E). In the hindlimbs, one posterior digit was always present although the tibia frequently appeared truncated (Figure 3F). This improvement in the phenotype (compare Figure 3A–C with Figure 3D–F) indicates that a transient early expression of Sp8 has a considerable impact on both fore and hind limb development.

The conditional removal of Sp8 in the absence of Sp6 (Sp6^−/−;Sp8^f/−;Msx2Cre) resulted in a forelimb truncated at the elbow while the hindlimbs didn't develop (Figure 3G–I). When one copy of Sp6 remained (Sp6^+/−;Sp8^f/−;Msx2Cre) the phenotype notably improved with truncations at the level of the wrist/ankle associated with the formation of an incomplete digit (Figure 3K–L). Finally, when a functional copy of Sp8 remained besides the Sp8 floxed allele (Sp6^−/−;Sp8^+/f;Msx2Cre) the phenotype obtained was SHFM (Figure 3M–O).

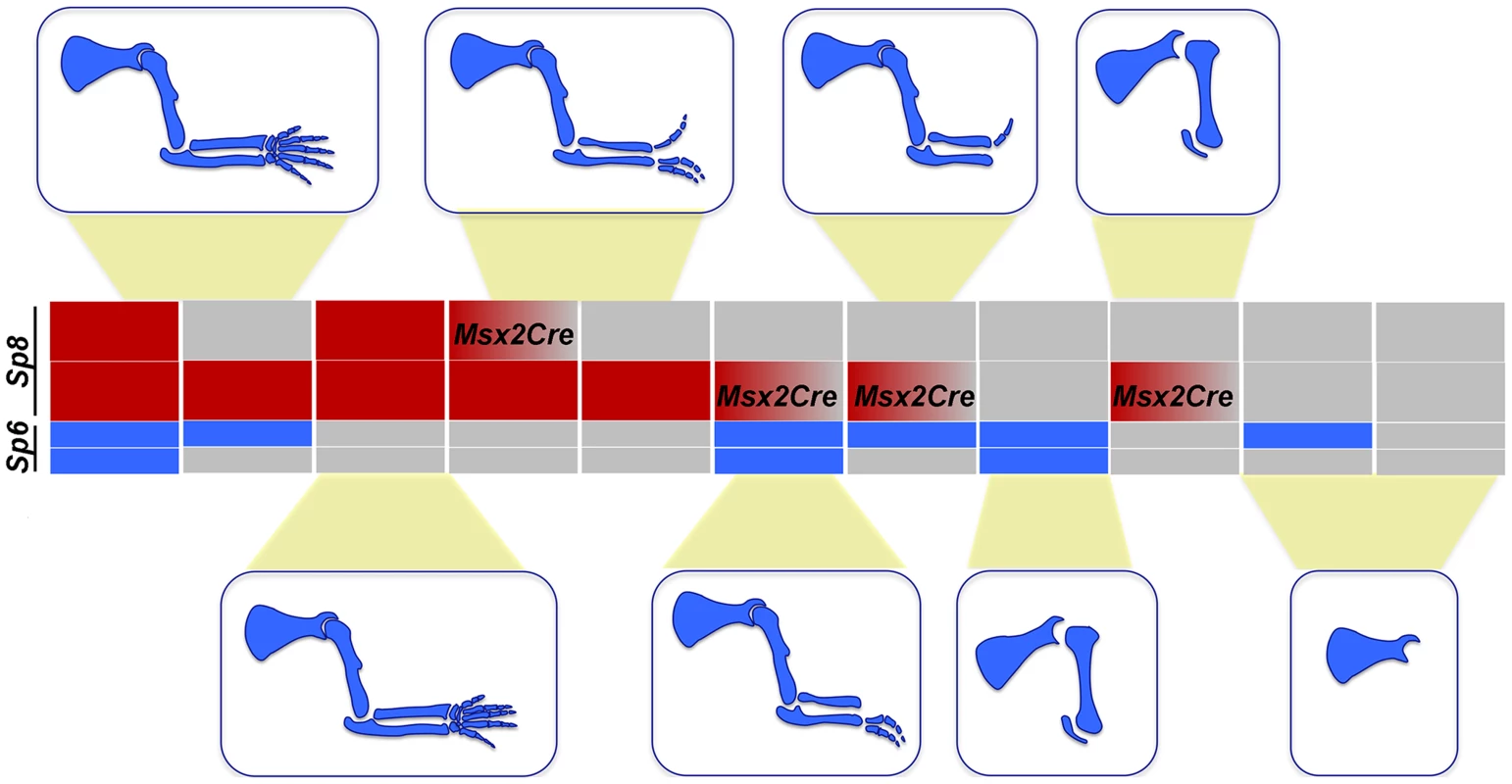

In summary, when the phenotypes of our allelic series are classified according to severity, a clear correlation with the total dosage of Sp6 and Sp8 is observed (Figure 1, 3 and Figure S5). The more parsimonious explanation is that both transcription factors are functionally equivalent during limb development, although Sp8 makes a greater contribution than Sp6 presumably due to a higher level of expression (Figure 2). Our study also suggests that there is a threshold of expression below which no limb forms and that the level of Sp6 expression attained by a single allele of Sp6 is below this threshold.

A functional AER does not develop when the gene dosage of Sp6 and Sp8 is significantly reduced or completely eliminated

Since both Sp6 and Sp8 are involved in the Wnt/βcatenin dependent induction of Fgf8, it seems reasonable to presume that the amelic phenotype of double mutants may rely on a failure to induce a functional AER. Therefore we examined embryonic limbs at the stages when the limb bud is emerging and the AER is being induced. For this analysis we used the Sp6 and Sp8 constitutive null alleles. By E9.5, in the normal limb bud, several genes including Fgf8, Bmp4 and Msx2 are expressed in the ventral limb ectoderm forming the preAER [17], [22], [43]. These AER precursors will become progressively confined to the distal tip as the AER matures [7], [20] (Figure 4A, C, G, I, K, O).

However, in the absence of the four Sp6;Sp8 alleles (Sp6^−/−;Sp8^−/−) or when only one functional allele of Sp6 remained (Sp6^+/−; Sp8^−/−), Fgf8 was never detected in the limb ectoderm at any of the stages analyzed (Figure 4B for E9.5 (25–30 somites); Figure 4J for E10.5 (36–40 somites) and Figure 4P for E11.5). Because these two genotypes always showed identical expression patterns for all the genes analyzed, only the results of Sp6^−/−;Sp8^−/− mutants are shown in the Figures. In contrast to Fgf8, Bmp4 and Bmp2 expression was found to occur normally at E9.5 both in the limb ectoderm and limb mesoderm of double mutants and mutants with a single functional allele of Sp6 (Figure 4C–D). This was confirmed by the expression of Msx2, a bona fide target of Bmp signaling [44], [45] (Figure 4G–H). However, neither Bmp4 (Figure 4K–L) nor Msx2 were maintained in the limb ectoderm by E10.5. Disregarding the absence of Fgf8 expression, initiation of limb development was normal in Sp6^−/−;Sp8^−/− and Sp6^+/−;Sp8^−/− compound mutants with the formation of a small bulge; thus by E9.5 the phenotype was not yet evident (Figure 4A–H).

The current view considers that Fgf10 signaling from the limb mesoderm induces Wnt/βcatenin signaling in the ectoderm and this leads to Fgf8 activation and therefore AER induction in the ectoderm. Subsequently, Fgf8 from the ectoderm signals back to the mesoderm to maintain Fgf10, establishing an Fgf10-Fgf8 positive feedback loop necessary for further outgrowth [11]. Consistent with Sp6 and Sp8 acting downstream of Fgf10 and Wnt/βcatenin signaling, double mutant limb buds normally activated Fgf10 expression in the limb mesenchyme (Figure 4E–F at E9.5). However, due to the failure to activate Fgf8, the emergent limb buds cannot maintain Fgf10 in the limb mesoderm (Figure 4M–N) and regress so that by E11.5 no trace of the limb bud remained (Figure 4O–P).

These results demonstrate the absolute requirement of Sp6/Sp8 for Fgf8 activation in the limb ectoderm and are consistent with Sp6/Sp8 being necessary mediators of Wnt/βcatenin induction of Fgf8. Finally, our results also show that Bmp4 expression in the limb ectoderm, which requires βcatenin [14], [15], can occur in the total absence of Sp6 and Sp8 (this work, see Figure 4C–D) as well as in the absence of significant AER-related Fgf expression [46].

In the absence or significant reduction of Sp6/Sp8, limb development initiates, but later regresses by apoptosis

Next we investigated the reason of the regression of the emerging limb bud in double mutants. The phenotype of the double mutants is reminiscent of the chick mutant limbless. In limbless the limb bud arises normally, but due to the inability to form an AER, the entire bud undergoes cell death and disappears [47], [48]. Also, cell death is a constant feature after the surgical removal of the AER [3], [4] or genetic attenuation of Fgf signaling from the AER [38], [46], [49], [50]. Therefore, we analyzed cell death by TUNEL in our double mutant limb buds.

Abnormal cell death, compared with control littermates, was not detected at E9.5 in Sp6^−/−;Sp8^−/− and Sp6^+/−;Sp8^−/− compound mutants. However, extensive apoptosis was apparent both in the mesoderm and ectoderm of these mutant limb buds by E10.5 (Figure 5A–B). Cell death started and was most prominent in the central region of the bud but apoptotic cells were also observed in the ectoderm particularly at dorsal proximal and ventral level (Figure 5B). This extensive apoptosis can account for the regression of the limb bud and the amelic phenotype as in limbless [47], [48].

AER morphogenesis initiates even in the complete absence or significant reduction of Sp6 and Sp8

In the histological sections of double mutant limb buds we noticed a thickening of the ventral ectoderm that was particularly evident in the TUNEL assays because of the abundant cell death in this region (Figure 5A–B). To analyze this thickening with maximum detail, we performed semithin sections (1 micron thick) of araldite embedded embryos. Transverse sections through double mutant (Sp6^−/−;Sp8^−/−) and Sp6^+/−;Sp8^−/− embryos at the level of the forelimbs showed an irregular thickening of the ventral ectoderm by E10.5 (Figure 5C–D). The thickening didn't span the whole ventral ectoderm but was patchy and sometimes protruded into the mesoderm; it had the appearance of a ventrally positioned and immature AER, in which the apoptotic images were very abundant. To confirm that this thickening was of ectoderm origin, we used immunohistochemistry and confocal microscopy to localize E-Cadherin (Cdh1), which is an epithelial marker, and laminin, a major component of the basement membrane. The double immunohistochemistry demonstrated that the thickening was ectodermal as it expressed Cdh1 and was underlined by a laminin marked basement membrane (Figure 5E–F). To assess the functionality of this thickened ectoderm, we analyzed the expression of Connexin 43 (Cx43), a gap junction protein encoded by the Gja1 gene and considered a marker of the specialized AER ectoderm [51]. In contrast to the high expression present in the wild type AER, Cx43 was not detected above background in the thickened ectoderm of double mutants (Figure 5G–H).

Taken together our results indicate that Sp6/Sp8 factors are absolutely required for a functional AER, but dispensable for initial AER morphology confirming an independence between AER morphology and function.

Absence or significant reduction of Sp6/Sp8 activity in the limb ectoderm disrupts DV patterning

The known relationship between the specification of the AER and DV patterning together with the DV phenotypic alterations present in Sp6^−/− and Sp6^−/−;Sp8^+/− mutants prompted us to analyze the state of DV patterning in our mutants. Furthermore, the ventral position of the mutant AER indicates a failure in the normal morphogenetic movements of the ectoderm that compact the AER, a process in which En1 has been implicated [6], [20]. Thus, we analyzed the expression of two genes relevant to DV patterning, Wnt7a and En1, in consecutive serial limb bud sections.

In the emerging limb bud (E9.25; 22–23 So), before En1 expression is detectable, Wnt7a is normally expressed in the dorsal ectoderm exceeding the mid-distal point of the bud and extending into the ventral ectoderm [7], [23] (author's personal observations). Shortly afterwards, the expression of the pre-AER markers Fgf8 and Bmp4 in the ventral ectoderm and of En1 in the more proximal ventral ectoderm progressively restricts Wnt7a to the dorsal ectoderm (Figure 6A, C).

In double mutant Sp6^−/−; Sp8^−/− and Sp6^+/−;Sp8^−/− embryos, the initial extended expression of Wnt7a was never restricted to the dorsal ectoderm and its expression persisted covering almost the entire limb ectoderm while En1 expression was not detected in the ventral ectoderm (Figure 6B–D, F–H). These results reveal that the absence or significant reduction of Sp6/Sp8 dosage interferes with the normal specification of DV patterning resulting in double dorsal distal limb buds. Our results also show that a virtually normal Bmp signaling in the early limb bud (Figure 4C–D and Figure 4G–H) is not sufficient for En1 expression in the absence of Sp6 and Sp8.

Mutants retaining a single functional allele of Sp8 exhibit a split-hand/foot malformation

The presence of a single allele of Sp8 (Sp6^−/−;Sp8^+/− or Sp6^−/−;Sp8^f/+;AP2αCre or Sp6^−/−;Sp8^f/+;Msx2Cre), was sufficient to allow the elaboration of all three segments along the PD axis, although the autopod was characterized by the loss or malformation of central elements creating a SHFM.

To understand the molecular basis of this phenotype, we analyzed the expression of Fgf8 during limb development in Sp6^−/−;Sp8^+/− mutants. This analysis showed that the AER precursors were irregularly specified in the ventral ectoderm. The whole mount in situ hybridization at E10 showed obvious gaps and irregularities in the area in which Fgf8 should be uniformly expressed (Figure 7A). During further development, the expression of Fgf8 became robust in the posterior AER, but was absent in the central-anterior areas except for a typical spot of residual anterior expression (Figure 7B–C). The expression of Bmp4 in the ectoderm always replicated the same abnormal pattern as Fgf8 (Figure 7A–C). Furthermore, the compaction and maturation of the AER was defective as it remained flat and broad with occasional extensions into the ventral ectoderm (arrow in Figure 7C and 7E′). Thus, in harmony with previous reports [32], [52], [53], the SHFM phenotype in our Sp6^−/−;Sp8^+/− mutants derives from a failure to properly establish and maintain the AER, preferentially in the central to anterior limb region.

In Sp6^−/−;Sp8^+/− mutants the expression of Wnt7a and En1 was consistently abnormal but highly variable even within a single limb bud. Wnt7a was always found to abnormally extend into the ventral ectoderm to a variable degree that always correlated with a complementary ventral expression of En1 (Figure 7D, D′, D″). This was easily appreciated when consecutive sections of the same limb bud were hybridized for Wnt7a and En1 as shown in Figure 7D′ and 7D″. Accordingly, the expression of Lmx1b, the downstream target of Wnt7a responsible for the dorsalization of the dorsal mesoderm [54], was found to variably extend under the flattened and broad AER into the ventral mesoderm distally (Fig. 7E–E′). These molecular alterations explain the bidorsal tips of Sp6^−/−;Sp8^+/− mutants. To ascertain possible DV defects at more proximal levels we performed a histological analysis on transversal sections of E15.5 mutant and control limbs. Our results showed that DV patterning of muscles and tendons were preserved for the most part in the stylopod and zeugopod, but were less well defined in the autopod (Figure 7F–G).

In humans, isolated or non-syndromic SHFM is a genetically heterogeneous developmental disorder of which six loci have been identified [31]–[34]. SHFM Type I, the most frequent variety, is due to a mutation on chromosome 7, in a region that contains the two homeobox genes DLX5 and DLX6 [55]–[57]. SHFM Type IV maps to chromosome 3 and it has been shown that TP63 is the gene involved [31], [58]. Furthermore, it has been shown that Dlx5 and Dlx6 are transcriptional targets of Tp63 [59], [60]. Tp63 is a member of the p53 family of transcription factors crucial for stratified epithelial differentiation [61], [62] and Dlx5 and Dlx6 are members of the family of distalless-related homeodomain transcription factors (Dlx1–Dlx6) that play key roles in limb development. Therefore, we analyzed the expression of Tp63 and Dlx5 and Dlx6 in our SHFM mutants, to determine whether the Tp63 pathway was involved. Our analysis showed that Tp63 and Dlx5 and Dlx6 were normally expressed in the Sp6^−/−;Sp8^+/− mutant except for the flattened AER morphology (Figure 8A–D). Finally, the analysis of double mutants showed that Tp63, Dlx5 and Dlx6 were initially expressed normally in the complete absence of Sp6 and Sp8 (Figure 8E–F) suggesting that if Sp6/Sp8 are components of the Tp63 network, they act downstream of Dlx5 and Dlx6. The expression of Tp63 in Sp6^−/−;Sp8^−/− mutants was further confirmed by immunohistochemistry (Figure 8G–H).

Discussion

Sp6 and Sp8 play complimentary functions in limb development

There are numerous examples in limb development of related genes with similar patterns of expression playing redundant functions and therefore providing robustness to the system. Among these are members of the Fgf, Bmp, and Hox gene families in which the overall final gene dosage is the key parameter for normal morphology [49], [63], [64]. Here, by using a variety of loss-of-function alleles we have identified that Sp6 and Sp8 control AER development and DV patterning in a redundant and dose-dependent manner. However, both genes do not contribute equally which may in part be due to their differential levels of transcription.

Notwithstanding the phenotypic variation associated with each particular genotype, when the predominant phenotypes obtained from the allelic series of compound Sp6 and Sp8 mutants are categorized in order of increasing severity, a strong correlation with gene dosage is observed (schematically shown for the forelimb phenotypes in Figure 9). A progressive reduction in the dose of Sp6 and Sp8 gene products leads to predictable morphology, from syndactyly, to SHFM, oligodactyly, truncation and finally amelia. This comparative analysis shows that the amount of gene product provided by a single functional allele of Sp8 permits the complete development of the PD axis while one functional allele of Sp6 does not, most likely because the gene product provided is below the critical threshold required for AER induction. Both alleles of Sp6 provide less gene product than a single allele of Sp8 and equivalent to a transient expression of one copy of Sp8, as occurs in the forelimb when the Msx2;Cre deleter line is used. Collectively, the data from our allelic series indicate that Sp6 and Sp8 are, for the most part, functionally equivalent and work in concert during limb development.

We found that the putative Sp8 promoter has an increased number of potential βcatenin/Lef1 binding sites compared to Sp6, which might account for the higher levels of Sp8 expression. Interestingly, another member of the Sp family also expressed in the limb ectoderm, Sp9 [27], is unable to promote limb development in the absence of Sp6/Sp8 possibly because of its low level of expression [27]. Supporting this notion, there is a decreased number of βcatenin/Lef1 binding sites within the Sp9 putative promoter region when compared to Sp6.

We also considered whether the differences in Sp functional capacity could be due to structural differences. Comparative analysis of known protein domains and multiple alignment of Sp6, Sp8 and Sp9 revealed variability in the amino ends with the only common domains shared by these transcription factors being the zinc finger domains located in the carboxy ends. No structure-function correlation in the variable amino terminal domains was evident. For example, Sp6 and Sp8 are structurally disparate, but function in a complementary fashion. In contrast, Sp9 is structurally more similar to Sp8, than Sp6 is to Sp8 and yet does not show a complementary function in the limb. Therefore, even though these factors differ in their amino terminal domains, which may be functional in a different context [65], it is reasonable to speculate that in the limb, their functional capacity relies on their level of expression; this remains to be demonstrated.

Sp6 and Sp8 are absolutely necessary for Fgf8 induction and maintenance

Two of the main phenotypic features in our allelic series are truncations and SHFM. Studies in different mouse models and experimental manipulations in chick have established that these phenotypes can result from perturbations in AER functioning [1] and, accordingly, our analysis showed that Sp6/Sp8 are required for the formation and maintenance of a functional AER.

The first phase in the formation of the AER is the induction of AER precursor cells in the limb ectoderm characterized by the expression of Fgf8. This depends on at least three important signaling inputs: i) Fgf10 produced in the limb mesoderm and signaling through the Fgf receptor 2b (Fgfr2b) expressed within the ectoderm [12], [13], [66]–[70], ii) Wnt/βcatenin signaling produced in the limb ectoderm and signaling preferentially to the ventral limb ectoderm [14], [15] and iii) Bmp signaling, mainly from the limb ectoderm, but also possibly from the limb mesoderm that signals through the Bmpr1a receptor in the limb ectoderm [16], [17], [22], [71], [72]. Although the crosstalk between these three inputs is complex and not completely understood, both the Fgf10 and the Bmp signaling pathways have been shown to act upstream of Wnt/βcatenin signaling in the induction of the AER [14], [16].

The analysis we have performed shows that when the dose of Sp6/Sp8 is significantly reduced, Fgf8 is not activated, disregarding initial normal Fgf10 expression and Bmp signaling. Because both Sp6 and Sp8 have been shown to function downstream of Wnt/βcatenin signaling [26], [27], [30], and Sp8 has been shown to bind and activate the Fgf8 promoter [29], our results fit with a model in which Sp6 and Sp8 function as transcriptional activators of Fgf8 downstream of Wnt/βcatenin signaling in the limb ectoderm (Figure 10). Sp6 and Sp8 function together and in a dose-dependent manner as necessary mediators of the Wnt/βcatenin-Fgf8 regulatory loop. Our phenotypic and molecular studies indicate that the level of gene product produced by a single Sp8 allele is around the minimum dose required for the activation and maintenance of Fgf8 expression while that produced by a single Sp6 allele does not reach this minimum.

It is known that the Wnt/βcatenin signaling pathway is not only required for AER induction, but also for its maintenance. The limb truncations observed when, in the absence of Sp6, Sp8 is removed from the forelimb ectoderm after the AER has been induced (Sp6^−/−;Sp8^f/−;Msx2Cre), indicate an ongoing role for Sp8 in AER maintenance, further supporting our model.

Most interestingly, our analysis shows that the complete absence of Sp6 and Sp8 transcription factors does not prevent the initiation of AER morphology confirming the independence between AER function and morphology. This is in high contrast to βcatenin loss-of-function mutants in the limb ectoderm that completely lack any evidence of a morphological AER or ectoderm thickening [14], [15]. This difference may reflect the requirement of βcatenin for a proper AER morphology as has already been suggested [15], [30], [49] and corroborates that the Wnt3/βcatenin-Sp6/Sp8-Fgf8 regulatory loop is not a simple lineal one. Tp63, a crucial factor for AER morphology and Fgf8 maintenance of expression [61], [62], and a well-established target of Wnt/βcatenin in the ectoderm [73] may be at the root of this difference. Characterization of separate Sp6/Sp8 and Tp63 mediated pathways may help to uncouple βcatenin's multiple roles in AER formation and function.

βcatenin is also necessary for the expression of other AER markers (i.e. Bmp4, Msx2 [14], [15]) in addition to Fgf8. Sp6 and Sp8 are necessary for the expression of Fgf8, but Bmp ligands and Msx2 are normally activated in the total absence of Sp6/Sp8. Collectively, these data demonstrate that Sp6 and Sp8 mediate only part of the βcatenin functions in the limb ectoderm, principally the induction of Fgf8.

Recently, it has been shown that a conserved Wnt-Sp8-Fgf8 genetic cassette is also used to regulate the outgrowth of other body appendages such as the genital tubercle [30]. This work identified Sp8 as partially mediating the regulation of Fgf8 by the canonical Wnt/βcatenin pathway, a function that we demonstrate here that is fully accomplished by Sp6 and Sp8 together. Their result showing the failure of forced expression of Sp8 in the AER (R26Sp8;Msx2) to rescue the phenotype of βcatenin loss-of-function in the limb ectoderm is very likely due to Sp8 not reaching, in these experiments, the minimum level of expression required for Fgf8 induction.

Role of Sp6 and Sp8 in dorsal-ventral patterning

During normal development the AER forms at the DV boundary of the limb bud reflecting a tight link between AER formation and DV patterning. Based on the analysis of the limbless, En1 mutants and on misexpression experiments in chick, it was hypothesized that the expression of En1 in the ventral ectoderm might function to establish a DV interface as a prerequisite for AER induction [74], [75]. However, there are several examples of normal AERs forming in the absence of a DV boundary, such as eudiplopodia, the double Wnt7a;En1 mutant and experiments in chick creating bidorsal limbs [19]–[21], [76].

Here we report that DV patterning is also disrupted when the Sp6/Sp8 gene dose is perturbed. In the amelic phenotypes, even if the limb does not form, the molecular analysis of the emerging limb buds indicates that they are bi-dorsal as Wnt7a expression is extended along most of the limb ectoderm while En1 is not detected. Interestingly, the failure to activate En1 occurs despite normal expression of Bmp ligands in the limb ectoderm and mesoderm. In the SHFM phenotypes the digital tips display conical nails. In these limb buds the AER is irregularly induced and where maintained it remains flat, broad and immature. This correlates with an extension of Wnt7a expression into the ventral ectoderm and a proximally restricted expression of En1 [20], [21], [23], [77]. Lmx1b expands into the ventral mesoderm distally explaining the bi-dorsal phenotypic traits in the digits of Sp6^−/−;Sp8^+/− mutants, while DV patterning is largely preserved at more proximal levels.

We found that in the absence of a sufficient amount of Sp6/Sp8 gene products Bmp signaling is not sufficient to induce En1. Sp family members are known to bind and interact with other transcription factors, including Smads. Thus, we hypothesized that Sp6/Sp8 transcription factors interact/cooperate with Smad proteins downstream of Bmp signaling to mediate En1 activation [78], [79] (Figure 10). This interaction could occur at the protein level or by summative or synergistic effects on the En1 promoter. Interestingly, the putative En1 promoter exhibits 25 potential Sp binding sites and 12 Smad binding sites that are conserved between human and mouse. Further investigation will be required to clarify this relationship (Figure S6).

The Sp6;Sp8 double mutant limbs are reminiscent of those of the limbless mutation in chicken. Limbless is a simple Mendelian autosomal recessive mutation characterized by tetra-amelia in the homozygous condition [80]. The mutation causes defects in no other organs, although it is effectively lethal because the chicks are unable to hatch without legs [47], [48]. Limb development initiates in limbless embryos and the early limb buds are morphologically indistinguishable from normal embryos until stage 19. However, the early limb buds are bidorsal and don't form an apical ridge [74], [75], [81]. The limb bud mesoderm undergoes cell death beginning in the mid-distal mesoderm at stage 19–20 so that by stage 24, no signs of limb buds remain [47], [75]. The similarities between our mutant and the limbless mutation may indicate a common target gene. After chromosomal mapping of the limbless mutation, Robb and coworkers [82] suggested Sp8 as a priority candidate. This is reinforced by the fact that Sp6 seems to be absent in chickens (Figure S3). However, further studies to validate this suspicion have not been done. Interestingly, limbless does not display the neural phenotype characteristic of Sp8 mutants, i.e., except for the limb phenotype the embryo is normal. This could be explained by a defect in a limb specific Sp8 regulatory element in limbless. However, the lack of any AER morphology in limbless, in contrast to the double Sp6;Sp8 mutants, decreases the likelihood that Sp8 is the gene targeted.

Sp6 and Sp8 and split hand/foot malformation

In humans, the SHFM is a genetically heterogeneous congenital malformation characterized by a deficit in the formation of the central elements of the hands and feet that results in a central cleft associated with fusion and malformations of the remaining digits. The phenotype is highly variable, even between the limbs of a single affected individual, and ranges from a mild central syndactyly to severe loss of elements with oligodactyly and sometimes even affecting the zeugopod. It is currently accepted that this phenotype is the result of a premature regression of the central part of the AER [52], [53], [59]. Remarkably, the limb phenotype of the embryos that develop with a single copy of Sp8 reproduces the human SHFM condition. The molecular analysis of these mutant limb buds indicates that the product obtained from one allele of Sp8, in the absence of Sp6, barely reaches the threshold required for Fgf8 induction. This is based on the low levels of Fgf8 transcription achieved and also on the irregular expression domain that likely results from a cell autonomous effect of the mutation. Due to normal biologic variation, the level of Sp8 attained may reach the threshold required for Fgf8 induction in some cells, but not in others. Interestingly, at later stages Fgf8 expression is not maintained in central regions suggesting that this later deficit in Fgf8 expression is the cause of the SHFM phenotype in Sp6;Sp8 compound mutants. Since the irregular early activation of Fgf8 has not been observed in other models of SHFM, its possible contribution to the phenotype remains to be investigated [52], [53], [59].

Removal of all known AER-related Bmp ligands (Bmp2, Bmp4 and Bmp7) from the AER using Msx2Cre also results in SHFM [71]. However, in Sp6^−/−;Sp8^+/− mutants, Bmp4 is still expressed in the remaining AER suggesting that this SHFM phenotype is not caused by the loss of Bmp expression in the AER. In fact, since Bmp signalling is required for the induction of Fgf8, the SHFM phenotype following AER-related Bmp removal can also be explained by an irregular induction of Fgf8.

Of great interest is the recent genetic analysis of Fgf8 regulation that has identified nearly 50 Fgf8-regulatory modules in a 220 Kb region centromeric to the gene [83]. All the AER-specific enhancers, many of them embedded in the FBXW4 gene, drive expression all along the AP extension of the AER. Interestingly, SHFM type III [84], [85] is caused by duplications of this genomic region that disrupt the normal architecture of the multiple enhancers likely affecting Fgf8 expression [83]. Therefore, SHFM type III is likely the result of Fgf8 misregulation [83].

As previously mentioned, despite the identification of 6 loci involved in SHFM, only TP63 (SHFM type IV) and DLX5 and DLX6 (SHFM type I) have been unequivocally associated with this malformation [34]. Mutations in WNT10B (SHFM type VI) were also identified to be causative for SHFM, although there is some doubt on whether these mutations are sufficient for the phenotype [86]–[88]. Since similar phenotypes are frequently caused by disruption of different components of a regulatory network, we have considered the possibility that Sp6 and Sp8 genes might be part of the Tp63 network. Indeed, the phenotypes of our mutants are identical, including the DV component, to those recently reported in a new identified human mutation in DLX5 [57]. However, the fact that Tp63, Dlx5 and Dlx6 have essentially normal expression patterns in the early Sp6/Sp8 mutant limb bud indicates that, if Sp6/Sp8 transcription factors act within the Tp63 network, they function downstream of Tp63 and Dlx factors. Tp63 is necessary for the formation and maintenance of a normal epidermal layer [61], [62]. In mouse, removal of Tp63 results in several abnormalities including limb truncations that are most similar to the Sp8-null phenotype [24], [25], [61], [62] suggesting that Tp63 may preferentially control Sp8, but not Sp6 in mice. In any case, the relationship between the Tp63-Dlx and the Sp-Fgf8 regulatory modules, both downstream of Wnt/βcatenin, add an extra level of complexity to limb development that requires further investigation.

Conclusions

This study provides compelling evidence for the absolute requirement of Sp6 and Sp8 for limb development as in their complete absence, or substantial reduction, no limbs form. By using a variety of loss-of-function alleles to remove the activity of Sp6 and Sp8 genes, we reveal that these two factors work together and in a dose-dependent manner as necessary mediators for AER development and DV patterning.

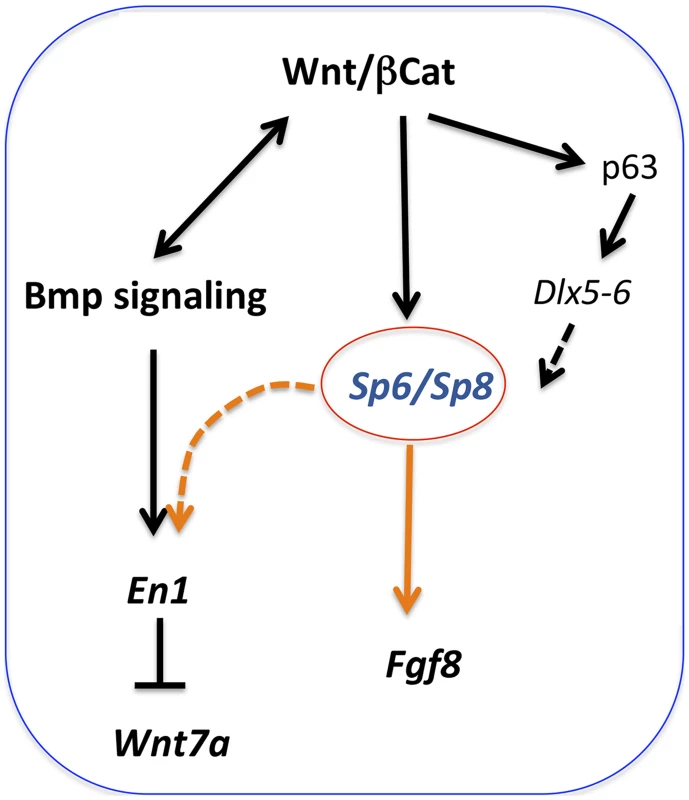

Our study supports a model in which these two factors work together downstream of Wnt/βcatenin signaling in the induction of Fgf8 and also downstream of Bmp signaling in the induction of En1 establishing a link between proximal-distal and dorsal-ventral patterning.

Materials and Methods

Ethics statement and mouse strains

All animal procedures were conducted accordingly to the EU regulations and 3R principles and reviewed and approved by the Bioethics Committee of the University of Cantabria. Mutant mouse lines were described previously: Sp6 null allele [28]; Sp8 null allele [24]; Sp8 floxed allele [36]; AP2αCre [39] and Msx2Cre lines [37]; R26R [42]. Mice and embryos were genotyped by PCR, using genomic DNA extracted from tail biopsies and yolk sacs, respectively.

Skeletal preparation

After removing skin and viscera, mouse embryos were fixed in 95% ethanol. Alizarin Red and Alcian blue skeletal staining was performed according to standard protocols, cleared by KOH treatment and stored in glycerol.

In situ hybridization

In situ hybridization (ISH) was performed in whole-mount and in sections following standard procedures using the previously described Bmp4 [64], Dlx5 and Dlx6 [53], En1 [23] Fgf8 [43], Fgf10 [89], Lmx1b [90], Msx2 [91], Tp63 [62], Sp6 [28] and Wnt7a [92] antisense riboprobes.

RNA quantification by real-time PCR

Embryonic fore and hind- limb buds were dissected in cold RNAse-free PBS from E10.5 wild type embryos. Total RNA was isolated separately from 3 pools of 8 forelimbs or 8 hindlimbs each. cDNA synthesis was done using standard conditions.

Real-time RT-PCR was carried out on an Mx3005P cycler, using the SYBRGreen PCR Master Mix (Invitrogen) and the data were analyzed using the MxPro software (Stratagene). Results were tested statistically performing ANOVA and Student-T test, being statistically significant when p<0.05.

Expression of Sp6 and Sp8 was normalized to that of housekeeping gene 18sRNA. The primers used (5′ to 3′ orientation) were: Sp6-F: tgctaaccgctgtctgtgg; Sp6-R:ctggtatgtctggagaggttgc; Sp8-F: ttatctccaaggtgcacacg; Sp8-R:gcttgaaccaggactcatacg; 18sRNA-R: ttggcaatgtttcgctc;18sRNA-F: cgccgctagaggtgaaattt.

Cell death assay

Detection of cell death was performed in sections of paraffin embedded tissue using terminal deoxynucleotidyl transferase mediated dUTP nick-end labelling (TUNEL) with the Apoptag Fluorescein Direct In Situ Apoptosis Detection Kit (Intergen) following the manufacturer's instructions.

β-gal reporter analysis

For detection of β-galactosidase activity, R26R;Ap2αCre double transgenic embryos were fixed for 30 min, rinsed in PBS and incubated in the presence of X-gal as described [93].

Immunohistochemistry

Immunohistochemistry was performed in paraffin sections using the anti E-cadherin (Byoscience, # 610182), anti Laminin (Abcam, # ab11575), anti Tp63 (Abcam, # Ab53039) and anti Connexin43 (Abcam, # ab11370) primary antibodies. Antigen retrieval was performed by incubation with proteinase K (10 µg/ml) for E-cadherin and laminin or with citrate buffer in pressure cooker for Tp63 and Connexin43. Alexa®488 and TexasRED fluorescently tagged secondary antibodies were used. Vecthasield containing DAPI for nuclear counter staining was used as mounting medium. Confocal images were acquired in a SP-5 laser-scan confocal microscope (Leica Microsystems).

In silico analysis

Conservation of En1, Sp6 and Sp8 loci between mouse, human, opossum, chicken and zebrafish was determined using pairwise alignment software (mVista browser, http://genome.lbl.gov/vista/). Conserved noncoding regions were further analyzed for potential transcription factor binding sites using AliBaba 2.1 (http://www.generegulation.com/pub/programs/alibaba2/index.html) and Sequencher 4.8 (Gene Codes Inc.) informatic software.
